#include <View.h>

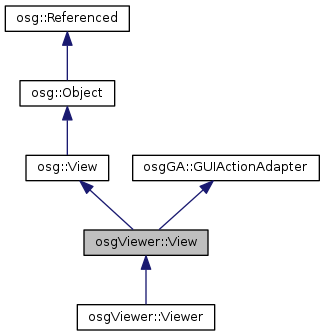

Inheritance diagram for osgViewer::View:

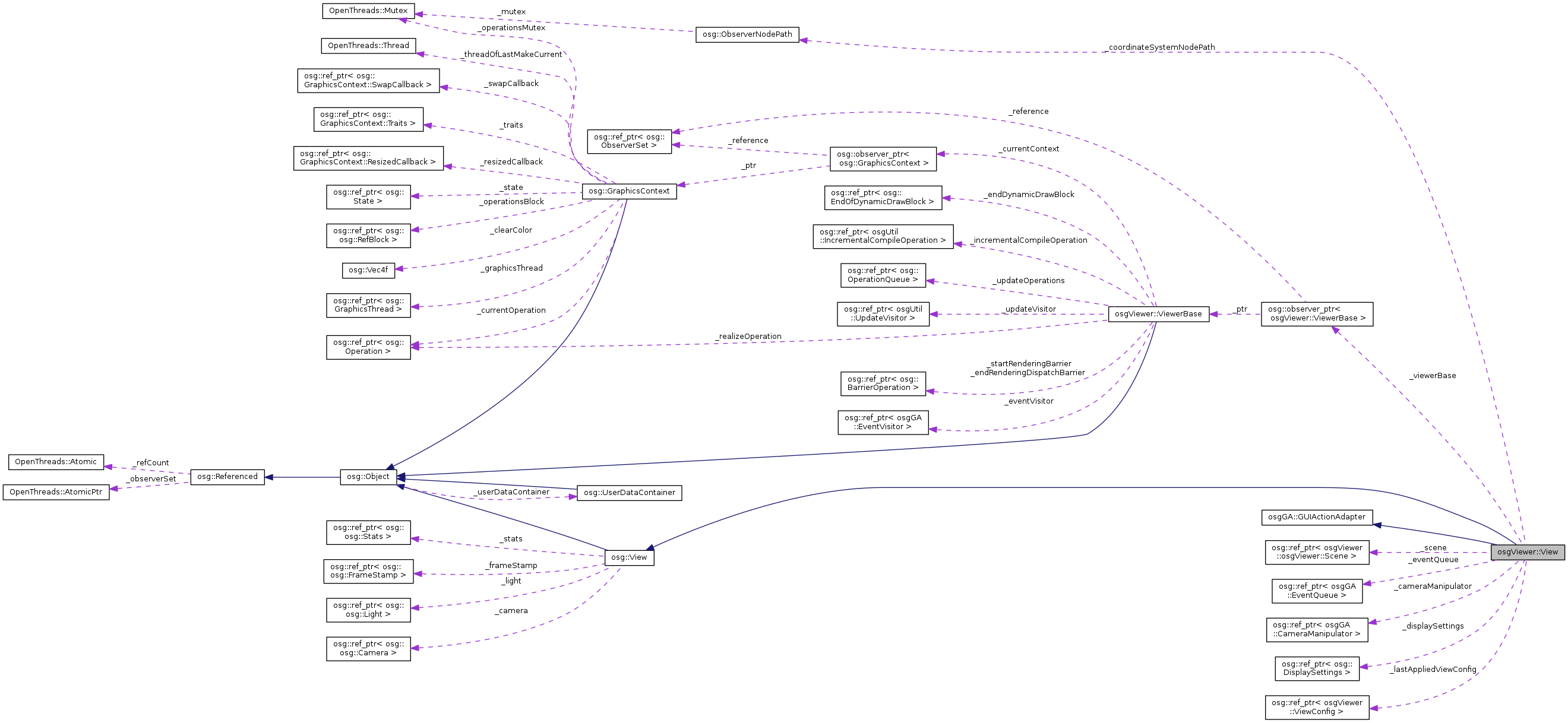

Collaboration diagram for osgViewer::View:

Classes
struct	StereoSlaveCallback

Public Types
typedef std::list < osg::ref_ptr < osgGA::EventHandler > >	EventHandlers

Public Types inherited from osg::View
enum	LightingMode { NO_LIGHT, HEADLIGHT, SKY_LIGHT }

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	View ()

	View (const osgViewer::View &view, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgViewer, View)

virtual osg::View *	asView ()

ViewerBase *	getViewerBase ()

virtual void	take (osg::View &rhs)

virtual void	setStartTick (osg::Timer_t tick)

osg::Timer_t	getStartTick () const

Scene *	getScene ()

const Scene *	getScene () const

virtual void	setSceneData (osg::Node *node)

osg::Node *	getSceneData ()

const osg::Node *	getSceneData () const

void	setDatabasePager (osgDB::DatabasePager *dp)

osgDB::DatabasePager *	getDatabasePager ()

const osgDB::DatabasePager *	getDatabasePager () const

void	setImagePager (osgDB::ImagePager *ip)

osgDB::ImagePager *	getImagePager ()

const osgDB::ImagePager *	getImagePager () const

void	addDevice (osgGA::Device *eventSource)

void	setEventQueue (osgGA::EventQueue *eventQueue)

osgGA::EventQueue *	getEventQueue ()

const osgGA::EventQueue *	getEventQueue () const

void	setCameraManipulator (osgGA::CameraManipulator *manipulator, bool resetPosition=true)

osgGA::CameraManipulator *	getCameraManipulator ()

const osgGA::CameraManipulator *	getCameraManipulator () const

void	home ()

void	addEventHandler (osgGA::EventHandler *eventHandler)

void	removeEventHandler (osgGA::EventHandler *eventHandler)

EventHandlers &	getEventHandlers ()

const EventHandlers &	getEventHandlers () const

void	setCoordinateSystemNodePath (const osg::NodePath &nodePath)

osg::NodePath	getCoordinateSystemNodePath () const

void	computeActiveCoordinateSystemNodePath ()

void	setDisplaySettings (osg::DisplaySettings *ds)

osg::DisplaySettings *	getDisplaySettings ()

const osg::DisplaySettings *	getDisplaySettings () const

void	setFusionDistance (osgUtil::SceneView::FusionDistanceMode mode, float value=1.0f)

osgUtil::SceneView::FusionDistanceMode	getFusionDistanceMode () const

float	getFusionDistanceValue () const

void	apply (ViewConfig *config)

ViewConfig *	getLastAppliedViewConfig ()

const ViewConfig *	getLastAppliedViewConfig () const

void	setUpViewAcrossAllScreens ()

void	setUpViewInWindow (int x, int y, int width, int height, unsigned int screenNum=0)

void	setUpViewOnSingleScreen (unsigned int screenNum=0)

void	setUpViewFor3DSphericalDisplay (double radius=1.0, double collar=0.45, unsigned int screenNum=0, osg::Image *intensityMap=0, const osg::Matrixd &projectorMatrix=osg::Matrixd())

void	setUpViewForPanoramicSphericalDisplay (double radius=1.0, double collar=0.45, unsigned int screenNum=0, osg::Image *intensityMap=0, const osg::Matrixd &projectorMatrix=osg::Matrixd())

void	setUpViewForWoWVxDisplay (unsigned int screenNum, unsigned char wow_content, unsigned char wow_factor, unsigned char wow_offset, float wow_disparity_Zd, float wow_disparity_vz, float wow_disparity_M, float wow_disparity_C)

bool	setUpDepthPartitionForCamera (osg::Camera cameraToPartition, DepthPartitionSettings dps=0)

bool	setUpDepthPartition (DepthPartitionSettings *dsp=0)

bool	containsCamera (const osg::Camera *camera) const

const osg::Camera *	getCameraContainingPosition (float x, float y, float &local_x, float &local_y) const

bool	computeIntersections (float x, float y, osgUtil::LineSegmentIntersector::Intersections &intersections, osg::Node::NodeMask traversalMask=0xffffffff)

bool	computeIntersections (float x, float y, const osg::NodePath &nodePath, osgUtil::LineSegmentIntersector::Intersections &intersections, osg::Node::NodeMask traversalMask=0xffffffff)

bool	computeIntersections (const osgGA::GUIEventAdapter &ea, osgUtil::LineSegmentIntersector::Intersections &intersections, osg::Node::NodeMask traversalMask=0xffffffff)

bool	computeIntersections (const osgGA::GUIEventAdapter &ea, const osg::NodePath &nodePath, osgUtil::LineSegmentIntersector::Intersections &intersections, osg::Node::NodeMask traversalMask=0xffffffff)

bool	computeIntersections (const osg::Camera *camera, osgUtil::Intersector::CoordinateFrame cf, float x, float y, osgUtil::LineSegmentIntersector::Intersections &intersections, osg::Node::NodeMask traversalMask=0xffffffff)

bool	computeIntersections (const osg::Camera *camera, osgUtil::Intersector::CoordinateFrame cf, float x, float y, const osg::NodePath &nodePath, osgUtil::LineSegmentIntersector::Intersections &intersections, osg::Node::NodeMask traversalMask=0xffffffff)

virtual void	requestRedraw ()

virtual void	requestContinuousUpdate (bool needed=true)

virtual void	requestWarpPointer (float x, float y)

osg::Texture *	createDistortionTexture (int width, int height)

osg::Camera *	assignRenderToTextureCamera (osg::GraphicsContext gc, int width, int height, osg::Texture texture)

osg::Camera *	assignKeystoneDistortionCamera (osg::DisplaySettings ds, osg::GraphicsContext gc, int x, int y, int width, int height, GLenum buffer, osg::Texture texture, Keystone keystone)

osg::Camera *	assignStereoCamera (osg::DisplaySettings ds, osg::GraphicsContext gc, int x, int y, int width, int height, GLenum buffer, double eyeScale)

void	assignStereoOrKeystoneToCamera (osg::Camera camera, osg::DisplaySettings ds)

void	assignSceneDataToCameras ()

void	init ()

Public Member Functions inherited from osg::View
	View ()

	View (const osg::View &view, const osg::CopyOp &copyop=CopyOp::SHALLOW_COPY)

	META_Object (osg, View)

void	setStats (osg::Stats *stats)

osg::Stats *	getStats ()

const osg::Stats *	getStats () const

void	setLightingMode (LightingMode lightingMode)

LightingMode	getLightingMode () const

void	setLight (osg::Light *light)

osg::Light *	getLight ()

const osg::Light *	getLight () const

void	setCamera (osg::Camera *camera)

osg::Camera *	getCamera ()

const osg::Camera *	getCamera () const

void	setFrameStamp (osg::FrameStamp *fs)

osg::FrameStamp *	getFrameStamp ()

const osg::FrameStamp *	getFrameStamp () const

bool	addSlave (osg::Camera *camera, bool useMastersSceneData=true)

bool	addSlave (osg::Camera *camera, const osg::Matrix &projectionOffset, const osg::Matrix &viewOffset, bool useMastersSceneData=true)

bool	removeSlave (unsigned int pos)

unsigned int	getNumSlaves () const

Slave &	getSlave (unsigned int pos)

const Slave &	getSlave (unsigned int pos) const

unsigned int	findSlaveIndexForCamera (osg::Camera *camera) const

Slave *	findSlaveForCamera (osg::Camera *camera)

void	updateSlaves ()

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

virtual bool	isSameKindAs (const Object *) const

virtual const char *	libraryName () const =0

virtual const char *	className () const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Public Member Functions inherited from osgGA::GUIActionAdapter
virtual	~GUIActionAdapter ()

Protected Member Functions
virtual	~View ()

virtual osg::GraphicsOperation *	createRenderer (osg::Camera *camera)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
osg::observer_ptr< ViewerBase >	_viewerBase

osg::Timer_t	_startTick

Devices	_eventSources

osg::ref_ptr< osgViewer::Scene >	_scene

osg::ref_ptr< osgGA::EventQueue >	_eventQueue

osg::ref_ptr < osgGA::CameraManipulator >	_cameraManipulator

EventHandlers	_eventHandlers

osg::ObserverNodePath	_coordinateSystemNodePath

osg::ref_ptr < osg::DisplaySettings >	_displaySettings

osgUtil::SceneView::FusionDistanceMode	_fusionDistanceMode

float	_fusionDistanceValue

osg::ref_ptr< ViewConfig >	_lastAppliedViewConfig

Protected Attributes inherited from osg::View
osg::ref_ptr< osg::Stats >	_stats

LightingMode	_lightingMode

osg::ref_ptr< osg::Light >	_light

osg::ref_ptr< osg::Camera >	_camera

Slaves	_slaves

osg::ref_ptr< osg::FrameStamp >	_frameStamp

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Friends
class	CompositeViewer

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Types inherited from osg::View
typedef std::vector< Slave >	Slaves

Detailed Description

View holds a single view on a scene, this view may be composed of one or more slave cameras.

Definition at line 75 of file View.h.

Member Typedef Documentation

typedef std::list< osg::ref_ptr<osgGA::EventHandler> > osgViewer::View::EventHandlers

Definition at line 170 of file View.h.

Constructor & Destructor Documentation

osgViewer::View::View ( )

osgViewer::View::View	(	const osgViewer::View &	view,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)

virtual osgViewer::View::~View ( )

protectedvirtual

Reimplemented from osg::View.

Member Function Documentation

void osgViewer::View::addDevice ( osgGA::Device * eventSource )

Add a Device. The Device is polled on each new frame via it's Device::checkEvents() method and any events generated then collected via Device::getEventQueue()

void osgViewer::View::addEventHandler ( osgGA::EventHandler * eventHandler )

Add an EventHandler that adds handling of events to the View.

void osgViewer::View::apply ( ViewConfig * config )

Apply a viewer configuration to set up Cameras and Windowing.

osg::Camera* osgViewer::View::assignKeystoneDistortionCamera	(	osg::DisplaySettings *	ds,
		osg::GraphicsContext *	gc,
		int	x,
		int	y,
		int	width,
		int	height,
		GLenum	buffer,
		osg::Texture *	texture,
		Keystone *	keystone
	)

osg::Camera* osgViewer::View::assignRenderToTextureCamera	(	osg::GraphicsContext *	gc,
		int	width,
		int	height,
		osg::Texture *	texture
	)

void osgViewer::View::assignSceneDataToCameras ( )

osg::Camera* osgViewer::View::assignStereoCamera	(	osg::DisplaySettings *	ds,
		osg::GraphicsContext *	gc,
		int	x,
		int	y,
		int	width,
		int	height,
		GLenum	buffer,
		double	eyeScale
	)

void osgViewer::View::assignStereoOrKeystoneToCamera	(	osg::Camera *	camera,
		osg::DisplaySettings *	ds
	)

virtual osg::View* osgViewer::View::asView ( )

inlinevirtual

Provide a mechanism for getting the osg::View associated from the GUIActionAdapter. One would use this to case view to osgViewer::View(er) if supported by the subclass.

Reimplemented from osgGA::GUIActionAdapter.

Definition at line 87 of file View.h.

void osgViewer::View::computeActiveCoordinateSystemNodePath ( )

Compute the NodePath to any active CoordinateSystemNode present in the Scene.

bool osgViewer::View::computeIntersections	(	float	x,
		float	y,
		osgUtil::LineSegmentIntersector::Intersections &	intersections,
		osg::Node::NodeMask	traversalMask = `0xffffffff`
	)

deprecated.

bool osgViewer::View::computeIntersections	(	float	x,
		float	y,
		const osg::NodePath &	nodePath,
		osgUtil::LineSegmentIntersector::Intersections &	intersections,
		osg::Node::NodeMask	traversalMask = `0xffffffff`
	)

deprecated.

bool osgViewer::View::computeIntersections	(	const osgGA::GUIEventAdapter &	ea,
		osgUtil::LineSegmentIntersector::Intersections &	intersections,
		osg::Node::NodeMask	traversalMask = `0xffffffff`
	)

virtual

Compute intersections of a ray, starting the current mouse position, through the specified camera.

Reimplemented from osgGA::GUIActionAdapter.

bool osgViewer::View::computeIntersections	(	const osgGA::GUIEventAdapter &	ea,
		const osg::NodePath &	nodePath,
		osgUtil::LineSegmentIntersector::Intersections &	intersections,
		osg::Node::NodeMask	traversalMask = `0xffffffff`
	)

virtual

Compute intersections of a ray, starting the current mouse position, through the specified master camera's window/eye coordinates and a specified nodePath's subgraph.

Reimplemented from osgGA::GUIActionAdapter.

bool osgViewer::View::computeIntersections	(	const osg::Camera *	camera,
		osgUtil::Intersector::CoordinateFrame	cf,
		float	x,
		float	y,
		osgUtil::LineSegmentIntersector::Intersections &	intersections,
		osg::Node::NodeMask	traversalMask = `0xffffffff`
	)

Compute intersections of a ray through the specified camera.

bool osgViewer::View::computeIntersections	(	const osg::Camera *	camera,
		osgUtil::Intersector::CoordinateFrame	cf,
		float	x,
		float	y,
		const osg::NodePath &	nodePath,
		osgUtil::LineSegmentIntersector::Intersections &	intersections,
		osg::Node::NodeMask	traversalMask = `0xffffffff`
	)

Compute intersections of a ray through the specified camera and a specified nodePath's subgraph.

bool osgViewer::View::containsCamera ( const osg::Camera * camera ) const

Return true if this view contains a specified camera.

osg::Texture* osgViewer::View::createDistortionTexture	(	int	width,
		int	height
	)

virtual osg::GraphicsOperation* osgViewer::View::createRenderer ( osg::Camera * camera )

protectedvirtual

Reimplemented from osg::View.

const osg::Camera* osgViewer::View::getCameraContainingPosition	(	float	x,
		float	y,
		float &	local_x,
		float &	local_y
	)		const

deprecated.

osgGA::CameraManipulator* osgViewer::View::getCameraManipulator ( )

inline

Get the View's CameraManipulator.

Definition at line 160 of file View.h.

const osgGA::CameraManipulator* osgViewer::View::getCameraManipulator ( ) const

inline

Get the const View's CameraManipulator.

Definition at line 163 of file View.h.

osg::NodePath osgViewer::View::getCoordinateSystemNodePath ( ) const

Get the NodePath to any active CoordinateSystemNode present in the Scene.

osgDB::DatabasePager* osgViewer::View::getDatabasePager ( )

Get the View's database pager.

const osgDB::DatabasePager* osgViewer::View::getDatabasePager ( ) const

Get the const View's database pager.

osg::DisplaySettings* osgViewer::View::getDisplaySettings ( )

inline

Set the DisplaySettings object associated with this view.

Definition at line 201 of file View.h.

const osg::DisplaySettings* osgViewer::View::getDisplaySettings ( ) const

inline

Set the DisplaySettings object associated with this view.

Definition at line 204 of file View.h.

EventHandlers& osgViewer::View::getEventHandlers ( )

inline

Get the View's list of EventHandlers.

Definition at line 179 of file View.h.

const EventHandlers& osgViewer::View::getEventHandlers ( ) const

inline

Get the const View's list of EventHandlers.

Definition at line 182 of file View.h.

osgGA::EventQueue* osgViewer::View::getEventQueue ( )

inline

Definition at line 150 of file View.h.

const osgGA::EventQueue* osgViewer::View::getEventQueue ( ) const

inline

Definition at line 153 of file View.h.

osgUtil::SceneView::FusionDistanceMode osgViewer::View::getFusionDistanceMode ( ) const

inline

Get the FusionDistanceMode.

Definition at line 214 of file View.h.

float osgViewer::View::getFusionDistanceValue ( ) const

inline

Get the FusionDistanceValue. Note, only used for USE_FUSION_DISTANCE_VALUE & PROPORTIONAL_TO_SCREEN_DISTANCE modes.

Definition at line 217 of file View.h.

osgDB::ImagePager* osgViewer::View::getImagePager ( )

Get the View's image pager.

const osgDB::ImagePager* osgViewer::View::getImagePager ( ) const

Get the const View's image pager.

ViewConfig* osgViewer::View::getLastAppliedViewConfig ( )

inline

Definition at line 223 of file View.h.

const ViewConfig* osgViewer::View::getLastAppliedViewConfig ( ) const

inline

Definition at line 224 of file View.h.

Scene* osgViewer::View::getScene ( )

inline

Definition at line 100 of file View.h.

const Scene* osgViewer::View::getScene ( ) const

inline

Definition at line 101 of file View.h.

osg::Node* osgViewer::View::getSceneData ( )

inline

Get the View's scene graph.

Definition at line 107 of file View.h.

const osg::Node* osgViewer::View::getSceneData ( ) const

inline

Get the const View's scene graph.

Definition at line 110 of file View.h.

osg::Timer_t osgViewer::View::getStartTick ( ) const

inline

Definition at line 98 of file View.h.

ViewerBase* osgViewer::View::getViewerBase ( )

inline

Provide a mechanism for getting the viewer object from this osgViewer::View. In the case of a osgViewer::Viewer the ViewerBase will effectively point to this object as Viewer subclasses from View. In the case of a osgViewer::CompsoiteViewer the ViewerBase will point to the CompositeViewer that owns this View.

Definition at line 92 of file View.h.

void osgViewer::View::home ( )

Set the view to the CameraManipulator's home position, if none is attached home() it does nothing. Note, to set the home position use getCamaraManipulator()->setHomePosition(...).

void osgViewer::View::init ( )

osgViewer::View::META_Object	(	osgViewer	,
		View
	)

void osgViewer::View::removeEventHandler ( osgGA::EventHandler * eventHandler )

Remove an EventHandler from View.

virtual void osgViewer::View::requestContinuousUpdate ( bool needed = true )

virtual

requestContinuousUpdate(bool) is for en/disabling a throw or idle callback to be requested by a GUIEventHandler (typically a CameraManipulator, though other GUIEventHandler's may also provide functionality). GUI toolkits can respond to this immediately by registering an idle/timed callback, or can delay setting the callback and update at their own leisure.

Implements osgGA::GUIActionAdapter.

virtual void osgViewer::View::requestRedraw ( )

virtual

requestRedraw() requests a single redraw.

Implements osgGA::GUIActionAdapter.

virtual void osgViewer::View::requestWarpPointer	(	float	x,
		float	y
	)

virtual

requestWarpPointer(int,int) is requesting a repositioning of the mouse pointer to a specified x,y location on the window. This is used by some camera manipulators to initialise the mouse pointer when mouse position relative to a controls neutral mouse position is required, i.e when mimicking an aircraft joystick.

Implements osgGA::GUIActionAdapter.

void osgViewer::View::setCameraManipulator	(	osgGA::CameraManipulator *	manipulator,
		bool	resetPosition = `true`
	)

Set the CameraManipulator that moves the View's master Camera position in response to events. The parameter resetPosition determines whether manipulator is set to its home position.

void osgViewer::View::setCoordinateSystemNodePath ( const osg::NodePath & nodePath )

Set the NodePath to any active CoordinateSystemNode present in the Scene. The CoordinateSystemNode path is used to help applications and CamaraManipulators handle geocentric coordinates systems, so that the local up direction is known at any position on the whole earth.

void osgViewer::View::setDatabasePager ( osgDB::DatabasePager * dp )

Set the View's database pager.

void osgViewer::View::setDisplaySettings ( osg::DisplaySettings * ds )

inline

Set the DisplaySettings object associated with this view.

Definition at line 198 of file View.h.

void osgViewer::View::setEventQueue ( osgGA::EventQueue * eventQueue )

inline

Remove a Device. /*/ void removeDevice(osgGA::Device* eventSource);

typedef std::vector< osg::ref_ptr<osgGA::Device> > Devices;

Devices& getDevices() { return _eventSources; } const Devices& getDevices() const { return _eventSources; }

/* Set the EventQueue that the View uses to integrate external non window related events.

Definition at line 147 of file View.h.

void osgViewer::View::setFusionDistance	(	osgUtil::SceneView::FusionDistanceMode	mode,
		float	value = `1.0f`
	)

inline

Set the FusionDistanceMode and Value. Note, only used when working in stereo.

Definition at line 207 of file View.h.

void osgViewer::View::setImagePager ( osgDB::ImagePager * ip )

Set the View's image pager.

virtual void osgViewer::View::setSceneData ( osg::Node * node )

virtual

Set the scene graph that the View will use.

Reimplemented in osgViewer::Viewer.

virtual void osgViewer::View::setStartTick ( osg::Timer_t tick )

virtual

Reimplemented in osgViewer::Viewer.

bool osgViewer::View::setUpDepthPartition ( DepthPartitionSettings * dsp = 0 )

Convenience method for setting up multiple slave cameras with depth partitioning on each of the view's active cameras.

bool osgViewer::View::setUpDepthPartitionForCamera	(	osg::Camera *	cameraToPartition,
		DepthPartitionSettings *	dps = `0`
	)

Convenience method for setting up depth partitioning on the specified camera.

void osgViewer::View::setUpViewAcrossAllScreens ( )

deprecated, use view.apply(new osgViewer::AcrossAllWindows()).

void osgViewer::View::setUpViewFor3DSphericalDisplay	(	double	radius = `1.0`,
		double	collar = `0.45`,
		unsigned int	screenNum = `0`,
		osg::Image *	intensityMap = `0`,
		const osg::Matrixd &	projectorMatrix = `osg::Matrixd()`
	)

deprecated, use view.apply(new osgViewer::SphericalDisplay(radius, collar, screenNum, intensityMap, projectorMatrix)).

void osgViewer::View::setUpViewForPanoramicSphericalDisplay	(	double	radius = `1.0`,
		double	collar = `0.45`,
		unsigned int	screenNum = `0`,
		osg::Image *	intensityMap = `0`,
		const osg::Matrixd &	projectorMatrix = `osg::Matrixd()`
	)

deprecated, use view.apply(new osgViewer::PanoramicSphericalDisplay(radius, collar, screenNum, intensityMap, projectorMatrix)).

void osgViewer::View::setUpViewForWoWVxDisplay	(	unsigned int	screenNum,
		unsigned char	wow_content,
		unsigned char	wow_factor,
		unsigned char	wow_offset,
		float	wow_disparity_Zd,
		float	wow_disparity_vz,
		float	wow_disparity_M,
		float	wow_disparity_C
	)

deprecated. use view.apply(new osgViewer::WoWVxDisplay(type (20 to 42), screenNum).

void osgViewer::View::setUpViewInWindow	(	int	x,
		int	y,
		int	width,
		int	height,
		unsigned int	screenNum = `0`
	)

deprecated, use view.apply(new osgViewer::SingleWindow(x,y,width,screenNum)).

void osgViewer::View::setUpViewOnSingleScreen ( unsigned int screenNum = 0 )

deprecated, use view.apply(new osgViewer::SingleScreen(screenNum)).

virtual void osgViewer::View::take ( osg::View & rhs )

virtual

Take all the settings, Camera and Slaves from the passed in view, leaving it empty.

Reimplemented from osg::View.

Reimplemented in osgViewer::Viewer.

Friends And Related Function Documentation

friend class CompositeViewer

friend

Definition at line 312 of file View.h.

Member Data Documentation

osg::ref_ptr<osgGA::CameraManipulator> osgViewer::View::_cameraManipulator

protected

Definition at line 327 of file View.h.

osg::ObserverNodePath osgViewer::View::_coordinateSystemNodePath

protected

Definition at line 330 of file View.h.

osg::ref_ptr<osg::DisplaySettings> osgViewer::View::_displaySettings

protected

Definition at line 332 of file View.h.

EventHandlers osgViewer::View::_eventHandlers

protected

Definition at line 328 of file View.h.

osg::ref_ptr<osgGA::EventQueue> osgViewer::View::_eventQueue

protected

Definition at line 326 of file View.h.

Devices osgViewer::View::_eventSources

protected

Definition at line 323 of file View.h.

osgUtil::SceneView::FusionDistanceMode osgViewer::View::_fusionDistanceMode

protected

Definition at line 333 of file View.h.

float osgViewer::View::_fusionDistanceValue

protected

Definition at line 334 of file View.h.

osg::ref_ptr<ViewConfig> osgViewer::View::_lastAppliedViewConfig

protected

Definition at line 336 of file View.h.

osg::ref_ptr<osgViewer::Scene> osgViewer::View::_scene

protected

Definition at line 325 of file View.h.

osg::Timer_t osgViewer::View::_startTick

protected

Definition at line 321 of file View.h.

osg::observer_ptr<ViewerBase> osgViewer::View::_viewerBase

protected

Definition at line 318 of file View.h.

The documentation for this class was generated from the following file:

osg_head/include/osgViewer/View.h

Classes

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
