osgGA::GUIEventAdapter Class Reference

#include <GUIEventAdapter.h>

Inheritance diagram for osgGA::GUIEventAdapter:
Inheritance graph
[legend]

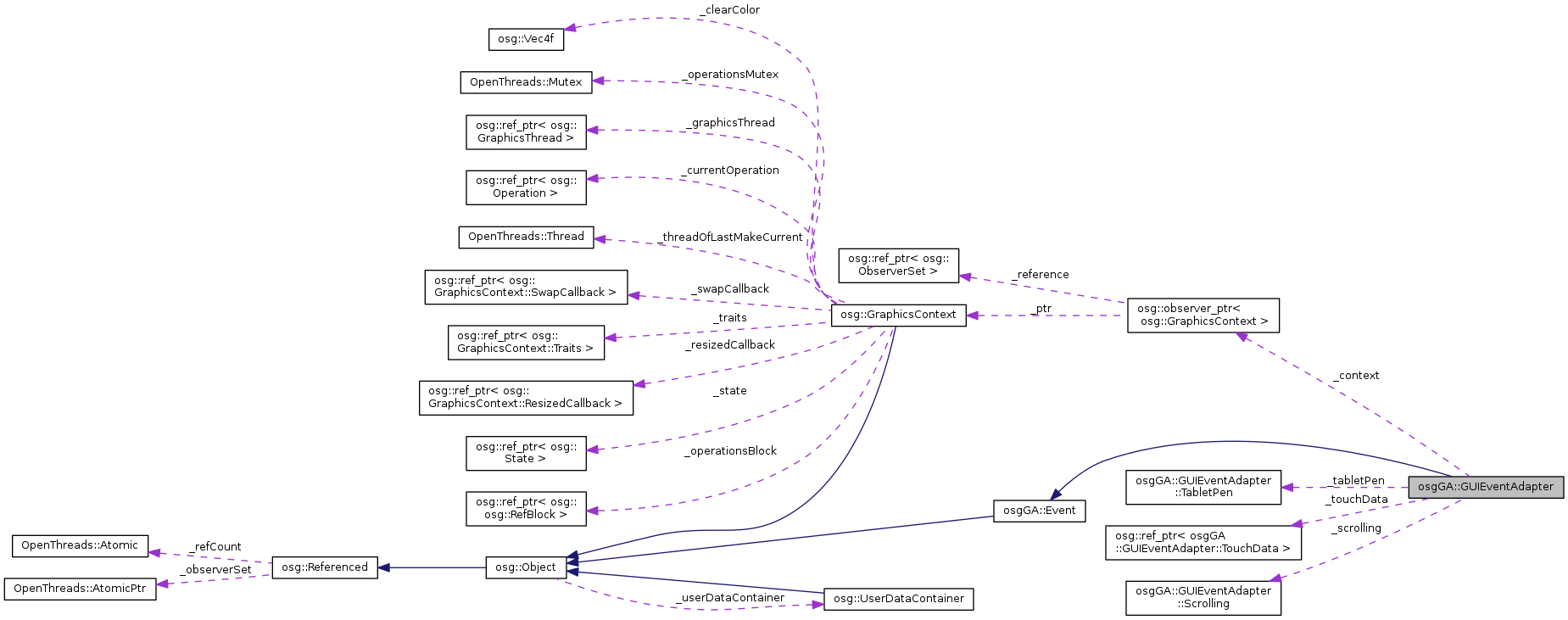

Collaboration diagram for osgGA::GUIEventAdapter:
Collaboration graph
[legend]

Classes

struct  Scrolling

struct  TabletPen

class  TouchData


Public Types

enum  MouseButtonMask { LEFT_MOUSE_BUTTON = 1<<0, MIDDLE_MOUSE_BUTTON = 1<<1, RIGHT_MOUSE_BUTTON = 1<<2 }

enum  EventType {
  NONE = 0, PUSH = 1<<0, RELEASE = 1<<1, DOUBLECLICK = 1<<2,
  DRAG = 1<<3, MOVE = 1<<4, KEYDOWN = 1<<5, KEYUP = 1<<6,
  FRAME = 1<<7, RESIZE = 1<<8, SCROLL = 1<<9, PEN_PRESSURE = 1<<10,
  PEN_ORIENTATION = 1<<11, PEN_PROXIMITY_ENTER = 1<<12, PEN_PROXIMITY_LEAVE = 1<<13, CLOSE_WINDOW = 1<<14,
  QUIT_APPLICATION = 1<<15, USER = 1<<16
}

enum  KeySymbol {
  KEY_Space = 0x20, KEY_0 = '0', KEY_1 = '1', KEY_2 = '2',
  KEY_3 = '3', KEY_4 = '4', KEY_5 = '5', KEY_6 = '6',
  KEY_7 = '7', KEY_8 = '8', KEY_9 = '9', KEY_A = 'a',
  KEY_B = 'b', KEY_C = 'c', KEY_D = 'd', KEY_E = 'e',
  KEY_F = 'f', KEY_G = 'g', KEY_H = 'h', KEY_I = 'i',
  KEY_J = 'j', KEY_K = 'k', KEY_L = 'l', KEY_M = 'm',
  KEY_N = 'n', KEY_O = 'o', KEY_P = 'p', KEY_Q = 'q',
  KEY_R = 'r', KEY_S = 's', KEY_T = 't', KEY_U = 'u',
  KEY_V = 'v', KEY_W = 'w', KEY_X = 'x', KEY_Y = 'y',
  KEY_Z = 'z', KEY_Exclaim = 0x21, KEY_Quotedbl = 0x22, KEY_Hash = 0x23,
  KEY_Dollar = 0x24, KEY_Ampersand = 0x26, KEY_Quote = 0x27, KEY_Leftparen = 0x28,
  KEY_Rightparen = 0x29, KEY_Asterisk = 0x2A, KEY_Plus = 0x2B, KEY_Comma = 0x2C,
  KEY_Minus = 0x2D, KEY_Period = 0x2E, KEY_Slash = 0x2F, KEY_Colon = 0x3A,
  KEY_Semicolon = 0x3B, KEY_Less = 0x3C, KEY_Equals = 0x3D, KEY_Greater = 0x3E,
  KEY_Question = 0x3F, KEY_At = 0x40, KEY_Leftbracket = 0x5B, KEY_Backslash = 0x5C,
  KEY_Rightbracket = 0x5D, KEY_Caret = 0x5E, KEY_Underscore = 0x5F, KEY_Backquote = 0x60,
  KEY_BackSpace = 0xFF08, KEY_Tab = 0xFF09, KEY_Linefeed = 0xFF0A, KEY_Clear = 0xFF0B,
  KEY_Return = 0xFF0D, KEY_Pause = 0xFF13, KEY_Scroll_Lock = 0xFF14, KEY_Sys_Req = 0xFF15,
  KEY_Escape = 0xFF1B, KEY_Delete = 0xFFFF, KEY_Home = 0xFF50, KEY_Left = 0xFF51,
  KEY_Up = 0xFF52, KEY_Right = 0xFF53, KEY_Down = 0xFF54, KEY_Prior = 0xFF55,
  KEY_Page_Up = 0xFF55, KEY_Next = 0xFF56, KEY_Page_Down = 0xFF56, KEY_End = 0xFF57,
  KEY_Begin = 0xFF58, KEY_Select = 0xFF60, KEY_Print = 0xFF61, KEY_Execute = 0xFF62,
  KEY_Insert = 0xFF63, KEY_Undo = 0xFF65, KEY_Redo = 0xFF66, KEY_Menu = 0xFF67,
  KEY_Find = 0xFF68, KEY_Cancel = 0xFF69, KEY_Help = 0xFF6A, KEY_Break = 0xFF6B,
  KEY_Mode_switch = 0xFF7E, KEY_Script_switch = 0xFF7E, KEY_Num_Lock = 0xFF7F, KEY_KP_Space = 0xFF80,
  KEY_KP_Tab = 0xFF89, KEY_KP_Enter = 0xFF8D, KEY_KP_F1 = 0xFF91, KEY_KP_F2 = 0xFF92,
  KEY_KP_F3 = 0xFF93, KEY_KP_F4 = 0xFF94, KEY_KP_Home = 0xFF95, KEY_KP_Left = 0xFF96,
  KEY_KP_Up = 0xFF97, KEY_KP_Right = 0xFF98, KEY_KP_Down = 0xFF99, KEY_KP_Prior = 0xFF9A,
  KEY_KP_Page_Up = 0xFF9A, KEY_KP_Next = 0xFF9B, KEY_KP_Page_Down = 0xFF9B, KEY_KP_End = 0xFF9C,
  KEY_KP_Begin = 0xFF9D, KEY_KP_Insert = 0xFF9E, KEY_KP_Delete = 0xFF9F, KEY_KP_Equal = 0xFFBD,
  KEY_KP_Multiply = 0xFFAA, KEY_KP_Add = 0xFFAB, KEY_KP_Separator = 0xFFAC, KEY_KP_Subtract = 0xFFAD,
  KEY_KP_Decimal = 0xFFAE, KEY_KP_Divide = 0xFFAF, KEY_KP_0 = 0xFFB0, KEY_KP_1 = 0xFFB1,
  KEY_KP_2 = 0xFFB2, KEY_KP_3 = 0xFFB3, KEY_KP_4 = 0xFFB4, KEY_KP_5 = 0xFFB5,
  KEY_KP_6 = 0xFFB6, KEY_KP_7 = 0xFFB7, KEY_KP_8 = 0xFFB8, KEY_KP_9 = 0xFFB9,
  KEY_F1 = 0xFFBE, KEY_F2 = 0xFFBF, KEY_F3 = 0xFFC0, KEY_F4 = 0xFFC1,
  KEY_F5 = 0xFFC2, KEY_F6 = 0xFFC3, KEY_F7 = 0xFFC4, KEY_F8 = 0xFFC5,
  KEY_F9 = 0xFFC6, KEY_F10 = 0xFFC7, KEY_F11 = 0xFFC8, KEY_F12 = 0xFFC9,
  KEY_F13 = 0xFFCA, KEY_F14 = 0xFFCB, KEY_F15 = 0xFFCC, KEY_F16 = 0xFFCD,
  KEY_F17 = 0xFFCE, KEY_F18 = 0xFFCF, KEY_F19 = 0xFFD0, KEY_F20 = 0xFFD1,
  KEY_F21 = 0xFFD2, KEY_F22 = 0xFFD3, KEY_F23 = 0xFFD4, KEY_F24 = 0xFFD5,
  KEY_F25 = 0xFFD6, KEY_F26 = 0xFFD7, KEY_F27 = 0xFFD8, KEY_F28 = 0xFFD9,
  KEY_F29 = 0xFFDA, KEY_F30 = 0xFFDB, KEY_F31 = 0xFFDC, KEY_F32 = 0xFFDD,
  KEY_F33 = 0xFFDE, KEY_F34 = 0xFFDF, KEY_F35 = 0xFFE0, KEY_Shift_L = 0xFFE1,
  KEY_Shift_R = 0xFFE2, KEY_Control_L = 0xFFE3, KEY_Control_R = 0xFFE4, KEY_Caps_Lock = 0xFFE5,
  KEY_Shift_Lock = 0xFFE6, KEY_Meta_L = 0xFFE7, KEY_Meta_R = 0xFFE8, KEY_Alt_L = 0xFFE9,
  KEY_Alt_R = 0xFFEA, KEY_Super_L = 0xFFEB, KEY_Super_R = 0xFFEC, KEY_Hyper_L = 0xFFED,
  KEY_Hyper_R = 0xFFEE
}

enum  ModKeyMask {
  MODKEY_LEFT_SHIFT = 0x0001, MODKEY_RIGHT_SHIFT = 0x0002, MODKEY_LEFT_CTRL = 0x0004, MODKEY_RIGHT_CTRL = 0x0008,
  MODKEY_LEFT_ALT = 0x0010, MODKEY_RIGHT_ALT = 0x0020, MODKEY_LEFT_META = 0x0040, MODKEY_RIGHT_META = 0x0080,
  MODKEY_LEFT_SUPER = 0x0100, MODKEY_RIGHT_SUPER = 0x0200, MODKEY_LEFT_HYPER = 0x0400, MODKEY_RIGHT_HYPER = 0x0800,
  MODKEY_NUM_LOCK = 0x1000, MODKEY_CAPS_LOCK = 0x2000, MODKEY_CTRL = (MODKEY_LEFT_CTRL|MODKEY_RIGHT_CTRL), MODKEY_SHIFT = (MODKEY_LEFT_SHIFT|MODKEY_RIGHT_SHIFT),
  MODKEY_ALT = (MODKEY_LEFT_ALT|MODKEY_RIGHT_ALT), MODKEY_META = (MODKEY_LEFT_META|MODKEY_RIGHT_META), MODKEY_SUPER = (MODKEY_LEFT_SUPER|MODKEY_RIGHT_SUPER), MODKEY_HYPER = (MODKEY_LEFT_HYPER|MODKEY_RIGHT_HYPER)
}

enum  MouseYOrientation { Y_INCREASING_UPWARDS, Y_INCREASING_DOWNWARDS }

enum  ScrollingMotion {
  SCROLL_NONE, SCROLL_LEFT, SCROLL_RIGHT, SCROLL_UP,
  SCROLL_DOWN, SCROLL_2D
}

enum  TabletPointerType { UNKNOWN = 0, PEN, PUCK, ERASER }

enum  TouchPhase {
  TOUCH_UNKNOWN, TOUCH_BEGAN, TOUCH_MOVED, TOUCH_STATIONERY,
  TOUCH_ENDED
}

typedef std::vector
< osg::ref_ptr< PointerData > > 		PointerDataList

- Public Types inherited from osg::Object
enum  DataVariance { DYNAMIC, STATIC, UNSPECIFIED }


Public Member Functions

 GUIEventAdapter ()

 GUIEventAdapter (const GUIEventAdapter &rhs, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

 META_Object (osgGA, GUIEventAdapter)

virtual GUIEventAdapter * asGUIEventAdapter ()

virtual const GUIEventAdapter * asGUIEventAdapter () const

void setEventType (EventType Type)

virtual EventType getEventType () const

double time () const

void setGraphicsContext (osg::GraphicsContext *context)

osg::GraphicsContext * getGraphicsContext ()

const osg::GraphicsContext * getGraphicsContext () const

void setWindowRectangle (int x, int y, int width, int height, bool updateMouseRange=true)

void setWindowX (int v)

int getWindowX () const

void setWindowY (int v)

int getWindowY () const

void setWindowWidth (int v)

int getWindowWidth () const

void setWindowHeight (int v)

int getWindowHeight () const

void setKey (int key)

virtual int getKey () const

void setUnmodifiedKey (int key)

int getUnmodifiedKey () const

void setButton (int button)

int getButton () const

void setInputRange (float Xmin, float Ymin, float Xmax, float Ymax)

void setXmin (float v)

float getXmin () const

void setXmax (float v)

float getXmax () const

void setYmin (float v)

float getYmin () const

void setYmax (float v)

float getYmax () const

void setX (float x)

float getX () const

void setY (float y)

float getY () const

float getXnormalized () const

float getYnormalized () const

void setMouseYOrientation (MouseYOrientation myo)
 set mouse-Y orientation (mouse-Y increases upwards or downwards). More...

MouseYOrientation getMouseYOrientation () const
 get mouse-Y orientation (mouse-Y increases upwards or downwards). More...

void setMouseYOrientationAndUpdateCoords (MouseYOrientation myo)
 set mouse-Y orientation (mouse-Y increases upwards or downwards) and recompute variables More...

void setButtonMask (int mask)
 set current mouse button state. More...

int getButtonMask () const
 get current mouse button state. More...

void setModKeyMask (int mask)
 set modifier key mask. More...

int getModKeyMask () const
 get modifier key mask. More...

void setScrollingMotion (ScrollingMotion motion)
 set scrolling motion (for EventType::SCROLL). More...

ScrollingMotion getScrollingMotion () const
 get scrolling motion (for EventType::SCROLL). More...

void setScrollingMotionDelta (float x, float y)
 set the scrolling delta to x,y and the scrolling motion to SCROLL_2D. More...

void setScrollingDeltaX (float v)
 set the scrolling x-delta. More...

float getScrollingDeltaX () const
 get the scrolling x-delta. More...

void setScrollingDeltaY (float v)
 set the scrolling y-delta. More...

float getScrollingDeltaY () const
 get the scrolling y-delta. More...

void setPenPressure (float pressure)
 set the tablet pen pressure (range 0..1). More...

float getPenPressure () const
 get the tablet pen pressure (range 0..1). More...

void setPenTiltX (float tiltX)
 set the tablet pen tiltX in degrees. More...

float getPenTiltX () const
 get the tablet pen tiltX in degrees. More...

void setPenTiltY (float tiltY)
 set the tablet pen tiltY in degrees. More...

float getPenTiltY () const
 get the tablet pen tiltY in degrees. More...

void setPenRotation (float rotation)
 set the tablet pen rotation around the Z-axis in degrees. More...

float getPenRotation () const
 get the tablet pen rotation around the Z-axis in degrees. More...

void setTabletPointerType (TabletPointerType pt)
 set the tablet pointer type. More...

TabletPointerType getTabletPointerType () const
 get the tablet pointer type. More...

const osg::Matrix getPenOrientation () const
 set the orientation from a tablet input device as a matrix. More...

void addTouchPoint (unsigned int id, TouchPhase phase, float x, float y, unsigned int tapCount=0)

void setTouchData (TouchData *td)

TouchData * getTouchData () const

bool isMultiTouchEvent () const

float getTouchPointNormalizedX (unsigned int ndx) const

float getTouchPointNormalizedY (unsigned int ndx) const

void setPointerDataList (const PointerDataList &pdl)

PointerDataList & getPointerDataList ()

const PointerDataList & getPointerDataList () const

unsigned int getNumPointerData () const

PointerData * getPointerData (unsigned int i)

const PointerData * getPointerData (unsigned int i) const

PointerData * getPointerData (osg::Object *obj)

const PointerData * getPointerData (osg::Object *obj) const

void addPointerData (PointerData *pd)

void copyPointerDataFrom (const osgGA::GUIEventAdapter &sourceEvent)

- Public Member Functions inherited from osgGA::Event
 Event ()

 Event (const Event &rhs, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

 META_Object (osgGA, Event)

void setHandled (bool handled) const

bool getHandled () const

void setTime (double time)

double getTime () const

- Public Member Functions inherited from osg::Object
 Object ()

 Object (bool threadSafeRefUnref)

 Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object * cloneType () const =0

virtual Object * clone (const CopyOp &) const =0

virtual bool isSameKindAs (const Object *) const

virtual const char * libraryName () const =0

virtual const char * className () const =0

std::string getCompoundClassName () const

virtual Node * asNode ()

virtual const Node * asNode () const

virtual NodeVisitor * asNodeVisitor ()

virtual const NodeVisitor * asNodeVisitor () const

virtual StateAttribute * asStateAttribute ()

virtual const StateAttribute * asStateAttribute () const

virtual Uniform * asUniform ()

virtual const Uniform * asUniform () const

virtual void setThreadSafeRefUnref (bool threadSafe)

virtual void setName (const std::string &name)

void setName (const char *name)

const std::string & getName () const

void setDataVariance (DataVariance dv)

DataVariance getDataVariance () const

virtual void computeDataVariance ()

void setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer * getUserDataContainer ()

const osg::UserDataContainer * getUserDataContainer () const

osg::UserDataContainer * getOrCreateUserDataContainer ()

virtual void setUserData (Referenced *obj)

virtual Referenced * getUserData ()

virtual const Referenced * getUserData () const

template<typename T >
bool getUserValue (const std::string &name, T &value) const

template<typename T >
void setUserValue (const std::string &name, const T &value)

virtual void resizeGLObjectBuffers (unsigned int)

virtual void releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject
UCharValueObject
UShortValueObject
UIntValueObject
DoubleValueObject
Vec3fValueObject
Vec2dValueObject
Vec4dValueObject
PlaneValueObject
MatrixdValueObject
BoundingBoxdValueObject
BoundingSpheredValueObject
bool 		getUserValue (const std::string &name, T &value) const

- Public Member Functions inherited from osg::Referenced
 Referenced ()

 Referenced (bool threadSafeRefUnref)

 Referenced (const Referenced &)

Referenced & operator= (const Referenced &)

bool getThreadSafeRefUnref () const

OpenThreads::Mutex * getRefMutex () const

int ref () const

int unref () const

int unref_nodelete () const

int referenceCount () const

ObserverSet * getObserverSet () const

ObserverSet * getOrCreateObserverSet () const

void addObserver (Observer *observer) const

void removeObserver (Observer *observer) const


Static Public Member Functions

static osg::ref_ptr
< GUIEventAdapter > & 		getAccumulatedEventState ()

- Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex * getGlobalReferencedMutex ()

static void setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool getThreadSafeReferenceCounting ()

static void setDeleteHandler (DeleteHandler *handler)

static DeleteHandler * getDeleteHandler ()


Protected Member Functions

virtual ~GUIEventAdapter ()

- Protected Member Functions inherited from osgGA::Event
virtual ~Event ()

- Protected Member Functions inherited from osg::Object
virtual ~Object ()

- Protected Member Functions inherited from osg::Referenced
virtual ~Referenced ()

void signalObserversAndDelete (bool signalDelete, bool doDelete) const

void deleteUsingDeleteHandler () const


Protected Attributes

EventType _eventType

osg::observer_ptr
< osg::GraphicsContext > 		_context

int _windowX

int _windowY

int _windowWidth

int _windowHeight

int _key

int _unmodifiedKey

int _button

float _Xmin

float _Xmax

float _Ymin

float _Ymax

float _mx

float _my

int _buttonMask

int _modKeyMask

MouseYOrientation _mouseYOrientation

Scrolling _scrolling

TabletPen _tabletPen

osg::ref_ptr< TouchData > _touchData

PointerDataList _pointerDataList

- Protected Attributes inherited from osgGA::Event
bool _handled

double _time

- Protected Attributes inherited from osg::Object
std::string _name

DataVariance _dataVariance

osg::UserDataContainer * _userDataContainer

- Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr _observerSet

OpenThreads::Atomic _refCount


Detailed Description

Event class for storing Keyboard, mouse and window events.

Definition at line 81 of file GUIEventAdapter.h.

Member Typedef Documentation

typedef std::vector< osg::ref_ptr<PointerData> > osgGA::GUIEventAdapter::PointerDataList

Definition at line 696 of file GUIEventAdapter.h.

Member Enumeration Documentation

enum osgGA::GUIEventAdapter::EventType
Enumerator
NONE
PUSH
RELEASE
DOUBLECLICK
DRAG
MOVE
KEYDOWN
KEYUP
FRAME
RESIZE
SCROLL
PEN_PRESSURE
PEN_ORIENTATION
PEN_PROXIMITY_ENTER
PEN_PROXIMITY_LEAVE
CLOSE_WINDOW
QUIT_APPLICATION
USER

Definition at line 91 of file GUIEventAdapter.h.

enum osgGA::GUIEventAdapter::KeySymbol
Enumerator
KEY_Space
KEY_0
KEY_1
KEY_2
KEY_3
KEY_4
KEY_5
KEY_6
KEY_7
KEY_8
KEY_9
KEY_A
KEY_B
KEY_C
KEY_D
KEY_E
KEY_F
KEY_G
KEY_H
KEY_I
KEY_J
KEY_K
KEY_L
KEY_M
KEY_N
KEY_O
KEY_P
KEY_Q
KEY_R
KEY_S
KEY_T
KEY_U
KEY_V
KEY_W
KEY_X
KEY_Y
KEY_Z
KEY_Exclaim
KEY_Quotedbl
KEY_Hash
KEY_Dollar
KEY_Ampersand
KEY_Quote
KEY_Leftparen
KEY_Rightparen
KEY_Asterisk
KEY_Plus
KEY_Comma
KEY_Minus
KEY_Period
KEY_Slash
KEY_Colon
KEY_Semicolon
KEY_Less
KEY_Equals
KEY_Greater
KEY_Question
KEY_At
KEY_Leftbracket
KEY_Backslash
KEY_Rightbracket
KEY_Caret
KEY_Underscore
KEY_Backquote
KEY_BackSpace
KEY_Tab
KEY_Linefeed
KEY_Clear
KEY_Return
KEY_Pause
KEY_Scroll_Lock
KEY_Sys_Req
KEY_Escape
KEY_Delete
KEY_Home
KEY_Left
KEY_Up
KEY_Right
KEY_Down
KEY_Prior
KEY_Page_Up
KEY_Next
KEY_Page_Down
KEY_End
KEY_Begin
KEY_Select
KEY_Print
KEY_Execute
KEY_Insert
KEY_Undo
KEY_Redo
KEY_Menu
KEY_Find
KEY_Cancel
KEY_Help
KEY_Break
KEY_Mode_switch
KEY_Script_switch
KEY_Num_Lock
KEY_KP_Space
KEY_KP_Tab
KEY_KP_Enter
KEY_KP_F1
KEY_KP_F2
KEY_KP_F3
KEY_KP_F4
KEY_KP_Home
KEY_KP_Left
KEY_KP_Up
KEY_KP_Right
KEY_KP_Down
KEY_KP_Prior
KEY_KP_Page_Up
KEY_KP_Next
KEY_KP_Page_Down
KEY_KP_End
KEY_KP_Begin
KEY_KP_Insert
KEY_KP_Delete
KEY_KP_Equal
KEY_KP_Multiply
KEY_KP_Add
KEY_KP_Separator
KEY_KP_Subtract
KEY_KP_Decimal
KEY_KP_Divide
KEY_KP_0
KEY_KP_1
KEY_KP_2
KEY_KP_3
KEY_KP_4
KEY_KP_5
KEY_KP_6
KEY_KP_7
KEY_KP_8
KEY_KP_9
KEY_F1
KEY_F2
KEY_F3
KEY_F4
KEY_F5
KEY_F6
KEY_F7
KEY_F8
KEY_F9
KEY_F10
KEY_F11
KEY_F12
KEY_F13
KEY_F14
KEY_F15
KEY_F16
KEY_F17
KEY_F18
KEY_F19
KEY_F20
KEY_F21
KEY_F22
KEY_F23
KEY_F24
KEY_F25
KEY_F26
KEY_F27
KEY_F28
KEY_F29
KEY_F30
KEY_F31
KEY_F32
KEY_F33
KEY_F34
KEY_F35
KEY_Shift_L
KEY_Shift_R
KEY_Control_L
KEY_Control_R
KEY_Caps_Lock
KEY_Shift_Lock
KEY_Meta_L
KEY_Meta_R
KEY_Alt_L
KEY_Alt_R
KEY_Super_L
KEY_Super_R
KEY_Hyper_L
KEY_Hyper_R

Definition at line 112 of file GUIEventAdapter.h.

enum osgGA::GUIEventAdapter::ModKeyMask
Enumerator
MODKEY_LEFT_SHIFT
MODKEY_RIGHT_SHIFT
MODKEY_LEFT_CTRL
MODKEY_RIGHT_CTRL
MODKEY_LEFT_ALT
MODKEY_RIGHT_ALT
MODKEY_LEFT_META
MODKEY_RIGHT_META
MODKEY_LEFT_SUPER
MODKEY_RIGHT_SUPER
MODKEY_LEFT_HYPER
MODKEY_RIGHT_HYPER
MODKEY_NUM_LOCK
MODKEY_CAPS_LOCK
MODKEY_CTRL
MODKEY_SHIFT
MODKEY_ALT
MODKEY_META
MODKEY_SUPER
MODKEY_HYPER

Definition at line 329 of file GUIEventAdapter.h.

enum osgGA::GUIEventAdapter::MouseButtonMask
Enumerator
LEFT_MOUSE_BUTTON
MIDDLE_MOUSE_BUTTON
RIGHT_MOUSE_BUTTON

Definition at line 85 of file GUIEventAdapter.h.

enum osgGA::GUIEventAdapter::MouseYOrientation
Enumerator
Y_INCREASING_UPWARDS
Y_INCREASING_DOWNWARDS

Definition at line 353 of file GUIEventAdapter.h.

enum osgGA::GUIEventAdapter::ScrollingMotion
Enumerator
SCROLL_NONE
SCROLL_LEFT
SCROLL_RIGHT
SCROLL_UP
SCROLL_DOWN
SCROLL_2D

Definition at line 359 of file GUIEventAdapter.h.

enum osgGA::GUIEventAdapter::TabletPointerType
Enumerator
UNKNOWN
PEN
PUCK
ERASER

Definition at line 369 of file GUIEventAdapter.h.

enum osgGA::GUIEventAdapter::TouchPhase
Enumerator
TOUCH_UNKNOWN
TOUCH_BEGAN
TOUCH_MOVED
TOUCH_STATIONERY
TOUCH_ENDED

Definition at line 377 of file GUIEventAdapter.h.

Constructor & Destructor Documentation

osgGA::GUIEventAdapter::GUIEventAdapter ( )
osgGA::GUIEventAdapter::GUIEventAdapter ( const GUIEventAdapter &  rhs,
const osg::CopyOp &  copyop = osg::CopyOp::SHALLOW_COPY
)
virtual osgGA::GUIEventAdapter::~GUIEventAdapter ( )
protectedvirtual

Force users to create on heap, so that multiple referencing is safe.

Member Function Documentation

void osgGA::GUIEventAdapter::addPointerData ( PointerData *  pd)
inline

Definition at line 707 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::addTouchPoint ( unsigned int  id,
TouchPhase  phase,
float  x,
float  y,
unsigned int  tapCount = 0
)
virtual GUIEventAdapter* osgGA::GUIEventAdapter::asGUIEventAdapter ( )
inlinevirtual

Reimplemented from osgGA::Event.

Definition at line 452 of file GUIEventAdapter.h.

virtual const GUIEventAdapter* osgGA::GUIEventAdapter::asGUIEventAdapter ( ) const
inlinevirtual

Reimplemented from osgGA::Event.

Definition at line 453 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::copyPointerDataFrom ( const osgGA::GUIEventAdapter &  sourceEvent)
static osg::ref_ptr<GUIEventAdapter>& osgGA::GUIEventAdapter::getAccumulatedEventState ( )
static

Get the accumulated event state singleton. Typically all EventQueue will share this single GUIEventAdapter object for tracking the mouse position, keyboard and mouse masks.

int osgGA::GUIEventAdapter::getButton ( ) const
inline

button pressed/released, return -1 if inappropriate for this GUIEventAdapter.

Definition at line 521 of file GUIEventAdapter.h.

int osgGA::GUIEventAdapter::getButtonMask ( ) const
inline

get current mouse button state.

Definition at line 612 of file GUIEventAdapter.h.

virtual EventType osgGA::GUIEventAdapter::getEventType ( ) const
inlinevirtual

get the event type.

Definition at line 466 of file GUIEventAdapter.h.

osg::GraphicsContext* osgGA::GUIEventAdapter::getGraphicsContext ( )
inline

Definition at line 473 of file GUIEventAdapter.h.

const osg::GraphicsContext* osgGA::GUIEventAdapter::getGraphicsContext ( ) const
inline

Definition at line 474 of file GUIEventAdapter.h.

virtual int osgGA::GUIEventAdapter::getKey ( ) const
inlinevirtual

get key pressed, return -1 if inappropriate for this GUIEventAdapter.

Definition at line 509 of file GUIEventAdapter.h.

int osgGA::GUIEventAdapter::getModKeyMask ( ) const
inline

get modifier key mask.

Definition at line 618 of file GUIEventAdapter.h.

MouseYOrientation osgGA::GUIEventAdapter::getMouseYOrientation ( ) const
inline

get mouse-Y orientation (mouse-Y increases upwards or downwards).

Definition at line 603 of file GUIEventAdapter.h.

unsigned int osgGA::GUIEventAdapter::getNumPointerData ( ) const
inline

Definition at line 701 of file GUIEventAdapter.h.

const osg::Matrix osgGA::GUIEventAdapter::getPenOrientation ( ) const

set the orientation from a tablet input device as a matrix.

float osgGA::GUIEventAdapter::getPenPressure ( ) const
inline

get the tablet pen pressure (range 0..1).

Definition at line 650 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::getPenRotation ( ) const
inline

get the tablet pen rotation around the Z-axis in degrees.

Definition at line 668 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::getPenTiltX ( ) const
inline

get the tablet pen tiltX in degrees.

Definition at line 656 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::getPenTiltY ( ) const
inline

get the tablet pen tiltY in degrees.

Definition at line 662 of file GUIEventAdapter.h.

PointerData* osgGA::GUIEventAdapter::getPointerData ( unsigned int  i)
inline

Definition at line 702 of file GUIEventAdapter.h.

const PointerData* osgGA::GUIEventAdapter::getPointerData ( unsigned int  i) const
inline

Definition at line 703 of file GUIEventAdapter.h.

PointerData* osgGA::GUIEventAdapter::getPointerData ( osg::Object *  obj)
inline

Definition at line 705 of file GUIEventAdapter.h.

const PointerData* osgGA::GUIEventAdapter::getPointerData ( osg::Object *  obj) const
inline

Definition at line 706 of file GUIEventAdapter.h.

PointerDataList& osgGA::GUIEventAdapter::getPointerDataList ( )
inline

Definition at line 698 of file GUIEventAdapter.h.

const PointerDataList& osgGA::GUIEventAdapter::getPointerDataList ( ) const
inline

Definition at line 699 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::getScrollingDeltaX ( ) const
inline

get the scrolling x-delta.

Definition at line 637 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::getScrollingDeltaY ( ) const
inline

get the scrolling y-delta.

Definition at line 643 of file GUIEventAdapter.h.

ScrollingMotion osgGA::GUIEventAdapter::getScrollingMotion ( ) const
inline

get scrolling motion (for EventType::SCROLL).

Definition at line 624 of file GUIEventAdapter.h.

TabletPointerType osgGA::GUIEventAdapter::getTabletPointerType ( ) const
inline

get the tablet pointer type.

Definition at line 674 of file GUIEventAdapter.h.

TouchData* osgGA::GUIEventAdapter::getTouchData ( ) const
inline

Definition at line 682 of file GUIEventAdapter.h.

Here is the call graph for this function:

float osgGA::GUIEventAdapter::getTouchPointNormalizedX ( unsigned int  ndx) const
inline

Definition at line 685 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::getTouchPointNormalizedY ( unsigned int  ndx) const
inline

Definition at line 689 of file GUIEventAdapter.h.

int osgGA::GUIEventAdapter::getUnmodifiedKey ( ) const
inline

get virtual key pressed.

Definition at line 515 of file GUIEventAdapter.h.

int osgGA::GUIEventAdapter::getWindowHeight ( ) const
inline

get window height.

Definition at line 502 of file GUIEventAdapter.h.

int osgGA::GUIEventAdapter::getWindowWidth ( ) const
inline

get window width.

Definition at line 496 of file GUIEventAdapter.h.

int osgGA::GUIEventAdapter::getWindowX ( ) const
inline

get window x origin.

Definition at line 484 of file GUIEventAdapter.h.

int osgGA::GUIEventAdapter::getWindowY ( ) const
inline

get window y origin.

Definition at line 490 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::getX ( ) const
inline

get current mouse x position.

Definition at line 555 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::getXmax ( ) const
inline

get mouse maximum x.

Definition at line 537 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::getXmin ( ) const
inline

get mouse minimum x.

Definition at line 531 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::getXnormalized ( ) const
inline

Definition at line 564 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::getY ( ) const
inline

get current mouse y position.

Definition at line 561 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::getYmax ( ) const
inline

get mouse maximum y.

Definition at line 549 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::getYmin ( ) const
inline

get mouse minimum y.

Definition at line 543 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::getYnormalized ( ) const
inline

Definition at line 571 of file GUIEventAdapter.h.

bool osgGA::GUIEventAdapter::isMultiTouchEvent ( ) const
inline

Definition at line 683 of file GUIEventAdapter.h.

osgGA::GUIEventAdapter::META_Object ( osgGA  ,
GUIEventAdapter
)
void osgGA::GUIEventAdapter::setButton ( int  button)
inline

set button pressed/released.

Definition at line 518 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setButtonMask ( int  mask)
inline

set current mouse button state.

Definition at line 609 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setEventType ( EventType  Type)
inline

set the event type.

Definition at line 463 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setGraphicsContext ( osg::GraphicsContext *  context)
inline

Definition at line 472 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setInputRange ( float  Xmin,
float  Ymin,
float  Xmax,
float  Ymax
)

set mouse input range.

void osgGA::GUIEventAdapter::setKey ( int  key)
inline

set key pressed.

Definition at line 506 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setModKeyMask ( int  mask)
inline

set modifier key mask.

Definition at line 615 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setMouseYOrientation ( MouseYOrientation  myo)
inline

set mouse-Y orientation (mouse-Y increases upwards or downwards).

Definition at line 600 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setMouseYOrientationAndUpdateCoords ( MouseYOrientation  myo)

set mouse-Y orientation (mouse-Y increases upwards or downwards) and recompute variables

void osgGA::GUIEventAdapter::setPenPressure ( float  pressure)
inline

set the tablet pen pressure (range 0..1).

Definition at line 647 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setPenRotation ( float  rotation)
inline

set the tablet pen rotation around the Z-axis in degrees.

Definition at line 665 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setPenTiltX ( float  tiltX)
inline

set the tablet pen tiltX in degrees.

Definition at line 653 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setPenTiltY ( float  tiltY)
inline

set the tablet pen tiltY in degrees.

Definition at line 659 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setPointerDataList ( const PointerDataList &  pdl)
inline

Definition at line 697 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setScrollingDeltaX ( float  v)
inline

set the scrolling x-delta.

Definition at line 634 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setScrollingDeltaY ( float  v)
inline

set the scrolling y-delta.

Definition at line 640 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setScrollingMotion ( ScrollingMotion  motion)
inline

set scrolling motion (for EventType::SCROLL).

Definition at line 621 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setScrollingMotionDelta ( float  x,
float  y
)
inline

set the scrolling delta to x,y and the scrolling motion to SCROLL_2D.

Definition at line 627 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setTabletPointerType ( TabletPointerType  pt)
inline

set the tablet pointer type.

Definition at line 671 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setTouchData ( TouchData *  td)
inline

Definition at line 681 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setUnmodifiedKey ( int  key)
inline

set virtual key pressed.

Definition at line 512 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setWindowHeight ( int  v)
inline

set window height.

Definition at line 499 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setWindowRectangle ( int  x,
int  y,
int  width,
int  height,
bool  updateMouseRange = true
)

set window rectangle.

void osgGA::GUIEventAdapter::setWindowWidth ( int  v)
inline

set window width.

Definition at line 493 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setWindowX ( int  v)
inline

set window x origin.

Definition at line 481 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setWindowY ( int  v)
inline

set window x origin.

Definition at line 487 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setX ( float  x)
inline

set current mouse x position.

Definition at line 552 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setXmax ( float  v)
inline

set mouse maximum x.

Definition at line 534 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setXmin ( float  v)
inline

set mouse minimum x.

Definition at line 528 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setY ( float  y)
inline

set current mouse y position.

Definition at line 558 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setYmax ( float  v)
inline

set mouse maximum y.

Definition at line 546 of file GUIEventAdapter.h.

void osgGA::GUIEventAdapter::setYmin ( float  v)
inline

set mouse minimum x.

Definition at line 540 of file GUIEventAdapter.h.

double osgGA::GUIEventAdapter::time ( ) const
inline

deprecated function for getting time of event.

Definition at line 469 of file GUIEventAdapter.h.

Member Data Documentation

int osgGA::GUIEventAdapter::_button
protected

Definition at line 725 of file GUIEventAdapter.h.

int osgGA::GUIEventAdapter::_buttonMask
protected

Definition at line 730 of file GUIEventAdapter.h.

osg::observer_ptr<osg::GraphicsContext> osgGA::GUIEventAdapter::_context
protected

Definition at line 718 of file GUIEventAdapter.h.

EventType osgGA::GUIEventAdapter::_eventType
protected

Definition at line 716 of file GUIEventAdapter.h.

int osgGA::GUIEventAdapter::_key
protected

Definition at line 723 of file GUIEventAdapter.h.

int osgGA::GUIEventAdapter::_modKeyMask
protected

Definition at line 731 of file GUIEventAdapter.h.

MouseYOrientation osgGA::GUIEventAdapter::_mouseYOrientation
protected

Definition at line 732 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::_mx
protected

Definition at line 728 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::_my
protected

Definition at line 729 of file GUIEventAdapter.h.

PointerDataList osgGA::GUIEventAdapter::_pointerDataList
protected

Definition at line 759 of file GUIEventAdapter.h.

Scrolling osgGA::GUIEventAdapter::_scrolling
protected

Definition at line 742 of file GUIEventAdapter.h.

TabletPen osgGA::GUIEventAdapter::_tabletPen
protected

Definition at line 754 of file GUIEventAdapter.h.

osg::ref_ptr<TouchData> osgGA::GUIEventAdapter::_touchData
protected

Definition at line 756 of file GUIEventAdapter.h.

int osgGA::GUIEventAdapter::_unmodifiedKey
protected

Definition at line 724 of file GUIEventAdapter.h.

int osgGA::GUIEventAdapter::_windowHeight
protected

Definition at line 722 of file GUIEventAdapter.h.

int osgGA::GUIEventAdapter::_windowWidth
protected

Definition at line 721 of file GUIEventAdapter.h.

int osgGA::GUIEventAdapter::_windowX
protected

Definition at line 719 of file GUIEventAdapter.h.

int osgGA::GUIEventAdapter::_windowY
protected

Definition at line 720 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::_Xmax
protected

Definition at line 726 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::_Xmin
protected

Definition at line 726 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::_Ymax
protected

Definition at line 727 of file GUIEventAdapter.h.

float osgGA::GUIEventAdapter::_Ymin
protected

Definition at line 727 of file GUIEventAdapter.h.

The documentation for this class was generated from the following file:
Generated on Tue Oct 4 2016 19:20:53 for OSG by   doxygen 1.8.8
