osgDB::DatabasePager Class Reference

#include <DatabasePager.h>

Inheritance diagram for osgDB::DatabasePager:

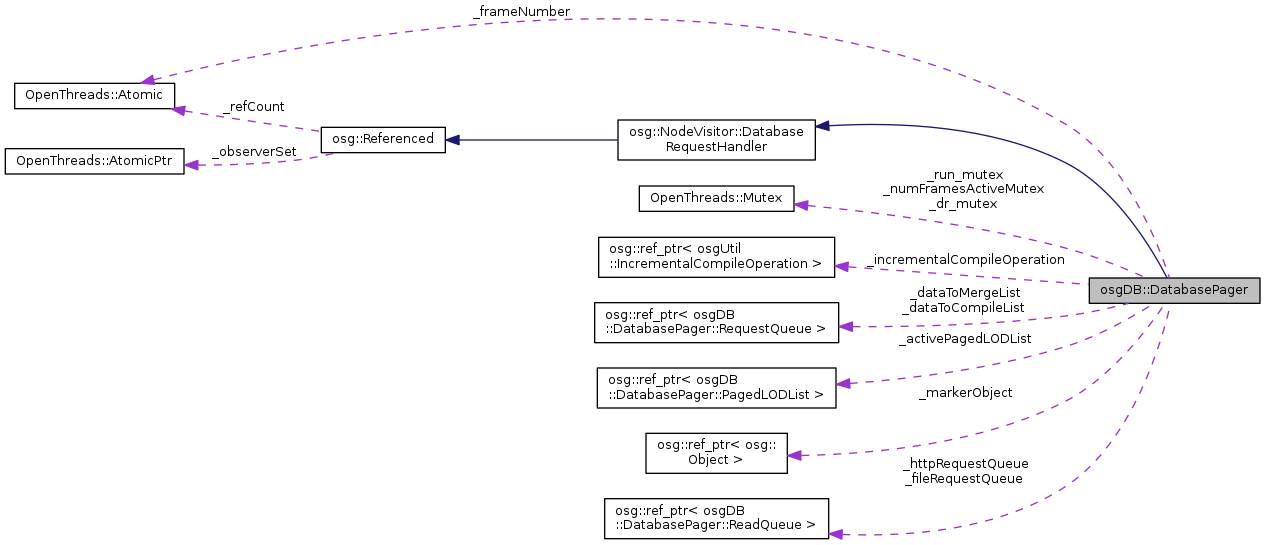

Collaboration diagram for osgDB::DatabasePager:

Classes
struct	DatabaseRequest
class	DatabaseThread
struct	PagedLODList
struct	ReadQueue
struct	RequestQueue

Public Types
enum	DrawablePolicy { DO_NOT_MODIFY_DRAWABLE_SETTINGS, USE_DISPLAY_LISTS, USE_VERTEX_BUFFER_OBJECTS, USE_VERTEX_ARRAYS }
typedef OpenThreads::Thread::ThreadPriority	ThreadPriority
typedef std::set< osg::ref_ptr < osg::StateSet > >	StateSetList
typedef std::vector < osg::ref_ptr< osg::Drawable > >	DrawableList
typedef std::list < osg::ref_ptr< osg::Object > >	ObjectList

Public Member Functions
	DatabasePager ()
	DatabasePager (const DatabasePager &rhs)
virtual const char *	className () const
virtual DatabasePager *	clone () const
virtual void	requestNodeFile (const std::string &fileName, osg::NodePath &nodePath, float priority, const osg::FrameStamp *framestamp, osg::ref_ptr< osg::Referenced > &databaseRequest, const osg::Referenced *options)
int	setSchedulePriority (OpenThreads::Thread::ThreadPriority priority)
virtual int	cancel ()
virtual bool	isRunning () const
virtual void	clear ()
void	setUpThreads (unsigned int totalNumThreads=2, unsigned int numHttpThreads=1)
virtual unsigned int	addDatabaseThread (DatabaseThread::Mode mode, const std::string &name)
DatabaseThread *	getDatabaseThread (unsigned int i)
const DatabaseThread *	getDatabaseThread (unsigned int i) const
unsigned int	getNumDatabaseThreads () const
void	setDatabasePagerThreadPause (bool pause)
bool	getDatabasePagerThreadPause () const
void	setAcceptNewDatabaseRequests (bool acceptNewRequests)
bool	getAcceptNewDatabaseRequests () const
int	getNumFramesActive () const
virtual void	signalBeginFrame (const osg::FrameStamp *framestamp)
virtual void	signalEndFrame ()
virtual void	registerPagedLODs (osg::Node *subgraph, unsigned int frameNumber=0)
void	setIncrementalCompileOperation (osgUtil::IncrementalCompileOperation *ico)
osgUtil::IncrementalCompileOperation *	getIncrementalCompileOperation ()
void	setDoPreCompile (bool flag)
bool	getDoPreCompile () const
void	setTargetMaximumNumberOfPageLOD (unsigned int target)
unsigned int	getTargetMaximumNumberOfPageLOD () const
void	setDeleteRemovedSubgraphsInDatabaseThread (bool flag)
bool	getDeleteRemovedSubgraphsInDatabaseThread () const
void	setDrawablePolicy (DrawablePolicy policy)
DrawablePolicy	getDrawablePolicy () const
void	setApplyPBOToImages (bool assignPBOToImages)
bool	getApplyPBOToImages () const
void	setUnrefImageDataAfterApplyPolicy (bool changeAutoUnRef, bool valueAutoUnRef)
void	getUnrefImageDataAfterApplyPolicy (bool &changeAutoUnRef, bool &valueAutoUnRef) const
void	setMaxAnisotropyPolicy (bool changeAnisotropy, float valueAnisotropy)
void	getMaxAnisotropyPolicy (bool &changeAnisotropy, float &valueAnisotropy) const
bool	requiresUpdateSceneGraph () const
virtual void	updateSceneGraph (const osg::FrameStamp &frameStamp)
unsigned int	getFileRequestListSize () const
unsigned int	getDataToCompileListSize () const
unsigned int	getDataToMergeListSize () const
bool	getRequestsInProgress () const
double	getMinimumTimeToMergeTile () const
double	getMaximumTimeToMergeTile () const
double	getAverageTimeToMergeTiles () const
void	resetStats ()
void	setMarkerObject (osg::Object *mo)
osg::Object *	getMarkerObject ()
const osg::Object *	getMarkerObject () const
Public Member Functions inherited from osg::NodeVisitor::DatabaseRequestHandler
	DatabaseRequestHandler ()
Public Member Functions inherited from osg::Referenced
	Referenced ()
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
virtual void	setThreadSafeRefUnref (bool threadSafe)
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
int	unref () const
int	unref_nodelete () const
int	referenceCount () const
ObserverSet *	getObserverSet () const
ObserverSet *	getOrCreateObserverSet () const
void	addObserver (Observer *observer) const
void	removeObserver (Observer *observer) const

Static Public Member Functions
static osg::ref_ptr < DatabasePager > &	prototype ()
static DatabasePager *	create ()
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
static bool	getThreadSafeReferenceCounting ()
static void	setDeleteHandler (DeleteHandler *handler)
static DeleteHandler *	getDeleteHandler ()

Protected Types
typedef std::vector < osg::ref_ptr< DatabaseThread > >	DatabaseThreadList

Protected Member Functions
virtual	~DatabasePager ()
void	compileCompleted (DatabaseRequest *databaseRequest)
virtual void	removeExpiredSubgraphs (const osg::FrameStamp &frameStamp)
void	addLoadedDataToSceneGraph (const osg::FrameStamp &frameStamp)
Protected Member Functions inherited from osg::NodeVisitor::DatabaseRequestHandler
virtual	~DatabaseRequestHandler ()
Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Protected Attributes
OpenThreads::Mutex	_run_mutex
OpenThreads::Mutex	_dr_mutex
bool	_startThreadCalled
bool	_done
bool	_acceptNewRequests
bool	_databasePagerThreadPaused
DatabaseThreadList	_databaseThreads
int	_numFramesActive
OpenThreads::Mutex	_numFramesActiveMutex
OpenThreads::Atomic	_frameNumber
osg::ref_ptr< ReadQueue >	_fileRequestQueue
osg::ref_ptr< ReadQueue >	_httpRequestQueue
osg::ref_ptr< RequestQueue >	_dataToCompileList
osg::ref_ptr< RequestQueue >	_dataToMergeList
DrawablePolicy	_drawablePolicy
bool	_assignPBOToImages
bool	_changeAutoUnRef
bool	_valueAutoUnRef
bool	_changeAnisotropy
float	_valueAnisotropy
bool	_deleteRemovedSubgraphsInDatabaseThread
osg::ref_ptr< PagedLODList >	_activePagedLODList
unsigned int	_targetMaximumNumberOfPageLOD
bool	_doPreCompile
osg::ref_ptr < osgUtil::IncrementalCompileOperation >	_incrementalCompileOperation
double	_minimumTimeToMergeTile
double	_maximumTimeToMergeTile
double	_totalTimeToMergeTiles
unsigned int	_numTilesMerges
osg::ref_ptr< osg::Object >	_markerObject
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount

Friends
class	DatabaseThread
struct	DatabaseRequest
class	FindCompileableGLObjectsVisitor
struct	DatabasePagerCompileCompletedCallback
class	FindPagedLODsVisitor
struct	SortFileRequestFunctor

Detailed Description

Database paging class which manages the loading of files in a background thread, and synchronizing of loaded models with the main scene graph.

Definition at line 49 of file DatabasePager.h.

Member Typedef Documentation

typedef std::vector< osg::ref_ptr<DatabaseThread> > osgDB::DatabasePager::DatabaseThreadList

protected

Definition at line 388 of file DatabasePager.h.

typedef std::vector< osg::ref_ptr<osg::Drawable> > osgDB::DatabasePager::DrawableList

Definition at line 272 of file DatabasePager.h.

typedef std::list< osg::ref_ptr<osg::Object> > osgDB::DatabasePager::ObjectList

Definition at line 274 of file DatabasePager.h.

typedef std::set< osg::ref_ptr<osg::StateSet> > osgDB::DatabasePager::StateSetList

Definition at line 271 of file DatabasePager.h.

typedef OpenThreads::Thread::ThreadPriority osgDB::DatabasePager::ThreadPriority

Definition at line 53 of file DatabasePager.h.

Member Enumeration Documentation

enum osgDB::DatabasePager::DrawablePolicy

Enumerator
DO_NOT_MODIFY_DRAWABLE_SETTINGS
USE_DISPLAY_LISTS
USE_VERTEX_BUFFER_OBJECTS
USE_VERTEX_ARRAYS

Definition at line 204 of file DatabasePager.h.

Constructor & Destructor Documentation

osgDB::DatabasePager::DatabasePager

(

)

osgDB::DatabasePager::DatabasePager

(

const DatabasePager &

rhs

)

virtual osgDB::DatabasePager::~DatabasePager ( )

protectedvirtual

Member Function Documentation

virtual unsigned int osgDB::DatabasePager::addDatabaseThread ( DatabaseThread::Mode  mode, const std::string &  name  )

virtual

void osgDB::DatabasePager::addLoadedDataToSceneGraph ( const osg::FrameStamp &  frameStamp )

protected

Add the loaded data to the scene graph.

virtual int osgDB::DatabasePager::cancel ( )

virtual

Cancel the database pager thread(s).

virtual const char* osgDB::DatabasePager::className ( ) const

inlinevirtual

Definition at line 59 of file DatabasePager.h.

virtual void osgDB::DatabasePager::clear ( )

virtual

Clear all internally cached structures.

virtual DatabasePager* osgDB::DatabasePager::clone ( ) const

inlinevirtual

Create a shallow copy on the DatabasePager.

Definition at line 62 of file DatabasePager.h.

void osgDB::DatabasePager::compileCompleted ( DatabaseRequest *  databaseRequest )

protected

static DatabasePager* osgDB::DatabasePager::create ( )

static

create a DatabasePager by cloning DatabasePager::prototype().

bool osgDB::DatabasePager::getAcceptNewDatabaseRequests ( ) const

inline

Get whether new database request calls are accepted or ignored.

Definition at line 149 of file DatabasePager.h.

bool osgDB::DatabasePager::getApplyPBOToImages ( ) const

inline

Get whether newly loaded textures should have a PixelBufferObject assigned to them..

Definition at line 223 of file DatabasePager.h.

double osgDB::DatabasePager::getAverageTimeToMergeTiles ( ) const

inline

Get the average time between the first request for a tile to be loaded and the time of its merge into the main scene graph.

Definition at line 266 of file DatabasePager.h.

bool osgDB::DatabasePager::getDatabasePagerThreadPause ( ) const

inline

Get whether the database pager thread should is paused or not.

Definition at line 143 of file DatabasePager.h.

DatabaseThread* osgDB::DatabasePager::getDatabaseThread ( unsigned int  i )

inline

Definition at line 133 of file DatabasePager.h.

const DatabaseThread* osgDB::DatabasePager::getDatabaseThread ( unsigned int  i ) const

inline

Definition at line 135 of file DatabasePager.h.

unsigned int osgDB::DatabasePager::getDataToCompileListSize ( ) const

inline

Report how many items are in the _dataToCompileList queue

Definition at line 251 of file DatabasePager.h.

unsigned int osgDB::DatabasePager::getDataToMergeListSize ( ) const

inline

Report how many items are in the _dataToMergeList queue

Definition at line 254 of file DatabasePager.h.

bool osgDB::DatabasePager::getDeleteRemovedSubgraphsInDatabaseThread ( ) const

inline

Get whether the removed subgraphs should be deleted in the database thread or not.

Definition at line 202 of file DatabasePager.h.

bool osgDB::DatabasePager::getDoPreCompile ( ) const

inline

Get whether the database pager should pre compile OpenGL objects before allowing them to be merged into the scene graph.

Definition at line 185 of file DatabasePager.h.

DrawablePolicy osgDB::DatabasePager::getDrawablePolicy ( ) const

inline

Get how loaded drawables should be handled w.r.t their display list/vertex buffer object/vertex array settings.

Definition at line 216 of file DatabasePager.h.

unsigned int osgDB::DatabasePager::getFileRequestListSize ( ) const

inline

Report how many items are in the _fileRequestList queue

Definition at line 248 of file DatabasePager.h.

osgUtil::IncrementalCompileOperation* osgDB::DatabasePager::getIncrementalCompileOperation ( )

inline

Get the incremental compile operation.

Definition at line 174 of file DatabasePager.h.

osg::Object* osgDB::DatabasePager::getMarkerObject ( )

inline

Definition at line 290 of file DatabasePager.h.

const osg::Object* osgDB::DatabasePager::getMarkerObject ( ) const

inline

Definition at line 291 of file DatabasePager.h.

void osgDB::DatabasePager::getMaxAnisotropyPolicy ( bool &  changeAnisotropy, float &  valueAnisotropy  ) const

inline

Set whether newly loaded textures should have their MaxAnisotopy set to a specified value.

Definition at line 237 of file DatabasePager.h.

double osgDB::DatabasePager::getMaximumTimeToMergeTile ( ) const

inline

Get the maximum time between the first request for a tile to be loaded and the time of its merge into the main scene graph.

Definition at line 263 of file DatabasePager.h.

double osgDB::DatabasePager::getMinimumTimeToMergeTile ( ) const

inline

Get the minimum time between the first request for a tile to be loaded and the time of its merge into the main scene graph.

Definition at line 260 of file DatabasePager.h.

unsigned int osgDB::DatabasePager::getNumDatabaseThreads ( ) const

inline

Definition at line 137 of file DatabasePager.h.

int osgDB::DatabasePager::getNumFramesActive ( ) const

inline

Get the number of frames that are currently active.

Definition at line 152 of file DatabasePager.h.

bool osgDB::DatabasePager::getRequestsInProgress

(

)

const

Report whether any requests are in the pager.

unsigned int osgDB::DatabasePager::getTargetMaximumNumberOfPageLOD ( ) const

inline

Get the target maximum number of PagedLOD to maintain in memory.

Definition at line 195 of file DatabasePager.h.

void osgDB::DatabasePager::getUnrefImageDataAfterApplyPolicy ( bool &  changeAutoUnRef, bool &  valueAutoUnRef  ) const

inline

Get whether newly loaded textures should have their UnrefImageDataAfterApply set to a specified value.

Definition at line 230 of file DatabasePager.h.

virtual bool osgDB::DatabasePager::isRunning ( ) const

virtual

static osg::ref_ptr<DatabasePager>& osgDB::DatabasePager::prototype ( )

static

get the prototype singleton used by DatabasePager::create().

virtual void osgDB::DatabasePager::registerPagedLODs ( osg::Node *  subgraph, unsigned int  frameNumber = 0  )

virtual

Find all PagedLOD nodes in a subgraph and register them with the DatabasePager so it can keep track of expired nodes. note, should be only be called from the update thread.

virtual void osgDB::DatabasePager::removeExpiredSubgraphs ( const osg::FrameStamp &  frameStamp )

protectedvirtual

Iterate through the active PagedLOD nodes children removing children which havn't been visited since specified expiryTime. note, should be only be called from the update thread.

virtual void osgDB::DatabasePager::requestNodeFile ( const std::string &  fileName, osg::NodePath &  nodePath, float  priority, const osg::FrameStamp *  framestamp, osg::ref_ptr< osg::Referenced > &  databaseRequest, const osg::Referenced *  options  )

virtual

Add a request to load a node file to end the database request list.

Implements osg::NodeVisitor::DatabaseRequestHandler.

bool osgDB::DatabasePager::requiresUpdateSceneGraph

(

)

const

Return true if there are pending updates to the scene graph that require a call to updateSceneGraph(double).

void osgDB::DatabasePager::resetStats

(

)

Reset the Stats variables.

void osgDB::DatabasePager::setAcceptNewDatabaseRequests ( bool  acceptNewRequests )

inline

Set whether new database request calls are accepted or ignored.

Definition at line 146 of file DatabasePager.h.

void osgDB::DatabasePager::setApplyPBOToImages ( bool  assignPBOToImages )

inline

Set whether newly loaded textures should have a PixelBufferObject assigned to them to aid download to the GPU.

Definition at line 220 of file DatabasePager.h.

void osgDB::DatabasePager::setDatabasePagerThreadPause

(

bool

pause

)

Set whether the database pager thread should be paused or not.

void osgDB::DatabasePager::setDeleteRemovedSubgraphsInDatabaseThread ( bool  flag )

inline

Set whether the removed subgraphs should be deleted in the database thread or not.

Definition at line 199 of file DatabasePager.h.

void osgDB::DatabasePager::setDoPreCompile ( bool  flag )

inline

Set whether the database pager should pre compile OpenGL objects before allowing them to be merged into the scene graph. Pre compilation helps reduce the chances of frame drops, but also slows the speed at which tiles are merged as they have to be compiled first.

Definition at line 181 of file DatabasePager.h.

void osgDB::DatabasePager::setDrawablePolicy ( DrawablePolicy  policy )

inline

Set how loaded drawables should be handled w.r.t their display list/vertex buffer object/vertex array settings.

Definition at line 213 of file DatabasePager.h.

void osgDB::DatabasePager::setIncrementalCompileOperation

(

osgUtil::IncrementalCompileOperation *

ico

)

Set the incremental compile operation. Used to manage the OpenGL object compilation and merging of subgraphs in a way that avoids overloading the rendering of frame with too many new objects in one frame.

void osgDB::DatabasePager::setMarkerObject ( osg::Object *  mo )

inline

Definition at line 289 of file DatabasePager.h.

void osgDB::DatabasePager::setMaxAnisotropyPolicy ( bool  changeAnisotropy, float  valueAnisotropy  )

inline

Set whether newly loaded textures should have their MaxAnisotopy set to a specified value.

Definition at line 234 of file DatabasePager.h.

int osgDB::DatabasePager::setSchedulePriority

(

OpenThreads::Thread::ThreadPriority

priority

)

Set the priority of the database pager thread(s).

void osgDB::DatabasePager::setTargetMaximumNumberOfPageLOD ( unsigned int  target )

inline

Set the target maximum number of PagedLOD to maintain in memory. Note, if more than the target number are required for rendering of a frame then these active PagedLOD are excempt from being expiried. But once the number of active drops back below the target the inactive PagedLOD will be trimmed back to the target number.

Definition at line 192 of file DatabasePager.h.

void osgDB::DatabasePager::setUnrefImageDataAfterApplyPolicy ( bool  changeAutoUnRef, bool  valueAutoUnRef  )

inline

Set whether newly loaded textures should have their UnrefImageDataAfterApply set to a specified value.

Definition at line 227 of file DatabasePager.h.

void osgDB::DatabasePager::setUpThreads	(	unsigned int	totalNumThreads = 2,
		unsigned int	numHttpThreads = 1
	)

virtual void osgDB::DatabasePager::signalBeginFrame ( const osg::FrameStamp *  framestamp )

virtual

Signal the database thread that the update, cull and draw has begun for a new frame. Note, this is called by the application so that the database pager can go to sleep while the CPU is busy on the main rendering threads.

virtual void osgDB::DatabasePager::signalEndFrame ( )

virtual

Signal the database thread that the update, cull and draw dispatch has completed. Note, this is called by the application so that the database pager can go to wake back up now the main rendering threads are iddle waiting for the next frame.

virtual void osgDB::DatabasePager::updateSceneGraph ( const osg::FrameStamp &  frameStamp )

virtual

Merge the changes to the scene graph by calling calling removeExpiredSubgraphs then addLoadedDataToSceneGraph. Note, must only be called from single thread update phase.

Friends And Related Function Documentation

friend struct DatabasePagerCompileCompletedCallback

friend

Definition at line 413 of file DatabasePager.h.

friend struct DatabaseRequest

friend

Definition at line 298 of file DatabasePager.h.

friend class DatabaseThread

friend

Definition at line 297 of file DatabasePager.h.

friend class FindCompileableGLObjectsVisitor

friend

Definition at line 410 of file DatabasePager.h.

friend class FindPagedLODsVisitor

friend

Definition at line 416 of file DatabasePager.h.

friend struct SortFileRequestFunctor

friend

Definition at line 419 of file DatabasePager.h.

Member Data Documentation

bool osgDB::DatabasePager::_acceptNewRequests

protected

Definition at line 439 of file DatabasePager.h.

osg::ref_ptr<PagedLODList> osgDB::DatabasePager::_activePagedLODList

protected

Definition at line 464 of file DatabasePager.h.

bool osgDB::DatabasePager::_assignPBOToImages

protected

Definition at line 455 of file DatabasePager.h.

bool osgDB::DatabasePager::_changeAnisotropy

protected

Definition at line 458 of file DatabasePager.h.

bool osgDB::DatabasePager::_changeAutoUnRef

protected

Definition at line 456 of file DatabasePager.h.

bool osgDB::DatabasePager::_databasePagerThreadPaused

protected

Definition at line 440 of file DatabasePager.h.

DatabaseThreadList osgDB::DatabasePager::_databaseThreads

protected

Definition at line 442 of file DatabasePager.h.

osg::ref_ptr<RequestQueue> osgDB::DatabasePager::_dataToCompileList

protected

Definition at line 450 of file DatabasePager.h.

osg::ref_ptr<RequestQueue> osgDB::DatabasePager::_dataToMergeList

protected

Definition at line 451 of file DatabasePager.h.

bool osgDB::DatabasePager::_deleteRemovedSubgraphsInDatabaseThread

protected

Definition at line 461 of file DatabasePager.h.

bool osgDB::DatabasePager::_done

protected

Definition at line 438 of file DatabasePager.h.

bool osgDB::DatabasePager::_doPreCompile

protected

Definition at line 468 of file DatabasePager.h.

OpenThreads::Mutex osgDB::DatabasePager::_dr_mutex

protected

Definition at line 424 of file DatabasePager.h.

DrawablePolicy osgDB::DatabasePager::_drawablePolicy

protected

Definition at line 453 of file DatabasePager.h.

osg::ref_ptr<ReadQueue> osgDB::DatabasePager::_fileRequestQueue

protected

Definition at line 448 of file DatabasePager.h.

OpenThreads::Atomic osgDB::DatabasePager::_frameNumber

protected

Definition at line 446 of file DatabasePager.h.

osg::ref_ptr<ReadQueue> osgDB::DatabasePager::_httpRequestQueue

protected

Definition at line 449 of file DatabasePager.h.

osg::ref_ptr<osgUtil::IncrementalCompileOperation> osgDB::DatabasePager::_incrementalCompileOperation

protected

Definition at line 469 of file DatabasePager.h.

osg::ref_ptr<osg::Object> osgDB::DatabasePager::_markerObject

protected

Definition at line 477 of file DatabasePager.h.

double osgDB::DatabasePager::_maximumTimeToMergeTile

protected

Definition at line 473 of file DatabasePager.h.

double osgDB::DatabasePager::_minimumTimeToMergeTile

protected

Definition at line 472 of file DatabasePager.h.

int osgDB::DatabasePager::_numFramesActive

protected

Definition at line 444 of file DatabasePager.h.

OpenThreads::Mutex osgDB::DatabasePager::_numFramesActiveMutex

mutableprotected

Definition at line 445 of file DatabasePager.h.

unsigned int osgDB::DatabasePager::_numTilesMerges

protected

Definition at line 475 of file DatabasePager.h.

OpenThreads::Mutex osgDB::DatabasePager::_run_mutex

protected

Definition at line 423 of file DatabasePager.h.

bool osgDB::DatabasePager::_startThreadCalled

protected

Definition at line 425 of file DatabasePager.h.

unsigned int osgDB::DatabasePager::_targetMaximumNumberOfPageLOD

protected

Definition at line 466 of file DatabasePager.h.

double osgDB::DatabasePager::_totalTimeToMergeTiles

protected

Definition at line 474 of file DatabasePager.h.

float osgDB::DatabasePager::_valueAnisotropy

protected

Definition at line 459 of file DatabasePager.h.

bool osgDB::DatabasePager::_valueAutoUnRef

protected

Definition at line 457 of file DatabasePager.h.

---

The documentation for this class was generated from the following file:

• osg_head/include/osgDB/DatabasePager.h
