osgGA::EventQueue Class Reference

#include <EventQueue.h>

Inheritance diagram for osgGA::EventQueue:

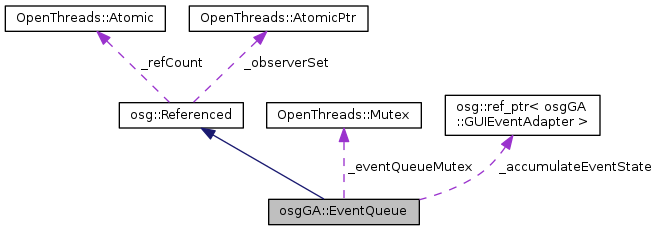

Collaboration diagram for osgGA::EventQueue:

Public Types
typedef std::list < osg::ref_ptr< Event > >	Events

Public Member Functions
	EventQueue (GUIEventAdapter::MouseYOrientation mouseYOrientation=GUIEventAdapter::Y_INCREASING_DOWNWARDS)
bool	empty () const
void	setEvents (Events &events)
bool	takeEvents (Events &events)
bool	takeEvents (Events &events, double cutOffTime)
bool	copyEvents (Events &events) const
void	appendEvents (Events &events)
void	addEvent (Event *event)
void	setUseFixedMouseInputRange (bool useFixedMouseInputRange)
bool	getUseFixedMouseInputRange ()
void	setGraphicsContext (osg::GraphicsContext *context)
osg::GraphicsContext *	getGraphicsContext ()
const osg::GraphicsContext *	getGraphicsContext () const
void	syncWindowRectangleWithGraphicsContext ()
void	setMouseInputRange (float xMin, float yMin, float xMax, float yMax)
osgGA::GUIEventAdapter *	windowResize (int x, int y, int width, int height)
osgGA::GUIEventAdapter *	windowResize (int x, int y, int width, int height, double time)
osgGA::GUIEventAdapter *	mouseScroll (GUIEventAdapter::ScrollingMotion sm)
osgGA::GUIEventAdapter *	mouseScroll (GUIEventAdapter::ScrollingMotion sm, double time)
osgGA::GUIEventAdapter *	mouseScroll2D (float x, float y)
osgGA::GUIEventAdapter *	mouseScroll2D (float x, float y, double time)
osgGA::GUIEventAdapter *	penPressure (float pressure)
osgGA::GUIEventAdapter *	penPressure (float pressure, double time)
osgGA::GUIEventAdapter *	penOrientation (float tiltX, float tiltY, float rotation)
osgGA::GUIEventAdapter *	penOrientation (float tiltX, float tiltY, float rotation, double time)
osgGA::GUIEventAdapter *	penProximity (GUIEventAdapter::TabletPointerType pt, bool isEntering)
osgGA::GUIEventAdapter *	penProximity (GUIEventAdapter::TabletPointerType pt, bool isEntering, double time)
void	mouseWarped (float x, float y)
osgGA::GUIEventAdapter *	mouseMotion (float x, float y)
osgGA::GUIEventAdapter *	mouseMotion (float x, float y, double time)
osgGA::GUIEventAdapter *	mouseButtonPress (float x, float y, unsigned int button)
osgGA::GUIEventAdapter *	mouseButtonPress (float x, float y, unsigned int button, double time)
osgGA::GUIEventAdapter *	mouseDoubleButtonPress (float x, float y, unsigned int button)
osgGA::GUIEventAdapter *	mouseDoubleButtonPress (float x, float y, unsigned int button, double time)
osgGA::GUIEventAdapter *	mouseButtonRelease (float x, float y, unsigned int button)
osgGA::GUIEventAdapter *	mouseButtonRelease (float x, float y, unsigned int button, double time)
osgGA::GUIEventAdapter *	keyPress (int key, int unmodifiedKey=0)
osgGA::GUIEventAdapter *	keyPress (int key, double time, int unmodifiedKey=0)
osgGA::GUIEventAdapter *	keyRelease (int key, int unmodifiedKey=0)
osgGA::GUIEventAdapter *	keyRelease (int key, double time, int unmodifiedKey=0)
GUIEventAdapter *	touchBegan (unsigned int id, GUIEventAdapter::TouchPhase phase, float x, float y, double time)
GUIEventAdapter *	touchBegan (unsigned int id, GUIEventAdapter::TouchPhase phase, float x, float y)
GUIEventAdapter *	touchMoved (unsigned int id, GUIEventAdapter::TouchPhase phase, float x, float y, double time)
GUIEventAdapter *	touchMoved (unsigned int id, GUIEventAdapter::TouchPhase phase, float x, float y)
GUIEventAdapter *	touchEnded (unsigned int id, GUIEventAdapter::TouchPhase phase, float x, float y, unsigned int tap_count, double time)
GUIEventAdapter *	touchEnded (unsigned int id, GUIEventAdapter::TouchPhase phase, float x, float y, unsigned int tap_count)
osgGA::GUIEventAdapter *	closeWindow ()
osgGA::GUIEventAdapter *	closeWindow (double time)
osgGA::GUIEventAdapter *	quitApplication ()
osgGA::GUIEventAdapter *	quitApplication (double time)
osgGA::GUIEventAdapter *	frame (double time)
void	setStartTick (osg::Timer_t tick)
osg::Timer_t	getStartTick () const
double	getTime () const
void	clear ()
GUIEventAdapter *	createEvent ()
void	setCurrentEventState (GUIEventAdapter *ea)
GUIEventAdapter *	getCurrentEventState ()
const GUIEventAdapter *	getCurrentEventState () const
GUIEventAdapter *	userEvent (osg::Referenced *userEventData)
GUIEventAdapter *	userEvent (osg::Referenced *userEventData, double time)
void	setFirstTouchEmulatesMouse (bool b)
bool	getFirstTouchEmulatesMouse () const
Public Member Functions inherited from osg::Referenced
	Referenced ()
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
virtual void	setThreadSafeRefUnref (bool threadSafe)
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
int	unref () const
int	unref_nodelete () const
int	referenceCount () const
ObserverSet *	getObserverSet () const
ObserverSet *	getOrCreateObserverSet () const
void	addObserver (Observer *observer) const
void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~EventQueue ()
EventQueue &	operator= (const EventQueue &)
Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Protected Attributes
osg::ref_ptr< GUIEventAdapter >	_accumulateEventState
bool	_useFixedMouseInputRange
osg::Timer_t	_startTick
OpenThreads::Mutex	_eventQueueMutex
Events	_eventQueue
bool	_firstTouchEmulatesMouse
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
static bool	getThreadSafeReferenceCounting ()
static void	setDeleteHandler (DeleteHandler *handler)
static DeleteHandler *	getDeleteHandler ()

Detailed Description

EventQueue implementation for collecting and adapting windowing events

Definition at line 30 of file EventQueue.h.

Member Typedef Documentation

typedef std::list< osg::ref_ptr<Event> > osgGA::EventQueue::Events

Definition at line 36 of file EventQueue.h.

Constructor & Destructor Documentation

osgGA::EventQueue::EventQueue

(

GUIEventAdapter::MouseYOrientation

mouseYOrientation = GUIEventAdapter::Y_INCREASING_DOWNWARDS

)

virtual osgGA::EventQueue::~EventQueue ( )

protectedvirtual

Member Function Documentation

void osgGA::EventQueue::addEvent

(

Event *

event

)

Add an event to the end of the event queue.

void osgGA::EventQueue::appendEvents

(

Events &

events

)

Add events to end of event queue.

void osgGA::EventQueue::clear

(

)

clear all events from queue.

osgGA::GUIEventAdapter* osgGA::EventQueue::closeWindow ( )

inline

Method for adapting close window events.

Definition at line 195 of file EventQueue.h.

Here is the call graph for this function:

Here is the caller graph for this function:

osgGA::GUIEventAdapter* osgGA::EventQueue::closeWindow

(

double

time

)

Method for adapting close window event with specified event time.

bool osgGA::EventQueue::copyEvents

(

Events &

events

)

const

Take a copy the entire event queue leaving the EventQueue' event queue intact.

GUIEventAdapter* osgGA::EventQueue::createEvent

(

)

convenience method for create an event ready to fill in. Clones the getCurrentEventState() to produce a up to date event state.

bool osgGA::EventQueue::empty ( ) const

inline

Definition at line 38 of file EventQueue.h.

osgGA::GUIEventAdapter* osgGA::EventQueue::frame

(

double

time

)

Method for adapting frame events.

GUIEventAdapter* osgGA::EventQueue::getCurrentEventState ( )

inline

Definition at line 225 of file EventQueue.h.

const GUIEventAdapter* osgGA::EventQueue::getCurrentEventState ( ) const

inline

Definition at line 226 of file EventQueue.h.

bool osgGA::EventQueue::getFirstTouchEmulatesMouse ( ) const

inline

Definition at line 235 of file EventQueue.h.

osg::GraphicsContext* osgGA::EventQueue::getGraphicsContext ( )

inline

Definition at line 74 of file EventQueue.h.

const osg::GraphicsContext* osgGA::EventQueue::getGraphicsContext ( ) const

inline

Definition at line 76 of file EventQueue.h.

osg::Timer_t osgGA::EventQueue::getStartTick ( ) const

inline

Definition at line 213 of file EventQueue.h.

double osgGA::EventQueue::getTime ( ) const

inline

Definition at line 215 of file EventQueue.h.

Here is the call graph for this function:

bool osgGA::EventQueue::getUseFixedMouseInputRange ( )

inline

Get whether the mouse coordinates should be transformed into a pre defined input range.

Definition at line 68 of file EventQueue.h.

osgGA::GUIEventAdapter* osgGA::EventQueue::keyPress ( int  key, int  unmodifiedKey = 0  )

inline

Method for adapting keyboard press events. Note, special keys such as Ctrl/Function keys should be adapted to GUIEventAdapter::KeySymbol mappings.

Definition at line 165 of file EventQueue.h.

Here is the call graph for this function:

Here is the caller graph for this function:

osgGA::GUIEventAdapter* osgGA::EventQueue::keyPress	(	int	key,
		double	time,
		int	unmodifiedKey = 0
	)

Method for adapting keyboard press events. Note, special keys such as Ctrl/Function keys should be adapted to GUIEventAdapter::KeySymbol mappings, with specified time.

osgGA::GUIEventAdapter* osgGA::EventQueue::keyRelease ( int  key, int  unmodifiedKey = 0  )

inline

Method for adapting keyboard press events. Note, special keys such as Ctrl/Function keys should be adapted to GUIEventAdapter::KeySymbol mappings.

Definition at line 172 of file EventQueue.h.

Here is the call graph for this function:

Here is the caller graph for this function:

osgGA::GUIEventAdapter* osgGA::EventQueue::keyRelease	(	int	key,
		double	time,
		int	unmodifiedKey = 0
	)

Method for adapting keyboard press events. Note, special keys such as Ctrl/Function keys should be adapted to GUIEventAdapter::KeySymbol mappings, with specified time.

osgGA::GUIEventAdapter* osgGA::EventQueue::mouseButtonPress ( float  x, float  y, unsigned int  button  )

inline

Method for adapting mouse button pressed events, placing this event on the back of the event queue. Button numbering is 1 for left mouse button, 2 for middle, 3 for right.

Definition at line 139 of file EventQueue.h.

Here is the call graph for this function:

Here is the caller graph for this function:

osgGA::GUIEventAdapter* osgGA::EventQueue::mouseButtonPress	(	float	x,
		float	y,
		unsigned int	button,
		double	time
	)

Method for adapting mouse button pressed events, placing this event on the back of the event queue, with specified time. Button numbering is 1 for left mouse button, 2 for middle, 3 for right.

osgGA::GUIEventAdapter* osgGA::EventQueue::mouseButtonRelease ( float  x, float  y, unsigned int  button  )

inline

Method for adapting mouse button release events, placing this event on the back of the event queue. Button numbering is 1 for left mouse button, 2 for middle, 3 for right.

Definition at line 157 of file EventQueue.h.

Here is the call graph for this function:

Here is the caller graph for this function:

osgGA::GUIEventAdapter* osgGA::EventQueue::mouseButtonRelease	(	float	x,
		float	y,
		unsigned int	button,
		double	time
	)

Method for adapting mouse button release events, placing this event on the back of the event queue, with specified time. Button numbering is 1 for left mouse button, 2 for middle, 3 for right.

osgGA::GUIEventAdapter* osgGA::EventQueue::mouseDoubleButtonPress ( float  x, float  y, unsigned int  button  )

inline

Method for adapting mouse button pressed events, placing this event on the back of the event queue. Button numbering is 1 for left mouse button, 2 for middle, 3 for right.

Definition at line 148 of file EventQueue.h.

Here is the call graph for this function:

Here is the caller graph for this function:

osgGA::GUIEventAdapter* osgGA::EventQueue::mouseDoubleButtonPress	(	float	x,
		float	y,
		unsigned int	button,
		double	time
	)

Method for adapting mouse button pressed events, placing this event on the back of the event queue, with specified time. Button numbering is 1 for left mouse button, 2 for middle, 3 for right.

osgGA::GUIEventAdapter* osgGA::EventQueue::mouseMotion ( float  x, float  y  )

inline

Method for adapting mouse motion events, placing this event on the back of the event queue.

Definition at line 131 of file EventQueue.h.

Here is the call graph for this function:

Here is the caller graph for this function:

osgGA::GUIEventAdapter* osgGA::EventQueue::mouseMotion	(	float	x,
		float	y,
		double	time
	)

Method for adapting mouse motion events, placing this event on the back of the event queue, with specified time.

osgGA::GUIEventAdapter* osgGA::EventQueue::mouseScroll ( GUIEventAdapter::ScrollingMotion  sm )

inline

Method for adapting mouse scroll wheel events, placing this event on the back of the event queue.

Definition at line 94 of file EventQueue.h.

Here is the call graph for this function:

Here is the caller graph for this function:

osgGA::GUIEventAdapter* osgGA::EventQueue::mouseScroll	(	GUIEventAdapter::ScrollingMotion	sm,
		double	time
	)

Method for adapting mouse scroll wheel events, placing this event on the back of the event queue, with specified time.

osgGA::GUIEventAdapter* osgGA::EventQueue::mouseScroll2D ( float  x, float  y  )

inline

Method for adapting mouse scroll wheel events, placing this event on the back of the event queue.

Definition at line 101 of file EventQueue.h.

Here is the call graph for this function:

Here is the caller graph for this function:

osgGA::GUIEventAdapter* osgGA::EventQueue::mouseScroll2D	(	float	x,
		float	y,
		double	time
	)

Method for adapting mouse scroll wheel events, placing this event on the back of the event queue.

void osgGA::EventQueue::mouseWarped	(	float	x,
		float	y
	)

Method for updating in response to a mouse warp. Note, just moves the mouse position without creating a new event for it.

EventQueue& osgGA::EventQueue::operator= ( const EventQueue &  )

inlineprotected

Prevent unwanted copy operator.

Definition at line 242 of file EventQueue.h.

osgGA::GUIEventAdapter* osgGA::EventQueue::penOrientation ( float  tiltX, float  tiltY, float  rotation  )

inline

Method for adapting pen orientation events, placing this event on the back of the event queue.

Definition at line 114 of file EventQueue.h.

Here is the call graph for this function:

Here is the caller graph for this function:

osgGA::GUIEventAdapter* osgGA::EventQueue::penOrientation	(	float	tiltX,
		float	tiltY,
		float	rotation,
		double	time
	)

Method for adapting pen orientation events, placing this event on the back of the event queue, with specified time.

osgGA::GUIEventAdapter* osgGA::EventQueue::penPressure ( float  pressure )

inline

Method for adapting pen pressure events, placing this event on the back of the event queue.

Definition at line 108 of file EventQueue.h.

Here is the call graph for this function:

Here is the caller graph for this function:

osgGA::GUIEventAdapter* osgGA::EventQueue::penPressure	(	float	pressure,
		double	time
	)

Method for adapting pen pressure events, placing this event on the back of the event queue, with specified time.

osgGA::GUIEventAdapter* osgGA::EventQueue::penProximity ( GUIEventAdapter::TabletPointerType  pt, bool  isEntering  )

inline

Method for adapting pen proximity events, placing this event on the back of the event queue.

Definition at line 120 of file EventQueue.h.

Here is the call graph for this function:

Here is the caller graph for this function:

osgGA::GUIEventAdapter* osgGA::EventQueue::penProximity	(	GUIEventAdapter::TabletPointerType	pt,
		bool	isEntering,
		double	time
	)

Method for adapting pen proximity events, placing this event on the back of the event queue, with specified time.

osgGA::GUIEventAdapter* osgGA::EventQueue::quitApplication ( )

inline

Method for adapting application quit events.

Definition at line 202 of file EventQueue.h.

Here is the call graph for this function:

Here is the caller graph for this function:

osgGA::GUIEventAdapter* osgGA::EventQueue::quitApplication

(

double

time

)

Method for adapting application quit events with specified event time.

void osgGA::EventQueue::setCurrentEventState ( GUIEventAdapter *  ea )

inline

Definition at line 224 of file EventQueue.h.

void osgGA::EventQueue::setEvents

(

Events &

events

)

Set events.

void osgGA::EventQueue::setFirstTouchEmulatesMouse ( bool  b )

inline

Definition at line 234 of file EventQueue.h.

void osgGA::EventQueue::setGraphicsContext ( osg::GraphicsContext *  context )

inline

Set the graphics context associated with this event queue.

Definition at line 72 of file EventQueue.h.

Here is the caller graph for this function:

void osgGA::EventQueue::setMouseInputRange ( float  xMin, float  yMin, float  xMax, float  yMax  )

inline

Set the mouse input range.

Definition at line 83 of file EventQueue.h.

void osgGA::EventQueue::setStartTick ( osg::Timer_t  tick )

inline

Definition at line 212 of file EventQueue.h.

void osgGA::EventQueue::setUseFixedMouseInputRange ( bool  useFixedMouseInputRange )

inline

Specify if mouse coordinates should be transformed into a pre defined input range, or whether they should be simply based on as local coordinates to the window that generated the mouse events.

Definition at line 65 of file EventQueue.h.

void osgGA::EventQueue::syncWindowRectangleWithGraphicsContext

(

)

Read the window record dimensions from the graphics context.

bool osgGA::EventQueue::takeEvents

(

Events &

events

)

Take the entire event queue leaving the EventQueue' event queue empty.

bool osgGA::EventQueue::takeEvents	(	Events &	events,
		double	cutOffTime
	)

Take the events that were recorded before with specified time queue.

GUIEventAdapter* osgGA::EventQueue::touchBegan	(	unsigned int	id,
		GUIEventAdapter::TouchPhase	phase,
		float	x,
		float	y,
		double	time
	)

GUIEventAdapter* osgGA::EventQueue::touchBegan ( unsigned int  id, GUIEventAdapter::TouchPhase  phase, float  x, float  y  )

inline

Definition at line 178 of file EventQueue.h.

GUIEventAdapter* osgGA::EventQueue::touchEnded	(	unsigned int	id,
		GUIEventAdapter::TouchPhase	phase,
		float	x,
		float	y,
		unsigned int	tap_count,
		double	time
	)

GUIEventAdapter* osgGA::EventQueue::touchEnded ( unsigned int  id, GUIEventAdapter::TouchPhase  phase, float  x, float  y, unsigned int  tap_count  )

inline

Definition at line 188 of file EventQueue.h.

GUIEventAdapter* osgGA::EventQueue::touchMoved	(	unsigned int	id,
		GUIEventAdapter::TouchPhase	phase,
		float	x,
		float	y,
		double	time
	)

GUIEventAdapter* osgGA::EventQueue::touchMoved ( unsigned int  id, GUIEventAdapter::TouchPhase  phase, float  x, float  y  )

inline

Definition at line 183 of file EventQueue.h.

GUIEventAdapter* osgGA::EventQueue::userEvent ( osg::Referenced *  userEventData )

inline

Method for adapting user defined events

Definition at line 229 of file EventQueue.h.

Here is the call graph for this function:

Here is the caller graph for this function:

GUIEventAdapter* osgGA::EventQueue::userEvent	(	osg::Referenced *	userEventData,
		double	time
	)

Method for adapting user defined events with specified event time

osgGA::GUIEventAdapter* osgGA::EventQueue::windowResize ( int  x, int  y, int  width, int  height  )

inline

Method for adapting window resize event, placing this event on the back of the event queue.

Definition at line 87 of file EventQueue.h.

Here is the call graph for this function:

Here is the caller graph for this function:

osgGA::GUIEventAdapter* osgGA::EventQueue::windowResize	(	int	x,
		int	y,
		int	width,
		int	height,
		double	time
	)

Method for adapting window resize event, placing this event on the back of the event queue, with specified time.

Member Data Documentation

osg::ref_ptr<GUIEventAdapter> osgGA::EventQueue::_accumulateEventState

protected

Definition at line 244 of file EventQueue.h.

Events osgGA::EventQueue::_eventQueue

protected

Definition at line 250 of file EventQueue.h.

OpenThreads::Mutex osgGA::EventQueue::_eventQueueMutex

mutableprotected

Definition at line 249 of file EventQueue.h.

bool osgGA::EventQueue::_firstTouchEmulatesMouse

protected

Definition at line 251 of file EventQueue.h.

osg::Timer_t osgGA::EventQueue::_startTick

protected

Definition at line 248 of file EventQueue.h.

bool osgGA::EventQueue::_useFixedMouseInputRange

protected

Definition at line 246 of file EventQueue.h.

---

The documentation for this class was generated from the following file:

• osg_head/include/osgGA/EventQueue.h
