osg::Light Class Reference

#include <Light.h>

Inheritance diagram for osg::Light:
Inheritance graph
[legend]

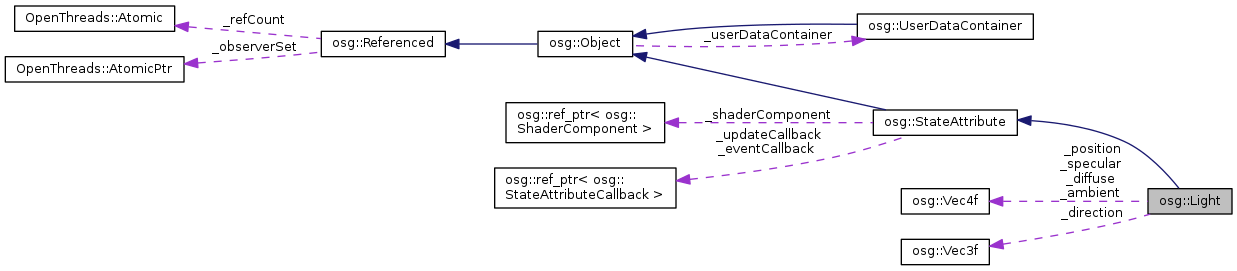

Collaboration diagram for osg::Light:
Collaboration graph
[legend]

Public Member Functions

 Light ()

 Light (unsigned int lightnum)

 Light (const Light &light, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual osg::Object * cloneType () const

virtual osg::Object * clone (const osg::CopyOp &copyop) const

virtual bool isSameKindAs (const osg::Object *obj) const

virtual const char * libraryName () const

virtual const char * className () const

virtual Type getType () const

virtual int compare (const StateAttribute &sa) const

virtual unsigned int getMember () const

virtual bool getModeUsage (StateAttribute::ModeUsage &usage) const

void setLightNum (int num)

int getLightNum () const

void setAmbient (const Vec4 &ambient)

const Vec4 & getAmbient () const

void setDiffuse (const Vec4 &diffuse)

const Vec4 & getDiffuse () const

void setSpecular (const Vec4 &specular)

const Vec4 & getSpecular () const

void setPosition (const Vec4 &position)

const Vec4 & getPosition () const

void setDirection (const Vec3 &direction)

const Vec3 & getDirection () const

void setConstantAttenuation (float constant_attenuation)

float getConstantAttenuation () const

void setLinearAttenuation (float linear_attenuation)

float getLinearAttenuation () const

void setQuadraticAttenuation (float quadratic_attenuation)

float getQuadraticAttenuation () const

void setSpotExponent (float spot_exponent)

float getSpotExponent () const

void setSpotCutoff (float spot_cutoff)

float getSpotCutoff () const

void captureLightState ()

virtual void apply (State &state) const

- Public Member Functions inherited from osg::StateAttribute
 StateAttribute ()

 StateAttribute (const StateAttribute &sa, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual StateAttribute * asStateAttribute ()

virtual const StateAttribute * asStateAttribute () const

virtual Texture * asTexture ()

virtual const Texture * asTexture () const

TypeMemberPair getTypeMemberPair () const

virtual bool isTextureAttribute () const

bool operator< (const StateAttribute &rhs) const

bool operator== (const StateAttribute &rhs) const

bool operator!= (const StateAttribute &rhs) const

const ParentList & getParents () const

StateSet * getParent (unsigned int i)

const StateSet * getParent (unsigned int i) const

unsigned int getNumParents () const

void setShaderComponent (ShaderComponent *sc)

ShaderComponent * getShaderComponent ()

const ShaderComponent * getShaderComponent () const

virtual bool checkValidityOfAssociatedModes (osg::State &) const

void setUpdateCallback (StateAttributeCallback *uc)

StateAttributeCallback * getUpdateCallback ()

const StateAttributeCallback * getUpdateCallback () const

void setEventCallback (StateAttributeCallback *ec)

StateAttributeCallback * getEventCallback ()

const StateAttributeCallback * getEventCallback () const

virtual void compileGLObjects (State &) const

virtual void resizeGLObjectBuffers (unsigned int)

virtual void releaseGLObjects (State *=0) const

- Public Member Functions inherited from osg::Object
 Object ()

 Object (bool threadSafeRefUnref)

 Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string getCompoundClassName () const

virtual Node * asNode ()

virtual const Node * asNode () const

virtual NodeVisitor * asNodeVisitor ()

virtual const NodeVisitor * asNodeVisitor () const

virtual Uniform * asUniform ()

virtual const Uniform * asUniform () const

virtual void setThreadSafeRefUnref (bool threadSafe)

virtual void setName (const std::string &name)

void setName (const char *name)

const std::string & getName () const

void setDataVariance (DataVariance dv)

DataVariance getDataVariance () const

virtual void computeDataVariance ()

void setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer * getUserDataContainer ()

const osg::UserDataContainer * getUserDataContainer () const

osg::UserDataContainer * getOrCreateUserDataContainer ()

virtual void setUserData (Referenced *obj)

virtual Referenced * getUserData ()

virtual const Referenced * getUserData () const

template<typename T >
bool getUserValue (const std::string &name, T &value) const

template<typename T >
void setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject
UCharValueObject
UShortValueObject
UIntValueObject
DoubleValueObject
Vec3fValueObject
Vec2dValueObject
Vec4dValueObject
PlaneValueObject
MatrixdValueObject
BoundingBoxdValueObject
BoundingSpheredValueObject
bool 		getUserValue (const std::string &name, T &value) const

- Public Member Functions inherited from osg::Referenced
 Referenced ()

 Referenced (bool threadSafeRefUnref)

 Referenced (const Referenced &)

Referenced & operator= (const Referenced &)

bool getThreadSafeRefUnref () const

OpenThreads::Mutex * getRefMutex () const

int ref () const

int unref () const

int unref_nodelete () const

int referenceCount () const

ObserverSet * getObserverSet () const

ObserverSet * getOrCreateObserverSet () const

void addObserver (Observer *observer) const

void removeObserver (Observer *observer) const


Protected Member Functions

virtual ~Light ()

void init ()

- Protected Member Functions inherited from osg::StateAttribute
virtual ~StateAttribute ()

void addParent (osg::StateSet *object)

void removeParent (osg::StateSet *object)

- Protected Member Functions inherited from osg::Object
virtual ~Object ()

- Protected Member Functions inherited from osg::Referenced
virtual ~Referenced ()

void signalObserversAndDelete (bool signalDelete, bool doDelete) const

void deleteUsingDeleteHandler () const


Protected Attributes

int _lightnum

Vec4 _ambient

Vec4 _diffuse

Vec4 _specular

Vec4 _position

Vec3 _direction

float _constant_attenuation

float _linear_attenuation

float _quadratic_attenuation

float _spot_exponent

float _spot_cutoff

- Protected Attributes inherited from osg::StateAttribute
ParentList _parents

ref_ptr< ShaderComponent > _shaderComponent

ref_ptr< StateAttributeCallback > _updateCallback

ref_ptr< StateAttributeCallback > _eventCallback

- Protected Attributes inherited from osg::Object
std::string _name

DataVariance _dataVariance

osg::UserDataContainer * _userDataContainer

- Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr _observerSet

OpenThreads::Atomic _refCount


Additional Inherited Members

- Public Types inherited from osg::StateAttribute
enum  Values {
  OFF = 0x0, ON = 0x1, OVERRIDE = 0x2, PROTECTED = 0x4,
  INHERIT = 0x8
}

enum  Type {
  TEXTURE, POLYGONMODE, POLYGONOFFSET, MATERIAL,
  ALPHAFUNC, ANTIALIAS, COLORTABLE, CULLFACE,
  FOG, FRONTFACE, LIGHT, POINT,
  LINEWIDTH, LINESTIPPLE, POLYGONSTIPPLE, SHADEMODEL,
  TEXENV, TEXENVFILTER, TEXGEN, TEXMAT,
  LIGHTMODEL, BLENDFUNC, BLENDEQUATION, LOGICOP,
  STENCIL, COLORMASK, DEPTH, VIEWPORT,
  SCISSOR, BLENDCOLOR, MULTISAMPLE, CLIPPLANE,
  COLORMATRIX, VERTEXPROGRAM, FRAGMENTPROGRAM, POINTSPRITE,
  PROGRAM, CLAMPCOLOR, HINT, SAMPLEMASKI,
  PRIMITIVERESTARTINDEX, CLIPCONTROL, VALIDATOR, VIEWMATRIXEXTRACTOR,
  OSGNV_PARAMETER_BLOCK, OSGNVEXT_TEXTURE_SHADER, OSGNVEXT_VERTEX_PROGRAM, OSGNVEXT_REGISTER_COMBINERS,
  OSGNVCG_PROGRAM, OSGNVSLANG_PROGRAM, OSGNVPARSE_PROGRAM_PARSER, UNIFORMBUFFERBINDING,
  TRANSFORMFEEDBACKBUFFERBINDING, ATOMICCOUNTERBUFFERBINDING, PATCH_PARAMETER, FRAME_BUFFER_OBJECT,
  VERTEX_ATTRIB_DIVISOR, SHADERSTORAGEBUFFERBINDING, CAPABILITY = 100
}

typedef GLenum GLMode

typedef unsigned int GLModeValue

typedef unsigned int OverrideValue

typedef std::pair< Type,
unsigned int > 		TypeMemberPair

typedef std::vector< StateSet * > ParentList

typedef osg::StateAttributeCallback Callback

- Public Types inherited from osg::Object
enum  DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

- Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex * getGlobalReferencedMutex ()

static void setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool getThreadSafeReferenceCounting ()

static void setDeleteHandler (DeleteHandler *handler)

static DeleteHandler * getDeleteHandler ()


Detailed Description

Light state class which encapsulates OpenGL glLight() functionality.

Definition at line 39 of file Light.h.

Constructor & Destructor Documentation

osg::Light::Light ( )
osg::Light::Light ( unsigned int  lightnum)
osg::Light::Light ( const Light &  light,
const CopyOp &  copyop = CopyOp::SHALLOW_COPY
)
inline

Copy constructor using CopyOp to manage deep vs shallow copy.

Definition at line 48 of file Light.h.

virtual osg::Light::~Light ( )
protectedvirtual

Member Function Documentation

virtual void osg::Light::apply ( State &  state) const
virtual

Apply the light's state to the OpenGL state machine.

Reimplemented from osg::StateAttribute.

void osg::Light::captureLightState ( )

Capture the lighting settings of the current OpenGL state and store them in this object.

virtual const char* osg::Light::className ( ) const
inlinevirtual

Return the name of the attribute's class type.

Reimplemented from osg::StateAttribute.

Definition at line 66 of file Light.h.

virtual osg::Object* osg::Light::clone ( const osg::CopyOp &  ) const
inlinevirtual

Clone an attribute, with Object* return type. Must be defined by derived classes.

Implements osg::StateAttribute.

Definition at line 63 of file Light.h.

virtual osg::Object* osg::Light::cloneType ( ) const
inlinevirtual

Clone the type of an attribute, with Object* return type. Must be defined by derived classes.

Implements osg::StateAttribute.

Definition at line 62 of file Light.h.

virtual int osg::Light::compare ( const StateAttribute &  sa) const
inlinevirtual

Return -1 if *this < *rhs, 0 if *this==*rhs, 1 if *this>*rhs.

Implements osg::StateAttribute.

Definition at line 70 of file Light.h.

const Vec4& osg::Light::getAmbient ( ) const
inline

Get the ambient component of the light.

Definition at line 112 of file Light.h.

float osg::Light::getConstantAttenuation ( ) const
inline

Get the constant attenuation of the light.

Definition at line 142 of file Light.h.

const Vec4& osg::Light::getDiffuse ( ) const
inline

Get the diffuse component of the light.

Definition at line 118 of file Light.h.

const Vec3& osg::Light::getDirection ( ) const
inline

Get the direction of the light.

Definition at line 136 of file Light.h.

int osg::Light::getLightNum ( ) const
inline

Get which OpenGL light this osg::Light operates on.

Definition at line 106 of file Light.h.

float osg::Light::getLinearAttenuation ( ) const
inline

Get the linear attenuation of the light.

Definition at line 148 of file Light.h.

virtual unsigned int osg::Light::getMember ( ) const
inlinevirtual

Return the member identifier within the attribute's class type. Used for light number/clip plane number etc.

Reimplemented from osg::StateAttribute.

Definition at line 92 of file Light.h.

virtual bool osg::Light::getModeUsage ( StateAttribute::ModeUsage &  ) const
inlinevirtual

Return the modes associated with this StateAttribute.

Reimplemented from osg::StateAttribute.

Definition at line 94 of file Light.h.

Here is the call graph for this function:

const Vec4& osg::Light::getPosition ( ) const
inline

Get the position of the light.

Definition at line 130 of file Light.h.

float osg::Light::getQuadraticAttenuation ( ) const
inline

Get the quadratic attenuation of the light.

Definition at line 154 of file Light.h.

const Vec4& osg::Light::getSpecular ( ) const
inline

Get the specular component of the light.

Definition at line 124 of file Light.h.

float osg::Light::getSpotCutoff ( ) const
inline

Get the spot cutoff of the light.

Definition at line 166 of file Light.h.

float osg::Light::getSpotExponent ( ) const
inline

Get the spot exponent of the light.

Definition at line 160 of file Light.h.

virtual Type osg::Light::getType ( ) const
inlinevirtual

Return the Type identifier of the attribute's class type.

Implements osg::StateAttribute.

Definition at line 67 of file Light.h.

void osg::Light::init ( )
protected

Initialize the light's settings with some decent defaults.

virtual bool osg::Light::isSameKindAs ( const osg::Object *  obj) const
inlinevirtual

Return true if this and obj are of the same kind of object.

Reimplemented from osg::StateAttribute.

Definition at line 64 of file Light.h.

virtual const char* osg::Light::libraryName ( ) const
inlinevirtual

Return the name of the attribute's library.

Reimplemented from osg::StateAttribute.

Definition at line 65 of file Light.h.

void osg::Light::setAmbient ( const Vec4 &  ambient)
inline

Set the ambient component of the light.

Definition at line 109 of file Light.h.

void osg::Light::setConstantAttenuation ( float  constant_attenuation)
inline

Set the constant attenuation of the light.

Definition at line 139 of file Light.h.

void osg::Light::setDiffuse ( const Vec4 &  diffuse)
inline

Set the diffuse component of the light.

Definition at line 115 of file Light.h.

void osg::Light::setDirection ( const Vec3 &  direction)
inline

Set the direction of the light.

Definition at line 133 of file Light.h.

void osg::Light::setLightNum ( int  num)

Set which OpenGL light to operate on.

void osg::Light::setLinearAttenuation ( float  linear_attenuation)
inline

Set the linear attenuation of the light.

Definition at line 145 of file Light.h.

void osg::Light::setPosition ( const Vec4 &  position)
inline

Set the position of the light.

Definition at line 127 of file Light.h.

void osg::Light::setQuadraticAttenuation ( float  quadratic_attenuation)
inline

Set the quadratic attenuation of the light.

Definition at line 151 of file Light.h.

void osg::Light::setSpecular ( const Vec4 &  specular)
inline

Set the specular component of the light.

Definition at line 121 of file Light.h.

void osg::Light::setSpotCutoff ( float  spot_cutoff)
inline

Set the spot cutoff of the light.

Definition at line 163 of file Light.h.

void osg::Light::setSpotExponent ( float  spot_exponent)
inline

Set the spot exponent of the light.

Definition at line 157 of file Light.h.

Member Data Documentation

Vec4 osg::Light::_ambient
protected

Definition at line 185 of file Light.h.

float osg::Light::_constant_attenuation
protected

Definition at line 190 of file Light.h.

Vec4 osg::Light::_diffuse
protected

Definition at line 186 of file Light.h.

Vec3 osg::Light::_direction
protected

Definition at line 189 of file Light.h.

int osg::Light::_lightnum
protected

Definition at line 183 of file Light.h.

float osg::Light::_linear_attenuation
protected

Definition at line 191 of file Light.h.

Vec4 osg::Light::_position
protected

Definition at line 188 of file Light.h.

float osg::Light::_quadratic_attenuation
protected

Definition at line 192 of file Light.h.

Vec4 osg::Light::_specular
protected

Definition at line 187 of file Light.h.

float osg::Light::_spot_cutoff
protected

Definition at line 194 of file Light.h.

float osg::Light::_spot_exponent
protected

Definition at line 193 of file Light.h.

The documentation for this class was generated from the following file:
Generated on Tue Oct 4 2016 19:20:50 for OSG by   doxygen 1.8.8
