osg::DisplaySettings Class Reference

#include <DisplaySettings.h>

Inheritance diagram for osg::DisplaySettings:

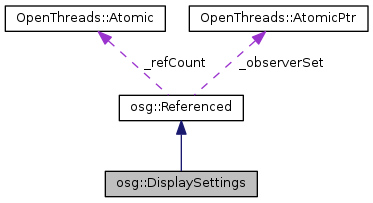

Collaboration diagram for osg::DisplaySettings:

Public Types
enum	DisplayType { MONITOR, POWERWALL, REALITY_CENTER, HEAD_MOUNTED_DISPLAY }
enum	StereoMode {   QUAD_BUFFER, ANAGLYPHIC, HORIZONTAL_SPLIT, VERTICAL_SPLIT,   LEFT_EYE, RIGHT_EYE, HORIZONTAL_INTERLACE, VERTICAL_INTERLACE,   CHECKERBOARD }
enum	SplitStereoHorizontalEyeMapping { LEFT_EYE_LEFT_VIEWPORT, LEFT_EYE_RIGHT_VIEWPORT }
enum	SplitStereoVerticalEyeMapping { LEFT_EYE_TOP_VIEWPORT, LEFT_EYE_BOTTOM_VIEWPORT }
enum	ImplicitBufferAttachment { IMPLICIT_DEPTH_BUFFER_ATTACHMENT = (1 << 0), IMPLICIT_STENCIL_BUFFER_ATTACHMENT = (1 << 1), IMPLICIT_COLOR_BUFFER_ATTACHMENT = (1 << 2), DEFAULT_IMPLICIT_BUFFER_ATTACHMENT = IMPLICIT_COLOR_BUFFER_ATTACHMENT | IMPLICIT_DEPTH_BUFFER_ATTACHMENT }
enum	SwapMethod { SWAP_DEFAULT, SWAP_EXCHANGE, SWAP_COPY, SWAP_UNDEFINED }
enum	OSXMenubarBehavior { MENUBAR_AUTO_HIDE, MENUBAR_FORCE_HIDE, MENUBAR_FORCE_SHOW }
typedef int	ImplicitBufferAttachmentMask
typedef std::vector< std::string >	FileNames
typedef std::vector < osg::ref_ptr< osg::Object > >	Objects

Public Member Functions
	DisplaySettings ()
	DisplaySettings (ArgumentParser &arguments)
	DisplaySettings (const DisplaySettings &vs)
DisplaySettings &	operator= (const DisplaySettings &vs)
void	setDisplaySettings (const DisplaySettings &vs)
void	merge (const DisplaySettings &vs)
void	setDefaults ()
void	readEnvironmentalVariables ()
void	readCommandLine (ArgumentParser &arguments)
void	setDisplayType (DisplayType type)
DisplayType	getDisplayType () const
void	setStereo (bool on)
bool	getStereo () const
void	setStereoMode (StereoMode mode)
StereoMode	getStereoMode () const
void	setEyeSeparation (float eyeSeparation)
float	getEyeSeparation () const
void	setSplitStereoHorizontalEyeMapping (SplitStereoHorizontalEyeMapping m)
SplitStereoHorizontalEyeMapping	getSplitStereoHorizontalEyeMapping () const
void	setSplitStereoHorizontalSeparation (int s)
int	getSplitStereoHorizontalSeparation () const
void	setSplitStereoVerticalEyeMapping (SplitStereoVerticalEyeMapping m)
SplitStereoVerticalEyeMapping	getSplitStereoVerticalEyeMapping () const
void	setSplitStereoVerticalSeparation (int s)
int	getSplitStereoVerticalSeparation () const
void	setSplitStereoAutoAdjustAspectRatio (bool flag)
bool	getSplitStereoAutoAdjustAspectRatio () const
void	setScreenWidth (float width)
float	getScreenWidth () const
void	setScreenHeight (float height)
float	getScreenHeight () const
void	setScreenDistance (float distance)
float	getScreenDistance () const
void	setDoubleBuffer (bool flag)
bool	getDoubleBuffer () const
void	setRGB (bool flag)
bool	getRGB () const
void	setDepthBuffer (bool flag)
bool	getDepthBuffer () const
void	setMinimumNumAlphaBits (unsigned int bits)
unsigned int	getMinimumNumAlphaBits () const
bool	getAlphaBuffer () const
void	setMinimumNumStencilBits (unsigned int bits)
unsigned int	getMinimumNumStencilBits () const
bool	getStencilBuffer () const
void	setMinimumNumAccumBits (unsigned int red, unsigned int green, unsigned int blue, unsigned int alpha)
unsigned int	getMinimumNumAccumRedBits () const
unsigned int	getMinimumNumAccumGreenBits () const
unsigned int	getMinimumNumAccumBlueBits () const
unsigned int	getMinimumNumAccumAlphaBits () const
bool	getAccumBuffer () const
void	setMaxNumberOfGraphicsContexts (unsigned int num)
unsigned int	getMaxNumberOfGraphicsContexts () const
void	setNumMultiSamples (unsigned int samples)
unsigned int	getNumMultiSamples () const
bool	getMultiSamples () const
void	setCompileContextsHint (bool useCompileContexts)
bool	getCompileContextsHint () const
void	setSerializeDrawDispatch (bool serializeDrawDispatch)
bool	getSerializeDrawDispatch () const
void	setUseSceneViewForStereoHint (bool hint)
bool	getUseSceneViewForStereoHint () const
void	setNumOfDatabaseThreadsHint (unsigned int numThreads)
unsigned int	getNumOfDatabaseThreadsHint () const
void	setNumOfHttpDatabaseThreadsHint (unsigned int numThreads)
unsigned int	getNumOfHttpDatabaseThreadsHint () const
void	setApplication (const std::string &application)
const std::string &	getApplication ()
void	setMaxTexturePoolSize (unsigned int size)
unsigned int	getMaxTexturePoolSize () const
void	setMaxBufferObjectPoolSize (unsigned int size)
unsigned int	getMaxBufferObjectPoolSize () const
void	setImplicitBufferAttachmentMask (ImplicitBufferAttachmentMask renderMask=DisplaySettings::DEFAULT_IMPLICIT_BUFFER_ATTACHMENT, ImplicitBufferAttachmentMask resolveMask=DisplaySettings::DEFAULT_IMPLICIT_BUFFER_ATTACHMENT)
void	setImplicitBufferAttachmentRenderMask (ImplicitBufferAttachmentMask implicitBufferAttachmentRenderMask)
void	setImplicitBufferAttachmentResolveMask (ImplicitBufferAttachmentMask implicitBufferAttachmentResolveMask)
ImplicitBufferAttachmentMask	getImplicitBufferAttachmentRenderMask () const
ImplicitBufferAttachmentMask	getImplicitBufferAttachmentResolveMask () const
void	setSwapMethod (SwapMethod swapMethod)
SwapMethod	getSwapMethod (void)
void	setSyncSwapBuffers (unsigned int numFrames=0)
unsigned int	getSyncSwapBuffers () const
void	setGLContextVersion (const std::string &version)
const std::string	getGLContextVersion () const
void	setGLContextFlags (unsigned int flags)
unsigned int	getGLContextFlags () const
void	setGLContextProfileMask (unsigned int mask)
unsigned int	getGLContextProfileMask () const
void	setNvOptimusEnablement (int value)
int	getNvOptimusEnablement () const
void	setKeystoneHint (bool enabled)
bool	getKeystoneHint () const
void	setKeystoneFileNames (const FileNames &filenames)
FileNames &	getKeystoneFileNames ()
const FileNames &	getKeystoneFileNames () const
void	setKeystones (const Objects &objects)
Objects &	getKeystones ()
const Objects &	getKeystones () const
OSXMenubarBehavior	getOSXMenubarBehavior () const
void	setOSXMenubarBehavior (OSXMenubarBehavior hint)
virtual osg::Matrixd	computeLeftEyeProjectionImplementation (const osg::Matrixd &projection) const
virtual osg::Matrixd	computeLeftEyeViewImplementation (const osg::Matrixd &view, double eyeSeperationScale=1.0) const
virtual osg::Matrixd	computeRightEyeProjectionImplementation (const osg::Matrixd &projection) const
virtual osg::Matrixd	computeRightEyeViewImplementation (const osg::Matrixd &view, double eyeSeperationScale=1.0) const
Public Member Functions inherited from osg::Referenced
	Referenced ()
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
virtual void	setThreadSafeRefUnref (bool threadSafe)
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
int	unref () const
int	unref_nodelete () const
int	referenceCount () const
ObserverSet *	getObserverSet () const
ObserverSet *	getOrCreateObserverSet () const
void	addObserver (Observer *observer) const
void	removeObserver (Observer *observer) const

Static Public Member Functions
static ref_ptr< DisplaySettings > &	instance ()
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
static bool	getThreadSafeReferenceCounting ()
static void	setDeleteHandler (DeleteHandler *handler)
static DeleteHandler *	getDeleteHandler ()

Protected Member Functions
virtual	~DisplaySettings ()
Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Protected Attributes
DisplayType	_displayType
bool	_stereo
StereoMode	_stereoMode
float	_eyeSeparation
float	_screenWidth
float	_screenHeight
float	_screenDistance
SplitStereoHorizontalEyeMapping	_splitStereoHorizontalEyeMapping
int	_splitStereoHorizontalSeparation
SplitStereoVerticalEyeMapping	_splitStereoVerticalEyeMapping
int	_splitStereoVerticalSeparation
bool	_splitStereoAutoAdjustAspectRatio
bool	_doubleBuffer
bool	_RGB
bool	_depthBuffer
unsigned int	_minimumNumberAlphaBits
unsigned int	_minimumNumberStencilBits
unsigned int	_minimumNumberAccumRedBits
unsigned int	_minimumNumberAccumGreenBits
unsigned int	_minimumNumberAccumBlueBits
unsigned int	_minimumNumberAccumAlphaBits
unsigned int	_maxNumOfGraphicsContexts
unsigned int	_numMultiSamples
bool	_compileContextsHint
bool	_serializeDrawDispatch
bool	_useSceneViewForStereoHint
unsigned int	_numDatabaseThreadsHint
unsigned int	_numHttpDatabaseThreadsHint
std::string	_application
unsigned int	_maxTexturePoolSize
unsigned int	_maxBufferObjectPoolSize
ImplicitBufferAttachmentMask	_implicitBufferAttachmentRenderMask
ImplicitBufferAttachmentMask	_implicitBufferAttachmentResolveMask
std::string	_glContextVersion
unsigned int	_glContextFlags
unsigned int	_glContextProfileMask
SwapMethod	_swapMethod
unsigned int	_syncSwapBuffers
bool	_keystoneHint
FileNames	_keystoneFileNames
Objects	_keystones
OSXMenubarBehavior	_OSXMenubarBehavior
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount

Detailed Description

DisplaySettings class for encapsulating what visuals are required and have been set up, and the status of stereo viewing.

Definition at line 32 of file DisplaySettings.h.

Member Typedef Documentation

typedef std::vector<std::string> osg::DisplaySettings::FileNames

Definition at line 305 of file DisplaySettings.h.

typedef int osg::DisplaySettings::ImplicitBufferAttachmentMask

Definition at line 231 of file DisplaySettings.h.

typedef std::vector< osg::ref_ptr<osg::Object> > osg::DisplaySettings::Objects

Definition at line 310 of file DisplaySettings.h.

Member Enumeration Documentation

enum osg::DisplaySettings::DisplayType

Enumerator
MONITOR
POWERWALL
REALITY_CENTER
HEAD_MOUNTED_DISPLAY

Definition at line 73 of file DisplaySettings.h.

enum osg::DisplaySettings::ImplicitBufferAttachment

Methods used to set and get defaults for Cameras implicit buffer attachments. For more info: See description of Camera::setImplicitBufferAttachment method

DisplaySettings implicit buffer attachment selection defaults to: DEPTH and COLOR for both primary (Render) FBO and secondary Multisample (Resolve) FBO ie: IMPLICIT_DEPTH_BUFFER_ATTACHMENT | IMPLICIT_COLOR_BUFFER_ATTACHMENT

Enumerator
IMPLICIT_DEPTH_BUFFER_ATTACHMENT
IMPLICIT_STENCIL_BUFFER_ATTACHMENT
IMPLICIT_COLOR_BUFFER_ATTACHMENT
DEFAULT_IMPLICIT_BUFFER_ATTACHMENT

Definition at line 223 of file DisplaySettings.h.

enum osg::DisplaySettings::OSXMenubarBehavior

Enumerator
MENUBAR_AUTO_HIDE
MENUBAR_FORCE_HIDE
MENUBAR_FORCE_SHOW

Definition at line 315 of file DisplaySettings.h.

enum osg::DisplaySettings::SplitStereoHorizontalEyeMapping

Enumerator
LEFT_EYE_LEFT_VIEWPORT
LEFT_EYE_RIGHT_VIEWPORT

Definition at line 108 of file DisplaySettings.h.

enum osg::DisplaySettings::SplitStereoVerticalEyeMapping

Enumerator
LEFT_EYE_TOP_VIEWPORT
LEFT_EYE_BOTTOM_VIEWPORT

Definition at line 120 of file DisplaySettings.h.

enum osg::DisplaySettings::StereoMode

Enumerator
QUAD_BUFFER
ANAGLYPHIC
HORIZONTAL_SPLIT
VERTICAL_SPLIT
LEFT_EYE
RIGHT_EYE
HORIZONTAL_INTERLACE
VERTICAL_INTERLACE
CHECKERBOARD

Definition at line 89 of file DisplaySettings.h.

enum osg::DisplaySettings::SwapMethod

Enumerator
SWAP_DEFAULT
SWAP_EXCHANGE
SWAP_COPY
SWAP_UNDEFINED

Definition at line 255 of file DisplaySettings.h.

Constructor & Destructor Documentation

osg::DisplaySettings::DisplaySettings ( )

inline

Definition at line 40 of file DisplaySettings.h.

osg::DisplaySettings::DisplaySettings ( ArgumentParser &  arguments )

inline

Definition at line 47 of file DisplaySettings.h.

Here is the call graph for this function:

osg::DisplaySettings::DisplaySettings

(

const DisplaySettings &

vs

)

virtual osg::DisplaySettings::~DisplaySettings ( )

protectedvirtual

Member Function Documentation

virtual osg::Matrixd osg::DisplaySettings::computeLeftEyeProjectionImplementation ( const osg::Matrixd &  projection ) const

virtual

helper function for computing the left eye projection matrix.

virtual osg::Matrixd osg::DisplaySettings::computeLeftEyeViewImplementation ( const osg::Matrixd &  view, double  eyeSeperationScale = 1.0  ) const

virtual

helper function for computing the left eye view matrix.

virtual osg::Matrixd osg::DisplaySettings::computeRightEyeProjectionImplementation ( const osg::Matrixd &  projection ) const

virtual

helper function for computing the right eye view matrix.

virtual osg::Matrixd osg::DisplaySettings::computeRightEyeViewImplementation ( const osg::Matrixd &  view, double  eyeSeperationScale = 1.0  ) const

virtual

helper function for computing the right eye view matrix.

bool osg::DisplaySettings::getAccumBuffer ( ) const

inline

Definition at line 172 of file DisplaySettings.h.

bool osg::DisplaySettings::getAlphaBuffer ( ) const

inline

Definition at line 161 of file DisplaySettings.h.

const std::string& osg::DisplaySettings::getApplication ( )

inline

Definition at line 206 of file DisplaySettings.h.

bool osg::DisplaySettings::getCompileContextsHint ( ) const

inline

Definition at line 183 of file DisplaySettings.h.

bool osg::DisplaySettings::getDepthBuffer ( ) const

inline

Definition at line 156 of file DisplaySettings.h.

DisplayType osg::DisplaySettings::getDisplayType ( ) const

inline

Definition at line 83 of file DisplaySettings.h.

bool osg::DisplaySettings::getDoubleBuffer ( ) const

inline

Definition at line 148 of file DisplaySettings.h.

float osg::DisplaySettings::getEyeSeparation ( ) const

inline

Definition at line 106 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::getGLContextFlags ( ) const

inline

Get the hint of the flags to use in when creating graphic contexts.

Definition at line 288 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::getGLContextProfileMask ( ) const

inline

Get the hint of the profile mask to use in when creating graphic contexts.

Definition at line 294 of file DisplaySettings.h.

const std::string osg::DisplaySettings::getGLContextVersion ( ) const

inline

Get the hint of which OpenGL version to attempt to create a graphics context for.

Definition at line 282 of file DisplaySettings.h.

ImplicitBufferAttachmentMask osg::DisplaySettings::getImplicitBufferAttachmentRenderMask ( ) const

inline

Get mask selecting default implicit buffer attachments for Cameras primary FBOs.

Definition at line 250 of file DisplaySettings.h.

Here is the caller graph for this function:

ImplicitBufferAttachmentMask osg::DisplaySettings::getImplicitBufferAttachmentResolveMask ( ) const

inline

Get mask selecting default implicit buffer attachments for Cameras secondary MULTISAMPLE FBOs.

Definition at line 253 of file DisplaySettings.h.

Here is the caller graph for this function:

FileNames& osg::DisplaySettings::getKeystoneFileNames ( )

inline

Definition at line 307 of file DisplaySettings.h.

const FileNames& osg::DisplaySettings::getKeystoneFileNames ( ) const

inline

Definition at line 308 of file DisplaySettings.h.

bool osg::DisplaySettings::getKeystoneHint ( ) const

inline

Definition at line 303 of file DisplaySettings.h.

Objects& osg::DisplaySettings::getKeystones ( )

inline

Definition at line 312 of file DisplaySettings.h.

const Objects& osg::DisplaySettings::getKeystones ( ) const

inline

Definition at line 313 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::getMaxBufferObjectPoolSize ( ) const

inline

Definition at line 213 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::getMaxNumberOfGraphicsContexts

(

)

const

unsigned int osg::DisplaySettings::getMaxTexturePoolSize ( ) const

inline

Definition at line 210 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::getMinimumNumAccumAlphaBits ( ) const

inline

Definition at line 171 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::getMinimumNumAccumBlueBits ( ) const

inline

Definition at line 170 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::getMinimumNumAccumGreenBits ( ) const

inline

Definition at line 169 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::getMinimumNumAccumRedBits ( ) const

inline

Definition at line 168 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::getMinimumNumAlphaBits ( ) const

inline

Definition at line 160 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::getMinimumNumStencilBits ( ) const

inline

Definition at line 164 of file DisplaySettings.h.

bool osg::DisplaySettings::getMultiSamples ( ) const

inline

Definition at line 180 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::getNumMultiSamples ( ) const

inline

Definition at line 179 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::getNumOfDatabaseThreadsHint ( ) const

inline

Get the hint for total number of threads in the DatbasePager set up, inclusive of the number of http dedicated threads.

Definition at line 197 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::getNumOfHttpDatabaseThreadsHint ( ) const

inline

Get the hint for number of threads in the DatbasePager dedicated to reading http requests.

Definition at line 203 of file DisplaySettings.h.

int osg::DisplaySettings::getNvOptimusEnablement

(

)

const

Get the NvOptimusEnablement value.

OSXMenubarBehavior osg::DisplaySettings::getOSXMenubarBehavior ( ) const

inline

Definition at line 321 of file DisplaySettings.h.

bool osg::DisplaySettings::getRGB ( ) const

inline

Definition at line 152 of file DisplaySettings.h.

float osg::DisplaySettings::getScreenDistance ( ) const

inline

Definition at line 143 of file DisplaySettings.h.

float osg::DisplaySettings::getScreenHeight ( ) const

inline

Definition at line 140 of file DisplaySettings.h.

float osg::DisplaySettings::getScreenWidth ( ) const

inline

Definition at line 137 of file DisplaySettings.h.

bool osg::DisplaySettings::getSerializeDrawDispatch ( ) const

inline

Definition at line 186 of file DisplaySettings.h.

bool osg::DisplaySettings::getSplitStereoAutoAdjustAspectRatio ( ) const

inline

Definition at line 133 of file DisplaySettings.h.

SplitStereoHorizontalEyeMapping osg::DisplaySettings::getSplitStereoHorizontalEyeMapping ( ) const

inline

Definition at line 115 of file DisplaySettings.h.

int osg::DisplaySettings::getSplitStereoHorizontalSeparation ( ) const

inline

Definition at line 118 of file DisplaySettings.h.

SplitStereoVerticalEyeMapping osg::DisplaySettings::getSplitStereoVerticalEyeMapping ( ) const

inline

Definition at line 127 of file DisplaySettings.h.

int osg::DisplaySettings::getSplitStereoVerticalSeparation ( ) const

inline

Definition at line 130 of file DisplaySettings.h.

bool osg::DisplaySettings::getStencilBuffer ( ) const

inline

Definition at line 165 of file DisplaySettings.h.

bool osg::DisplaySettings::getStereo ( ) const

inline

Definition at line 87 of file DisplaySettings.h.

StereoMode osg::DisplaySettings::getStereoMode ( ) const

inline

Definition at line 103 of file DisplaySettings.h.

SwapMethod osg::DisplaySettings::getSwapMethod ( void  )

inline

Get preferred swap method

Definition at line 267 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::getSyncSwapBuffers ( ) const

inline

Set whether Arb Sync should be used to manage the swaps buffers.

Definition at line 274 of file DisplaySettings.h.

bool osg::DisplaySettings::getUseSceneViewForStereoHint ( ) const

inline

Definition at line 190 of file DisplaySettings.h.

static ref_ptr<DisplaySettings>& osg::DisplaySettings::instance ( )

static

Maintain a DisplaySettings singleton for objects to query at runtime.

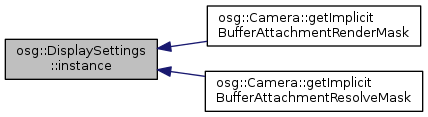

Here is the caller graph for this function:

void osg::DisplaySettings::merge

(

const DisplaySettings &

vs

)

DisplaySettings& osg::DisplaySettings::operator=

(

const DisplaySettings &

vs

)

void osg::DisplaySettings::readCommandLine

(

ArgumentParser &

arguments

)

read the commandline arguments.

void osg::DisplaySettings::readEnvironmentalVariables

(

)

read the environmental variables.

void osg::DisplaySettings::setApplication ( const std::string &  application )

inline

Definition at line 205 of file DisplaySettings.h.

void osg::DisplaySettings::setCompileContextsHint ( bool  useCompileContexts )

inline

Definition at line 182 of file DisplaySettings.h.

void osg::DisplaySettings::setDefaults

(

)

void osg::DisplaySettings::setDepthBuffer ( bool  flag )

inline

Definition at line 155 of file DisplaySettings.h.

void osg::DisplaySettings::setDisplaySettings

(

const DisplaySettings &

vs

)

void osg::DisplaySettings::setDisplayType ( DisplayType  type )

inline

Definition at line 81 of file DisplaySettings.h.

void osg::DisplaySettings::setDoubleBuffer ( bool  flag )

inline

Definition at line 147 of file DisplaySettings.h.

void osg::DisplaySettings::setEyeSeparation ( float  eyeSeparation )

inline

Definition at line 105 of file DisplaySettings.h.

void osg::DisplaySettings::setGLContextFlags ( unsigned int  flags )

inline

Set the hint of the flags to use in when creating graphic contexts.

Definition at line 285 of file DisplaySettings.h.

void osg::DisplaySettings::setGLContextProfileMask ( unsigned int  mask )

inline

Set the hint of the profile mask to use in when creating graphic contexts.

Definition at line 291 of file DisplaySettings.h.

void osg::DisplaySettings::setGLContextVersion ( const std::string &  version )

inline

Set the hint of which OpenGL version to attempt to create a graphics context for.

Definition at line 279 of file DisplaySettings.h.

void osg::DisplaySettings::setImplicitBufferAttachmentMask ( ImplicitBufferAttachmentMask  renderMask = DisplaySettings::DEFAULT_IMPLICIT_BUFFER_ATTACHMENT, ImplicitBufferAttachmentMask  resolveMask = DisplaySettings::DEFAULT_IMPLICIT_BUFFER_ATTACHMENT  )

inline

Definition at line 233 of file DisplaySettings.h.

void osg::DisplaySettings::setImplicitBufferAttachmentRenderMask ( ImplicitBufferAttachmentMask  implicitBufferAttachmentRenderMask )

inline

Definition at line 239 of file DisplaySettings.h.

void osg::DisplaySettings::setImplicitBufferAttachmentResolveMask ( ImplicitBufferAttachmentMask  implicitBufferAttachmentResolveMask )

inline

Definition at line 244 of file DisplaySettings.h.

void osg::DisplaySettings::setKeystoneFileNames ( const FileNames &  filenames )

inline

Definition at line 306 of file DisplaySettings.h.

void osg::DisplaySettings::setKeystoneHint ( bool  enabled )

inline

Definition at line 302 of file DisplaySettings.h.

void osg::DisplaySettings::setKeystones ( const Objects &  objects )

inline

Definition at line 311 of file DisplaySettings.h.

void osg::DisplaySettings::setMaxBufferObjectPoolSize ( unsigned int  size )

inline

Definition at line 212 of file DisplaySettings.h.

void osg::DisplaySettings::setMaxNumberOfGraphicsContexts

(

unsigned int

num

)

void osg::DisplaySettings::setMaxTexturePoolSize ( unsigned int  size )

inline

Definition at line 209 of file DisplaySettings.h.

void osg::DisplaySettings::setMinimumNumAccumBits	(	unsigned int	red,
		unsigned int	green,
		unsigned int	blue,
		unsigned int	alpha
	)

void osg::DisplaySettings::setMinimumNumAlphaBits ( unsigned int  bits )

inline

Definition at line 159 of file DisplaySettings.h.

void osg::DisplaySettings::setMinimumNumStencilBits ( unsigned int  bits )

inline

Definition at line 163 of file DisplaySettings.h.

void osg::DisplaySettings::setNumMultiSamples ( unsigned int  samples )

inline

Definition at line 178 of file DisplaySettings.h.

void osg::DisplaySettings::setNumOfDatabaseThreadsHint ( unsigned int  numThreads )

inline

Set the hint for the total number of threads in the DatbasePager set up, inclusive of the number of http dedicated threads.

Definition at line 194 of file DisplaySettings.h.

void osg::DisplaySettings::setNumOfHttpDatabaseThreadsHint ( unsigned int  numThreads )

inline

Set the hint for number of threads in the DatbasePager to dedicate to reading http requests.

Definition at line 200 of file DisplaySettings.h.

void osg::DisplaySettings::setNvOptimusEnablement

(

int

value

)

Set the NvOptimusEnablement value. Default can be set using OSG_NvOptimusEnablement env var.

void osg::DisplaySettings::setOSXMenubarBehavior ( OSXMenubarBehavior  hint )

inline

Definition at line 322 of file DisplaySettings.h.

void osg::DisplaySettings::setRGB ( bool  flag )

inline

Definition at line 151 of file DisplaySettings.h.

void osg::DisplaySettings::setScreenDistance ( float  distance )

inline

Definition at line 142 of file DisplaySettings.h.

void osg::DisplaySettings::setScreenHeight ( float  height )

inline

Definition at line 139 of file DisplaySettings.h.

void osg::DisplaySettings::setScreenWidth ( float  width )

inline

Definition at line 136 of file DisplaySettings.h.

void osg::DisplaySettings::setSerializeDrawDispatch ( bool  serializeDrawDispatch )

inline

Definition at line 185 of file DisplaySettings.h.

void osg::DisplaySettings::setSplitStereoAutoAdjustAspectRatio ( bool  flag )

inline

Definition at line 132 of file DisplaySettings.h.

void osg::DisplaySettings::setSplitStereoHorizontalEyeMapping ( SplitStereoHorizontalEyeMapping  m )

inline

Definition at line 114 of file DisplaySettings.h.

void osg::DisplaySettings::setSplitStereoHorizontalSeparation ( int  s )

inline

Definition at line 117 of file DisplaySettings.h.

void osg::DisplaySettings::setSplitStereoVerticalEyeMapping ( SplitStereoVerticalEyeMapping  m )

inline

Definition at line 126 of file DisplaySettings.h.

void osg::DisplaySettings::setSplitStereoVerticalSeparation ( int  s )

inline

Definition at line 129 of file DisplaySettings.h.

void osg::DisplaySettings::setStereo ( bool  on )

inline

Definition at line 86 of file DisplaySettings.h.

void osg::DisplaySettings::setStereoMode ( StereoMode  mode )

inline

Definition at line 102 of file DisplaySettings.h.

void osg::DisplaySettings::setSwapMethod ( SwapMethod  swapMethod )

inline

Select preferred swap method

Definition at line 264 of file DisplaySettings.h.

void osg::DisplaySettings::setSyncSwapBuffers ( unsigned int  numFrames = 0 )

inline

Set whether Arb Sync should be used to manage the swaps buffers, 0 disables the use of the sync, greater than zero enables sync based on number of frames specified.

Definition at line 271 of file DisplaySettings.h.

void osg::DisplaySettings::setUseSceneViewForStereoHint ( bool  hint )

inline

Definition at line 189 of file DisplaySettings.h.

Member Data Documentation

std::string osg::DisplaySettings::_application

protected

Definition at line 376 of file DisplaySettings.h.

bool osg::DisplaySettings::_compileContextsHint

protected

Definition at line 369 of file DisplaySettings.h.

bool osg::DisplaySettings::_depthBuffer

protected

Definition at line 357 of file DisplaySettings.h.

DisplayType osg::DisplaySettings::_displayType

protected

Definition at line 341 of file DisplaySettings.h.

bool osg::DisplaySettings::_doubleBuffer

protected

Definition at line 355 of file DisplaySettings.h.

float osg::DisplaySettings::_eyeSeparation

protected

Definition at line 344 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::_glContextFlags

protected

Definition at line 385 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::_glContextProfileMask

protected

Definition at line 386 of file DisplaySettings.h.

std::string osg::DisplaySettings::_glContextVersion

protected

Definition at line 384 of file DisplaySettings.h.

ImplicitBufferAttachmentMask osg::DisplaySettings::_implicitBufferAttachmentRenderMask

protected

Definition at line 381 of file DisplaySettings.h.

ImplicitBufferAttachmentMask osg::DisplaySettings::_implicitBufferAttachmentResolveMask

protected

Definition at line 382 of file DisplaySettings.h.

FileNames osg::DisplaySettings::_keystoneFileNames

protected

Definition at line 392 of file DisplaySettings.h.

bool osg::DisplaySettings::_keystoneHint

protected

Definition at line 391 of file DisplaySettings.h.

Objects osg::DisplaySettings::_keystones

protected

Definition at line 393 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::_maxBufferObjectPoolSize

protected

Definition at line 379 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::_maxNumOfGraphicsContexts

protected

Definition at line 365 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::_maxTexturePoolSize

protected

Definition at line 378 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::_minimumNumberAccumAlphaBits

protected

Definition at line 363 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::_minimumNumberAccumBlueBits

protected

Definition at line 362 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::_minimumNumberAccumGreenBits

protected

Definition at line 361 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::_minimumNumberAccumRedBits

protected

Definition at line 360 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::_minimumNumberAlphaBits

protected

Definition at line 358 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::_minimumNumberStencilBits

protected

Definition at line 359 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::_numDatabaseThreadsHint

protected

Definition at line 373 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::_numHttpDatabaseThreadsHint

protected

Definition at line 374 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::_numMultiSamples

protected

Definition at line 367 of file DisplaySettings.h.

OSXMenubarBehavior osg::DisplaySettings::_OSXMenubarBehavior

protected

Definition at line 395 of file DisplaySettings.h.

bool osg::DisplaySettings::_RGB

protected

Definition at line 356 of file DisplaySettings.h.

float osg::DisplaySettings::_screenDistance

protected

Definition at line 347 of file DisplaySettings.h.

float osg::DisplaySettings::_screenHeight

protected

Definition at line 346 of file DisplaySettings.h.

float osg::DisplaySettings::_screenWidth

protected

Definition at line 345 of file DisplaySettings.h.

bool osg::DisplaySettings::_serializeDrawDispatch

protected

Definition at line 370 of file DisplaySettings.h.

bool osg::DisplaySettings::_splitStereoAutoAdjustAspectRatio

protected

Definition at line 353 of file DisplaySettings.h.

SplitStereoHorizontalEyeMapping osg::DisplaySettings::_splitStereoHorizontalEyeMapping

protected

Definition at line 349 of file DisplaySettings.h.

int osg::DisplaySettings::_splitStereoHorizontalSeparation

protected

Definition at line 350 of file DisplaySettings.h.

SplitStereoVerticalEyeMapping osg::DisplaySettings::_splitStereoVerticalEyeMapping

protected

Definition at line 351 of file DisplaySettings.h.

int osg::DisplaySettings::_splitStereoVerticalSeparation

protected

Definition at line 352 of file DisplaySettings.h.

bool osg::DisplaySettings::_stereo

protected

Definition at line 342 of file DisplaySettings.h.

StereoMode osg::DisplaySettings::_stereoMode

protected

Definition at line 343 of file DisplaySettings.h.

SwapMethod osg::DisplaySettings::_swapMethod

protected

Definition at line 388 of file DisplaySettings.h.

unsigned int osg::DisplaySettings::_syncSwapBuffers

protected

Definition at line 389 of file DisplaySettings.h.

bool osg::DisplaySettings::_useSceneViewForStereoHint

protected

Definition at line 371 of file DisplaySettings.h.

---

The documentation for this class was generated from the following file:

• osg_head/include/osg/DisplaySettings.h
