osg::View Class Reference

#include <View.h>

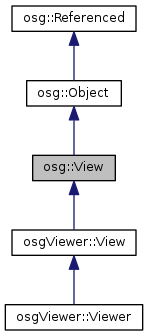

Inheritance diagram for osg::View:

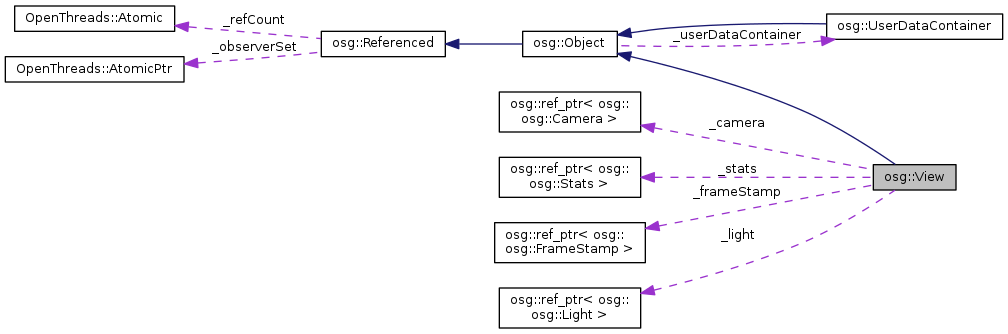

Collaboration diagram for osg::View:

Classes
struct	Slave

Public Types
enum	LightingMode { NO_LIGHT, HEADLIGHT, SKY_LIGHT }
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	View ()
	View (const osg::View &view, const osg::CopyOp &copyop=CopyOp::SHALLOW_COPY)
	META_Object (osg, View)
virtual void	take (View &rhs)
void	setStats (osg::Stats *stats)
osg::Stats *	getStats ()
const osg::Stats *	getStats () const
void	setLightingMode (LightingMode lightingMode)
LightingMode	getLightingMode () const
void	setLight (osg::Light *light)
osg::Light *	getLight ()
const osg::Light *	getLight () const
void	setCamera (osg::Camera *camera)
osg::Camera *	getCamera ()
const osg::Camera *	getCamera () const
void	setFrameStamp (osg::FrameStamp *fs)
osg::FrameStamp *	getFrameStamp ()
const osg::FrameStamp *	getFrameStamp () const
bool	addSlave (osg::Camera *camera, bool useMastersSceneData=true)
bool	addSlave (osg::Camera *camera, const osg::Matrix &projectionOffset, const osg::Matrix &viewOffset, bool useMastersSceneData=true)
bool	removeSlave (unsigned int pos)
unsigned int	getNumSlaves () const
Slave &	getSlave (unsigned int pos)
const Slave &	getSlave (unsigned int pos) const
unsigned int	findSlaveIndexForCamera (osg::Camera *camera) const
Slave *	findSlaveForCamera (osg::Camera *camera)
void	updateSlaves ()
Public Member Functions inherited from osg::Object
	Object ()
	Object (bool threadSafeRefUnref)
	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
virtual Object *	cloneType () const =0
virtual Object *	clone (const CopyOp &) const =0
virtual bool	isSameKindAs (const Object *) const
virtual const char *	libraryName () const =0
virtual const char *	className () const =0
std::string	getCompoundClassName () const
virtual Node *	asNode ()
virtual const Node *	asNode () const
virtual NodeVisitor *	asNodeVisitor ()
virtual const NodeVisitor *	asNodeVisitor () const
virtual StateAttribute *	asStateAttribute ()
virtual const StateAttribute *	asStateAttribute () const
virtual Uniform *	asUniform ()
virtual const Uniform *	asUniform () const
virtual void	setThreadSafeRefUnref (bool threadSafe)
virtual void	setName (const std::string &name)
void	setName (const char *name)
const std::string &	getName () const
void	setDataVariance (DataVariance dv)
DataVariance	getDataVariance () const
virtual void	computeDataVariance ()
void	setUserDataContainer (osg::UserDataContainer *udc)
osg::UserDataContainer *	getUserDataContainer ()
const osg::UserDataContainer *	getUserDataContainer () const
osg::UserDataContainer *	getOrCreateUserDataContainer ()
virtual void	setUserData (Referenced *obj)
virtual Referenced *	getUserData ()
virtual const Referenced *	getUserData () const
template<typename T >
bool	getUserValue (const std::string &name, T &value) const
template<typename T >
void	setUserValue (const std::string &name, const T &value)
virtual void	resizeGLObjectBuffers (unsigned int)
virtual void	releaseGLObjects (osg::State *=0) const
template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const
Public Member Functions inherited from osg::Referenced
	Referenced ()
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
int	unref () const
int	unref_nodelete () const
int	referenceCount () const
ObserverSet *	getObserverSet () const
ObserverSet *	getOrCreateObserverSet () const
void	addObserver (Observer *observer) const
void	removeObserver (Observer *observer) const

Protected Types
typedef std::vector< Slave >	Slaves

Protected Member Functions
virtual	~View ()
virtual osg::GraphicsOperation *	createRenderer (osg::Camera *)
Protected Member Functions inherited from osg::Object
virtual	~Object ()
Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Protected Attributes
osg::ref_ptr< osg::Stats >	_stats
LightingMode	_lightingMode
osg::ref_ptr< osg::Light >	_light
osg::ref_ptr< osg::Camera >	_camera
Slaves	_slaves
osg::ref_ptr< osg::FrameStamp >	_frameStamp
Protected Attributes inherited from osg::Object
std::string	_name
DataVariance	_dataVariance
osg::UserDataContainer *	_userDataContainer
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
static bool	getThreadSafeReferenceCounting ()
static void	setDeleteHandler (DeleteHandler *handler)
static DeleteHandler *	getDeleteHandler ()

Detailed Description

View - maintains a master camera view and a list of slave cameras that are relative to this master camera. Note, if no slave cameras are attached to the view then the master camera does both the control and implementation of the rendering of the scene, but if slave cameras are present then the master controls the view onto the scene, while the slaves implement the rendering of the scene.

Definition at line 29 of file View.h.

Member Typedef Documentation

typedef std::vector<Slave> osg::View::Slaves

protected

Definition at line 177 of file View.h.

Member Enumeration Documentation

enum osg::View::LightingMode

Options for controlling the global lighting used for the view.

Enumerator
NO_LIGHT
HEADLIGHT
SKY_LIGHT

Definition at line 54 of file View.h.

Constructor & Destructor Documentation

osg::View::View

(

)

osg::View::View	(	const osg::View &	view,
		const osg::CopyOp &	copyop = CopyOp::SHALLOW_COPY
	)

virtual osg::View::~View ( )

protectedvirtual

Reimplemented in osgViewer::View.

Member Function Documentation

bool osg::View::addSlave ( osg::Camera *  camera, bool  useMastersSceneData = true  )

inline

Definition at line 147 of file View.h.

Here is the call graph for this function:

Here is the caller graph for this function:

bool osg::View::addSlave	(	osg::Camera *	camera,
		const osg::Matrix &	projectionOffset,
		const osg::Matrix &	viewOffset,
		bool	useMastersSceneData = true
	)

virtual osg::GraphicsOperation* osg::View::createRenderer ( osg::Camera *  )

inlineprotectedvirtual

Reimplemented in osgViewer::View.

Definition at line 168 of file View.h.

Slave* osg::View::findSlaveForCamera

(

osg::Camera *

camera

)

unsigned int osg::View::findSlaveIndexForCamera

(

osg::Camera *

camera

)

const

osg::Camera* osg::View::getCamera ( )

inline

Get the master camera of the view.

Definition at line 81 of file View.h.

const osg::Camera* osg::View::getCamera ( ) const

inline

Get the const master camera of the view.

Definition at line 84 of file View.h.

osg::FrameStamp* osg::View::getFrameStamp ( )

inline

Get the frame stamp of the view.

Definition at line 90 of file View.h.

const osg::FrameStamp* osg::View::getFrameStamp ( ) const

inline

Get the frame stamp of the view.

Definition at line 93 of file View.h.

osg::Light* osg::View::getLight ( )

inline

Get the global lighting if assigned.

Definition at line 72 of file View.h.

const osg::Light* osg::View::getLight ( ) const

inline

Get the const global lighting if assigned.

Definition at line 75 of file View.h.

LightingMode osg::View::getLightingMode ( ) const

inline

Get the global lighting used for this view.

Definition at line 66 of file View.h.

unsigned int osg::View::getNumSlaves ( ) const

inline

Definition at line 153 of file View.h.

Slave& osg::View::getSlave ( unsigned int  pos )

inline

Definition at line 155 of file View.h.

const Slave& osg::View::getSlave ( unsigned int  pos ) const

inline

Definition at line 156 of file View.h.

osg::Stats* osg::View::getStats ( )

inline

Get the Viewers Stats object.

Definition at line 47 of file View.h.

const osg::Stats* osg::View::getStats ( ) const

inline

Get the Viewers Stats object.

Definition at line 50 of file View.h.

osg::View::META_Object	(	osg	,
		View
	)

bool osg::View::removeSlave

(

unsigned int

pos

)

void osg::View::setCamera

(

osg::Camera *

camera

)

Set the master camera of the view.

void osg::View::setFrameStamp ( osg::FrameStamp *  fs )

inline

Set the frame stamp of the view.

Definition at line 87 of file View.h.

void osg::View::setLight ( osg::Light *  light )

inline

Get the global light.

Definition at line 69 of file View.h.

void osg::View::setLightingMode

(

LightingMode

lightingMode

)

Set the global lighting to use for this view. Defaults to headlight.

void osg::View::setStats ( osg::Stats *  stats )

inline

Set the Stats object used to collect various frame related timing and scene graph stats.

Definition at line 44 of file View.h.

virtual void osg::View::take ( View &  rhs )

virtual

Take all the settings, Camera and Slaves from the passed in view, leaving it empty.

Reimplemented in osgViewer::View, and osgViewer::Viewer.

void osg::View::updateSlaves

(

)

Member Data Documentation

osg::ref_ptr<osg::Camera> osg::View::_camera

protected

Definition at line 175 of file View.h.

osg::ref_ptr<osg::FrameStamp> osg::View::_frameStamp

protected

Definition at line 180 of file View.h.

osg::ref_ptr<osg::Light> osg::View::_light

protected

Definition at line 173 of file View.h.

LightingMode osg::View::_lightingMode

protected

Definition at line 172 of file View.h.

Slaves osg::View::_slaves

protected

Definition at line 178 of file View.h.

osg::ref_ptr<osg::Stats> osg::View::_stats

protected

Definition at line 170 of file View.h.

---

The documentation for this class was generated from the following file:

• osg_head/include/osg/View.h
