#include <UserDataContainer.h>

Inheritance diagram for osg::UserDataContainer:

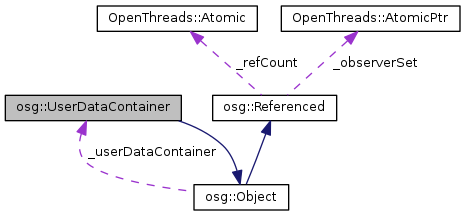

Collaboration diagram for osg::UserDataContainer:

Public Types
typedef std::vector< std::string >	DescriptionList

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	UserDataContainer ()

	UserDataContainer (const UserDataContainer &udc, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

virtual bool	isSameKindAs (const Object *obj) const

virtual const char *	libraryName () const

virtual const char *	className () const

virtual void	setUserData (Referenced *obj)=0

virtual Referenced *	getUserData ()=0

virtual const Referenced *	getUserData () const =0

virtual unsigned int	addUserObject (Object *obj)=0

virtual void	setUserObject (unsigned int i, Object *obj)=0

virtual void	removeUserObject (unsigned int i)=0

virtual Object *	getUserObject (unsigned int i)=0

virtual const Object *	getUserObject (unsigned int i) const =0

virtual unsigned int	getNumUserObjects () const =0

virtual unsigned int	getUserObjectIndex (const osg::Object *obj, unsigned int startPos=0) const =0

virtual unsigned int	getUserObjectIndex (const std::string &name, unsigned int startPos=0) const =0

virtual Object *	getUserObject (const std::string &name, unsigned int startPos=0)

virtual const Object *	getUserObject (const std::string &name, unsigned int startPos=0) const

virtual void	setDescriptions (const DescriptionList &descriptions)=0

virtual DescriptionList &	getDescriptions ()=0

virtual const DescriptionList &	getDescriptions () const =0

virtual unsigned int	getNumDescriptions () const =0

virtual void	addDescription (const std::string &desc)=0

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~UserDataContainer ()

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Detailed Description

Internal structure for storing all user data.

Definition at line 25 of file UserDataContainer.h.

Member Typedef Documentation

typedef std::vector<std::string> osg::UserDataContainer::DescriptionList

Definition at line 89 of file UserDataContainer.h.

Constructor & Destructor Documentation

osg::UserDataContainer::UserDataContainer ( )

osg::UserDataContainer::UserDataContainer	(	const UserDataContainer &	udc,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)

virtual osg::UserDataContainer::~UserDataContainer ( )

inlineprotectedvirtual

Definition at line 107 of file UserDataContainer.h.

Member Function Documentation

virtual void osg::UserDataContainer::addDescription ( const std::string & desc )

pure virtual

Add a description string.

Implemented in osg::DefaultUserDataContainer.

virtual unsigned int osg::UserDataContainer::addUserObject ( Object * obj )

pure virtual

Add user data object. Returns the index position of object added.

Implemented in osg::DefaultUserDataContainer.

Here is the caller graph for this function:

virtual const char* osg::UserDataContainer::className ( ) const

inlinevirtual

return the name of the object's class type. Must be defined by derived classes.

Implements osg::Object.

Definition at line 40 of file UserDataContainer.h.

virtual DescriptionList& osg::UserDataContainer::getDescriptions ( )

pure virtual

Get the description list.

Implemented in osg::DefaultUserDataContainer.

virtual const DescriptionList& osg::UserDataContainer::getDescriptions ( ) const

pure virtual

Get the const description list.

Implemented in osg::DefaultUserDataContainer.

virtual unsigned int osg::UserDataContainer::getNumDescriptions ( ) const

pure virtual

Get number of description strings.

Implemented in osg::DefaultUserDataContainer.

virtual unsigned int osg::UserDataContainer::getNumUserObjects ( ) const

pure virtual

Get number of user objects assigned to this object.

Implemented in osg::DefaultUserDataContainer.

Here is the caller graph for this function:

virtual Referenced* osg::UserDataContainer::getUserData ( )

pure virtual

Get user data.

Reimplemented from osg::Object.

Implemented in osg::DefaultUserDataContainer.

virtual const Referenced* osg::UserDataContainer::getUserData ( ) const

pure virtual

Get const user data.

Reimplemented from osg::Object.

Implemented in osg::DefaultUserDataContainer.

virtual Object* osg::UserDataContainer::getUserObject ( unsigned int i )

pure virtual

Get user data object as specified index position.

Implemented in osg::DefaultUserDataContainer.

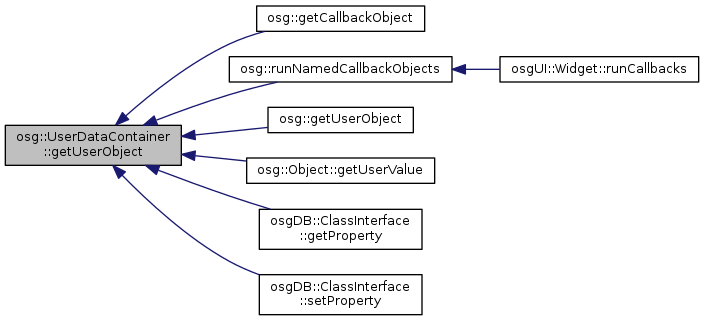

Here is the caller graph for this function:

virtual const Object* osg::UserDataContainer::getUserObject ( unsigned int i ) const

pure virtual

Get const user data object as specified index position.

Implemented in osg::DefaultUserDataContainer.

virtual Object* osg::UserDataContainer::getUserObject	(	const std::string &	name,
		unsigned int	startPos = `0`
	)

virtual

Get first user data object with specified name.

virtual const Object* osg::UserDataContainer::getUserObject	(	const std::string &	name,
		unsigned int	startPos = `0`
	)		const

virtual

Get first const user data object with specified name.

virtual unsigned int osg::UserDataContainer::getUserObjectIndex	(	const osg::Object *	obj,
		unsigned int	startPos = `0`
	)		const

pure virtual

Get the index position of specified user data object.

Implemented in osg::DefaultUserDataContainer.

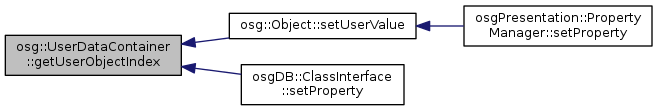

Here is the caller graph for this function:

virtual unsigned int osg::UserDataContainer::getUserObjectIndex	(	const std::string &	name,
		unsigned int	startPos = `0`
	)		const

pure virtual

Get the index position of first user data object that matches specified name.

Implemented in osg::DefaultUserDataContainer.

virtual bool osg::UserDataContainer::isSameKindAs ( const Object * obj ) const

inlinevirtual

Reimplemented from osg::Object.

Definition at line 31 of file UserDataContainer.h.

virtual const char* osg::UserDataContainer::libraryName ( ) const

inlinevirtual

return the name of the object's library. Must be defined by derived classes. The OpenSceneGraph convention is that the namespace of a library is the same as the library name.

Implements osg::Object.

Definition at line 36 of file UserDataContainer.h.

virtual void osg::UserDataContainer::removeUserObject ( unsigned int i )

pure virtual

Remove element from the list of user data objects.

Implemented in osg::DefaultUserDataContainer.

virtual void osg::UserDataContainer::setDescriptions ( const DescriptionList & descriptions )

pure virtual

Set the list of string descriptions.

Implemented in osg::DefaultUserDataContainer.

virtual void osg::UserDataContainer::setUserData ( Referenced * obj )

pure virtual

Set user data, data must be subclassed from Referenced to allow automatic memory handling. If your own data isn't directly subclassed from Referenced then create an adapter object which points to your own object and handles the memory addressing.

Reimplemented from osg::Object.

Implemented in osg::DefaultUserDataContainer.

virtual void osg::UserDataContainer::setUserObject	(	unsigned int	i,
		Object *	obj
	)

pure virtual

Add element to list of user data objects.

Implemented in osg::DefaultUserDataContainer.

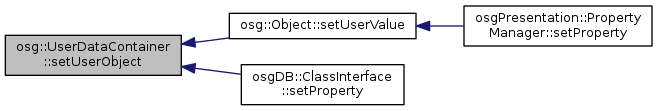

Here is the caller graph for this function:

The documentation for this class was generated from the following file:

osg_head/include/osg/UserDataContainer.h
