#include <EventHandler.h>

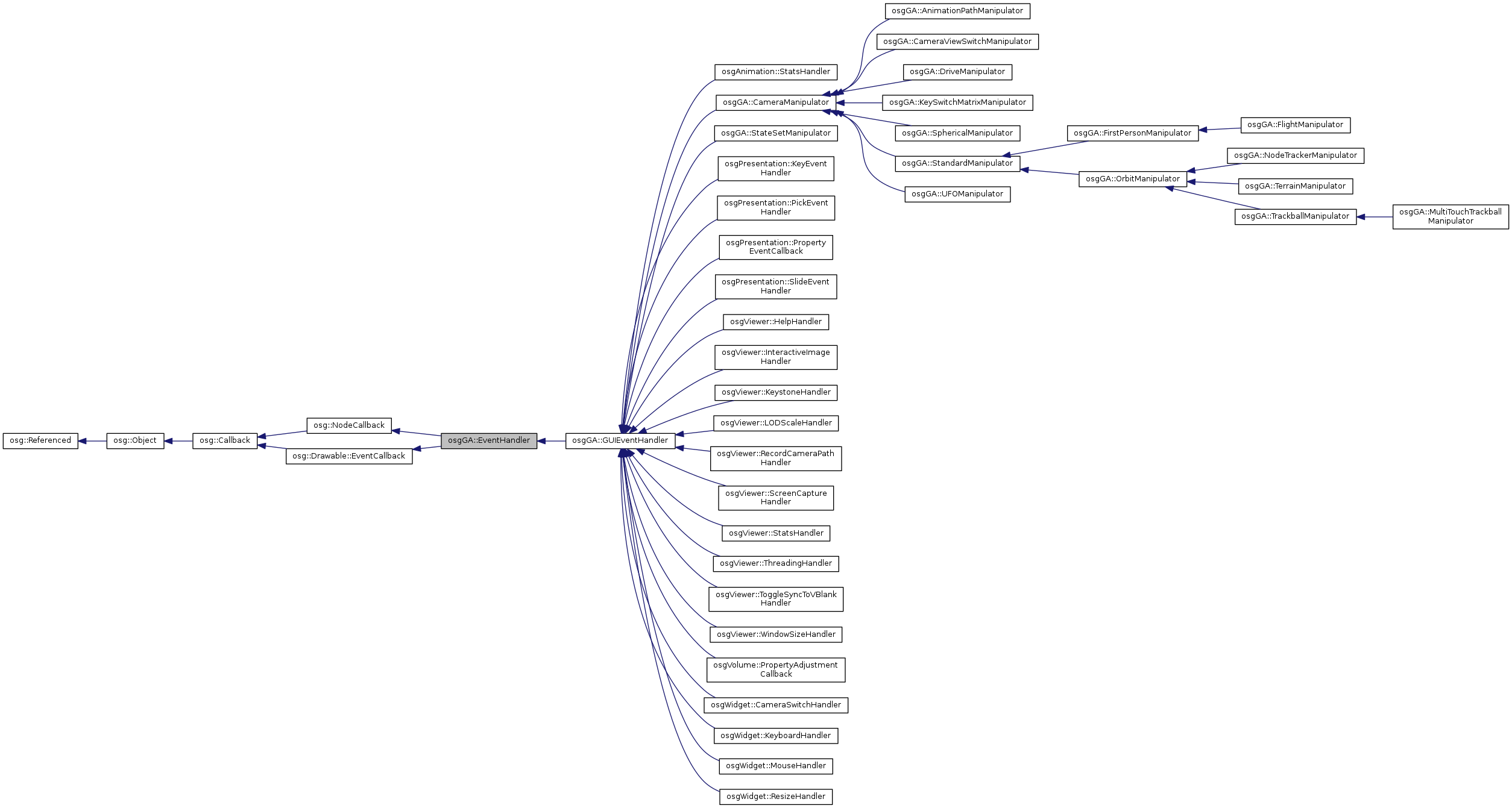

Inheritance diagram for osgGA::EventHandler:

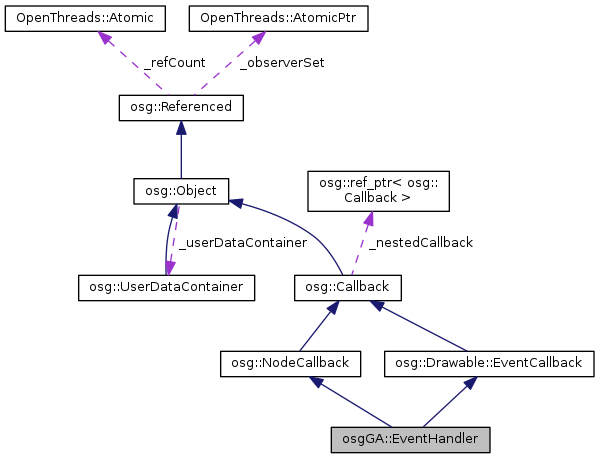

Collaboration diagram for osgGA::EventHandler:

Public Member Functions
	EventHandler ()

	EventHandler (const EventHandler &eh, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgGA, EventHandler)

virtual bool	run (osg::Object object, osg::Object data)

virtual void	operator() (osg::Node node, osg::NodeVisitor nv)

virtual void	event (osg::NodeVisitor nv, osg::Drawable drawable)

virtual bool	handle (osgGA::Event event, osg::Object object, osg::NodeVisitor *nv)

virtual void	getUsage (osg::ApplicationUsage &) const

Public Member Functions inherited from osg::NodeCallback
	NodeCallback ()

	NodeCallback (const NodeCallback &nc, const CopyOp &copyop)

	META_Object (osg, NodeCallback)

Public Member Functions inherited from osg::Callback
	Callback ()

	Callback (const Callback &cb, const CopyOp &copyop)

	META_Object (osg, Callback)

bool	traverse (osg::Object object, osg::Object data)

void	setNestedCallback (osg::Callback *cb)

osg::Callback *	getNestedCallback ()

const osg::Callback *	getNestedCallback () const

void	addNestedCallback (osg::Callback *nc)

void	removeNestedCallback (osg::Callback *nc)

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

virtual bool	isSameKindAs (const Object *) const

virtual const char *	libraryName () const =0

virtual const char *	className () const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Public Member Functions inherited from osg::Drawable::EventCallback
	EventCallback ()

	EventCallback (const EventCallback &, const CopyOp &)

	META_Object (osg, EventCallback)

Additional Inherited Members
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Member Functions inherited from osg::NodeCallback
virtual	~NodeCallback ()

Protected Member Functions inherited from osg::Callback
virtual	~Callback ()

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes inherited from osg::Callback
ref_ptr< Callback >	_nestedCallback

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Detailed Description

EventHandler is base class for adding handling of events, either as node event callback, drawable event callback or an event handler attached directly to the view(er)

Definition at line 33 of file EventHandler.h.

Constructor & Destructor Documentation

osgGA::EventHandler::EventHandler ( )

inline

Definition at line 37 of file EventHandler.h.

osgGA::EventHandler::EventHandler	(	const EventHandler &	eh,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)

inline

Definition at line 38 of file EventHandler.h.

Member Function Documentation

virtual void osgGA::EventHandler::event	(	osg::NodeVisitor *	nv,
		osg::Drawable *	drawable
	)

virtual

Event traversal drawable callback method. There is no need to override this method in subclasses of EventHandler as this implementation calls handle(..) for you.

Reimplemented from osg::Drawable::EventCallback.

virtual void osgGA::EventHandler::getUsage ( osg::ApplicationUsage & ) const

inlinevirtual

Get the user interface usage of this event handler, i.e. keyboard and mouse bindings.

Reimplemented in osgViewer::ScreenCaptureHandler, osgViewer::ToggleSyncToVBlankHandler, osgViewer::LODScaleHandler, osgPresentation::SlideEventHandler, osgViewer::RecordCameraPathHandler, osgViewer::ThreadingHandler, osgViewer::WindowSizeHandler, osgGA::KeySwitchMatrixManipulator, osgGA::SphericalManipulator, osgGA::UFOManipulator, osgViewer::StatsHandler, osgGA::AnimationPathManipulator, osgGA::StandardManipulator, osgAnimation::StatsHandler, osgGA::DriveManipulator, osgGA::CameraViewSwitchManipulator, osgGA::StateSetManipulator, osgGA::FlightManipulator, osgPresentation::KeyEventHandler, osgViewer::HelpHandler, and osgPresentation::PickEventHandler.

Definition at line 64 of file EventHandler.h.

virtual bool osgGA::EventHandler::handle	(	osgGA::Event *	event,
		osg::Object *	object,
		osg::NodeVisitor *	nv
	)

virtual

Handle event. Override the handle(..) method in your event handlers to respond to events.

Reimplemented in osgGA::CameraManipulator, and osgGA::GUIEventHandler.

osgGA::EventHandler::META_Object	(	osgGA	,
		EventHandler
	)

virtual void osgGA::EventHandler::operator()	(	osg::Node *	node,
		osg::NodeVisitor *	nv
	)

virtual

Event traversal node callback method. There is no need to override this method in subclasses of EventHandler as this implementation calls handle(..) for you.

Reimplemented from osg::NodeCallback.

virtual bool osgGA::EventHandler::run	(	osg::Object *	object,
		osg::Object *	data
	)

inlinevirtual

NodeCallback overrides the Callback::run() method to adapt it the old style NodeCallback::operator()(Node* node, NodeVisitor* nv) method.

Reimplemented from osg::NodeCallback.

Reimplemented in osgViewer::InteractiveImageHandler, and osgVolume::PropertyAdjustmentCallback.

Definition at line 46 of file EventHandler.h.

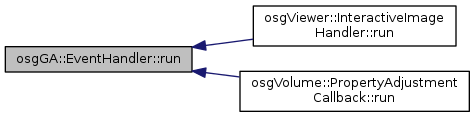

Here is the caller graph for this function:

The documentation for this class was generated from the following file:

osg_head/include/osgGA/EventHandler.h
