#include <SoftShadowMap.h>

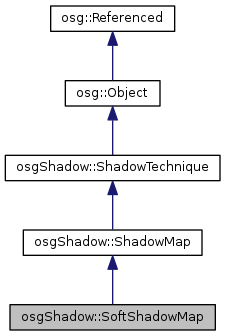

Inheritance diagram for osgShadow::SoftShadowMap:

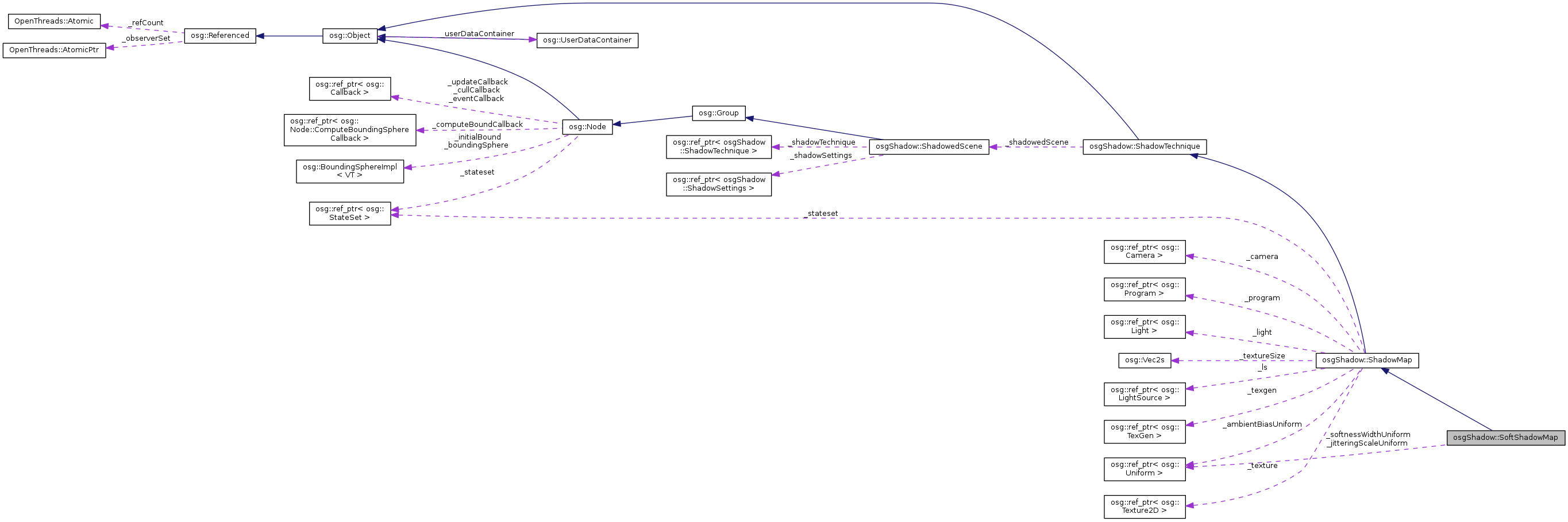

Collaboration diagram for osgShadow::SoftShadowMap:

Public Member Functions
	SoftShadowMap ()

	SoftShadowMap (const SoftShadowMap &es, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgShadow, SoftShadowMap)

void	setSoftnessWidth (float softnessWidth)

float	getSoftnessWidth () const

void	setJitteringScale (float jitteringScale)

float	getJitteringScale () const

void	setJitterTextureUnit (unsigned int jitterTextureUnit)

unsigned int	getJitterTextureUnit () const

void	setBias (float bias)

float	getBias () const

Public Member Functions inherited from osgShadow::ShadowMap
	ShadowMap ()

	ShadowMap (const ShadowMap &es, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgShadow, ShadowMap)

void	setTextureUnit (unsigned int unit)

unsigned int	getTextureUnit () const

void	setPolygonOffset (const osg::Vec2 &polyOffset)

const osg::Vec2 &	getPolygonOffset () const

void	setAmbientBias (const osg::Vec2 &ambientBias)

const osg::Vec2 &	getAmbientBias () const

void	setTextureSize (const osg::Vec2s &textureSize)

const osg::Vec2s &	getTextureSize () const

void	setLight (osg::Light *light)

void	setLight (osg::LightSource *ls)

void	addShader (osg::Shader *shader)

void	clearShaderList ()

virtual void	init ()

virtual void	update (osg::NodeVisitor &nv)

virtual void	cull (osgUtil::CullVisitor &cv)

virtual void	cleanSceneGraph ()

osg::ref_ptr< osg::Camera >	makeDebugHUD ()

Public Member Functions inherited from osgShadow::ShadowTechnique
	ShadowTechnique ()

	ShadowTechnique (const ShadowTechnique &es, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgShadow, ShadowTechnique)

ShadowedScene *	getShadowedScene ()

const ShadowedScene *	getShadowedScene () const

virtual void	traverse (osg::NodeVisitor &nv)

virtual void	dirty ()

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

virtual bool	isSameKindAs (const Object *) const

virtual const char *	libraryName () const =0

virtual const char *	className () const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~SoftShadowMap (void)

void	createUniforms ()

void	createShaders ()

void	initJittering (osg::StateSet *ss)

Protected Member Functions inherited from osgShadow::ShadowMap
virtual	~ShadowMap (void)

Protected Member Functions inherited from osgShadow::ShadowTechnique
osg::Vec3	computeOrthogonalVector (const osg::Vec3 &direction) const

virtual	~ShadowTechnique ()

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
osg::ref_ptr< osg::Uniform >	_softnessWidthUniform

osg::ref_ptr< osg::Uniform >	_jitteringScaleUniform

float	_softnessWidth

float	_jitteringScale

unsigned int	_jitterTextureUnit

Protected Attributes inherited from osgShadow::ShadowMap
osg::ref_ptr< osg::Camera >	_camera

osg::ref_ptr< osg::TexGen >	_texgen

osg::ref_ptr< osg::Texture2D >	_texture

osg::ref_ptr< osg::StateSet >	_stateset

osg::ref_ptr< osg::Program >	_program

osg::ref_ptr< osg::Light >	_light

osg::ref_ptr< osg::LightSource >	_ls

osg::ref_ptr< osg::Uniform >	_ambientBiasUniform

UniformList	_uniformList

ShaderList	_shaderList

unsigned int	_baseTextureUnit

unsigned int	_shadowTextureUnit

osg::Vec2	_polyOffset

osg::Vec2	_ambientBias

osg::Vec2s	_textureSize

Protected Attributes inherited from osgShadow::ShadowTechnique
ShadowedScene *	_shadowedScene

bool	_dirty

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Additional Inherited Members
Public Types inherited from osgShadow::ShadowMap
typedef std::vector < osg::ref_ptr< osg::Uniform > >	UniformList

typedef std::vector < osg::ref_ptr< osg::Shader > >	ShaderList

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Detailed Description

SoftShadowMap provides an implementation of soft shadows with shadow maps.

Definition at line 27 of file SoftShadowMap.h.

Constructor & Destructor Documentation

osgShadow::SoftShadowMap::SoftShadowMap ( )

osgShadow::SoftShadowMap::SoftShadowMap	(	const SoftShadowMap &	es,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)

virtual osgShadow::SoftShadowMap::~SoftShadowMap ( void )

inlineprotectedvirtual

Definition at line 73 of file SoftShadowMap.h.

Member Function Documentation

void osgShadow::SoftShadowMap::createShaders ( )

protectedvirtual

Reimplemented from osgShadow::ShadowMap.

void osgShadow::SoftShadowMap::createUniforms ( )

protectedvirtual

Create the managed Uniforms

Reimplemented from osgShadow::ShadowMap.

float osgShadow::SoftShadowMap::getBias ( ) const

inline

Return the bias value

Definition at line 69 of file SoftShadowMap.h.

float osgShadow::SoftShadowMap::getJitteringScale ( ) const

inline

Get the value used for jittering scale in the shader.

Definition at line 52 of file SoftShadowMap.h.

unsigned int osgShadow::SoftShadowMap::getJitterTextureUnit ( ) const

inline

Get the texture unit that the jitter texture will be applied on.

Definition at line 58 of file SoftShadowMap.h.

float osgShadow::SoftShadowMap::getSoftnessWidth ( ) const

inline

Get the value used for width of the soft penumbra in the shader.

Definition at line 42 of file SoftShadowMap.h.

void osgShadow::SoftShadowMap::initJittering ( osg::StateSet * ss )

protected

osgShadow::SoftShadowMap::META_Object	(	osgShadow	,
		SoftShadowMap
	)

void osgShadow::SoftShadowMap::setBias ( float bias )

inline

Add a small bias to the z-value, this can reduce shadow acne problem. This is the same as calling setPolygonOffset(osg::Vec2(bias,0)); Suitable values are 0-0.005 Default is 0.

Definition at line 66 of file SoftShadowMap.h.

void osgShadow::SoftShadowMap::setJitteringScale ( float jitteringScale )

Set the values for jittering scale the shader will use. Zero is no jittering (i.e. see the banding in penumbra) High values (>64) cause 'pixelization' of the penumbra. Usually but not necessarily power of two number. Default is 32.

void osgShadow::SoftShadowMap::setJitterTextureUnit ( unsigned int jitterTextureUnit )

Set the texture unit that the jitter texture will be applied on.

void osgShadow::SoftShadowMap::setSoftnessWidth ( float softnessWidth )

Set the values for width of the soft penumbra the shader will use. Zero is for hard shadow (no penumbra). 0.01 is already very soft penumbra. Default is 0.005.

Member Data Documentation

float osgShadow::SoftShadowMap::_jitteringScale

protected

Definition at line 83 of file SoftShadowMap.h.

osg::ref_ptr<osg::Uniform> osgShadow::SoftShadowMap::_jitteringScaleUniform

protected

Definition at line 81 of file SoftShadowMap.h.

unsigned int osgShadow::SoftShadowMap::_jitterTextureUnit

protected

Definition at line 84 of file SoftShadowMap.h.

float osgShadow::SoftShadowMap::_softnessWidth

protected

Definition at line 82 of file SoftShadowMap.h.

osg::ref_ptr<osg::Uniform> osgShadow::SoftShadowMap::_softnessWidthUniform

protected

Definition at line 80 of file SoftShadowMap.h.

The documentation for this class was generated from the following file:

osg_head/include/osgShadow/SoftShadowMap.h
