osg::TexGen Class Reference

#include <TexGen.h>

Inheritance diagram for osg::TexGen:
Inheritance graph
[legend]

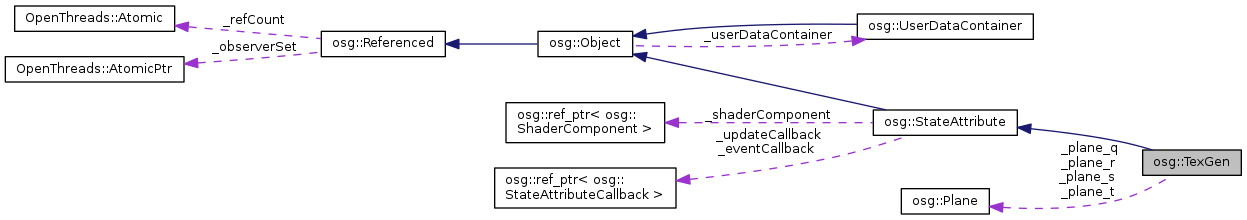

Collaboration diagram for osg::TexGen:
Collaboration graph
[legend]

Public Types

enum  Mode {
  OBJECT_LINEAR = GL_OBJECT_LINEAR, EYE_LINEAR = GL_EYE_LINEAR, SPHERE_MAP = GL_SPHERE_MAP, NORMAL_MAP = GL_NORMAL_MAP_ARB,
  REFLECTION_MAP = GL_REFLECTION_MAP_ARB
}

enum  Coord { S, T, R, Q }

- Public Types inherited from osg::StateAttribute
enum  Values {
  OFF = 0x0, ON = 0x1, OVERRIDE = 0x2, PROTECTED = 0x4,
  INHERIT = 0x8
}

enum  Type {
  TEXTURE, POLYGONMODE, POLYGONOFFSET, MATERIAL,
  ALPHAFUNC, ANTIALIAS, COLORTABLE, CULLFACE,
  FOG, FRONTFACE, LIGHT, POINT,
  LINEWIDTH, LINESTIPPLE, POLYGONSTIPPLE, SHADEMODEL,
  TEXENV, TEXENVFILTER, TEXGEN, TEXMAT,
  LIGHTMODEL, BLENDFUNC, BLENDEQUATION, LOGICOP,
  STENCIL, COLORMASK, DEPTH, VIEWPORT,
  SCISSOR, BLENDCOLOR, MULTISAMPLE, CLIPPLANE,
  COLORMATRIX, VERTEXPROGRAM, FRAGMENTPROGRAM, POINTSPRITE,
  PROGRAM, CLAMPCOLOR, HINT, SAMPLEMASKI,
  PRIMITIVERESTARTINDEX, CLIPCONTROL, VALIDATOR, VIEWMATRIXEXTRACTOR,
  OSGNV_PARAMETER_BLOCK, OSGNVEXT_TEXTURE_SHADER, OSGNVEXT_VERTEX_PROGRAM, OSGNVEXT_REGISTER_COMBINERS,
  OSGNVCG_PROGRAM, OSGNVSLANG_PROGRAM, OSGNVPARSE_PROGRAM_PARSER, UNIFORMBUFFERBINDING,
  TRANSFORMFEEDBACKBUFFERBINDING, ATOMICCOUNTERBUFFERBINDING, PATCH_PARAMETER, FRAME_BUFFER_OBJECT,
  VERTEX_ATTRIB_DIVISOR, SHADERSTORAGEBUFFERBINDING, CAPABILITY = 100
}

typedef GLenum GLMode

typedef unsigned int GLModeValue

typedef unsigned int OverrideValue

typedef std::pair< Type,
unsigned int > 		TypeMemberPair

typedef std::vector< StateSet * > ParentList

typedef osg::StateAttributeCallback Callback

- Public Types inherited from osg::Object
enum  DataVariance { DYNAMIC, STATIC, UNSPECIFIED }


Public Member Functions

 TexGen ()

 TexGen (const TexGen &texgen, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

 META_StateAttribute (osg, TexGen, TEXGEN)

virtual bool isTextureAttribute () const

virtual int compare (const StateAttribute &sa) const

virtual bool getModeUsage (StateAttribute::ModeUsage &usage) const

virtual void apply (State &state) const

void setMode (Mode mode)

Mode getMode () const

void setPlane (Coord which, const Plane &plane)

Plane & getPlane (Coord which)

const Plane & getPlane (Coord which) const

void setPlanesFromMatrix (const Matrixd &matrix)

- Public Member Functions inherited from osg::StateAttribute
 StateAttribute ()

 StateAttribute (const StateAttribute &sa, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object * cloneType () const =0

virtual Object * clone (const CopyOp &) const =0

virtual bool isSameKindAs (const Object *obj) const

virtual const char * libraryName () const

virtual const char * className () const

virtual StateAttribute * asStateAttribute ()

virtual const StateAttribute * asStateAttribute () const

virtual Texture * asTexture ()

virtual const Texture * asTexture () const

virtual Type getType () const =0

virtual unsigned int getMember () const

TypeMemberPair getTypeMemberPair () const

bool operator< (const StateAttribute &rhs) const

bool operator== (const StateAttribute &rhs) const

bool operator!= (const StateAttribute &rhs) const

const ParentList & getParents () const

StateSet * getParent (unsigned int i)

const StateSet * getParent (unsigned int i) const

unsigned int getNumParents () const

void setShaderComponent (ShaderComponent *sc)

ShaderComponent * getShaderComponent ()

const ShaderComponent * getShaderComponent () const

virtual bool checkValidityOfAssociatedModes (osg::State &) const

void setUpdateCallback (StateAttributeCallback *uc)

StateAttributeCallback * getUpdateCallback ()

const StateAttributeCallback * getUpdateCallback () const

void setEventCallback (StateAttributeCallback *ec)

StateAttributeCallback * getEventCallback ()

const StateAttributeCallback * getEventCallback () const

virtual void compileGLObjects (State &) const

virtual void resizeGLObjectBuffers (unsigned int)

virtual void releaseGLObjects (State *=0) const

- Public Member Functions inherited from osg::Object
 Object ()

 Object (bool threadSafeRefUnref)

 Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string getCompoundClassName () const

virtual Node * asNode ()

virtual const Node * asNode () const

virtual NodeVisitor * asNodeVisitor ()

virtual const NodeVisitor * asNodeVisitor () const

virtual Uniform * asUniform ()

virtual const Uniform * asUniform () const

virtual void setThreadSafeRefUnref (bool threadSafe)

virtual void setName (const std::string &name)

void setName (const char *name)

const std::string & getName () const

void setDataVariance (DataVariance dv)

DataVariance getDataVariance () const

virtual void computeDataVariance ()

void setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer * getUserDataContainer ()

const osg::UserDataContainer * getUserDataContainer () const

osg::UserDataContainer * getOrCreateUserDataContainer ()

virtual void setUserData (Referenced *obj)

virtual Referenced * getUserData ()

virtual const Referenced * getUserData () const

template<typename T >
bool getUserValue (const std::string &name, T &value) const

template<typename T >
void setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject
UCharValueObject
UShortValueObject
UIntValueObject
DoubleValueObject
Vec3fValueObject
Vec2dValueObject
Vec4dValueObject
PlaneValueObject
MatrixdValueObject
BoundingBoxdValueObject
BoundingSpheredValueObject
bool 		getUserValue (const std::string &name, T &value) const

- Public Member Functions inherited from osg::Referenced
 Referenced ()

 Referenced (bool threadSafeRefUnref)

 Referenced (const Referenced &)

Referenced & operator= (const Referenced &)

bool getThreadSafeRefUnref () const

OpenThreads::Mutex * getRefMutex () const

int ref () const

int unref () const

int unref_nodelete () const

int referenceCount () const

ObserverSet * getObserverSet () const

ObserverSet * getOrCreateObserverSet () const

void addObserver (Observer *observer) const

void removeObserver (Observer *observer) const


Protected Member Functions

virtual ~TexGen (void)

- Protected Member Functions inherited from osg::StateAttribute
virtual ~StateAttribute ()

void addParent (osg::StateSet *object)

void removeParent (osg::StateSet *object)

- Protected Member Functions inherited from osg::Object
virtual ~Object ()

- Protected Member Functions inherited from osg::Referenced
virtual ~Referenced ()

void signalObserversAndDelete (bool signalDelete, bool doDelete) const

void deleteUsingDeleteHandler () const


Protected Attributes

Mode _mode

Plane _plane_s

Plane _plane_t

Plane _plane_r

Plane _plane_q

- Protected Attributes inherited from osg::StateAttribute
ParentList _parents

ref_ptr< ShaderComponent > _shaderComponent

ref_ptr< StateAttributeCallback > _updateCallback

ref_ptr< StateAttributeCallback > _eventCallback

- Protected Attributes inherited from osg::Object
std::string _name

DataVariance _dataVariance

osg::UserDataContainer * _userDataContainer

- Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr _observerSet

OpenThreads::Atomic _refCount


Additional Inherited Members

- Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex * getGlobalReferencedMutex ()

static void setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool getThreadSafeReferenceCounting ()

static void setDeleteHandler (DeleteHandler *handler)

static DeleteHandler * getDeleteHandler ()


Detailed Description

TexGen encapsulates the OpenGL glTexGen (texture coordinate generation) state.

Definition at line 42 of file TexGen.h.

Member Enumeration Documentation

enum osg::TexGen::Coord
Enumerator
S
T
R
Q

Definition at line 112 of file TexGen.h.

enum osg::TexGen::Mode
Enumerator
OBJECT_LINEAR
EYE_LINEAR
SPHERE_MAP
NORMAL_MAP
REFLECTION_MAP

Definition at line 100 of file TexGen.h.

Constructor & Destructor Documentation

osg::TexGen::TexGen ( )
osg::TexGen::TexGen ( const TexGen &  texgen,
const CopyOp &  copyop = CopyOp::SHALLOW_COPY
)
inline

Copy constructor using CopyOp to manage deep vs shallow copy.

Definition at line 49 of file TexGen.h.

virtual osg::TexGen::~TexGen ( void  )
protectedvirtual

Member Function Documentation

virtual void osg::TexGen::apply ( State &  ) const
virtual

apply the OpenGL state attributes. The render info for the current OpenGL context is passed in to allow the StateAttribute to obtain details on the the current context and state.

Reimplemented from osg::StateAttribute.

virtual int osg::TexGen::compare ( const StateAttribute &  sa) const
inlinevirtual

Return -1 if *this < *rhs, 0 if *this==*rhs, 1 if *this>*rhs.

Implements osg::StateAttribute.

Definition at line 62 of file TexGen.h.

Mode osg::TexGen::getMode ( ) const
inline

Definition at line 110 of file TexGen.h.

virtual bool osg::TexGen::getModeUsage ( StateAttribute::ModeUsage &  ) const
inlinevirtual

Return the modes associated with this StateAttribute.

Reimplemented from osg::StateAttribute.

Definition at line 78 of file TexGen.h.

Here is the call graph for this function:

Plane& osg::TexGen::getPlane ( Coord  which)
const Plane& osg::TexGen::getPlane ( Coord  which) const
virtual bool osg::TexGen::isTextureAttribute ( ) const
inlinevirtual

Return true if StateAttribute is a type which controls texturing and needs to be issued w.r.t to specific texture unit.

Reimplemented from osg::StateAttribute.

Definition at line 59 of file TexGen.h.

osg::TexGen::META_StateAttribute ( osg  ,
TexGen  ,
TEXGEN
)
void osg::TexGen::setMode ( Mode  mode)
inline

Definition at line 108 of file TexGen.h.

void osg::TexGen::setPlane ( Coord  which,
const Plane &  plane
)
void osg::TexGen::setPlanesFromMatrix ( const Matrixd &  matrix)

Set the tex gen planes from specified matrix. Typical usage would be to pass in a projection matrix to set up projective texturing.

Member Data Documentation

Mode osg::TexGen::_mode
protected

Definition at line 132 of file TexGen.h.

Plane osg::TexGen::_plane_q
protected

Definition at line 136 of file TexGen.h.

Plane osg::TexGen::_plane_r
protected

Definition at line 136 of file TexGen.h.

Plane osg::TexGen::_plane_s
protected

Additional texgen coefficients for GL_OBJECT_PLANE or GL_EYE_PLANE,

Definition at line 136 of file TexGen.h.

Plane osg::TexGen::_plane_t
protected

Definition at line 136 of file TexGen.h.

The documentation for this class was generated from the following file:
