#include <StateSet.h>

Inheritance diagram for osg::StateSet:

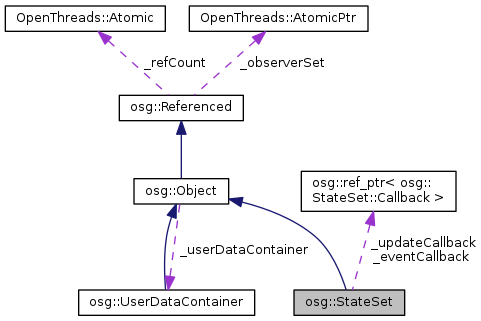

Collaboration diagram for osg::StateSet:

Classes
struct	Callback

Public Types
enum	RenderingHint { DEFAULT_BIN = 0, OPAQUE_BIN = 1, TRANSPARENT_BIN = 2 }

enum	RenderBinMode { INHERIT_RENDERBIN_DETAILS =0, USE_RENDERBIN_DETAILS =1, OVERRIDE_RENDERBIN_DETAILS =2, PROTECTED_RENDERBIN_DETAILS =4, OVERRIDE_PROTECTED_RENDERBIN_DETAILS = OVERRIDE_RENDERBIN_DETAILS\|PROTECTED_RENDERBIN_DETAILS }

typedef std::vector< Node * >	ParentList

typedef std::map < StateAttribute::GLMode, StateAttribute::GLModeValue >	ModeList

typedef std::pair< ref_ptr < StateAttribute > , StateAttribute::OverrideValue >	RefAttributePair

typedef std::map < StateAttribute::TypeMemberPair, RefAttributePair >	AttributeList

typedef std::vector< ModeList >	TextureModeList

typedef std::vector < AttributeList >	TextureAttributeList

typedef std::pair< ref_ptr < Uniform > , StateAttribute::OverrideValue >	RefUniformPair

typedef std::map< std::string, RefUniformPair >	UniformList

typedef std::pair< std::string, StateAttribute::OverrideValue >	DefinePair

typedef std::map< std::string, DefinePair >	DefineList

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	StateSet ()

	StateSet (const StateSet &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const

virtual Object *	clone (const CopyOp &copyop) const

virtual bool	isSameKindAs (const Object *obj) const

virtual const char *	libraryName () const

virtual const char *	className () const

int	compare (const StateSet &rhs, bool compareAttributeContents=false) const

bool	operator< (const StateSet &rhs) const

bool	operator== (const StateSet &rhs) const

bool	operator!= (const StateSet &rhs) const

const ParentList &	getParents () const

ParentList	getParents ()

Node *	getParent (unsigned int i)

const Node *	getParent (unsigned int i) const

unsigned int	getNumParents () const

virtual void	computeDataVariance ()

void	setGlobalDefaults ()

void	clear ()

void	merge (const StateSet &rhs)

void	setMode (StateAttribute::GLMode mode, StateAttribute::GLModeValue value)

void	removeMode (StateAttribute::GLMode mode)

StateAttribute::GLModeValue	getMode (StateAttribute::GLMode mode) const

void	setModeList (ModeList &ml)

ModeList &	getModeList ()

const ModeList &	getModeList () const

void	setAttribute (StateAttribute *attribute, StateAttribute::OverrideValue value=StateAttribute::OFF)

void	setAttributeAndModes (StateAttribute *attribute, StateAttribute::GLModeValue value=StateAttribute::ON)

void	removeAttribute (StateAttribute::Type type, unsigned int member=0)

void	removeAttribute (StateAttribute *attribute)

StateAttribute *	getAttribute (StateAttribute::Type type, unsigned int member=0)

const StateAttribute *	getAttribute (StateAttribute::Type type, unsigned int member=0) const

const RefAttributePair *	getAttributePair (StateAttribute::Type type, unsigned int member=0) const

void	setAttributeList (AttributeList &al)

AttributeList &	getAttributeList ()

const AttributeList &	getAttributeList () const

void	setTextureMode (unsigned int unit, StateAttribute::GLMode mode, StateAttribute::GLModeValue value)

void	removeTextureMode (unsigned int unit, StateAttribute::GLMode mode)

StateAttribute::GLModeValue	getTextureMode (unsigned int unit, StateAttribute::GLMode mode) const

void	setTextureModeList (TextureModeList &tml)

TextureModeList &	getTextureModeList ()

const TextureModeList &	getTextureModeList () const

unsigned int	getNumTextureModeLists () const

void	setTextureAttribute (unsigned int unit, StateAttribute *attribute, StateAttribute::OverrideValue value=StateAttribute::OFF)

void	setTextureAttributeAndModes (unsigned int unit, StateAttribute *attribute, StateAttribute::GLModeValue value=StateAttribute::ON)

void	removeTextureAttribute (unsigned int unit, StateAttribute::Type type)

void	removeTextureAttribute (unsigned int unit, StateAttribute *attribute)

StateAttribute *	getTextureAttribute (unsigned int unit, StateAttribute::Type type)

const StateAttribute *	getTextureAttribute (unsigned int unit, StateAttribute::Type type) const

const RefAttributePair *	getTextureAttributePair (unsigned int unit, StateAttribute::Type type) const

void	setTextureAttributeList (TextureAttributeList &tal)

TextureAttributeList &	getTextureAttributeList ()

const TextureAttributeList &	getTextureAttributeList () const

unsigned int	getNumTextureAttributeLists () const

void	setAssociatedModes (const StateAttribute *attribute, StateAttribute::GLModeValue value)

void	removeAssociatedModes (const StateAttribute *attribute)

void	setAssociatedTextureModes (unsigned int unit, const StateAttribute *attribute, StateAttribute::GLModeValue value)

void	removeAssociatedTextureModes (unsigned int unit, const StateAttribute *attribute)

void	addUniform (Uniform *uniform, StateAttribute::OverrideValue value=StateAttribute::ON)

void	removeUniform (const std::string &name)

void	removeUniform (Uniform *uniform)

Uniform *	getUniform (const std::string &name)

Uniform *	getOrCreateUniform (const std::string &name, Uniform::Type type, unsigned int numElements=1)

const Uniform *	getUniform (const std::string &name) const

const RefUniformPair *	getUniformPair (const std::string &name) const

void	setUniformList (UniformList &al)

UniformList &	getUniformList ()

const UniformList &	getUniformList () const

void	setDefine (const std::string &defineName, StateAttribute::OverrideValue value=StateAttribute::ON)

void	setDefine (const std::string &defineName, const std::string &defineValue, StateAttribute::OverrideValue value=StateAttribute::ON)

DefinePair *	getDefinePair (const std::string &defineName)

const DefinePair *	getDefinePair (const std::string &defineName) const

void	removeDefine (const std::string &defineName)

void	setDefineList (const DefineList &dl)

DefineList &	getDefineList ()

const DefineList &	getDefineList () const

void	setRenderingHint (int hint)

int	getRenderingHint () const

void	setRenderBinDetails (int binNum, const std::string &binName, RenderBinMode mode=USE_RENDERBIN_DETAILS)

void	setRenderBinToInherit ()

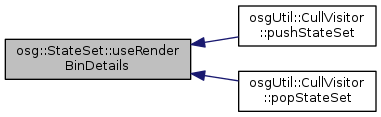

bool	useRenderBinDetails () const

void	setRenderBinMode (RenderBinMode mode)

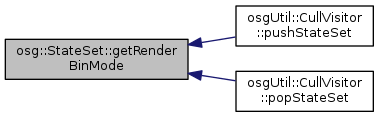

RenderBinMode	getRenderBinMode () const

void	setBinNumber (int num)

int	getBinNumber () const

void	setBinName (const std::string &name)

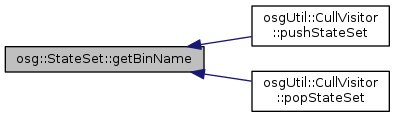

const std::string &	getBinName () const

void	setNestRenderBins (bool val)

bool	getNestRenderBins () const

void	setUpdateCallback (Callback *ac)

Callback *	getUpdateCallback ()

const Callback *	getUpdateCallback () const

bool	requiresUpdateTraversal () const

unsigned int	getNumChildrenRequiringUpdateTraversal () const

void	runUpdateCallbacks (osg::NodeVisitor *nv)

void	setEventCallback (Callback *ac)

Callback *	getEventCallback ()

const Callback *	getEventCallback () const

bool	requiresEventTraversal () const

unsigned int	getNumChildrenRequiringEventTraversal () const

void	runEventCallbacks (osg::NodeVisitor *nv)

bool	checkValidityOfAssociatedModes (State &state) const

virtual void	setThreadSafeRefUnref (bool threadSafe)

void	compileGLObjects (State &state) const

virtual void	resizeGLObjectBuffers (unsigned int maxSize)

virtual void	releaseGLObjects (State *state=0) const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~StateSet ()

StateSet &	operator= (const StateSet &)

void	addParent (osg::Node *object)

void	removeParent (osg::Node *object)

ModeList &	getOrCreateTextureModeList (unsigned int unit)

AttributeList &	getOrCreateTextureAttributeList (unsigned int unit)

int	compareModes (const ModeList &lhs, const ModeList &rhs)

int	compareAttributePtrs (const AttributeList &lhs, const AttributeList &rhs)

int	compareAttributeContents (const AttributeList &lhs, const AttributeList &rhs)

void	setMode (ModeList &modeList, StateAttribute::GLMode mode, StateAttribute::GLModeValue value)

void	setModeToInherit (ModeList &modeList, StateAttribute::GLMode mode)

StateAttribute::GLModeValue	getMode (const ModeList &modeList, StateAttribute::GLMode mode) const

void	setAttribute (AttributeList &attributeList, StateAttribute *attribute, const StateAttribute::OverrideValue value=StateAttribute::OFF)

StateAttribute *	getAttribute (AttributeList &attributeList, const StateAttribute::Type type, unsigned int member)

const StateAttribute *	getAttribute (const AttributeList &attributeList, const StateAttribute::Type type, unsigned int member) const

const RefAttributePair *	getAttributePair (const AttributeList &attributeList, const StateAttribute::Type type, unsigned int member) const

void	setNumChildrenRequiringUpdateTraversal (unsigned int num)

void	setNumChildrenRequiringEventTraversal (unsigned int num)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
ParentList	_parents

ModeList	_modeList

AttributeList	_attributeList

TextureModeList	_textureModeList

TextureAttributeList	_textureAttributeList

UniformList	_uniformList

DefineList	_defineList

int	_renderingHint

RenderBinMode	_binMode

int	_binNum

std::string	_binName

bool	_nestRenderBins

ref_ptr< Callback >	_updateCallback

unsigned int	_numChildrenRequiringUpdateTraversal

ref_ptr< Callback >	_eventCallback

unsigned int	_numChildrenRequiringEventTraversal

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Friends
class	osg::Node

class	osg::Drawable

class	osg::Uniform

class	osg::StateAttribute

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Detailed Description

Stores a set of modes and attributes which represent a set of OpenGL state. Notice that a StateSet contains just a subset of the whole OpenGL state.

In OSG, each Drawable and each Node has a reference to a StateSet. These StateSets can be shared between different Drawables and Nodes (that is, several Drawables and Nodes can reference the same StateSet). Indeed, this practice is recommended whenever possible, as this minimizes expensive state changes in the graphics pipeline.

Definition at line 45 of file StateSet.h.

Member Typedef Documentation

typedef std::map<StateAttribute::TypeMemberPair,RefAttributePair> osg::StateSet::AttributeList

a container to map <StateAttribyte::Types,Member> to their respective RefAttributePair.

Definition at line 158 of file StateSet.h.

typedef std::map<std::string, DefinePair> osg::StateSet::DefineList

Definition at line 313 of file StateSet.h.

typedef std::pair<std::string, StateAttribute::OverrideValue> osg::StateSet::DefinePair

Definition at line 312 of file StateSet.h.

typedef std::map<StateAttribute::GLMode,StateAttribute::GLModeValue> osg::StateSet::ModeList

a container to map GLModes to their respective GLModeValues.

Definition at line 111 of file StateSet.h.

typedef std::vector<Node*> osg::StateSet::ParentList

A vector of osg::Object pointers which is used to store the parent(s) of this Stateset, the parents could be osg::Node or osg::Drawable.

Definition at line 68 of file StateSet.h.

typedef std::pair<ref_ptr<StateAttribute>,StateAttribute::OverrideValue> osg::StateSet::RefAttributePair

Simple pairing between an attribute and its override flag.

Definition at line 155 of file StateSet.h.

typedef std::pair<ref_ptr<Uniform>,StateAttribute::OverrideValue> osg::StateSet::RefUniformPair

Simple pairing between a Uniform and its override flag.

Definition at line 273 of file StateSet.h.

typedef std::vector<AttributeList> osg::StateSet::TextureAttributeList

Definition at line 225 of file StateSet.h.

typedef std::vector<ModeList> osg::StateSet::TextureModeList

Definition at line 195 of file StateSet.h.

typedef std::map<std::string,RefUniformPair> osg::StateSet::UniformList

a container to map Uniform name to its respective RefUniformPair.

Definition at line 276 of file StateSet.h.

Member Enumeration Documentation

enum osg::StateSet::RenderBinMode

Enumerator
INHERIT_RENDERBIN_DETAILS
USE_RENDERBIN_DETAILS
OVERRIDE_RENDERBIN_DETAILS
PROTECTED_RENDERBIN_DETAILS
OVERRIDE_PROTECTED_RENDERBIN_DETAILS

Definition at line 363 of file StateSet.h.

enum osg::StateSet::RenderingHint

Enumerator
DEFAULT_BIN
OPAQUE_BIN
TRANSPARENT_BIN

Definition at line 340 of file StateSet.h.

Constructor & Destructor Documentation

osg::StateSet::StateSet ( )

osg::StateSet::StateSet	(	const StateSet &	,
		const CopyOp &	copyop = `CopyOp::SHALLOW_COPY`
	)

virtual osg::StateSet::~StateSet ( )

protectedvirtual

Member Function Documentation

void osg::StateSet::addParent ( osg::Node * object )

protected

void osg::StateSet::addUniform	(	Uniform *	uniform,
		StateAttribute::OverrideValue	value = `StateAttribute::ON`
	)

Set this StateSet to contain specified uniform and override flag.

bool osg::StateSet::checkValidityOfAssociatedModes ( State & state ) const

Check the modes associated with this StateSet are supported by current OpenGL drivers, and if not set the associated mode in osg::State to be black listed/invalid. Return true if all associated modes are valid.

virtual const char* osg::StateSet::className ( ) const

inlinevirtual

return the name of the object's class type. Must be defined by derived classes.

Implements osg::Object.

Definition at line 57 of file StateSet.h.

void osg::StateSet::clear ( )

Clear the StateSet of all modes and attributes.

virtual Object* osg::StateSet::clone ( const CopyOp & ) const

inlinevirtual

Clone an object, with Object* return type. Must be defined by derived classes.

Implements osg::Object.

Definition at line 54 of file StateSet.h.

virtual Object* osg::StateSet::cloneType ( ) const

inlinevirtual

Clone the type of an object, with Object* return type. Must be defined by derived classes.

Implements osg::Object.

Definition at line 53 of file StateSet.h.

int osg::StateSet::compare	(	const StateSet &	rhs,
		bool	compareAttributeContents = `false`
	)		const

return -1 if *this < *rhs, 0 if *this==*rhs, 1 if *this>*rhs.

Here is the caller graph for this function:

int osg::StateSet::compareAttributeContents	(	const AttributeList &	lhs,
		const AttributeList &	rhs
	)

protected

int osg::StateSet::compareAttributePtrs	(	const AttributeList &	lhs,
		const AttributeList &	rhs
	)

protected

int osg::StateSet::compareModes	(	const ModeList &	lhs,
		const ModeList &	rhs
	)

protected

void osg::StateSet::compileGLObjects ( State & state ) const

call compile on all StateAttributes contained within this StateSet.

virtual void osg::StateSet::computeDataVariance ( )

virtual

Compute the DataVariance based on an assessment of callback etc.

Reimplemented from osg::Object.

StateAttribute* osg::StateSet::getAttribute	(	StateAttribute::Type	type,
		unsigned int	member = `0`
	)

Get specified StateAttribute for specified type. Returns NULL if no type is contained within StateSet.

const StateAttribute* osg::StateSet::getAttribute	(	StateAttribute::Type	type,
		unsigned int	member = `0`
	)		const

Get specified const StateAttribute for specified type. Returns NULL if no type is contained within const StateSet.

StateAttribute* osg::StateSet::getAttribute	(	AttributeList &	attributeList,
		const StateAttribute::Type	type,
		unsigned int	member
	)

protected

const StateAttribute* osg::StateSet::getAttribute	(	const AttributeList &	attributeList,
		const StateAttribute::Type	type,
		unsigned int	member
	)		const

protected

AttributeList& osg::StateSet::getAttributeList ( )

inline

return the list of all StateAttributes contained in this StateSet.

Definition at line 188 of file StateSet.h.

const AttributeList& osg::StateSet::getAttributeList ( ) const

inline

return the const list of all StateAttributes contained in this const StateSet.

Definition at line 191 of file StateSet.h.

const RefAttributePair* osg::StateSet::getAttributePair	(	StateAttribute::Type	type,
		unsigned int	member = `0`
	)		const

Get specified RefAttributePair for specified type. Returns NULL if no type is contained within StateSet.

const RefAttributePair* osg::StateSet::getAttributePair	(	const AttributeList &	attributeList,
		const StateAttribute::Type	type,
		unsigned int	member
	)		const

protected

const std::string& osg::StateSet::getBinName ( ) const

inline

Get the render bin name.

Definition at line 397 of file StateSet.h.

Here is the caller graph for this function:

int osg::StateSet::getBinNumber ( ) const

inline

Get the render bin number.

Definition at line 391 of file StateSet.h.

Here is the caller graph for this function:

DefineList& osg::StateSet::getDefineList ( )

inline

Get the list of defines to pass on to shaders.

Definition at line 333 of file StateSet.h.

const DefineList& osg::StateSet::getDefineList ( ) const

inline

Get the const list of defines to pass on to shaders.

Definition at line 336 of file StateSet.h.

DefinePair* osg::StateSet::getDefinePair ( const std::string & defineName )

inline

Definition at line 321 of file StateSet.h.

const DefinePair* osg::StateSet::getDefinePair ( const std::string & defineName ) const

inline

Definition at line 322 of file StateSet.h.

Callback* osg::StateSet::getEventCallback ( )

inline

Get the non const Event Callback.

Definition at line 451 of file StateSet.h.

const Callback* osg::StateSet::getEventCallback ( ) const

inline

Get the const Event Callback.

Definition at line 454 of file StateSet.h.

StateAttribute::GLModeValue osg::StateSet::getMode ( StateAttribute::GLMode mode ) const

Get the value for a given GLMode.

Parameters

mode	The `GLMode` whose value is desired.

Returns: If mode is contained within this StateSet, returns the value associated with it. Otherwise, returns StateAttribute::INHERIT.

Note: Don't use this method to get the value of modes related to textures. For this purpose, use removeTextureMode(), that accepts an extra parameter specifying which texture unit shall be affected by the call.

StateAttribute::GLModeValue osg::StateSet::getMode	(	const ModeList &	modeList,
		StateAttribute::GLMode	mode
	)		const

protected

ModeList& osg::StateSet::getModeList ( )

inline

Return the list of all GLModes contained in this StateSet.

Definition at line 145 of file StateSet.h.

const ModeList& osg::StateSet::getModeList ( ) const

inline

Return the const list of all GLModes contained in this const StateSet.

Definition at line 150 of file StateSet.h.

bool osg::StateSet::getNestRenderBins ( ) const

inline

Get whether associated RenderBin should be nested within parents RenderBin.

Definition at line 409 of file StateSet.h.

Here is the caller graph for this function:

unsigned int osg::StateSet::getNumChildrenRequiringEventTraversal ( ) const

inline

Get the number of Objects of this StateSet which require Event traversal, since they have an Eevnt Callback attached to them or their children.

Definition at line 461 of file StateSet.h.

unsigned int osg::StateSet::getNumChildrenRequiringUpdateTraversal ( ) const

inline

Get the number of Objects of this StateSet which require Update traversal, since they have an Update Callback attached to them or their children.

Definition at line 441 of file StateSet.h.

unsigned int osg::StateSet::getNumParents ( ) const

inline

Get the number of parents of this StateSet.

Returns: the number of parents of this StateSet.

Definition at line 89 of file StateSet.h.

unsigned int osg::StateSet::getNumTextureAttributeLists ( ) const

inline

Return the number of texture units active in the TextureAttributeList.

Definition at line 260 of file StateSet.h.

unsigned int osg::StateSet::getNumTextureModeLists ( ) const

inline

Return the number texture units active in the TextureModeList.

Definition at line 223 of file StateSet.h.

AttributeList& osg::StateSet::getOrCreateTextureAttributeList ( unsigned int unit )

inlineprotected

Definition at line 514 of file StateSet.h.

ModeList& osg::StateSet::getOrCreateTextureModeList ( unsigned int unit )

inlineprotected

Definition at line 508 of file StateSet.h.

Uniform* osg::StateSet::getOrCreateUniform	(	const std::string &	name,
		Uniform::Type	type,
		unsigned int	numElements = `1`
	)

Get Uniform for specified name, if one is not available create it, add it to this StateSet and return a pointer to it.

Node* osg::StateSet::getParent ( unsigned int i )

inline

Definition at line 77 of file StateSet.h.

const Node* osg::StateSet::getParent ( unsigned int i ) const

inline

Get a single const parent of this StateSet.

Parameters

i	index of the parent to get.

Returns: the parent i.

Definition at line 83 of file StateSet.h.

const ParentList& osg::StateSet::getParents ( ) const

inline

Get the parent list of this StateSet.

Definition at line 71 of file StateSet.h.

ParentList osg::StateSet::getParents ( )

inline

Get the a copy of parent list of node. A copy is returned to prevent modification of the parent list.

Definition at line 75 of file StateSet.h.

RenderBinMode osg::StateSet::getRenderBinMode ( ) const

inline

Get the render bin mode.

Definition at line 385 of file StateSet.h.

Here is the caller graph for this function:

int osg::StateSet::getRenderingHint ( ) const

inline

Get the RenderingHint of this StateSet.

Definition at line 361 of file StateSet.h.

StateAttribute* osg::StateSet::getTextureAttribute	(	unsigned int	unit,
		StateAttribute::Type	type
	)

Get specified Texture related StateAttribute for specified type. Returns NULL if no type is contained within StateSet.

Here is the caller graph for this function:

const StateAttribute* osg::StateSet::getTextureAttribute	(	unsigned int	unit,
		StateAttribute::Type	type
	)		const

Get specified Texture related const StateAttribute for specified type. Returns NULL if no type is contained within const StateSet.

TextureAttributeList& osg::StateSet::getTextureAttributeList ( )

inline

Return the list of all Texture related StateAttributes contained in this StateSet.

Definition at line 254 of file StateSet.h.

const TextureAttributeList& osg::StateSet::getTextureAttributeList ( ) const

inline

Return the const list of all Texture related StateAttributes contained in this const StateSet.

Definition at line 257 of file StateSet.h.

const RefAttributePair* osg::StateSet::getTextureAttributePair	(	unsigned int	unit,
		StateAttribute::Type	type
	)		const

Get specified Texture related RefAttributePair for specified type. Returns NULL if no type is contained within StateSet.

StateAttribute::GLModeValue osg::StateSet::getTextureMode	(	unsigned int	unit,
		StateAttribute::GLMode	mode
	)		const

Get specified GLModeValue for specified GLMode. returns INHERIT if no GLModeValue is contained within StateSet.

TextureModeList& osg::StateSet::getTextureModeList ( )

inline

return the list of all Texture related GLModes contained in this StateSet.

Definition at line 217 of file StateSet.h.

const TextureModeList& osg::StateSet::getTextureModeList ( ) const

inline

return the const list of all Texture related GLModes contained in this const StateSet.

Definition at line 220 of file StateSet.h.

Uniform* osg::StateSet::getUniform ( const std::string & name )

Get Uniform for specified name. Returns NULL if no matching Uniform is contained within StateSet.

const Uniform* osg::StateSet::getUniform ( const std::string & name ) const

Get const Uniform for specified name. Returns NULL if no matching Uniform is contained within StateSet.

UniformList& osg::StateSet::getUniformList ( )

inline

return the list of all Uniforms contained in this StateSet.

Definition at line 306 of file StateSet.h.

const UniformList& osg::StateSet::getUniformList ( ) const

inline

return the const list of all Uniforms contained in this const StateSet.

Definition at line 309 of file StateSet.h.

const RefUniformPair* osg::StateSet::getUniformPair ( const std::string & name ) const

Get specified RefUniformPair for specified Uniform name. Returns NULL if no Uniform is contained within StateSet.

Callback* osg::StateSet::getUpdateCallback ( )

inline

Get the non const Update Callback.

Definition at line 431 of file StateSet.h.

const Callback* osg::StateSet::getUpdateCallback ( ) const

inline

Get the const Update Callback.

Definition at line 434 of file StateSet.h.

virtual bool osg::StateSet::isSameKindAs ( const Object * obj ) const

inlinevirtual

Reimplemented from osg::Object.

Definition at line 55 of file StateSet.h.

virtual const char* osg::StateSet::libraryName ( ) const

inlinevirtual

return the name of the object's library. Must be defined by derived classes. The OpenSceneGraph convention is that the namespace of a library is the same as the library name.

Implements osg::Object.

Definition at line 56 of file StateSet.h.

void osg::StateSet::merge ( const StateSet & rhs )

Merge this StateSet with the StateSet passed as parameter. Every mode and attribute in this StateSet that is marked with StateAttribute::OVERRIDE is replaced with the equivalent mode or attribute from rhs.

bool osg::StateSet::operator!= ( const StateSet & rhs ) const

inline

Definition at line 64 of file StateSet.h.

bool osg::StateSet::operator< ( const StateSet & rhs ) const

inline

Definition at line 62 of file StateSet.h.

StateSet& osg::StateSet::operator= ( const StateSet & )

inlineprotected

Definition at line 488 of file StateSet.h.

bool osg::StateSet::operator== ( const StateSet & rhs ) const

inline

Definition at line 63 of file StateSet.h.

virtual void osg::StateSet::releaseGLObjects ( State * state = 0 ) const

virtual

call release on all StateAttributes contained within this StateSet.

Reimplemented from osg::Object.

void osg::StateSet::removeAssociatedModes ( const StateAttribute * attribute )

void osg::StateSet::removeAssociatedTextureModes	(	unsigned int	unit,
		const StateAttribute *	attribute
	)

void osg::StateSet::removeAttribute	(	StateAttribute::Type	type,
		unsigned int	member = `0`
	)

remove attribute of specified type from StateSet.

void osg::StateSet::removeAttribute ( StateAttribute * attribute )

remove attribute from StateSet.

void osg::StateSet::removeDefine ( const std::string & defineName )

Remove define

void osg::StateSet::removeMode ( StateAttribute::GLMode mode )

Remove mode from this StateSet.

Note: Don't use this method to remove modes related to textures. For this purpose, use removeTextureMode(), that accepts an extra parameter specifying which texture unit shall be affected by the call.

void osg::StateSet::removeParent ( osg::Node * object )

protected

void osg::StateSet::removeTextureAttribute	(	unsigned int	unit,
		StateAttribute::Type	type
	)

remove texture attribute of specified type from StateSet.

void osg::StateSet::removeTextureAttribute	(	unsigned int	unit,
		StateAttribute *	attribute
	)

remove texture attribute from StateSet.

void osg::StateSet::removeTextureMode	(	unsigned int	unit,
		StateAttribute::GLMode	mode
	)

Remove texture mode from StateSet.

void osg::StateSet::removeUniform ( const std::string & name )

remove uniform of specified name from StateSet.

void osg::StateSet::removeUniform ( Uniform * uniform )

remove Uniform from StateSet.

bool osg::StateSet::requiresEventTraversal ( ) const

inline

Return whether this StateSet has event callbacks associated with it, and therefore must be traversed.

Definition at line 457 of file StateSet.h.

Here is the caller graph for this function:

bool osg::StateSet::requiresUpdateTraversal ( ) const

inline

Return whether this StateSet has update callbacks associated with it, and therefore must be traversed.

Definition at line 437 of file StateSet.h.

Here is the caller graph for this function:

virtual void osg::StateSet::resizeGLObjectBuffers ( unsigned int maxSize )

virtual

Resize any per context GLObject buffers to specified size.

Reimplemented from osg::Object.

void osg::StateSet::runEventCallbacks ( osg::NodeVisitor * nv )

Run the event callbacks attached directly to this StateSet or to its children.

Here is the caller graph for this function:

void osg::StateSet::runUpdateCallbacks ( osg::NodeVisitor * nv )

Run the update callbacks attached directly to this StateSet or to its children.

Here is the caller graph for this function:

void osg::StateSet::setAssociatedModes	(	const StateAttribute *	attribute,
		StateAttribute::GLModeValue	value
	)

void osg::StateSet::setAssociatedTextureModes	(	unsigned int	unit,
		const StateAttribute *	attribute,
		StateAttribute::GLModeValue	value
	)

void osg::StateSet::setAttribute	(	StateAttribute *	attribute,
		StateAttribute::OverrideValue	value = `StateAttribute::OFF`
	)

Set this StateSet to contain specified attribute and override flag.

void osg::StateSet::setAttribute	(	AttributeList &	attributeList,
		StateAttribute *	attribute,
		const StateAttribute::OverrideValue	value = `StateAttribute::OFF`
	)

protected

void osg::StateSet::setAttributeAndModes	(	StateAttribute *	attribute,
		StateAttribute::GLModeValue	value = `StateAttribute::ON`
	)

Set this StateSet to contain specified attribute and set the associated GLMode's to specified value.

void osg::StateSet::setAttributeList ( AttributeList & al )

inline

set the list of all StateAttributes contained in this StateSet.

Definition at line 185 of file StateSet.h.

void osg::StateSet::setBinName ( const std::string & name )

inline

Set the render bin name.

Definition at line 394 of file StateSet.h.

void osg::StateSet::setBinNumber ( int num )

inline

Set the render bin number.

Definition at line 388 of file StateSet.h.

void osg::StateSet::setDefine	(	const std::string &	defineName,
		StateAttribute::OverrideValue	value = `StateAttribute::ON`
	)

Added define pass on to shaders that use utilize that define, as specified by the GLSL #pragma import_defines(..) and #pragma requires(..).

void osg::StateSet::setDefine	(	const std::string &	defineName,
		const std::string &	defineValue,
		StateAttribute::OverrideValue	value = `StateAttribute::ON`
	)

Added define with value to pass on to shaders that use utilize that define, as specified by the GLSL #pragma import_defines(..) and #pragma requires(..).

void osg::StateSet::setDefineList ( const DefineList & dl )

inline

Set the list of defines to pass on to shaders.

Definition at line 330 of file StateSet.h.

void osg::StateSet::setEventCallback ( Callback * ac )

Set the Event Callback which allows users to attach customize the updating of an object during the event traversal.

void osg::StateSet::setGlobalDefaults ( )

Set all the modes to on or off so that it defines a complete state, typically used for a default global state.

void osg::StateSet::setMode	(	StateAttribute::GLMode	mode,
		StateAttribute::GLModeValue	value
	)

Set this StateSet to contain the specified GLMode with a given value.

Note: Don't use this method to set modes related to textures. For this purpose, use setTextureMode(), that accepts an extra parameter specifying which texture unit shall be affected by the call.

Here is the caller graph for this function:

void osg::StateSet::setMode	(	ModeList &	modeList,
		StateAttribute::GLMode	mode,
		StateAttribute::GLModeValue	value
	)

protected

void osg::StateSet::setModeList ( ModeList & ml )

inline

Set the list of all GLModes contained in this StateSet.

Definition at line 142 of file StateSet.h.

void osg::StateSet::setModeToInherit	(	ModeList &	modeList,
		StateAttribute::GLMode	mode
	)

protected

void osg::StateSet::setNestRenderBins ( bool val )

inline

By default render bins will be nested within each other dependent upon where they are set in the scene graph. This can be problematic if a transparent render bin is attached to an opaque render bin which is attached to another transparent render bin as these render bins will be sorted separately, giving the wrong draw ordering for back-to-front transparency. Therefore, to prevent render bins being nested, call setNestRenderBins(false).

Definition at line 406 of file StateSet.h.

void osg::StateSet::setNumChildrenRequiringEventTraversal ( unsigned int num )

protected

void osg::StateSet::setNumChildrenRequiringUpdateTraversal ( unsigned int num )

protected

void osg::StateSet::setRenderBinDetails	(	int	binNum,
		const std::string &	binName,
		RenderBinMode	mode = `USE_RENDERBIN_DETAILS`
	)

Set the render bin details.

void osg::StateSet::setRenderBinMode ( RenderBinMode mode )

inline

Set the render bin mode.

Definition at line 382 of file StateSet.h.

void osg::StateSet::setRenderBinToInherit ( )

Set the render bin details to inherit.

void osg::StateSet::setRenderingHint ( int hint )

Set the RenderingHint of this StateSet. RenderingHint is used by the renderer to determine which draw bin to drop associated osg::Drawables in. Typically, users will set this to either StateSet::OPAQUE_BIN or StateSet::TRANSPARENT_BIN. Drawables in the opaque bin are sorted by their StateSet, so that the number of expensive changes in the OpenGL state is minimized. Drawables in the transparent bin are sorted by depth, so that objects farther from the viewer are rendered first (and hence alpha blending works nicely for translucent objects).

void osg::StateSet::setTextureAttribute	(	unsigned int	unit,
		StateAttribute *	attribute,
		StateAttribute::OverrideValue	value = `StateAttribute::OFF`
	)

Set this StateSet to contain specified attribute and override flag.

void osg::StateSet::setTextureAttributeAndModes	(	unsigned int	unit,
		StateAttribute *	attribute,
		StateAttribute::GLModeValue	value = `StateAttribute::ON`
	)

Set this StateSet to contain specified attribute and set the associated GLMode's to specified value.

void osg::StateSet::setTextureAttributeList ( TextureAttributeList & tal )

inline

Set the list of all Texture related StateAttributes contained in this StateSet.

Definition at line 251 of file StateSet.h.

void osg::StateSet::setTextureMode	(	unsigned int	unit,
		StateAttribute::GLMode	mode,
		StateAttribute::GLModeValue	value
	)

Set this StateSet to contain specified GLMode with a given value.

Parameters

unit	The texture unit to be affected (used with multi-texturing).
mode	The OpenGL mode to be added to the `StateSet`.
value	The value to be assigned to `mode`.

void osg::StateSet::setTextureModeList ( TextureModeList & tml )

inline

set the list of all Texture related GLModes contained in this StateSet.

Definition at line 214 of file StateSet.h.

virtual void osg::StateSet::setThreadSafeRefUnref ( bool threadSafe )

virtual

Set whether to use a mutex to ensure ref() and unref() are thread safe.

Reimplemented from osg::Object.

void osg::StateSet::setUniformList ( UniformList & al )

inline

set the list of all Uniforms contained in this StateSet.

Definition at line 303 of file StateSet.h.

void osg::StateSet::setUpdateCallback ( Callback * ac )

Set the Update Callback which allows users to attach customize the updating of an object during the update traversal.

bool osg::StateSet::useRenderBinDetails ( ) const

inline

Get whether the render bin details are set and should be used.

Definition at line 379 of file StateSet.h.

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class osg::Drawable

friend

Definition at line 495 of file StateSet.h.

friend class osg::Node

friend

Definition at line 494 of file StateSet.h.

friend class osg::StateAttribute

friend

Definition at line 497 of file StateSet.h.

friend class osg::Uniform

friend

Definition at line 496 of file StateSet.h.

Member Data Documentation

AttributeList osg::StateSet::_attributeList

protected

Definition at line 500 of file StateSet.h.

RenderBinMode osg::StateSet::_binMode

protected

Definition at line 536 of file StateSet.h.

std::string osg::StateSet::_binName

protected

Definition at line 538 of file StateSet.h.

int osg::StateSet::_binNum

protected

Definition at line 537 of file StateSet.h.

DefineList osg::StateSet::_defineList

protected

Definition at line 506 of file StateSet.h.

ref_ptr<Callback> osg::StateSet::_eventCallback

protected

Definition at line 545 of file StateSet.h.

ModeList osg::StateSet::_modeList

protected

Definition at line 499 of file StateSet.h.

bool osg::StateSet::_nestRenderBins

protected

Definition at line 539 of file StateSet.h.

unsigned int osg::StateSet::_numChildrenRequiringEventTraversal

protected

Definition at line 546 of file StateSet.h.

unsigned int osg::StateSet::_numChildrenRequiringUpdateTraversal

protected

Definition at line 542 of file StateSet.h.

ParentList osg::StateSet::_parents

protected

Definition at line 493 of file StateSet.h.

int osg::StateSet::_renderingHint

protected

Definition at line 534 of file StateSet.h.

TextureAttributeList osg::StateSet::_textureAttributeList

protected

Definition at line 503 of file StateSet.h.

TextureModeList osg::StateSet::_textureModeList

protected

Definition at line 502 of file StateSet.h.

UniformList osg::StateSet::_uniformList

protected

Definition at line 505 of file StateSet.h.

ref_ptr<Callback> osg::StateSet::_updateCallback

protected

Definition at line 541 of file StateSet.h.

The documentation for this class was generated from the following file:

osg_head/include/osg/StateSet.h

Classes

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
