osg::Group Class Reference

#include <Group.h>

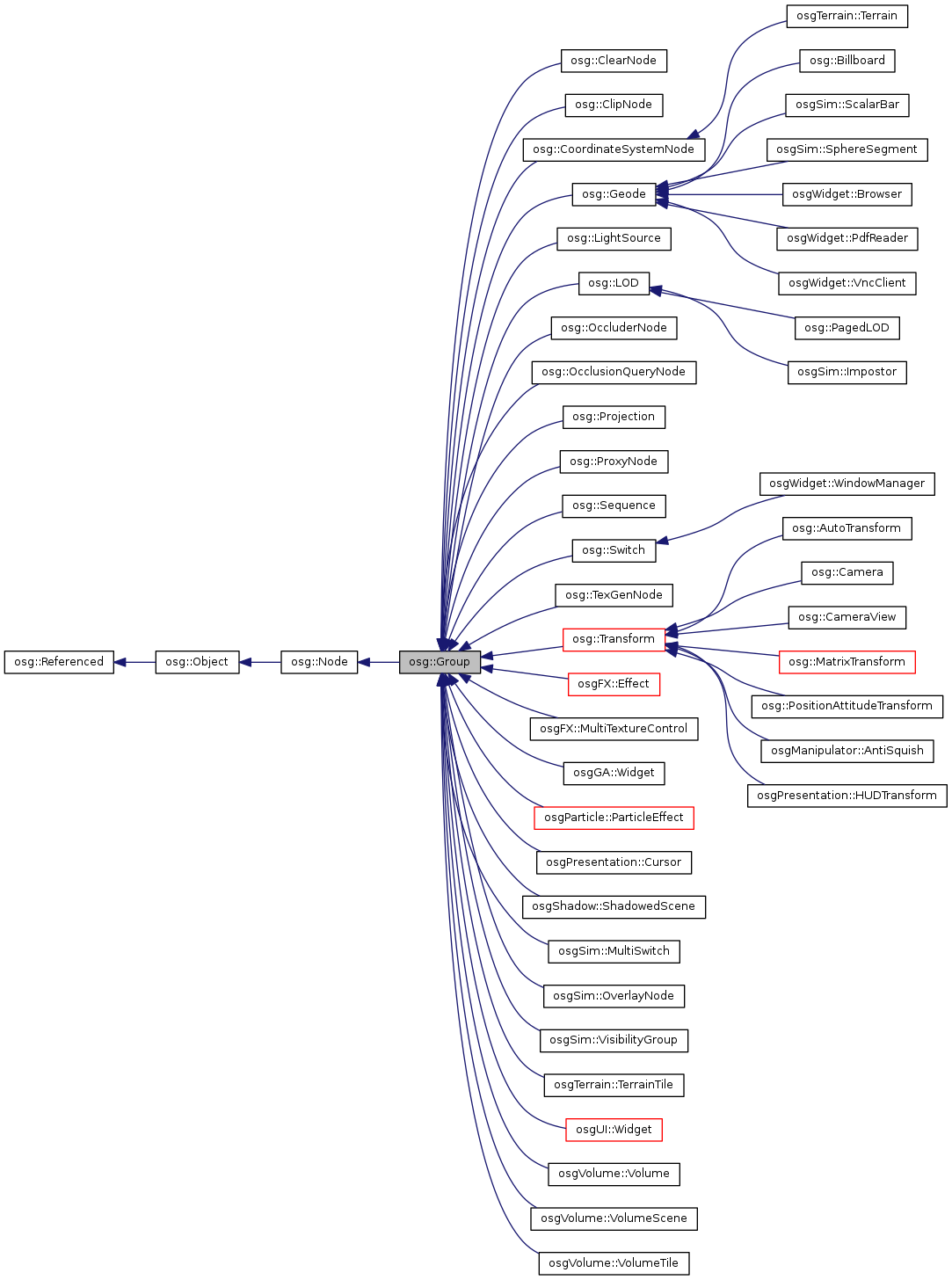

Inheritance diagram for osg::Group:

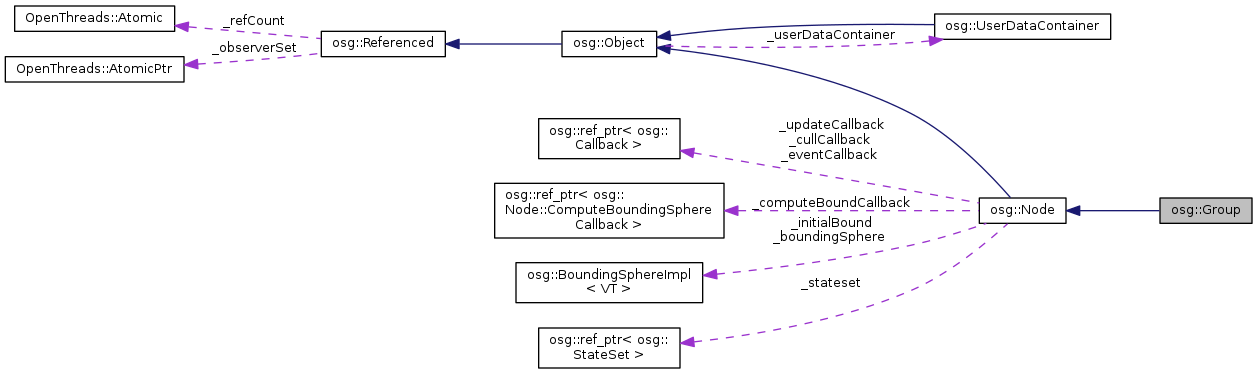

Collaboration diagram for osg::Group:

Public Member Functions
	Group ()
	Group (const Group &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
	META_Node (osg, Group)
virtual Group *	asGroup ()
virtual const Group *	asGroup () const
virtual void	traverse (NodeVisitor &nv)
virtual bool	addChild (Node *child)
virtual bool	insertChild (unsigned int index, Node *child)
virtual bool	removeChild (Node *child)
bool	removeChild (unsigned int pos, unsigned int numChildrenToRemove=1)
virtual bool	removeChildren (unsigned int pos, unsigned int numChildrenToRemove)
virtual bool	replaceChild (Node *origChild, Node *newChild)
virtual unsigned int	getNumChildren () const
virtual bool	setChild (unsigned int i, Node *node)
Node *	getChild (unsigned int i)
const Node *	getChild (unsigned int i) const
bool	containsNode (const Node *node) const
unsigned int	getChildIndex (const Node *node) const
virtual void	setThreadSafeRefUnref (bool threadSafe)
virtual void	resizeGLObjectBuffers (unsigned int maxSize)
virtual void	releaseGLObjects (osg::State *=0) const
virtual BoundingSphere	computeBound () const
Public Member Functions inherited from osg::Node
	Node ()
	Node (const Node &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
virtual Object *	cloneType () const
virtual Object *	clone (const CopyOp &copyop) const
virtual bool	isSameKindAs (const Object *obj) const
virtual const char *	libraryName () const
virtual const char *	className () const
virtual Node *	asNode ()
virtual const Node *	asNode () const
virtual Drawable *	asDrawable ()
virtual const Drawable *	asDrawable () const
virtual Geometry *	asGeometry ()
virtual const Geometry *	asGeometry () const
virtual Transform *	asTransform ()
virtual const Transform *	asTransform () const
virtual Camera *	asCamera ()
virtual const Camera *	asCamera () const
virtual Switch *	asSwitch ()
virtual const Switch *	asSwitch () const
virtual Geode *	asGeode ()
virtual const Geode *	asGeode () const
virtual osgTerrain::Terrain *	asTerrain ()
virtual const osgTerrain::Terrain *	asTerrain () const
virtual void	accept (NodeVisitor &nv)
virtual void	ascend (NodeVisitor &nv)
const ParentList &	getParents () const
ParentList	getParents ()
Group *	getParent (unsigned int i)
const Group *	getParent (unsigned int i) const
unsigned int	getNumParents () const
NodePathList	getParentalNodePaths (osg::Node *haltTraversalAtNode=0) const
MatrixList	getWorldMatrices (const osg::Node *haltTraversalAtNode=0) const
void	setUpdateCallback (Callback *nc)
Callback *	getUpdateCallback ()
const Callback *	getUpdateCallback () const
void	addUpdateCallback (Callback *nc)
void	removeUpdateCallback (Callback *nc)
unsigned int	getNumChildrenRequiringUpdateTraversal () const
void	setEventCallback (Callback *nc)
Callback *	getEventCallback ()
const Callback *	getEventCallback () const
void	addEventCallback (Callback *nc)
void	removeEventCallback (Callback *nc)
unsigned int	getNumChildrenRequiringEventTraversal () const
void	setCullCallback (Callback *nc)
Callback *	getCullCallback ()
const Callback *	getCullCallback () const
void	addCullCallback (Callback *nc)
void	removeCullCallback (Callback *nc)
void	setCullingActive (bool active)
bool	getCullingActive () const
unsigned int	getNumChildrenWithCullingDisabled () const
bool	isCullingActive () const
unsigned int	getNumChildrenWithOccluderNodes () const
bool	containsOccluderNodes () const
void	setNodeMask (NodeMask nm)
NodeMask	getNodeMask () const
void	setStateSet (osg::StateSet *stateset)
osg::StateSet *	getOrCreateStateSet ()
osg::StateSet *	getStateSet ()
const osg::StateSet *	getStateSet () const
void	setDescriptions (const DescriptionList &descriptions)
DescriptionList &	getDescriptions ()
const DescriptionList &	getDescriptions () const
const std::string &	getDescription (unsigned int i) const
std::string &	getDescription (unsigned int i)
unsigned int	getNumDescriptions () const
void	addDescription (const std::string &desc)
void	setInitialBound (const osg::BoundingSphere &bsphere)
const BoundingSphere &	getInitialBound () const
void	dirtyBound ()
const BoundingSphere &	getBound () const
void	setComputeBoundingSphereCallback (ComputeBoundingSphereCallback *callback)
ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback ()
const ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback () const
Public Member Functions inherited from osg::Object
	Object ()
	Object (bool threadSafeRefUnref)
	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
std::string	getCompoundClassName () const
virtual NodeVisitor *	asNodeVisitor ()
virtual const NodeVisitor *	asNodeVisitor () const
virtual StateAttribute *	asStateAttribute ()
virtual const StateAttribute *	asStateAttribute () const
virtual Uniform *	asUniform ()
virtual const Uniform *	asUniform () const
virtual void	setName (const std::string &name)
void	setName (const char *name)
const std::string &	getName () const
void	setDataVariance (DataVariance dv)
DataVariance	getDataVariance () const
virtual void	computeDataVariance ()
void	setUserDataContainer (osg::UserDataContainer *udc)
osg::UserDataContainer *	getUserDataContainer ()
const osg::UserDataContainer *	getUserDataContainer () const
osg::UserDataContainer *	getOrCreateUserDataContainer ()
virtual void	setUserData (Referenced *obj)
virtual Referenced *	getUserData ()
virtual const Referenced *	getUserData () const
template<typename T >
bool	getUserValue (const std::string &name, T &value) const
template<typename T >
void	setUserValue (const std::string &name, const T &value)
template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const
Public Member Functions inherited from osg::Referenced
	Referenced ()
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
int	unref () const
int	unref_nodelete () const
int	referenceCount () const
ObserverSet *	getObserverSet () const
ObserverSet *	getOrCreateObserverSet () const
void	addObserver (Observer *observer) const
void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~Group ()
virtual void	childRemoved (unsigned int, unsigned int)
virtual void	childInserted (unsigned int)
Protected Member Functions inherited from osg::Node
virtual	~Node ()
void	addParent (osg::Group *parent)
void	removeParent (osg::Group *parent)
void	setNumChildrenRequiringUpdateTraversal (unsigned int num)
void	setNumChildrenRequiringEventTraversal (unsigned int num)
void	setNumChildrenWithCullingDisabled (unsigned int num)
void	setNumChildrenWithOccluderNodes (unsigned int num)
Protected Member Functions inherited from osg::Object
virtual	~Object ()
Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Protected Attributes
NodeList	_children
Protected Attributes inherited from osg::Node
BoundingSphere	_initialBound
ref_ptr < ComputeBoundingSphereCallback >	_computeBoundCallback
BoundingSphere	_boundingSphere
bool	_boundingSphereComputed
ParentList	_parents
ref_ptr< Callback >	_updateCallback
unsigned int	_numChildrenRequiringUpdateTraversal
ref_ptr< Callback >	_eventCallback
unsigned int	_numChildrenRequiringEventTraversal
ref_ptr< Callback >	_cullCallback
bool	_cullingActive
unsigned int	_numChildrenWithCullingDisabled
unsigned int	_numChildrenWithOccluderNodes
NodeMask	_nodeMask
ref_ptr< StateSet >	_stateset
Protected Attributes inherited from osg::Object
std::string	_name
DataVariance	_dataVariance
osg::UserDataContainer *	_userDataContainer
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount

Additional Inherited Members
Public Types inherited from osg::Node
typedef std::vector< Group * >	ParentList
typedef unsigned int	NodeMask
typedef std::vector< std::string >	DescriptionList
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
static bool	getThreadSafeReferenceCounting ()
static void	setDeleteHandler (DeleteHandler *handler)
static DeleteHandler *	getDeleteHandler ()

Detailed Description

General group node which maintains a list of children. Children are reference counted. This allows children to be shared with memory management handled automatically via osg::Referenced.

Definition at line 28 of file Group.h.

Constructor & Destructor Documentation

osg::Group::Group

(

)

osg::Group::Group	(	const Group &	,
		const CopyOp &	copyop = CopyOp::SHALLOW_COPY
	)

Copy constructor using CopyOp to manage deep vs shallow copy.

virtual osg::Group::~Group ( )

protectedvirtual

Member Function Documentation

virtual bool osg::Group::addChild ( Node *  child )

virtual

Add Node to Group. If node is not NULL and is not contained in Group then increment its reference count, add it to the child list and dirty the bounding sphere to force it to recompute on next getBound() and return true for success. Otherwise return false. Scene nodes can't be added as child nodes.

Reimplemented in osg::LOD, osg::Switch, osg::Sequence, osgSim::MultiSwitch, osg::ProxyNode, and osg::PagedLOD.

virtual Group* osg::Group::asGroup ( )

inlinevirtual

convert 'this' into a Group pointer if Node is a Group, otherwise return 0. Equivalent to dynamic_cast<Group*>(this).

Reimplemented from osg::Node.

Definition at line 40 of file Group.h.

virtual const Group* osg::Group::asGroup ( ) const

inlinevirtual

convert 'const this' into a const Group pointer if Node is a Group, otherwise return 0. Equivalent to dynamic_cast<const Group*>(this).

Reimplemented from osg::Node.

Definition at line 41 of file Group.h.

virtual void osg::Group::childInserted ( unsigned  int )

inlineprotectedvirtual

Definition at line 158 of file Group.h.

virtual void osg::Group::childRemoved ( unsigned  int, unsigned  int  )

inlineprotectedvirtual

Definition at line 157 of file Group.h.

virtual BoundingSphere osg::Group::computeBound ( ) const

virtual

Compute the bounding sphere around Node's geometry or children. This method is automatically called by getBound() when the bounding sphere has been marked dirty via dirtyBound().

Reimplemented from osg::Node.

Reimplemented in osgTerrain::TerrainTile, osg::Transform, osgUI::Widget, osgVolume::VolumeTile, osg::Geode, osg::LOD, osg::ProxyNode, osg::OcclusionQueryNode, osg::AutoTransform, osgSim::Impostor, osg::Billboard, osg::ClipNode, osg::Switch, osg::LightSource, osgGA::Widget, and osg::OccluderNode.

bool osg::Group::containsNode ( const Node *  node ) const

inline

Return true if node is contained within Group.

Definition at line 115 of file Group.h.

Node* osg::Group::getChild ( unsigned int  i )

inline

Return child node at position i.

Definition at line 109 of file Group.h.

const Node* osg::Group::getChild ( unsigned int  i ) const

inline

Return child node at position i.

Definition at line 112 of file Group.h.

unsigned int osg::Group::getChildIndex ( const Node *  node ) const

inline

Get the index number of child, return a value between 0 and _children.size()-1 if found, if not found then return _children.size().

Definition at line 131 of file Group.h.

virtual unsigned int osg::Group::getNumChildren ( ) const

virtual

Return the number of children nodes.

virtual bool osg::Group::insertChild ( unsigned int  index, Node *  child  )

virtual

Insert Node to Group at specific location. The new child node is inserted into the child list before the node at the specified index. No nodes are removed from the group with this operation.

Reimplemented in osg::Switch, osg::Sequence, and osgSim::MultiSwitch.

osg::Group::META_Node	(	osg	,
		Group
	)

virtual void osg::Group::releaseGLObjects ( osg::State *  = 0 ) const

virtual

If State is non-zero, this function releases any associated OpenGL objects for the specified graphics context. Otherwise, releases OpenGL objects for all graphics contexts.

Reimplemented from osg::Node.

Reimplemented in osg::Camera, osgTerrain::TerrainTile, osgUI::Widget, osgSim::OverlayNode, osg::OcclusionQueryNode, and osgShadow::ShadowedScene.

virtual bool osg::Group::removeChild ( Node *  child )

virtual

Remove Node from Group. If Node is contained in Group then remove it from the child list, decrement its reference count, and dirty the bounding sphere to force it to recompute on next getBound() and return true for success. If Node is not found then return false and do not change the reference count of the Node. Note, do not override, only override removeChildren(,) is required.

Reimplemented in osg::Sequence, and osgSim::MultiSwitch.

bool osg::Group::removeChild ( unsigned int  pos, unsigned int  numChildrenToRemove = 1  )

inline

Remove Node from Group. If Node is contained in Group then remove it from the child list, decrement its reference count, and dirty the bounding sphere to force it to recompute on next getBound() and return true for success. If Node is not found then return false and do not change the reference count of the Node. Note, do not override, only override removeChildren(,) is required.

Definition at line 78 of file Group.h.

virtual bool osg::Group::removeChildren ( unsigned int  pos, unsigned int  numChildrenToRemove  )

virtual

Remove children from Group. Note, must be override by subclasses of Group which add per child attributes.

Reimplemented in osg::Switch, osg::LOD, osg::Sequence, osg::PagedLOD, and osg::ProxyNode.

virtual bool osg::Group::replaceChild ( Node *  origChild, Node *  newChild  )

virtual

Replace specified child Node with another Node. Equivalent to setChild(getChildIndex(orignChild),node) See docs for setChild for further details on implementation.

virtual void osg::Group::resizeGLObjectBuffers ( unsigned int  maxSize )

virtual

Resize any per context GLObject buffers to specified size.

Reimplemented from osg::Node.

Reimplemented in osg::Camera, osgUI::Widget, osgSim::OverlayNode, and osgShadow::ShadowedScene.

virtual bool osg::Group::setChild ( unsigned int  i, Node *  node  )

virtual

Set child node at position i. Return true if set correctly, false on failure (if node==NULL || i is out of range). When Set can be successful applied, the algorithm is : decrement the reference count origNode and increment the reference count of newNode, and dirty the bounding sphere to force it to recompute on next getBound() and return true. If origNode is not found then return false and do not add newNode. If newNode is NULL then return false and do not remove origNode. Also returns false if newChild is a Scene node.

virtual void osg::Group::setThreadSafeRefUnref ( bool  threadSafe )

virtual

Set whether to use a mutex to ensure ref() and unref() are thread safe.

Reimplemented from osg::Node.

Reimplemented in osgSim::OverlayNode, osg::LightSource, and osg::TexGenNode.

virtual void osg::Group::traverse ( NodeVisitor &  )

virtual

Traverse downwards : calls children's accept method with NodeVisitor.

Reimplemented from osg::Node.

Reimplemented in osgManipulator::Dragger, osgFX::Effect, osgPresentation::Timeout, osgVolume::VolumeTile, osgTerrain::TerrainTile, osgSim::Impostor, osg::LOD, osgSim::OverlayNode, osg::Switch, osgPresentation::Cursor, osgSim::VisibilityGroup, osgShadow::ShadowedScene, osgTerrain::Terrain, osg::ProxyNode, osgSim::MultiSwitch, osgVolume::Volume, osgVolume::VolumeScene, osg::PagedLOD, osg::Sequence, osgSim::DOFTransform, osgUI::Widget, and osgGA::Widget.

Member Data Documentation

NodeList osg::Group::_children

protected

Definition at line 160 of file Group.h.

---

The documentation for this class was generated from the following file:

• osg_head/include/osg/Group.h
