#include <Effect.h>

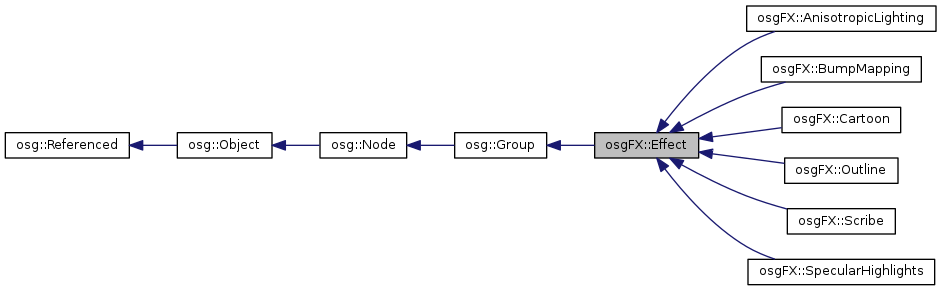

Inheritance diagram for osgFX::Effect:

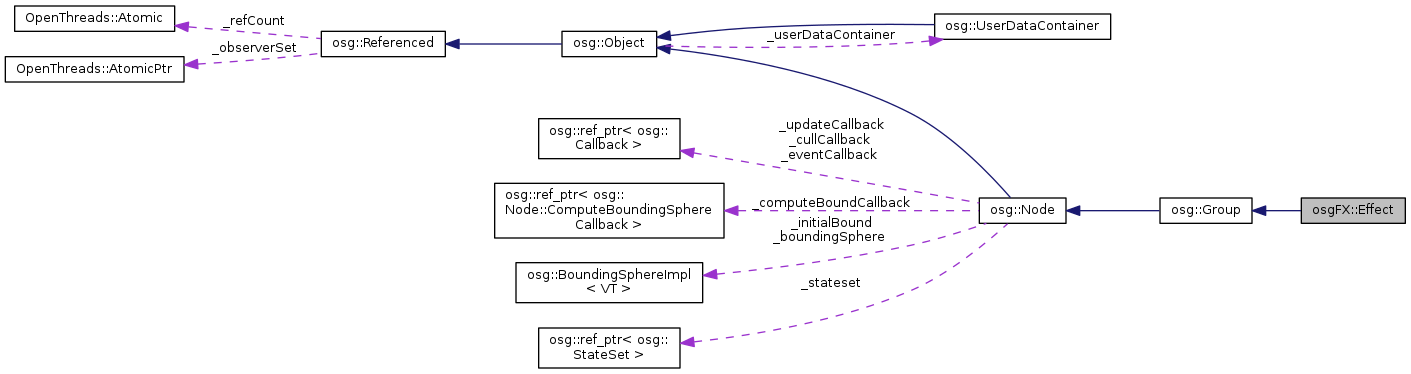

Collaboration diagram for osgFX::Effect:

Public Types
enum	TechniqueSelection { AUTO_DETECT = -1 }

Public Types inherited from osg::Node
typedef std::vector< Group * >	ParentList

typedef unsigned int	NodeMask

typedef std::vector< std::string >	DescriptionList

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	Effect ()

	Effect (const Effect &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

virtual bool	isSameKindAs (const osg::Object *obj) const

virtual const char *	libraryName () const

virtual const char *	className () const

virtual const char *	effectName () const =0

virtual const char *	effectDescription () const =0

virtual const char *	effectAuthor () const =0

bool	getEnabled () const

void	setEnabled (bool v)

virtual void	setUpDemo ()

int	getNumTechniques () const

Technique *	getTechnique (int i)

const Technique *	getTechnique (int i) const

int	getSelectedTechnique () const

void	selectTechnique (int i=AUTO_DETECT)

virtual void	traverse (osg::NodeVisitor &nv)

void	inherited_traverse (osg::NodeVisitor &nv)

Public Member Functions inherited from osg::Group
	Group ()

	Group (const Group &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

	META_Node (osg, Group)

virtual Group *	asGroup ()

virtual const Group *	asGroup () const

virtual bool	addChild (Node *child)

virtual bool	insertChild (unsigned int index, Node *child)

virtual bool	removeChild (Node *child)

bool	removeChild (unsigned int pos, unsigned int numChildrenToRemove=1)

virtual bool	removeChildren (unsigned int pos, unsigned int numChildrenToRemove)

virtual bool	replaceChild (Node origChild, Node newChild)

virtual unsigned int	getNumChildren () const

virtual bool	setChild (unsigned int i, Node *node)

Node *	getChild (unsigned int i)

const Node *	getChild (unsigned int i) const

bool	containsNode (const Node *node) const

unsigned int	getChildIndex (const Node *node) const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	resizeGLObjectBuffers (unsigned int maxSize)

virtual void	releaseGLObjects (osg::State *=0) const

virtual BoundingSphere	computeBound () const

Public Member Functions inherited from osg::Node
	Node ()

	Node (const Node &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const

virtual Object *	clone (const CopyOp &copyop) const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual Drawable *	asDrawable ()

virtual const Drawable *	asDrawable () const

virtual Geometry *	asGeometry ()

virtual const Geometry *	asGeometry () const

virtual Transform *	asTransform ()

virtual const Transform *	asTransform () const

virtual Camera *	asCamera ()

virtual const Camera *	asCamera () const

virtual Switch *	asSwitch ()

virtual const Switch *	asSwitch () const

virtual Geode *	asGeode ()

virtual const Geode *	asGeode () const

virtual osgTerrain::Terrain *	asTerrain ()

virtual const osgTerrain::Terrain *	asTerrain () const

virtual void	accept (NodeVisitor &nv)

virtual void	ascend (NodeVisitor &nv)

const ParentList &	getParents () const

ParentList	getParents ()

Group *	getParent (unsigned int i)

const Group *	getParent (unsigned int i) const

unsigned int	getNumParents () const

NodePathList	getParentalNodePaths (osg::Node *haltTraversalAtNode=0) const

MatrixList	getWorldMatrices (const osg::Node *haltTraversalAtNode=0) const

void	setUpdateCallback (Callback *nc)

Callback *	getUpdateCallback ()

const Callback *	getUpdateCallback () const

void	addUpdateCallback (Callback *nc)

void	removeUpdateCallback (Callback *nc)

unsigned int	getNumChildrenRequiringUpdateTraversal () const

void	setEventCallback (Callback *nc)

Callback *	getEventCallback ()

const Callback *	getEventCallback () const

void	addEventCallback (Callback *nc)

void	removeEventCallback (Callback *nc)

unsigned int	getNumChildrenRequiringEventTraversal () const

void	setCullCallback (Callback *nc)

Callback *	getCullCallback ()

const Callback *	getCullCallback () const

void	addCullCallback (Callback *nc)

void	removeCullCallback (Callback *nc)

void	setCullingActive (bool active)

bool	getCullingActive () const

unsigned int	getNumChildrenWithCullingDisabled () const

bool	isCullingActive () const

unsigned int	getNumChildrenWithOccluderNodes () const

bool	containsOccluderNodes () const

void	setNodeMask (NodeMask nm)

NodeMask	getNodeMask () const

void	setStateSet (osg::StateSet *stateset)

osg::StateSet *	getOrCreateStateSet ()

osg::StateSet *	getStateSet ()

const osg::StateSet *	getStateSet () const

void	setDescriptions (const DescriptionList &descriptions)

DescriptionList &	getDescriptions ()

const DescriptionList &	getDescriptions () const

const std::string &	getDescription (unsigned int i) const

std::string &	getDescription (unsigned int i)

unsigned int	getNumDescriptions () const

void	addDescription (const std::string &desc)

void	setInitialBound (const osg::BoundingSphere &bsphere)

const BoundingSphere &	getInitialBound () const

void	dirtyBound ()

const BoundingSphere &	getBound () const

void	setComputeBoundingSphereCallback (ComputeBoundingSphereCallback *callback)

ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback ()

const ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback () const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string	getCompoundClassName () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~Effect ()

Effect &	operator= (const Effect &)

void	dirtyTechniques ()

void	addTechnique (Technique *tech)

virtual bool	define_techniques ()=0

Protected Member Functions inherited from osg::Group
virtual	~Group ()

virtual void	childRemoved (unsigned int, unsigned int)

virtual void	childInserted (unsigned int)

Protected Member Functions inherited from osg::Node
virtual	~Node ()

void	addParent (osg::Group *parent)

void	removeParent (osg::Group *parent)

void	setNumChildrenRequiringUpdateTraversal (unsigned int num)

void	setNumChildrenRequiringEventTraversal (unsigned int num)

void	setNumChildrenWithCullingDisabled (unsigned int num)

void	setNumChildrenWithOccluderNodes (unsigned int num)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Friends
class	Validator

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Attributes inherited from osg::Group
NodeList	_children

Protected Attributes inherited from osg::Node
BoundingSphere	_initialBound

ref_ptr < ComputeBoundingSphereCallback >	_computeBoundCallback

BoundingSphere	_boundingSphere

bool	_boundingSphereComputed

ParentList	_parents

ref_ptr< Callback >	_updateCallback

unsigned int	_numChildrenRequiringUpdateTraversal

ref_ptr< Callback >	_eventCallback

unsigned int	_numChildrenRequiringEventTraversal

ref_ptr< Callback >	_cullCallback

bool	_cullingActive

unsigned int	_numChildrenWithCullingDisabled

unsigned int	_numChildrenWithOccluderNodes

NodeMask	_nodeMask

ref_ptr< StateSet >	_stateset

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Detailed Description

The base class for special effects. An effect is basically a collection of state attributes and an interface for configuring them in a predefined fashion. The Effect class does more however, as it handles multipass rendering transparently and it allows more than one "technique" to be defined. Each technique tries to implement the effect in a different way, often using different OpenGL extensions. The active technique can be selected either manually, with selectTechnique(), or automatically, in which case the first technique that is supported by all active rendering contexts is chosen. If you are an Effect user, then simply use it as a node group. Create an instance of your desired effect, add it to your scene graph and call its addChild() method to add a child node as you would do with a Group. If you are an Effect developer, you will have to implement the method define_techniques() to define the different techniques that can be used for obtaining the desired effect. In define_techniques() you will usually create one or more instances of custom classes derived from Technique and you will add them to the effect with addTechnique(). The order is important: techniques added first will have higher priority and will be used first as soon as all rendering contexts support it.

Definition at line 66 of file Effect.h.

Member Enumeration Documentation

enum osgFX::Effect::TechniqueSelection

Enumerator
AUTO_DETECT

Definition at line 109 of file Effect.h.

Constructor & Destructor Documentation

osgFX::Effect::Effect ( )

osgFX::Effect::Effect	(	const Effect &	copy,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)

virtual osgFX::Effect::~Effect ( )

protectedvirtual

Member Function Documentation

void osgFX::Effect::addTechnique ( Technique * tech )

inlineprotected

add a technique to the Effect

Definition at line 199 of file Effect.h.

virtual const char* osgFX::Effect::className ( ) const

inlinevirtual

return the name of the node's class type.

Reimplemented from osg::Node.

Definition at line 73 of file Effect.h.

virtual bool osgFX::Effect::define_techniques ( )

protectedpure virtual

abstract method to be implemented in derived classes; its purpose if to create the techniques that can be used for obtaining the desired effect. You will usually call addTechnique() inside this method.

Implemented in osgFX::BumpMapping, osgFX::AnisotropicLighting, osgFX::Outline, osgFX::SpecularHighlights, osgFX::Cartoon, and osgFX::Scribe.

void osgFX::Effect::dirtyTechniques ( )

inlineprotected

force rebuilding of techniques on next traversal

Definition at line 204 of file Effect.h.

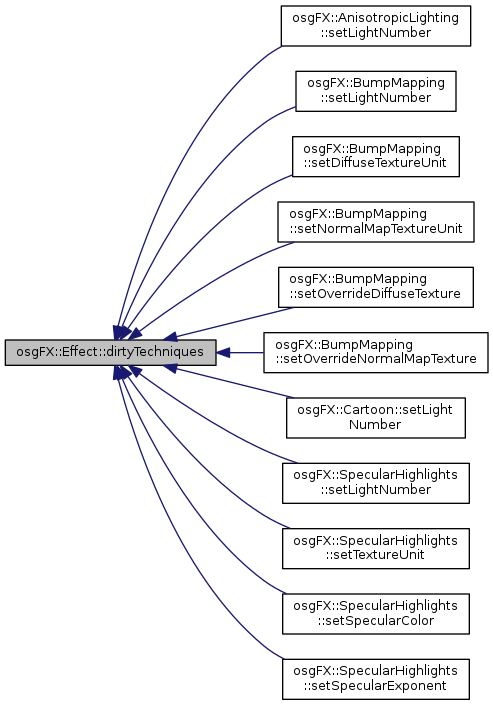

Here is the caller graph for this function:

virtual const char* osgFX::Effect::effectAuthor ( ) const

pure virtual

get the effect author's name

virtual const char* osgFX::Effect::effectDescription ( ) const

pure virtual

get a brief description of this Effect

virtual const char* osgFX::Effect::effectName ( ) const

pure virtual

get the name of this Effect

Here is the caller graph for this function:

bool osgFX::Effect::getEnabled ( ) const

inline

get whether the effect is enabled or not

Definition at line 164 of file Effect.h.

int osgFX::Effect::getNumTechniques ( ) const

inline

get the number of techniques defined for this Effect

Definition at line 174 of file Effect.h.

int osgFX::Effect::getSelectedTechnique ( ) const

inline

get the index of the currently selected Technique

Definition at line 189 of file Effect.h.

Technique * osgFX::Effect::getTechnique ( int i )

inline

get the i-th Technique

Definition at line 179 of file Effect.h.

const Technique * osgFX::Effect::getTechnique ( int i ) const

inline

get the i-th const Technique

Definition at line 184 of file Effect.h.

void osgFX::Effect::inherited_traverse ( osg::NodeVisitor & nv )

inline

default traversal

Definition at line 209 of file Effect.h.

virtual bool osgFX::Effect::isSameKindAs ( const osg::Object * obj ) const

inlinevirtual

return true if this and obj are of the same kind of object.

Reimplemented from osg::Node.

Definition at line 71 of file Effect.h.

virtual const char* osgFX::Effect::libraryName ( ) const

inlinevirtual

return the name of the node's library.

Reimplemented from osg::Node.

Definition at line 72 of file Effect.h.

Effect& osgFX::Effect::operator= ( const Effect & )

inlineprotected

Definition at line 124 of file Effect.h.

void osgFX::Effect::selectTechnique ( int i = AUTO_DETECT )

inline

select a technique or enable automatic detection

Definition at line 194 of file Effect.h.

void osgFX::Effect::setEnabled ( bool v )

inline

set whether the effect is enabled or not

Definition at line 169 of file Effect.h.

virtual void osgFX::Effect::setUpDemo ( )

inlinevirtual

optional: set effect parameters to produce a visually significant result to be used in demo applications like osgfxbrowser. Default is to do nothing.

Reimplemented in osgFX::BumpMapping.

Definition at line 95 of file Effect.h.

virtual void osgFX::Effect::traverse ( osg::NodeVisitor & nv )

virtual

custom traversal

Reimplemented from osg::Group.

Friends And Related Function Documentation

friend class Validator

friend

Definition at line 141 of file Effect.h.

The documentation for this class was generated from the following file:

osg_head/include/osgFX/Effect.h

Public Types

Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation
