#include <Transform.h>

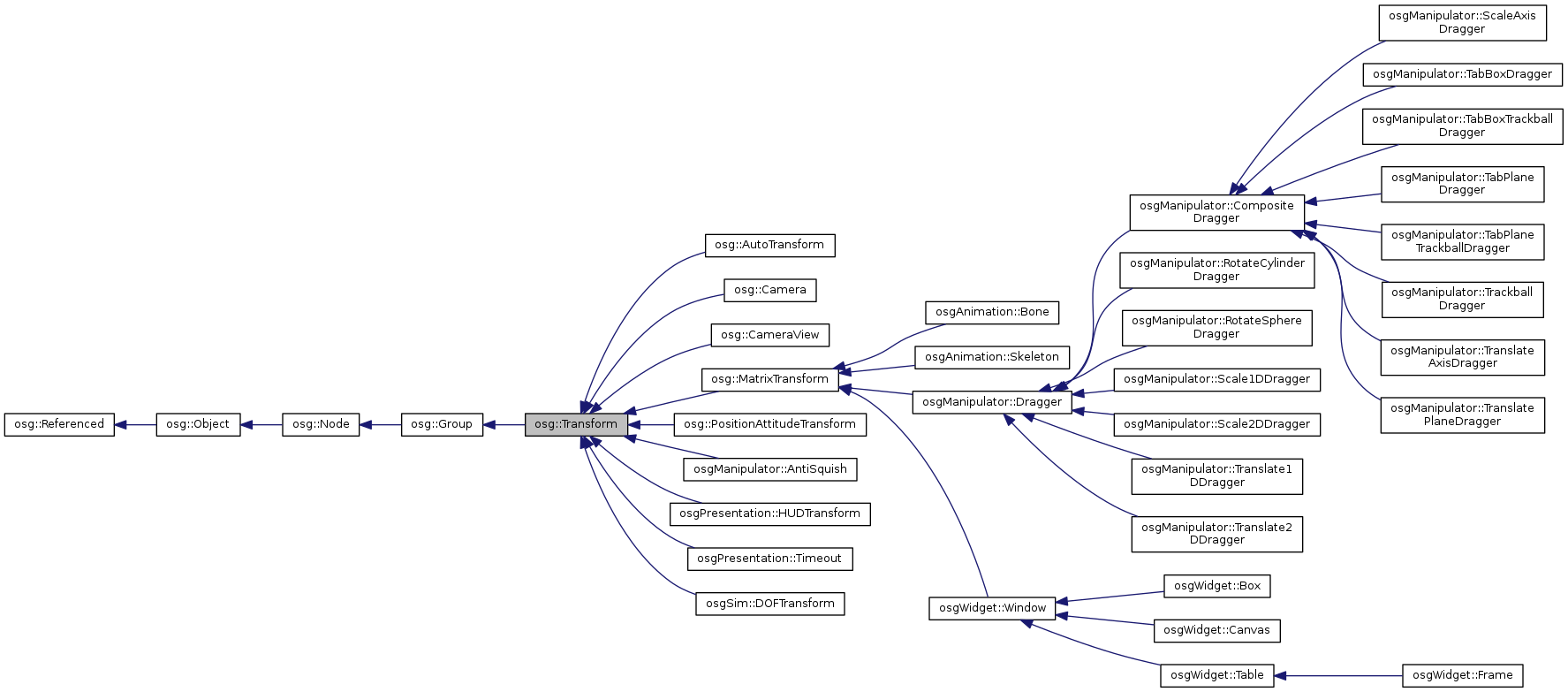

Inheritance diagram for osg::Transform:

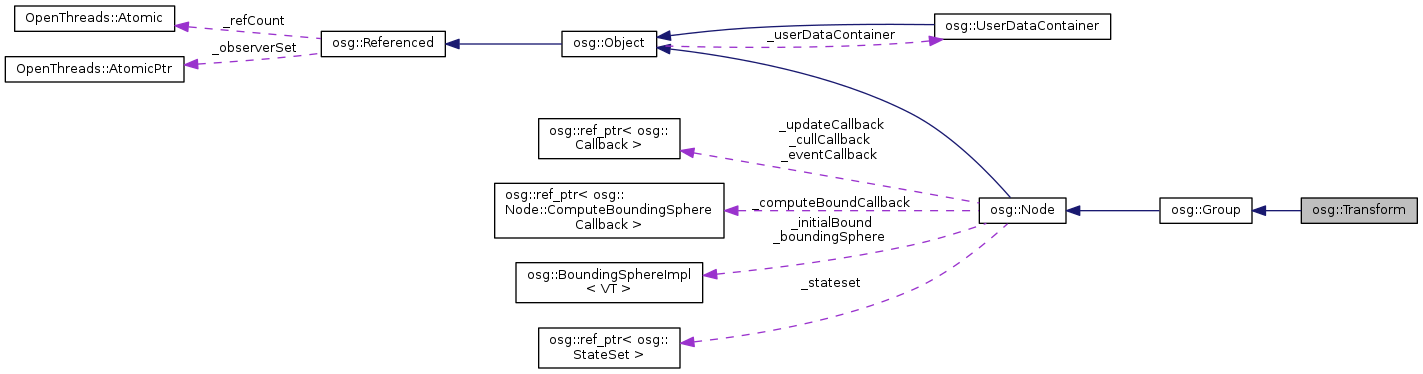

Collaboration diagram for osg::Transform:

Public Types
enum	ReferenceFrame { RELATIVE_RF, ABSOLUTE_RF, ABSOLUTE_RF_INHERIT_VIEWPOINT }

Public Types inherited from osg::Node
typedef std::vector< Group * >	ParentList

typedef unsigned int	NodeMask

typedef std::vector< std::string >	DescriptionList

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	Transform ()

	Transform (const Transform &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

	META_Node (osg, Transform)

virtual Transform *	asTransform ()

virtual const Transform *	asTransform () const

virtual MatrixTransform *	asMatrixTransform ()

virtual const MatrixTransform *	asMatrixTransform () const

virtual PositionAttitudeTransform *	asPositionAttitudeTransform ()

virtual const PositionAttitudeTransform *	asPositionAttitudeTransform () const

void	setReferenceFrame (ReferenceFrame rf)

ReferenceFrame	getReferenceFrame () const

virtual bool	computeLocalToWorldMatrix (Matrix &matrix, NodeVisitor *) const

virtual bool	computeWorldToLocalMatrix (Matrix &matrix, NodeVisitor *) const

virtual BoundingSphere	computeBound () const

Public Member Functions inherited from osg::Group
	Group ()

	Group (const Group &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

	META_Node (osg, Group)

virtual Group *	asGroup ()

virtual const Group *	asGroup () const

virtual void	traverse (NodeVisitor &nv)

virtual bool	addChild (Node *child)

virtual bool	insertChild (unsigned int index, Node *child)

virtual bool	removeChild (Node *child)

bool	removeChild (unsigned int pos, unsigned int numChildrenToRemove=1)

virtual bool	removeChildren (unsigned int pos, unsigned int numChildrenToRemove)

virtual bool	replaceChild (Node origChild, Node newChild)

virtual unsigned int	getNumChildren () const

virtual bool	setChild (unsigned int i, Node *node)

Node *	getChild (unsigned int i)

const Node *	getChild (unsigned int i) const

bool	containsNode (const Node *node) const

unsigned int	getChildIndex (const Node *node) const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	resizeGLObjectBuffers (unsigned int maxSize)

virtual void	releaseGLObjects (osg::State *=0) const

Public Member Functions inherited from osg::Node
	Node ()

	Node (const Node &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const

virtual Object *	clone (const CopyOp &copyop) const

virtual bool	isSameKindAs (const Object *obj) const

virtual const char *	libraryName () const

virtual const char *	className () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual Drawable *	asDrawable ()

virtual const Drawable *	asDrawable () const

virtual Geometry *	asGeometry ()

virtual const Geometry *	asGeometry () const

virtual Camera *	asCamera ()

virtual const Camera *	asCamera () const

virtual Switch *	asSwitch ()

virtual const Switch *	asSwitch () const

virtual Geode *	asGeode ()

virtual const Geode *	asGeode () const

virtual osgTerrain::Terrain *	asTerrain ()

virtual const osgTerrain::Terrain *	asTerrain () const

virtual void	accept (NodeVisitor &nv)

virtual void	ascend (NodeVisitor &nv)

const ParentList &	getParents () const

ParentList	getParents ()

Group *	getParent (unsigned int i)

const Group *	getParent (unsigned int i) const

unsigned int	getNumParents () const

NodePathList	getParentalNodePaths (osg::Node *haltTraversalAtNode=0) const

MatrixList	getWorldMatrices (const osg::Node *haltTraversalAtNode=0) const

void	setUpdateCallback (Callback *nc)

Callback *	getUpdateCallback ()

const Callback *	getUpdateCallback () const

void	addUpdateCallback (Callback *nc)

void	removeUpdateCallback (Callback *nc)

unsigned int	getNumChildrenRequiringUpdateTraversal () const

void	setEventCallback (Callback *nc)

Callback *	getEventCallback ()

const Callback *	getEventCallback () const

void	addEventCallback (Callback *nc)

void	removeEventCallback (Callback *nc)

unsigned int	getNumChildrenRequiringEventTraversal () const

void	setCullCallback (Callback *nc)

Callback *	getCullCallback ()

const Callback *	getCullCallback () const

void	addCullCallback (Callback *nc)

void	removeCullCallback (Callback *nc)

void	setCullingActive (bool active)

bool	getCullingActive () const

unsigned int	getNumChildrenWithCullingDisabled () const

bool	isCullingActive () const

unsigned int	getNumChildrenWithOccluderNodes () const

bool	containsOccluderNodes () const

void	setNodeMask (NodeMask nm)

NodeMask	getNodeMask () const

void	setStateSet (osg::StateSet *stateset)

osg::StateSet *	getOrCreateStateSet ()

osg::StateSet *	getStateSet ()

const osg::StateSet *	getStateSet () const

void	setDescriptions (const DescriptionList &descriptions)

DescriptionList &	getDescriptions ()

const DescriptionList &	getDescriptions () const

const std::string &	getDescription (unsigned int i) const

std::string &	getDescription (unsigned int i)

unsigned int	getNumDescriptions () const

void	addDescription (const std::string &desc)

void	setInitialBound (const osg::BoundingSphere &bsphere)

const BoundingSphere &	getInitialBound () const

void	dirtyBound ()

const BoundingSphere &	getBound () const

void	setComputeBoundingSphereCallback (ComputeBoundingSphereCallback *callback)

ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback ()

const ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback () const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string	getCompoundClassName () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~Transform ()

Protected Member Functions inherited from osg::Group
virtual	~Group ()

virtual void	childRemoved (unsigned int, unsigned int)

virtual void	childInserted (unsigned int)

Protected Member Functions inherited from osg::Node
virtual	~Node ()

void	addParent (osg::Group *parent)

void	removeParent (osg::Group *parent)

void	setNumChildrenRequiringUpdateTraversal (unsigned int num)

void	setNumChildrenRequiringEventTraversal (unsigned int num)

void	setNumChildrenWithCullingDisabled (unsigned int num)

void	setNumChildrenWithOccluderNodes (unsigned int num)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
ReferenceFrame	_referenceFrame

Protected Attributes inherited from osg::Group
NodeList	_children

Protected Attributes inherited from osg::Node
BoundingSphere	_initialBound

ref_ptr < ComputeBoundingSphereCallback >	_computeBoundCallback

BoundingSphere	_boundingSphere

bool	_boundingSphereComputed

ParentList	_parents

ref_ptr< Callback >	_updateCallback

unsigned int	_numChildrenRequiringUpdateTraversal

ref_ptr< Callback >	_eventCallback

unsigned int	_numChildrenRequiringEventTraversal

ref_ptr< Callback >	_cullCallback

bool	_cullingActive

unsigned int	_numChildrenWithCullingDisabled

unsigned int	_numChildrenWithOccluderNodes

NodeMask	_nodeMask

ref_ptr< StateSet >	_stateset

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Detailed Description

A Transform is a group node for which all children are transformed by a 4x4 matrix. It is often used for positioning objects within a scene, producing trackball functionality or for animation.

Transform itself does not provide set/get functions, only the interface for defining what the 4x4 transformation is. Subclasses, such as MatrixTransform and PositionAttitudeTransform support the use of an osg::Matrix or a osg::Vec3/osg::Quat respectively.

Note: If the transformation matrix scales the subgraph then the normals of the underlying geometry will need to be renormalized to be unit vectors once more. This can be done transparently through OpenGL's use of either GL_NORMALIZE and GL_RESCALE_NORMAL modes. For further background reading see the glNormalize documentation in the OpenGL Reference Guide (the blue book). To enable it in the OSG, you simply need to attach a local osg::StateSet to the osg::Transform, and set the appropriate mode to ON via stateset->setMode(GL_NORMALIZE, osg::StateAttribute::ON);

Definition at line 74 of file Transform.h.

Member Enumeration Documentation

enum osg::Transform::ReferenceFrame

Enumerator
RELATIVE_RF
ABSOLUTE_RF
ABSOLUTE_RF_INHERIT_VIEWPOINT

Definition at line 94 of file Transform.h.

Constructor & Destructor Documentation

osg::Transform::Transform ( )

osg::Transform::Transform	(	const Transform &	,
		const CopyOp &	copyop = `CopyOp::SHALLOW_COPY`
	)

Copy constructor using CopyOp to manage deep vs shallow copy.

virtual osg::Transform::~Transform ( )

protectedvirtual

Member Function Documentation

virtual MatrixTransform* osg::Transform::asMatrixTransform ( )

inlinevirtual

Reimplemented in osg::MatrixTransform.

Definition at line 88 of file Transform.h.

virtual const MatrixTransform* osg::Transform::asMatrixTransform ( ) const

inlinevirtual

Reimplemented in osg::MatrixTransform.

Definition at line 89 of file Transform.h.

virtual PositionAttitudeTransform* osg::Transform::asPositionAttitudeTransform ( )

inlinevirtual

Reimplemented in osg::PositionAttitudeTransform.

Definition at line 91 of file Transform.h.

virtual const PositionAttitudeTransform* osg::Transform::asPositionAttitudeTransform ( ) const

inlinevirtual

Reimplemented in osg::PositionAttitudeTransform.

Definition at line 92 of file Transform.h.

virtual Transform* osg::Transform::asTransform ( )

inlinevirtual

Convert 'this' into a Transform pointer if Node is a Transform, otherwise return 0. Equivalent to dynamic_cast<Transform*>(this).

Reimplemented from osg::Node.

Definition at line 85 of file Transform.h.

virtual const Transform* osg::Transform::asTransform ( ) const

inlinevirtual

convert 'const this' into a const Transform pointer if Node is a Transform, otherwise return 0. Equivalent to dynamic_cast<const Transform*>(this).

Reimplemented from osg::Node.

Definition at line 86 of file Transform.h.

virtual BoundingSphere osg::Transform::computeBound ( ) const

virtual

Overrides Group's computeBound. There is no need to override in subclasses from osg::Transform since this computeBound() uses the underlying matrix (calling computeMatrix if required).

Reimplemented from osg::Group.

Reimplemented in osg::AutoTransform.

virtual bool osg::Transform::computeLocalToWorldMatrix	(	Matrix &	matrix,
		NodeVisitor *
	)		const

inlinevirtual

Reimplemented in osg::Camera, osgSim::DOFTransform, osg::AutoTransform, osg::CameraView, osgPresentation::Timeout, osg::MatrixTransform, osgManipulator::AntiSquish, osg::PositionAttitudeTransform, and osgPresentation::HUDTransform.

Definition at line 123 of file Transform.h.

Here is the call graph for this function:

virtual bool osg::Transform::computeWorldToLocalMatrix	(	Matrix &	matrix,
		NodeVisitor *
	)		const

inlinevirtual

Reimplemented in osg::Camera, osgSim::DOFTransform, osg::AutoTransform, osg::CameraView, osgPresentation::Timeout, osg::MatrixTransform, osgManipulator::AntiSquish, osg::PositionAttitudeTransform, and osgPresentation::HUDTransform.

Definition at line 136 of file Transform.h.

Here is the call graph for this function:

ReferenceFrame osg::Transform::getReferenceFrame ( ) const

inline

Definition at line 121 of file Transform.h.

osg::Transform::META_Node	(	osg	,
		Transform
	)

void osg::Transform::setReferenceFrame ( ReferenceFrame rf )

Set the transform's ReferenceFrame, either to be relative to its parent reference frame, or relative to an absolute coordinate frame. RELATIVE_RF is the default. Note: Setting the ReferenceFrame to be ABSOLUTE_RF will also set the CullingActive flag on the transform, and hence all of its parents, to false, thereby disabling culling of it and all its parents. This is necessary to prevent inappropriate culling, but may impact cull times if the absolute transform is deep in the scene graph. It is therefore recommended to only use absolute Transforms at the top of the scene, for such things as heads up displays. ABSOLUTE_RF_INHERIT_VIEWPOINT is the same as ABSOLUTE_RF except it adds the ability to use the parents view points position in world coordinates as its local viewpoint in the new coordinates frame. This is useful for Render to texture Cameras that wish to use the main views LOD range computation (which uses the viewpoint rather than the eye point) rather than use the local eye point defined by the this Transforms' absolute view matrix.

Member Data Documentation

ReferenceFrame osg::Transform::_referenceFrame

protected

Definition at line 161 of file Transform.h.

The documentation for this class was generated from the following file:

osg_head/include/osg/Transform.h

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
