#include <ClipNode.h>

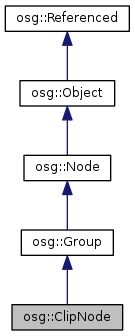

Inheritance diagram for osg::ClipNode:

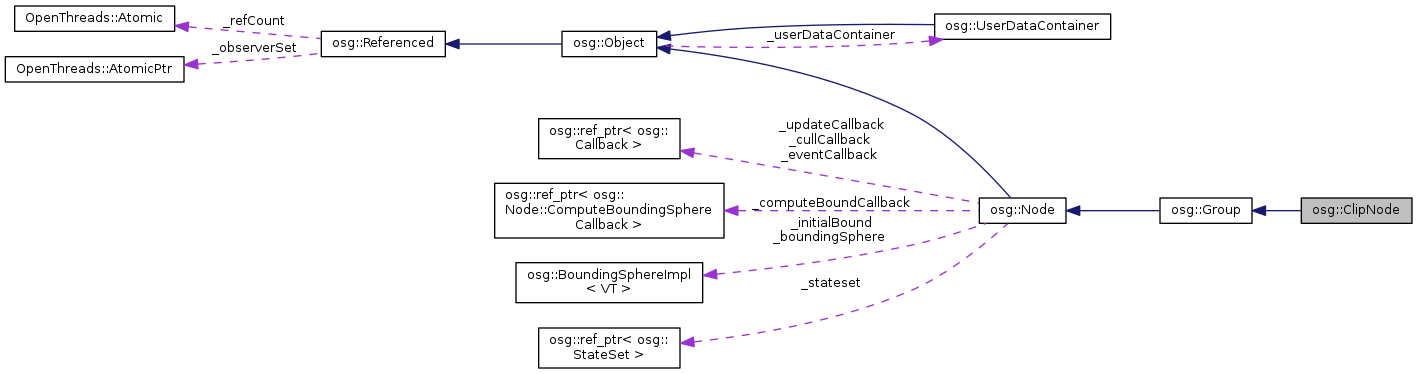

Collaboration diagram for osg::ClipNode:

Public Types
enum	ReferenceFrame { RELATIVE_RF, ABSOLUTE_RF }

typedef std::vector< ref_ptr < ClipPlane > >	ClipPlaneList

Public Types inherited from osg::Node
typedef std::vector< Group * >	ParentList

typedef unsigned int	NodeMask

typedef std::vector< std::string >	DescriptionList

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	ClipNode ()

	ClipNode (const ClipNode &es, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

	META_Node (osg, ClipNode)

void	setReferenceFrame (ReferenceFrame rf)

ReferenceFrame	getReferenceFrame () const

void	createClipBox (const BoundingBox &bb, unsigned int clipPlaneNumberBase=0)

bool	addClipPlane (ClipPlane *clipplane)

bool	removeClipPlane (ClipPlane *clipplane)

bool	removeClipPlane (unsigned int pos)

unsigned int	getNumClipPlanes () const

ClipPlane *	getClipPlane (unsigned int pos)

const ClipPlane *	getClipPlane (unsigned int pos) const

void	setClipPlaneList (const ClipPlaneList &cpl)

ClipPlaneList &	getClipPlaneList ()

const ClipPlaneList &	getClipPlaneList () const

void	setStateSetModes (StateSet &, StateAttribute::GLModeValue) const

void	setLocalStateSetModes (StateAttribute::GLModeValue=StateAttribute::ON)

virtual BoundingSphere	computeBound () const

Public Member Functions inherited from osg::Group
	Group ()

	Group (const Group &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

	META_Node (osg, Group)

virtual Group *	asGroup ()

virtual const Group *	asGroup () const

virtual void	traverse (NodeVisitor &nv)

virtual bool	addChild (Node *child)

virtual bool	insertChild (unsigned int index, Node *child)

virtual bool	removeChild (Node *child)

bool	removeChild (unsigned int pos, unsigned int numChildrenToRemove=1)

virtual bool	removeChildren (unsigned int pos, unsigned int numChildrenToRemove)

virtual bool	replaceChild (Node origChild, Node newChild)

virtual unsigned int	getNumChildren () const

virtual bool	setChild (unsigned int i, Node *node)

Node *	getChild (unsigned int i)

const Node *	getChild (unsigned int i) const

bool	containsNode (const Node *node) const

unsigned int	getChildIndex (const Node *node) const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	resizeGLObjectBuffers (unsigned int maxSize)

virtual void	releaseGLObjects (osg::State *=0) const

Public Member Functions inherited from osg::Node
	Node ()

	Node (const Node &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const

virtual Object *	clone (const CopyOp &copyop) const

virtual bool	isSameKindAs (const Object *obj) const

virtual const char *	libraryName () const

virtual const char *	className () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual Drawable *	asDrawable ()

virtual const Drawable *	asDrawable () const

virtual Geometry *	asGeometry ()

virtual const Geometry *	asGeometry () const

virtual Transform *	asTransform ()

virtual const Transform *	asTransform () const

virtual Camera *	asCamera ()

virtual const Camera *	asCamera () const

virtual Switch *	asSwitch ()

virtual const Switch *	asSwitch () const

virtual Geode *	asGeode ()

virtual const Geode *	asGeode () const

virtual osgTerrain::Terrain *	asTerrain ()

virtual const osgTerrain::Terrain *	asTerrain () const

virtual void	accept (NodeVisitor &nv)

virtual void	ascend (NodeVisitor &nv)

const ParentList &	getParents () const

ParentList	getParents ()

Group *	getParent (unsigned int i)

const Group *	getParent (unsigned int i) const

unsigned int	getNumParents () const

NodePathList	getParentalNodePaths (osg::Node *haltTraversalAtNode=0) const

MatrixList	getWorldMatrices (const osg::Node *haltTraversalAtNode=0) const

void	setUpdateCallback (Callback *nc)

Callback *	getUpdateCallback ()

const Callback *	getUpdateCallback () const

void	addUpdateCallback (Callback *nc)

void	removeUpdateCallback (Callback *nc)

unsigned int	getNumChildrenRequiringUpdateTraversal () const

void	setEventCallback (Callback *nc)

Callback *	getEventCallback ()

const Callback *	getEventCallback () const

void	addEventCallback (Callback *nc)

void	removeEventCallback (Callback *nc)

unsigned int	getNumChildrenRequiringEventTraversal () const

void	setCullCallback (Callback *nc)

Callback *	getCullCallback ()

const Callback *	getCullCallback () const

void	addCullCallback (Callback *nc)

void	removeCullCallback (Callback *nc)

void	setCullingActive (bool active)

bool	getCullingActive () const

unsigned int	getNumChildrenWithCullingDisabled () const

bool	isCullingActive () const

unsigned int	getNumChildrenWithOccluderNodes () const

bool	containsOccluderNodes () const

void	setNodeMask (NodeMask nm)

NodeMask	getNodeMask () const

void	setStateSet (osg::StateSet *stateset)

osg::StateSet *	getOrCreateStateSet ()

osg::StateSet *	getStateSet ()

const osg::StateSet *	getStateSet () const

void	setDescriptions (const DescriptionList &descriptions)

DescriptionList &	getDescriptions ()

const DescriptionList &	getDescriptions () const

const std::string &	getDescription (unsigned int i) const

std::string &	getDescription (unsigned int i)

unsigned int	getNumDescriptions () const

void	addDescription (const std::string &desc)

void	setInitialBound (const osg::BoundingSphere &bsphere)

const BoundingSphere &	getInitialBound () const

void	dirtyBound ()

const BoundingSphere &	getBound () const

void	setComputeBoundingSphereCallback (ComputeBoundingSphereCallback *callback)

ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback ()

const ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback () const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string	getCompoundClassName () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~ClipNode ()

Protected Member Functions inherited from osg::Group
virtual	~Group ()

virtual void	childRemoved (unsigned int, unsigned int)

virtual void	childInserted (unsigned int)

Protected Member Functions inherited from osg::Node
virtual	~Node ()

void	addParent (osg::Group *parent)

void	removeParent (osg::Group *parent)

void	setNumChildrenRequiringUpdateTraversal (unsigned int num)

void	setNumChildrenRequiringEventTraversal (unsigned int num)

void	setNumChildrenWithCullingDisabled (unsigned int num)

void	setNumChildrenWithOccluderNodes (unsigned int num)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
StateAttribute::GLModeValue	_value

ClipPlaneList	_planes

ReferenceFrame	_referenceFrame

Protected Attributes inherited from osg::Group
NodeList	_children

Protected Attributes inherited from osg::Node
BoundingSphere	_initialBound

ref_ptr < ComputeBoundingSphereCallback >	_computeBoundCallback

BoundingSphere	_boundingSphere

bool	_boundingSphereComputed

ParentList	_parents

ref_ptr< Callback >	_updateCallback

unsigned int	_numChildrenRequiringUpdateTraversal

ref_ptr< Callback >	_eventCallback

unsigned int	_numChildrenRequiringEventTraversal

ref_ptr< Callback >	_cullCallback

bool	_cullingActive

unsigned int	_numChildrenWithCullingDisabled

unsigned int	_numChildrenWithOccluderNodes

NodeMask	_nodeMask

ref_ptr< StateSet >	_stateset

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Detailed Description

Node for defining the position of ClipPlanes in the scene.

Definition at line 23 of file ClipNode.h.

Member Typedef Documentation

typedef std::vector<ref_ptr<ClipPlane> > osg::ClipNode::ClipPlaneList

Definition at line 28 of file ClipNode.h.

Member Enumeration Documentation

enum osg::ClipNode::ReferenceFrame

Enumerator
RELATIVE_RF
ABSOLUTE_RF

Definition at line 37 of file ClipNode.h.

Constructor & Destructor Documentation

osg::ClipNode::ClipNode ( )

osg::ClipNode::ClipNode	(	const ClipNode &	es,
		const CopyOp &	copyop = `CopyOp::SHALLOW_COPY`
	)

virtual osg::ClipNode::~ClipNode ( )

protectedvirtual

Member Function Documentation

bool osg::ClipNode::addClipPlane ( ClipPlane * clipplane )

Adds the clipplane. Returns true on success, and false if the plane has already been added, or if clipplane is NULL.

virtual BoundingSphere osg::ClipNode::computeBound ( ) const

virtual

Compute the bounding sphere around Node's geometry or children. This method is automatically called by getBound() when the bounding sphere has been marked dirty via dirtyBound().

Reimplemented from osg::Group.

void osg::ClipNode::createClipBox	(	const BoundingBox &	bb,
		unsigned int	clipPlaneNumberBase = `0`
	)

Creates six clip planes corresponding to the given BoundingBox.

ClipPlane* osg::ClipNode::getClipPlane ( unsigned int pos )

inline

Get ClipPlane at the given index position.

Definition at line 79 of file ClipNode.h.

const ClipPlane* osg::ClipNode::getClipPlane ( unsigned int pos ) const

inline

Get const ClipPlane at the given index position.

Definition at line 82 of file ClipNode.h.

ClipPlaneList& osg::ClipNode::getClipPlaneList ( )

inline

Get the ClipPlaneList.

Definition at line 88 of file ClipNode.h.

const ClipPlaneList& osg::ClipNode::getClipPlaneList ( ) const

inline

Get the const ClipPlaneList.

Definition at line 91 of file ClipNode.h.

unsigned int osg::ClipNode::getNumClipPlanes ( ) const

inline

Returns the number of ClipPlanes.

Definition at line 75 of file ClipNode.h.

ReferenceFrame osg::ClipNode::getReferenceFrame ( ) const

inline

Definition at line 56 of file ClipNode.h.

osg::ClipNode::META_Node	(	osg	,
		ClipNode
	)

bool osg::ClipNode::removeClipPlane ( ClipPlane * clipplane )

Removes the clipplane. Returns true on success, false if clipplane isn't in this ClipNode.

bool osg::ClipNode::removeClipPlane ( unsigned int pos )

Remove the ClipPlane with the given index. Returns true on success, false if pos is not a valid plane index.

void osg::ClipNode::setClipPlaneList ( const ClipPlaneList & cpl )

inline

Set the ClipPlaneList.

Definition at line 85 of file ClipNode.h.

void osg::ClipNode::setLocalStateSetModes ( StateAttribute::GLModeValue = StateAttribute::ON )

Set up the local StateSet.

void osg::ClipNode::setReferenceFrame ( ReferenceFrame rf )

Set the ClipNode's ReferenceFrame, either to be relative to its parent reference frame, or relative to an absolute coordinate frame. RELATIVE_RF is the default. Note: setting the ReferenceFrame to be ABSOLUTE_RF will also set the CullingActive flag to false on the ClipNode (and consequently all of its parents), thereby disabling culling of it and all its parents. This is necessary to prevent inappropriate culling, but may impact cull times if the absolute ClipNode is deep in the scene graph. It is therefore recommended to only use absolute ClipNode at the top of the scene.

void osg::ClipNode::setStateSetModes	(	StateSet &	,
		StateAttribute::GLModeValue
	)		const

Set the GLModes for all ClipPlanes, on the StateSet.

Member Data Documentation

ClipPlaneList osg::ClipNode::_planes

protected

Definition at line 106 of file ClipNode.h.

ReferenceFrame osg::ClipNode::_referenceFrame

protected

Definition at line 108 of file ClipNode.h.

StateAttribute::GLModeValue osg::ClipNode::_value

protected

Definition at line 105 of file ClipNode.h.

The documentation for this class was generated from the following file:

osg_head/include/osg/ClipNode.h

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
