#include <Sequence.h>

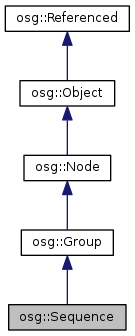

Inheritance diagram for osg::Sequence:

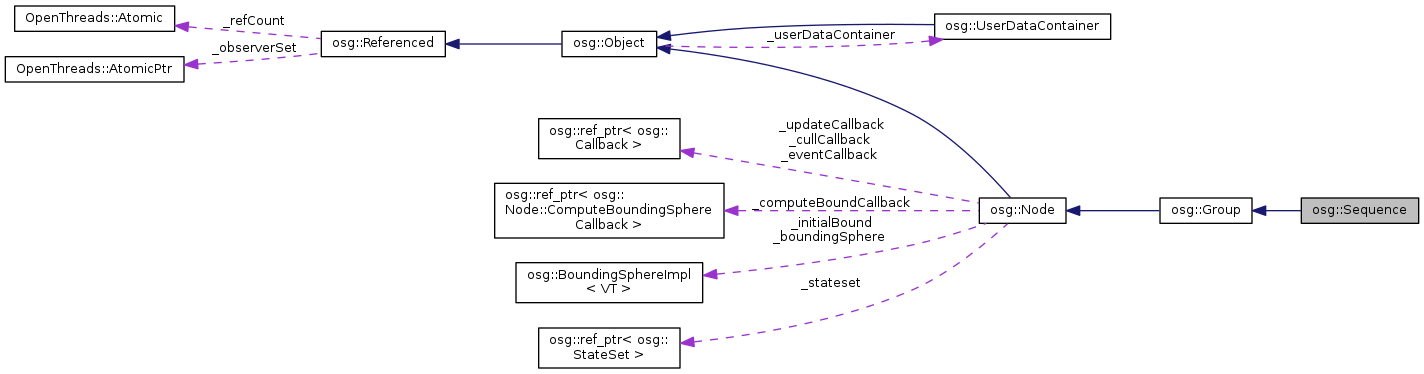

Collaboration diagram for osg::Sequence:

Public Types
enum	LoopMode { LOOP, SWING }

enum	SequenceMode { START, STOP, PAUSE, RESUME }

Public Types inherited from osg::Node
typedef std::vector< Group * >	ParentList

typedef unsigned int	NodeMask

typedef std::vector< std::string >	DescriptionList

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	Sequence ()

	Sequence (const Sequence &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

	META_Node (osg, Sequence)

virtual void	traverse (NodeVisitor &nv)

virtual bool	addChild (Node *child)

virtual bool	addChild (Node *child, double t)

virtual bool	insertChild (unsigned int index, Node *child)

virtual bool	insertChild (unsigned int index, Node *child, double t)

virtual bool	removeChild (Node *child)

virtual bool	removeChildren (unsigned int pos, unsigned int numChildrenToRemove)

void	setValue (int value)

int	getValue () const

void	setTime (unsigned int frame, double t)

double	getTime (unsigned int frame) const

void	setTimeList (const std::vector< double > &timeList)

const std::vector< double > &	getTimeList () const

void	setDefaultTime (double t)

double	getDefaultTime (void) const

void	setLastFrameTime (double t)

double	getLastFrameTime (void) const

unsigned int	getNumFrames () const

void	setLoopMode (LoopMode mode)

LoopMode	getLoopMode () const

void	setBegin (int begin)

int	getBegin () const

void	setEnd (int end)

int	getEnd () const

void	setInterval (LoopMode mode, int begin, int end)

void	getInterval (LoopMode &mode, int &begin, int &end) const

void	setSpeed (float speed)

float	getSpeed () const

void	setNumRepeats (int nreps)

int	getNumRepeats () const

void	setDuration (float speed, int nreps=-1)

void	getDuration (float &speed, int &nreps) const

void	setMode (SequenceMode mode)

SequenceMode	getMode () const

void	setSync (bool sync)

bool	getSync () const

void	setClearOnStop (bool clearOnStop)

bool	getClearOnStop () const

Public Member Functions inherited from osg::Group
	Group ()

	Group (const Group &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

	META_Node (osg, Group)

virtual Group *	asGroup ()

virtual const Group *	asGroup () const

bool	removeChild (unsigned int pos, unsigned int numChildrenToRemove=1)

virtual bool	replaceChild (Node origChild, Node newChild)

virtual unsigned int	getNumChildren () const

virtual bool	setChild (unsigned int i, Node *node)

Node *	getChild (unsigned int i)

const Node *	getChild (unsigned int i) const

bool	containsNode (const Node *node) const

unsigned int	getChildIndex (const Node *node) const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	resizeGLObjectBuffers (unsigned int maxSize)

virtual void	releaseGLObjects (osg::State *=0) const

virtual BoundingSphere	computeBound () const

Public Member Functions inherited from osg::Node
	Node ()

	Node (const Node &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const

virtual Object *	clone (const CopyOp &copyop) const

virtual bool	isSameKindAs (const Object *obj) const

virtual const char *	libraryName () const

virtual const char *	className () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual Drawable *	asDrawable ()

virtual const Drawable *	asDrawable () const

virtual Geometry *	asGeometry ()

virtual const Geometry *	asGeometry () const

virtual Transform *	asTransform ()

virtual const Transform *	asTransform () const

virtual Camera *	asCamera ()

virtual const Camera *	asCamera () const

virtual Switch *	asSwitch ()

virtual const Switch *	asSwitch () const

virtual Geode *	asGeode ()

virtual const Geode *	asGeode () const

virtual osgTerrain::Terrain *	asTerrain ()

virtual const osgTerrain::Terrain *	asTerrain () const

virtual void	accept (NodeVisitor &nv)

virtual void	ascend (NodeVisitor &nv)

const ParentList &	getParents () const

ParentList	getParents ()

Group *	getParent (unsigned int i)

const Group *	getParent (unsigned int i) const

unsigned int	getNumParents () const

NodePathList	getParentalNodePaths (osg::Node *haltTraversalAtNode=0) const

MatrixList	getWorldMatrices (const osg::Node *haltTraversalAtNode=0) const

void	setUpdateCallback (Callback *nc)

Callback *	getUpdateCallback ()

const Callback *	getUpdateCallback () const

void	addUpdateCallback (Callback *nc)

void	removeUpdateCallback (Callback *nc)

unsigned int	getNumChildrenRequiringUpdateTraversal () const

void	setEventCallback (Callback *nc)

Callback *	getEventCallback ()

const Callback *	getEventCallback () const

void	addEventCallback (Callback *nc)

void	removeEventCallback (Callback *nc)

unsigned int	getNumChildrenRequiringEventTraversal () const

void	setCullCallback (Callback *nc)

Callback *	getCullCallback ()

const Callback *	getCullCallback () const

void	addCullCallback (Callback *nc)

void	removeCullCallback (Callback *nc)

void	setCullingActive (bool active)

bool	getCullingActive () const

unsigned int	getNumChildrenWithCullingDisabled () const

bool	isCullingActive () const

unsigned int	getNumChildrenWithOccluderNodes () const

bool	containsOccluderNodes () const

void	setNodeMask (NodeMask nm)

NodeMask	getNodeMask () const

void	setStateSet (osg::StateSet *stateset)

osg::StateSet *	getOrCreateStateSet ()

osg::StateSet *	getStateSet ()

const osg::StateSet *	getStateSet () const

void	setDescriptions (const DescriptionList &descriptions)

DescriptionList &	getDescriptions ()

const DescriptionList &	getDescriptions () const

const std::string &	getDescription (unsigned int i) const

std::string &	getDescription (unsigned int i)

unsigned int	getNumDescriptions () const

void	addDescription (const std::string &desc)

void	setInitialBound (const osg::BoundingSphere &bsphere)

const BoundingSphere &	getInitialBound () const

void	dirtyBound ()

const BoundingSphere &	getBound () const

void	setComputeBoundingSphereCallback (ComputeBoundingSphereCallback *callback)

ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback ()

const ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback () const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string	getCompoundClassName () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~Sequence ()

int	_getNextValue (void)

void	_update (void)

Protected Member Functions inherited from osg::Group
virtual	~Group ()

virtual void	childRemoved (unsigned int, unsigned int)

virtual void	childInserted (unsigned int)

Protected Member Functions inherited from osg::Node
virtual	~Node ()

void	addParent (osg::Group *parent)

void	removeParent (osg::Group *parent)

void	setNumChildrenRequiringUpdateTraversal (unsigned int num)

void	setNumChildrenRequiringEventTraversal (unsigned int num)

void	setNumChildrenWithCullingDisabled (unsigned int num)

void	setNumChildrenWithOccluderNodes (unsigned int num)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
int	_value

double	_now

double	_start

std::vector< double >	_frameTime

double	_totalTime

bool	_resetTotalTime

LoopMode	_loopMode

int	_begin

int	_end

float	_speed

int	_nreps

int	_nrepsRemain

int	_step

double	_defaultTime

double	_lastFrameTime

double	_saveRealLastFrameTime

unsigned int	_saveRealLastFrameValue

SequenceMode	_mode

bool	_sync

bool	_clearOnStop

Protected Attributes inherited from osg::Group
NodeList	_children

Protected Attributes inherited from osg::Node
BoundingSphere	_initialBound

ref_ptr < ComputeBoundingSphereCallback >	_computeBoundCallback

BoundingSphere	_boundingSphere

bool	_boundingSphereComputed

ParentList	_parents

ref_ptr< Callback >	_updateCallback

unsigned int	_numChildrenRequiringUpdateTraversal

ref_ptr< Callback >	_eventCallback

unsigned int	_numChildrenRequiringEventTraversal

ref_ptr< Callback >	_cullCallback

bool	_cullingActive

unsigned int	_numChildrenWithCullingDisabled

unsigned int	_numChildrenWithOccluderNodes

NodeMask	_nodeMask

ref_ptr< StateSet >	_stateset

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Detailed Description

Sequence is a Group node which allows automatic, time based switching between children.

Definition at line 25 of file Sequence.h.

Member Enumeration Documentation

enum osg::Sequence::LoopMode

Interval modes. 'Loop' repeats frames 1-N; 'swing' repeats 1->N, (N-1)->1.

Enumerator
LOOP
SWING

Definition at line 91 of file Sequence.h.

enum osg::Sequence::SequenceMode

Sequence modes.

Enumerator
START
STOP
PAUSE
RESUME

Definition at line 149 of file Sequence.h.

Constructor & Destructor Documentation

osg::Sequence::Sequence ( )

osg::Sequence::Sequence	(	const Sequence &	,
		const CopyOp &	copyop = `CopyOp::SHALLOW_COPY`
	)

Copy constructor using CopyOp to manage deep vs shallow copy.

virtual osg::Sequence::~Sequence ( )

inlineprotectedvirtual

Definition at line 178 of file Sequence.h.

Member Function Documentation

int osg::Sequence::_getNextValue ( void )

protected

void osg::Sequence::_update ( void )

protected

virtual bool osg::Sequence::addChild ( Node * child )

virtual

Add Node to Group. If node is not NULL and is not contained in Group then increment its reference count, add it to the child list and dirty the bounding sphere to force it to recompute on next getBound() and return true for success. Otherwise return false. Scene nodes can't be added as child nodes.

Reimplemented from osg::Group.

virtual bool osg::Sequence::addChild	(	Node *	child,
		double	t
	)

virtual

int osg::Sequence::getBegin ( ) const

inline

Get interval beginning.

Definition at line 107 of file Sequence.h.

bool osg::Sequence::getClearOnStop ( ) const

inline

Get whether to show no child nodes after stopping

Definition at line 174 of file Sequence.h.

double osg::Sequence::getDefaultTime ( void ) const

inline

Get default time in seconds for new child.

Definition at line 78 of file Sequence.h.

void osg::Sequence::getDuration	(	float &	speed,
		int &	nreps
	)		const

inline

Get duration & number of repeats.

Definition at line 142 of file Sequence.h.

int osg::Sequence::getEnd ( ) const

inline

Get interval ending.

Definition at line 113 of file Sequence.h.

void osg::Sequence::getInterval	(	LoopMode &	mode,
		int &	begin,
		int &	end
	)		const

inline

Get sequence mode & interval.

Definition at line 119 of file Sequence.h.

double osg::Sequence::getLastFrameTime ( void ) const

inline

Get last frame time in seconds

Definition at line 85 of file Sequence.h.

LoopMode osg::Sequence::getLoopMode ( ) const

inline

Get sequence mode.

Definition at line 101 of file Sequence.h.

SequenceMode osg::Sequence::getMode ( ) const

inline

Get sequence mode.

Definition at line 161 of file Sequence.h.

unsigned int osg::Sequence::getNumFrames ( ) const

inline

Get number of frames

Definition at line 88 of file Sequence.h.

int osg::Sequence::getNumRepeats ( ) const

inline

Get number of repeats.

Definition at line 136 of file Sequence.h.

float osg::Sequence::getSpeed ( ) const

inline

Get speed.

Definition at line 130 of file Sequence.h.

bool osg::Sequence::getSync ( ) const

inline

Get sync value

Definition at line 168 of file Sequence.h.

double osg::Sequence::getTime ( unsigned int frame ) const

Get time for child.

const std::vector<double>& osg::Sequence::getTimeList ( ) const

inline

Get the time list for children.

Definition at line 71 of file Sequence.h.

int osg::Sequence::getValue ( ) const

inline

Definition at line 59 of file Sequence.h.

virtual bool osg::Sequence::insertChild	(	unsigned int	index,
		Node *	child
	)

virtual

Insert Node to Group at specific location. The new child node is inserted into the child list before the node at the specified index. No nodes are removed from the group with this operation.

Reimplemented from osg::Group.

virtual bool osg::Sequence::insertChild	(	unsigned int	index,
		Node *	child,
		double	t
	)

virtual

osg::Sequence::META_Node	(	osg	,
		Sequence
	)

virtual bool osg::Sequence::removeChild ( Node * child )

virtual

Remove Node from Group. If Node is contained in Group then remove it from the child list, decrement its reference count, and dirty the bounding sphere to force it to recompute on next getBound() and return true for success. If Node is not found then return false and do not change the reference count of the Node. Note, do not override, only override removeChildren(,) is required.

Reimplemented from osg::Group.

virtual bool osg::Sequence::removeChildren	(	unsigned int	pos,
		unsigned int	numChildrenToRemove
	)

virtual

Remove children from Group. Note, must be override by subclasses of Group which add per child attributes.

Reimplemented from osg::Group.

void osg::Sequence::setBegin ( int begin )

inline

Set interval beginning.

Definition at line 104 of file Sequence.h.

void osg::Sequence::setClearOnStop ( bool clearOnStop )

inline

If true, show no child nodes after stopping

Definition at line 171 of file Sequence.h.

void osg::Sequence::setDefaultTime ( double t )

inline

Set default time in seconds for new child. if t<0, t=0

Definition at line 75 of file Sequence.h.

void osg::Sequence::setDuration	(	float	speed,
		int	nreps = `-1`
	)

Set duration: speed-up & number of repeats

void osg::Sequence::setEnd ( int end )

inline

Set interval ending.

Definition at line 110 of file Sequence.h.

void osg::Sequence::setInterval	(	LoopMode	mode,
		int	begin,
		int	end
	)

Set sequence mode & interval (range of children to be displayed).

void osg::Sequence::setLastFrameTime ( double t )

inline

Set time of last frame of last loop, in seconds. if t<= 0, then ignored

Definition at line 82 of file Sequence.h.

void osg::Sequence::setLoopMode ( LoopMode mode )

inline

Set sequence mode.

Definition at line 98 of file Sequence.h.

void osg::Sequence::setMode ( SequenceMode mode )

Set sequence mode. Start/stop & pause/resume.

void osg::Sequence::setNumRepeats ( int nreps )

inline

Set number of repeats.

Definition at line 133 of file Sequence.h.

void osg::Sequence::setSpeed ( float speed )

inline

Set speed.

Definition at line 127 of file Sequence.h.

void osg::Sequence::setSync ( bool sync )

inline

If false (default), frames will not be sync'd to frameTime. If true, frames will be sync'd to frameTime.

Definition at line 165 of file Sequence.h.

void osg::Sequence::setTime	(	unsigned int	frame,
		double	t
	)

Set time in seconds for child.

void osg::Sequence::setTimeList ( const std::vector< double > & timeList )

inline

Set the time list for children.

Definition at line 68 of file Sequence.h.

void osg::Sequence::setValue ( int value )

inline

value is which child node is to be displayed

Definition at line 58 of file Sequence.h.

virtual void osg::Sequence::traverse ( NodeVisitor & )

virtual

Traverse downwards : calls children's accept method with NodeVisitor.

Reimplemented from osg::Group.

Member Data Documentation

int osg::Sequence::_begin

protected

Definition at line 212 of file Sequence.h.

bool osg::Sequence::_clearOnStop

protected

Definition at line 246 of file Sequence.h.

double osg::Sequence::_defaultTime

protected

Definition at line 229 of file Sequence.h.

int osg::Sequence::_end

protected

Definition at line 212 of file Sequence.h.

std::vector<double> osg::Sequence::_frameTime

protected

Definition at line 196 of file Sequence.h.

double osg::Sequence::_lastFrameTime

protected

Definition at line 233 of file Sequence.h.

LoopMode osg::Sequence::_loopMode

protected

Definition at line 207 of file Sequence.h.

SequenceMode osg::Sequence::_mode

protected

Definition at line 240 of file Sequence.h.

double osg::Sequence::_now

protected

Definition at line 190 of file Sequence.h.

int osg::Sequence::_nreps

protected

Definition at line 222 of file Sequence.h.

int osg::Sequence::_nrepsRemain

protected

Definition at line 222 of file Sequence.h.

bool osg::Sequence::_resetTotalTime

protected

Definition at line 203 of file Sequence.h.

double osg::Sequence::_saveRealLastFrameTime

protected

Definition at line 236 of file Sequence.h.

unsigned int osg::Sequence::_saveRealLastFrameValue

protected

Definition at line 237 of file Sequence.h.

float osg::Sequence::_speed

protected

Definition at line 216 of file Sequence.h.

double osg::Sequence::_start

protected

Definition at line 193 of file Sequence.h.

int osg::Sequence::_step

protected

Definition at line 225 of file Sequence.h.

bool osg::Sequence::_sync

protected

Definition at line 243 of file Sequence.h.

double osg::Sequence::_totalTime

protected

Definition at line 199 of file Sequence.h.

int osg::Sequence::_value

protected

Definition at line 187 of file Sequence.h.

The documentation for this class was generated from the following file:

osg_head/include/osg/Sequence.h

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
