#include <GraphicsWindow.h>

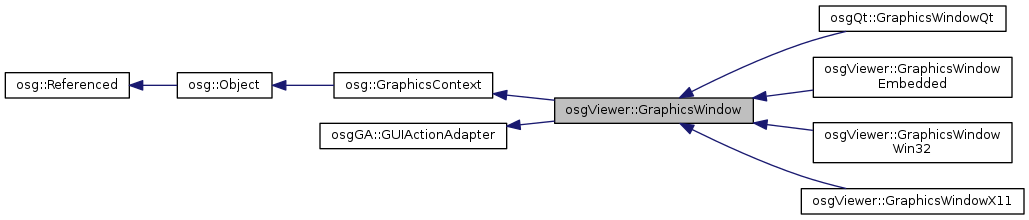

Inheritance diagram for osgViewer::GraphicsWindow:

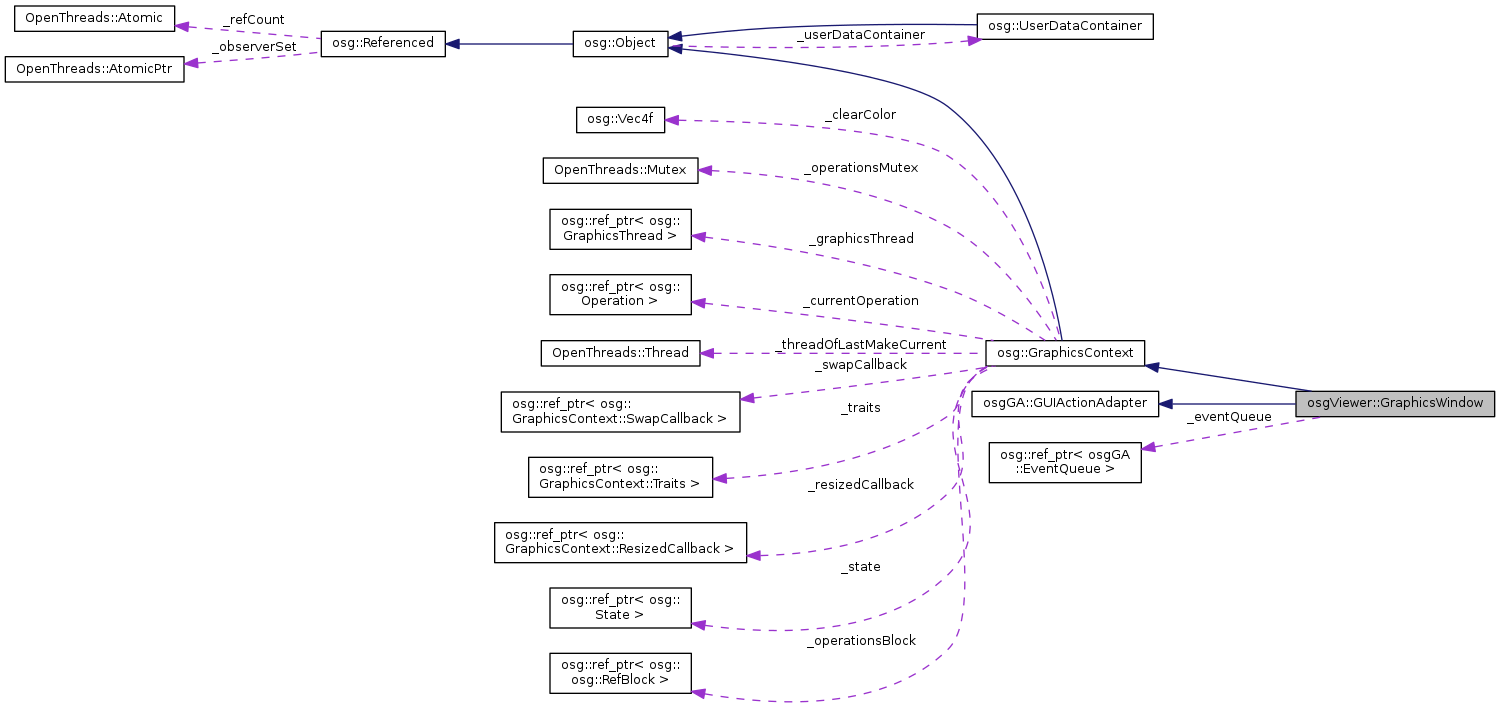

Collaboration diagram for osgViewer::GraphicsWindow:

Public Types
enum	MouseCursor { InheritCursor, NoCursor, RightArrowCursor, LeftArrowCursor, InfoCursor, DestroyCursor, HelpCursor, CycleCursor, SprayCursor, WaitCursor, TextCursor, CrosshairCursor, HandCursor, UpDownCursor, LeftRightCursor, TopSideCursor, BottomSideCursor, LeftSideCursor, RightSideCursor, TopLeftCorner, TopRightCorner, BottomRightCorner, BottomLeftCorner }

typedef std::list < osgViewer::View * >	Views

Public Types inherited from osg::GraphicsContext
typedef std::vector < ScreenSettings >	ScreenSettingsList

typedef std::vector < GraphicsContext * >	GraphicsContexts

typedef std::list< ref_ptr < Operation > >	GraphicsOperationQueue

typedef std::list< osg::Camera * >	Cameras

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	GraphicsWindow ()

virtual bool	isSameKindAs (const Object *object) const

virtual const char *	libraryName () const

virtual const char *	className () const

void	setEventQueue (osgGA::EventQueue *eventQueue)

osgGA::EventQueue *	getEventQueue ()

const osgGA::EventQueue *	getEventQueue () const

virtual bool	checkEvents ()

void	setWindowRectangle (int x, int y, int width, int height)

virtual bool	setWindowRectangleImplementation (int, int, int, int)

virtual void	getWindowRectangle (int &x, int &y, int &width, int &height)

void	setWindowDecoration (bool flag)

virtual bool	setWindowDecorationImplementation (bool)

virtual bool	getWindowDecoration () const

virtual void	grabFocus ()

virtual void	grabFocusIfPointerInWindow ()

virtual void	raiseWindow ()

virtual void	setWindowName (const std::string &)

virtual std::string	getWindowName ()

virtual void	useCursor (bool cursorOn)

virtual void	setCursor (MouseCursor)

virtual void	setSyncToVBlank (bool on)

bool	getSyncToVBlank () const

virtual void	setSwapGroup (bool on, GLuint group, GLuint barrier)

void	getSwapGroup (bool &on, GLuint &group, GLuint &barrier) const

virtual bool	valid () const

virtual bool	realizeImplementation ()

virtual bool	isRealizedImplementation () const

virtual void	closeImplementation ()

virtual bool	makeCurrentImplementation ()

virtual bool	makeContextCurrentImplementation (GraphicsContext *)

virtual bool	releaseContextImplementation ()

virtual void	bindPBufferToTextureImplementation (GLenum)

virtual void	swapBuffersImplementation ()

void	getViews (Views &views)

virtual void	requestRedraw ()

virtual void	requestContinuousUpdate (bool=true)

virtual void	requestWarpPointer (float, float)

Public Member Functions inherited from osg::GraphicsContext
void	add (Operation *operation)

void	remove (Operation *operation)

void	remove (const std::string &name)

void	removeAllOperations ()

virtual void	runOperations ()

GraphicsOperationQueue &	getOperationsQueue ()

OpenThreads::Mutex *	getOperationsMutex ()

osg::RefBlock *	getOperationsBlock ()

Operation *	getCurrentOperation ()

const Traits *	getTraits () const

void	setState (State *state)

State *	getState ()

const State *	getState () const

void	setClearColor (const Vec4 &color)

const Vec4 &	getClearColor () const

void	setClearMask (GLbitfield mask)

GLbitfield	getClearMask () const

virtual void	clear ()

double	getTimeSinceLastClear () const

bool	realize ()

void	close (bool callCloseImplementation=true)

void	swapBuffers ()

bool	isRealized () const

bool	makeCurrent ()

bool	makeContextCurrent (GraphicsContext *readContext)

bool	releaseContext ()

bool	isCurrent () const

void	bindPBufferToTexture (GLenum buffer)

void	createGraphicsThread ()

void	setGraphicsThread (GraphicsThread *gt)

GraphicsThread *	getGraphicsThread ()

const GraphicsThread *	getGraphicsThread () const

virtual bool	makeContextCurrentImplementation (GraphicsContext *readContext)=0

void	setSwapCallback (SwapCallback *rc)

SwapCallback *	getSwapCallback ()

const SwapCallback *	getSwapCallback () const

void	swapBuffersCallbackOrImplemenation ()

void	resized (int x, int y, int width, int height)

void	setResizedCallback (ResizedCallback *rc)

ResizedCallback *	getResizedCallback ()

const ResizedCallback *	getResizedCallback () const

virtual void	resizedImplementation (int x, int y, int width, int height)

Cameras &	getCameras ()

const Cameras &	getCameras () const

void	setDefaultFboId (GLuint i)

GLuint	getDefaultFboId () const

virtual bool	isSameKindAs (const Object *object) const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Public Member Functions inherited from osgGA::GUIActionAdapter
virtual	~GUIActionAdapter ()

virtual osg::View *	asView ()

virtual bool	computeIntersections (const osgGA::GUIEventAdapter &, osgUtil::LineSegmentIntersector::Intersections &, osg::Node::NodeMask=0xffffffff)

virtual bool	computeIntersections (const osgGA::GUIEventAdapter &, const osg::NodePath &, osgUtil::LineSegmentIntersector::Intersections &, osg::Node::NodeMask=0xffffffff)

Protected Attributes
osg::ref_ptr< osgGA::EventQueue >	_eventQueue

Protected Attributes inherited from osg::GraphicsContext
Cameras	_cameras

ref_ptr< Traits >	_traits

ref_ptr< State >	_state

Vec4	_clearColor

GLbitfield	_clearMask

OpenThreads::Thread *	_threadOfLastMakeCurrent

OpenThreads::Mutex	_operationsMutex

osg::ref_ptr< osg::RefBlock >	_operationsBlock

GraphicsOperationQueue	_operations

osg::ref_ptr< Operation >	_currentOperation

ref_ptr< GraphicsThread >	_graphicsThread

ref_ptr< ResizedCallback >	_resizedCallback

ref_ptr< SwapCallback >	_swapCallback

Timer_t	_lastClearTick

GLuint	_defaultFboId

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::GraphicsContext
static void	setWindowingSystemInterface (WindowingSystemInterface *wsInterface)

static WindowingSystemInterface *	getWindowingSystemInterface ()

static GraphicsContext *	createGraphicsContext (Traits *traits)

static unsigned int	createNewContextID ()

static unsigned int	getMaxContextID ()

static void	incrementContextIDUsageCount (unsigned int contextID)

static void	decrementContextIDUsageCount (unsigned int contextID)

static GraphicsContexts	getAllRegisteredGraphicsContexts ()

static GraphicsContexts	getRegisteredGraphicsContexts (unsigned int contextID)

static void	setCompileContext (unsigned int contextID, GraphicsContext *gc)

static GraphicsContext *	getOrCreateCompileContext (unsigned int contextID)

static GraphicsContext *	getCompileContext (unsigned int contextID)

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Member Functions inherited from osg::GraphicsContext
	GraphicsContext ()

	GraphicsContext (const GraphicsContext &, const osg::CopyOp &)

virtual	~GraphicsContext ()

virtual Object *	cloneType () const

virtual Object *	clone (const CopyOp &) const

void	addCamera (osg::Camera *camera)

void	removeCamera (osg::Camera *camera)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Static Protected Member Functions inherited from osg::GraphicsContext
static void	registerGraphicsContext (GraphicsContext *gc)

static void	unregisterGraphicsContext (GraphicsContext *gc)

Detailed Description

Base class for providing Windowing API agnostic access to creating and managing graphics window and events. Note, the GraphicsWindow is subclassed from osg::GraphicsContext, and to provide an implementation you'll need to implement its range of pure virtual functions, you'll find these all have naming convention methodNameImplementation(..). GraphicsWindow adds the event queue on top of the GraphicsContext, thereby adding a mechanism for adapting Windowing events as well as basics graphics context work, you should wire up custom GraphicsWindowImplementation to push their events through into the EventQueue.

Definition at line 42 of file GraphicsWindow.h.

Member Typedef Documentation

typedef std::list<osgViewer::View*> osgViewer::GraphicsWindow::Views

Definition at line 195 of file GraphicsWindow.h.

Member Enumeration Documentation

enum osgViewer::GraphicsWindow::MouseCursor

Mouse cursor types, the same ones already present with ancient glut ...

Enumerator
InheritCursor
NoCursor
RightArrowCursor
LeftArrowCursor
InfoCursor
DestroyCursor
HelpCursor
CycleCursor
SprayCursor
WaitCursor
TextCursor
CrosshairCursor
HandCursor
UpDownCursor
LeftRightCursor
TopSideCursor
BottomSideCursor
LeftSideCursor
RightSideCursor
TopLeftCorner
TopRightCorner
BottomRightCorner
BottomLeftCorner

Definition at line 100 of file GraphicsWindow.h.

Constructor & Destructor Documentation

osgViewer::GraphicsWindow::GraphicsWindow ( )

inline

Definition at line 46 of file GraphicsWindow.h.

Here is the call graph for this function:

Member Function Documentation

virtual void osgViewer::GraphicsWindow::bindPBufferToTextureImplementation ( GLenum )

inlinevirtual

Pure virtual, Bind the graphics context to associated texture implementation. Pure virtual - must be implemented by concrete implementations of GraphicsContext.

Implements osg::GraphicsContext.

Definition at line 187 of file GraphicsWindow.h.

Here is the call graph for this function:

virtual bool osgViewer::GraphicsWindow::checkEvents ( )

inlinevirtual

Check events, return true if events have been received.

Reimplemented in osgViewer::GraphicsWindowX11, and osgViewer::GraphicsWindowWin32.

Definition at line 57 of file GraphicsWindow.h.

virtual const char* osgViewer::GraphicsWindow::className ( ) const

inlinevirtual

return the name of the object's class type. Must be defined by derived classes.

Reimplemented from osg::GraphicsContext.

Reimplemented in osgViewer::GraphicsWindowEmbedded, osgViewer::GraphicsWindowX11, and osgViewer::GraphicsWindowWin32.

Definition at line 50 of file GraphicsWindow.h.

virtual void osgViewer::GraphicsWindow::closeImplementation ( )

inlinevirtual

Close the graphics context implementation. Pure virtual - must be implemented by concrete implementations of GraphicsContext.

Implements osg::GraphicsContext.

Reimplemented in osgViewer::GraphicsWindowEmbedded, osgQt::GraphicsWindowQt, osgViewer::GraphicsWindowX11, and osgViewer::GraphicsWindowWin32.

Definition at line 172 of file GraphicsWindow.h.

Here is the call graph for this function:

osgGA::EventQueue* osgViewer::GraphicsWindow::getEventQueue ( )

inline

Definition at line 53 of file GraphicsWindow.h.

const osgGA::EventQueue* osgViewer::GraphicsWindow::getEventQueue ( ) const

inline

Definition at line 54 of file GraphicsWindow.h.

void osgViewer::GraphicsWindow::getSwapGroup	(	bool &	on,
		GLuint &	group,
		GLuint &	barrier
	)		const

inline

Definition at line 155 of file GraphicsWindow.h.

bool osgViewer::GraphicsWindow::getSyncToVBlank ( ) const

inline

Definition at line 147 of file GraphicsWindow.h.

void osgViewer::GraphicsWindow::getViews ( Views & views )

Returns the list of views (osgViewer::View) attached to this GraphicsWindow. Internally, the method walks through all the cameras and collects all the views attached to the cameras.

virtual bool osgViewer::GraphicsWindow::getWindowDecoration ( ) const

inlinevirtual

Set Window decoration.

Reimplemented in osgQt::GraphicsWindowQt.

Definition at line 88 of file GraphicsWindow.h.

virtual std::string osgViewer::GraphicsWindow::getWindowName ( )

inlinevirtual

Return the name of the window

Reimplemented in osgQt::GraphicsWindowQt.

Definition at line 130 of file GraphicsWindow.h.

virtual void osgViewer::GraphicsWindow::getWindowRectangle	(	int &	x,
		int &	y,
		int &	width,
		int &	height
	)

inlinevirtual

Get the window's position and size.

Reimplemented in osgQt::GraphicsWindowQt.

Definition at line 72 of file GraphicsWindow.h.

virtual void osgViewer::GraphicsWindow::grabFocus ( )

inlinevirtual

Get focus.

Reimplemented in osgViewer::GraphicsWindowEmbedded, osgQt::GraphicsWindowQt, osgViewer::GraphicsWindowX11, and osgViewer::GraphicsWindowWin32.

Definition at line 91 of file GraphicsWindow.h.

Here is the call graph for this function:

virtual void osgViewer::GraphicsWindow::grabFocusIfPointerInWindow ( )

inlinevirtual

Get focus on if the pointer is in this window.

Reimplemented in osgViewer::GraphicsWindowEmbedded, osgQt::GraphicsWindowQt, osgViewer::GraphicsWindowX11, and osgViewer::GraphicsWindowWin32.

Definition at line 94 of file GraphicsWindow.h.

Here is the call graph for this function:

virtual bool osgViewer::GraphicsWindow::isRealizedImplementation ( ) const

inlinevirtual

Return true if the graphics context has been realized, and is ready to use, implementation. Pure virtual - must be implemented by concrete implementations of GraphicsContext.

Implements osg::GraphicsContext.

Reimplemented in osgViewer::GraphicsWindowEmbedded, osgQt::GraphicsWindowQt, osgViewer::GraphicsWindowX11, and osgViewer::GraphicsWindowWin32.

Definition at line 168 of file GraphicsWindow.h.

Here is the call graph for this function:

virtual bool osgViewer::GraphicsWindow::isSameKindAs ( const Object * object ) const

inlinevirtual

Reimplemented in osgViewer::GraphicsWindowEmbedded, osgViewer::GraphicsWindowX11, and osgViewer::GraphicsWindowWin32.

Definition at line 48 of file GraphicsWindow.h.

virtual const char* osgViewer::GraphicsWindow::libraryName ( ) const

inlinevirtual

return the name of the object's library. Must be defined by derived classes. The OpenSceneGraph convention is that the namespace of a library is the same as the library name.

Reimplemented from osg::GraphicsContext.

Reimplemented in osgViewer::GraphicsWindowEmbedded, osgViewer::GraphicsWindowX11, and osgViewer::GraphicsWindowWin32.

Definition at line 49 of file GraphicsWindow.h.

virtual bool osgViewer::GraphicsWindow::makeContextCurrentImplementation ( GraphicsContext * )

inlinevirtual

Make this graphics context current with specified read context implementation. Pure virtual - must be implemented by concrete implementations of GraphicsContext.

Definition at line 180 of file GraphicsWindow.h.

Here is the call graph for this function:

virtual bool osgViewer::GraphicsWindow::makeCurrentImplementation ( )

inlinevirtual

Make this graphics context current implementation. Pure virtual - must be implemented by concrete implementations of GraphicsContext.

Implements osg::GraphicsContext.

Reimplemented in osgViewer::GraphicsWindowEmbedded, osgQt::GraphicsWindowQt, osgViewer::GraphicsWindowX11, and osgViewer::GraphicsWindowWin32.

Definition at line 176 of file GraphicsWindow.h.

Here is the call graph for this function:

virtual void osgViewer::GraphicsWindow::raiseWindow ( )

inlinevirtual

Raise the window to the top.

Reimplemented in osgViewer::GraphicsWindowEmbedded, osgQt::GraphicsWindowQt, osgViewer::GraphicsWindowX11, and osgViewer::GraphicsWindowWin32.

Definition at line 97 of file GraphicsWindow.h.

Here is the call graph for this function:

virtual bool osgViewer::GraphicsWindow::realizeImplementation ( )

inlinevirtual

Realize the GraphicsContext implementation, Pure virtual - must be implemented by concrete implementations of GraphicsContext.

Implements osg::GraphicsContext.

Reimplemented in osgViewer::GraphicsWindowEmbedded, osgQt::GraphicsWindowQt, osgViewer::GraphicsWindowX11, and osgViewer::GraphicsWindowWin32.

Definition at line 164 of file GraphicsWindow.h.

Here is the call graph for this function:

virtual bool osgViewer::GraphicsWindow::releaseContextImplementation ( )

inlinevirtual

Release the graphics context.

Implements osg::GraphicsContext.

Reimplemented in osgViewer::GraphicsWindowEmbedded, osgQt::GraphicsWindowQt, osgViewer::GraphicsWindowX11, and osgViewer::GraphicsWindowWin32.

Definition at line 183 of file GraphicsWindow.h.

Here is the call graph for this function:

virtual void osgViewer::GraphicsWindow::requestContinuousUpdate ( bool needed = true )

inlinevirtual

requestContinuousUpdate(bool) is for en/disabling a throw or idle callback to be requested by a GUIEventHandler (typically a CameraManipulator, though other GUIEventHandler's may also provide functionality). GUI toolkits can respond to this immediately by registering an idle/timed callback, or can delay setting the callback and update at their own leisure.

Implements osgGA::GUIActionAdapter.

Definition at line 204 of file GraphicsWindow.h.

virtual void osgViewer::GraphicsWindow::requestRedraw ( )

virtual

requestRedraw() requests a single redraw.

Implements osgGA::GUIActionAdapter.

virtual void osgViewer::GraphicsWindow::requestWarpPointer	(	float	x,
		float	y
	)

inlinevirtual

requestWarpPointer(int,int) is requesting a repositioning of the mouse pointer to a specified x,y location on the window. This is used by some camera manipulators to initialise the mouse pointer when mouse position relative to a controls neutral mouse position is required, i.e when mimicking an aircraft joystick.

Implements osgGA::GUIActionAdapter.

Reimplemented in osgQt::GraphicsWindowQt, osgViewer::GraphicsWindowX11, and osgViewer::GraphicsWindowWin32.

Definition at line 207 of file GraphicsWindow.h.

virtual void osgViewer::GraphicsWindow::setCursor ( MouseCursor )

inlinevirtual

Set mouse cursor to a specific shape.

Reimplemented in osgQt::GraphicsWindowQt, and osgViewer::GraphicsWindowWin32.

Definition at line 136 of file GraphicsWindow.h.

Here is the call graph for this function:
