#include <Operator.h>

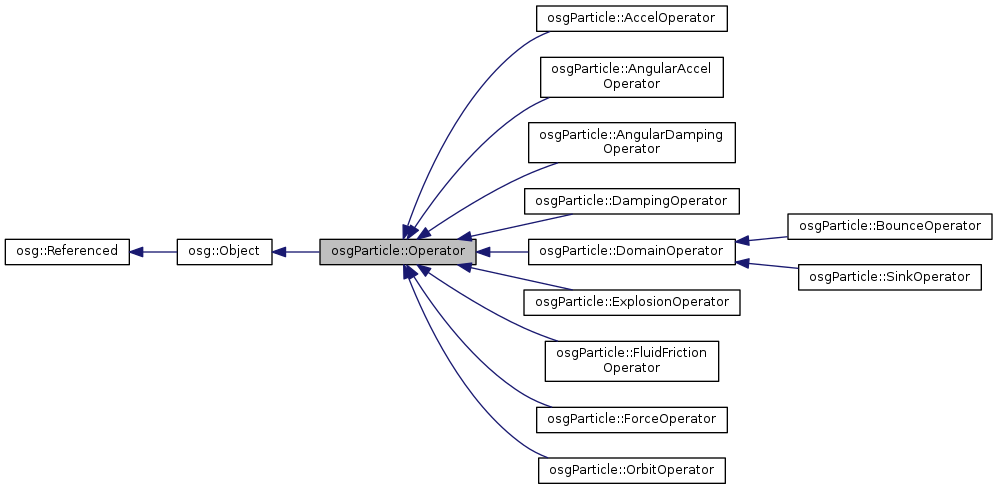

Inheritance diagram for osgParticle::Operator:

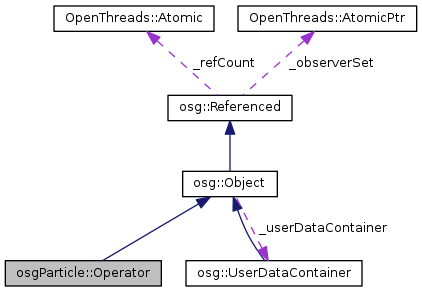

Collaboration diagram for osgParticle::Operator:

Public Member Functions
	Operator ()

	Operator (const Operator &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

virtual const char *	libraryName () const

virtual const char *	className () const

virtual bool	isSameKindAs (const osg::Object *obj) const

bool	isEnabled () const
	Get whether this operator is enabled. More...

void	setEnabled (bool v)
	Enable or disable this operator. More...

virtual void	operateParticles (ParticleSystem *ps, double dt)

virtual void	operate (Particle *P, double dt)=0

virtual void	beginOperate (Program *)

virtual void	endOperate ()
	Do something after all particles have been processed. More...

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~Operator ()

Operator &	operator= (const Operator &)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Additional Inherited Members
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Detailed Description

An abstract base class used by ModularProgram to perform operations on particles before they are updated. To implement a new operator, derive from this class and override the operate() method. You should also override the beginOperate() method to query the calling program for the reference frame used, and initialize the right transformations if needed.

Definition at line 35 of file Operator.h.

Constructor & Destructor Documentation

osgParticle::Operator::Operator ( )

inline

Definition at line 92 of file Operator.h.

osgParticle::Operator::Operator	(	const Operator &	copy,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)

inline

Definition at line 97 of file Operator.h.

virtual osgParticle::Operator::~Operator ( )

inlineprotectedvirtual

Definition at line 83 of file Operator.h.

Member Function Documentation

virtual void osgParticle::Operator::beginOperate ( Program * )

inlinevirtual

Do something before processing particles via the operate() method. Overriding this method could be necessary to query the calling Program object for the current reference frame. If the reference frame is RELATIVE_RF, then your class should prepare itself to do all operations in local coordinates.

Reimplemented in osgParticle::DomainOperator, osgParticle::ExplosionOperator, osgParticle::FluidFrictionOperator, osgParticle::OrbitOperator, osgParticle::SinkOperator, osgParticle::AccelOperator, osgParticle::ForceOperator, and osgParticle::AngularAccelOperator.

Definition at line 77 of file Operator.h.

virtual const char* osgParticle::Operator::className ( ) const

inlinevirtual

return the name of the object's class type. Must be defined by derived classes.

Implements osg::Object.

Definition at line 41 of file Operator.h.

Here is the caller graph for this function:

virtual void osgParticle::Operator::endOperate ( )

inlinevirtual

Do something after all particles have been processed.

Reimplemented in osgParticle::DomainOperator.

Definition at line 80 of file Operator.h.

bool osgParticle::Operator::isEnabled ( ) const

inline

Get whether this operator is enabled.

Definition at line 102 of file Operator.h.

Here is the caller graph for this function:

virtual bool osgParticle::Operator::isSameKindAs ( const osg::Object * obj ) const

inlinevirtual

Reimplemented from osg::Object.

Definition at line 42 of file Operator.h.

virtual const char* osgParticle::Operator::libraryName ( ) const

inlinevirtual

return the name of the object's library. Must be defined by derived classes. The OpenSceneGraph convention is that the namespace of a library is the same as the library name.

Implements osg::Object.

Definition at line 40 of file Operator.h.

virtual void osgParticle::Operator::operate	(	Particle *	P,
		double	dt
	)

pure virtual

Do something on a particle. You must override it in descendant classes. Common operations consist of modifying the particle's velocity vector. The dt parameter is the time elapsed from last operation.

Implemented in osgParticle::DomainOperator, osgParticle::ExplosionOperator, osgParticle::FluidFrictionOperator, osgParticle::OrbitOperator, osgParticle::AngularDampingOperator, osgParticle::DampingOperator, osgParticle::AccelOperator, osgParticle::ForceOperator, and osgParticle::AngularAccelOperator.

Here is the caller graph for this function:

virtual void osgParticle::Operator::operateParticles	(	ParticleSystem *	ps,
		double	dt
	)

inlinevirtual

Do something on all emitted particles. This method is called by ModularProgram objects to perform some operations on the particles. By default, it will call the operate() method for each particle. You must override it in descendant classes.

Definition at line 55 of file Operator.h.

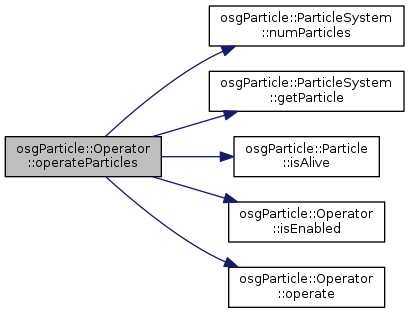

Here is the call graph for this function:

Operator& osgParticle::Operator::operator= ( const Operator & )

inlineprotected

Definition at line 84 of file Operator.h.

void osgParticle::Operator::setEnabled ( bool v )

inline

Enable or disable this operator.

Definition at line 107 of file Operator.h.

The documentation for this class was generated from the following file:

osg_head/include/osgParticle/Operator.h
