#include <Particle.h>

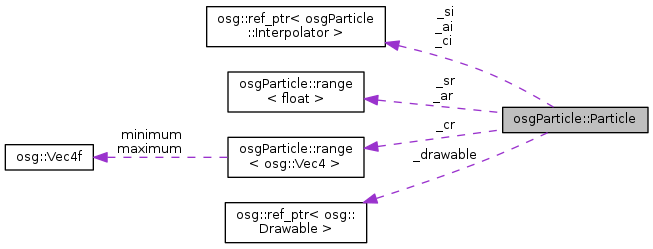

Collaboration diagram for osgParticle::Particle:

Public Types
enum	{ INVALID_INDEX = -1 }

enum	Shape { POINT, QUAD, QUAD_TRIANGLESTRIP, HEXAGON, LINE, USER }

Public Member Functions
	Particle ()

Shape	getShape () const
	Get the shape of the particle. More...

void	setShape (Shape s)
	Set the shape of the particle. More...

bool	isAlive () const
	Get whether the particle is still alive. More...

double	getLifeTime () const
	Get the life time of the particle (in seconds). More...

double	getAge () const
	Get the age of the particle (in seconds). More...

const rangef &	getSizeRange () const
	Get the minimum and maximum values for polygon size. More...

const rangef &	getAlphaRange () const
	Get the minimum and maximum values for alpha. More...

const rangev4 &	getColorRange () const
	Get the minimum and maximum values for color. More...

const Interpolator *	getSizeInterpolator () const
	Get the interpolator for computing the size of polygons. More...

const Interpolator *	getAlphaInterpolator () const
	Get the interpolator for computing alpha values. More...

const Interpolator *	getColorInterpolator () const
	Get the interpolator for computing color values. More...

float	getRadius () const

float	getMass () const

float	getMassInv () const
	Get `1 / getMass()`. More...

const osg::Vec3 &	getPosition () const
	Get the position vector. More...

const osg::Vec3 &	getVelocity () const

const osg::Vec3 &	getPreviousPosition () const
	Get the previous position (the position before last update). More...

const osg::Vec3 &	getAngle () const
	Get the angle vector. More...

const osg::Vec3 &	getAngularVelocity () const
	Get the rotational velocity vector. More...

const osg::Vec3 &	getPreviousAngle () const
	Get the previous angle vector. More...

const osg::Vec4 &	getCurrentColor () const
	Get the current color. More...

float	getCurrentAlpha () const
	Get the current alpha. More...

float	getSTexCoord () const
	Get the s texture coordinate of the bottom left of the particle. More...

float	getTTexCoord () const
	Get the t texture coordinate of the bottom left of the particle. More...

int	getTileS () const
	Get width of texture tile. More...

int	getTileT () const
	Get height of texture tile. More...

int	getNumTiles () const
	Get number of texture tiles. More...

void	kill ()

void	setLifeTime (double t)
	Set the life time of the particle. More...

void	setSizeRange (const rangef &r)
	Set the minimum and maximum values for polygon size. More...

void	setAlphaRange (const rangef &r)
	Set the minimum and maximum values for alpha. More...

void	setColorRange (const rangev4 &r)
	Set the minimum and maximum values for color. More...

void	setSizeInterpolator (Interpolator *ri)
	Set the interpolator for computing size values. More...

void	setAlphaInterpolator (Interpolator *ai)
	Set the interpolator for computing alpha values. More...

void	setColorInterpolator (Interpolator *ci)
	Set the interpolator for computing color values. More...

void	setRadius (float r)

void	setMass (float m)

void	setPosition (const osg::Vec3 &p)
	Set the position vector. More...

void	setVelocity (const osg::Vec3 &v)

void	addVelocity (const osg::Vec3 &dv)
	Add a vector to the velocity vector. More...

void	transformPositionVelocity (const osg::Matrix &xform)
	Transform position and velocity vectors by a matrix. More...

void	transformPositionVelocity (const osg::Matrix &xform1, const osg::Matrix &xform2, float r)
	Transform position and velocity vectors by a combination of two matrices. More...

void	setAngle (const osg::Vec3 &a)
	Set the angle vector. More...

void	setAngularVelocity (const osg::Vec3 &v)

void	addAngularVelocity (const osg::Vec3 &dv)
	Add a vector to the angular velocity vector. More...

void	transformAngleVelocity (const osg::Matrix &xform)
	Transform angle and angularVelocity vectors by a matrix. More...

bool	update (double dt, bool onlyTimeStamp)

void	beginRender (osg::GLBeginEndAdapter *gl) const
	Perform some pre-rendering tasks. Called automatically by particle systems. More...

void	render (osg::GLBeginEndAdapter *gl, const osg::Vec3 &xpos, const osg::Vec3 &px, const osg::Vec3 &py, float scale=1.0f) const
	Render the particle. Called automatically by particle systems. More...

void	render (osg::RenderInfo &renderInfo, const osg::Vec3 &xpos, const osg::Vec3 &xrot) const
	Render the particle with user-defined drawable. More...

void	endRender (osg::GLBeginEndAdapter *gl) const
	Perform some post-rendering tasks. Called automatically by particle systems. More...

float	getCurrentSize () const
	Get the current (interpolated) polygon size. Valid only after the first call to update(). More...

void	setTextureTileRange (int sTile, int tTile, int startTile, int endTile)

void	setTextureTile (int sTile, int tTile, int end=-1)
	Same as above, range starts at 0 and ends at end. More...

int	getStartTile () const

int	getEndTile () const

void	setPreviousParticle (int previous)
	Set the previous particle. More...

int	getPreviousParticle () const
	Get the previous particle. More...

void	setNextParticle (int next)
	Set the next particle. More...

int	getNextParticle () const
	Get the const next particle. More...

void	setDepth (double d)
	Set the depth of the particle. More...

double	getDepth () const
	Get the depth of the particle. More...

void	setDrawable (osg::Drawable *d)
	Set the user-defined particle drawable. More...

osg::Drawable *	getDrawable () const
	Get the user-defined particle drawable. More...

bool	operator< (const Particle &P) const
	Sorting operator. More...

void	setUpTexCoordsAsPartOfConnectedParticleSystem (ParticleSystem *ps)
	Method for initializing a particles texture coords as part of a connected particle system. More...

Protected Attributes
Shape	_shape

rangef	_sr

rangef	_ar

rangev4	_cr

osg::ref_ptr< Interpolator >	_si

osg::ref_ptr< Interpolator >	_ai

osg::ref_ptr< Interpolator >	_ci

bool	_mustdie

double	_lifeTime

float	_radius

float	_mass

float	_massinv

osg::Vec3	_prev_pos

osg::Vec3	_position

osg::Vec3	_velocity

osg::Vec3	_prev_angle

osg::Vec3	_angle

osg::Vec3	_angul_arvel

double	_t0

float	_alive

float	_current_size

float	_current_alpha

osg::Vec3	_base_prop

osg::Vec4	_current_color

float	_s_tile

float	_t_tile

int	_start_tile

int	_end_tile

int	_cur_tile

float	_s_coord

float	_t_coord

int	_previousParticle

int	_nextParticle

double	_depth

osg::ref_ptr< osg::Drawable >	_drawable

Friends
class	ParticleSystem

Detailed Description

Implementation of a particle. Objects of this class are particles, they have some graphical properties and some physical properties. Particles are created by emitters and then placed into Particle Systems, where they live and get updated at each frame. Particles can either live forever (lifeTime < 0), or die after a specified time (lifeTime >= 0). For each property which is defined as a range of values, a "current" value will be evaluated at each frame by interpolating the min and max values so that curr_value = min when t == 0, and curr_value = max when t == lifeTime. You may customize the interpolator objects to achieve any kind of transition. If you want the particle to live forever, set its lifetime to any value <= 0; in that case, no interpolation is done to compute real-time properties, and only minimum values are used.

Definition at line 50 of file Particle.h.

Member Enumeration Documentation

anonymous enum

Enumerator
INVALID_INDEX

Definition at line 54 of file Particle.h.

enum osgParticle::Particle::Shape

Shape of particles. NOTE: the LINE shape should be used in conjunction with FIXED alignment mode (see ParticleSystem).

Enumerator
POINT
QUAD
QUAD_TRIANGLESTRIP
HEXAGON
LINE
USER

Definition at line 63 of file Particle.h.

Constructor & Destructor Documentation

osgParticle::Particle::Particle ( )

Member Function Documentation

void osgParticle::Particle::addAngularVelocity ( const osg::Vec3 & dv )

inline

Add a vector to the angular velocity vector.

Definition at line 539 of file Particle.h.

Here is the caller graph for this function:

void osgParticle::Particle::addVelocity ( const osg::Vec3 & dv )

inline

Add a vector to the velocity vector.

Definition at line 507 of file Particle.h.

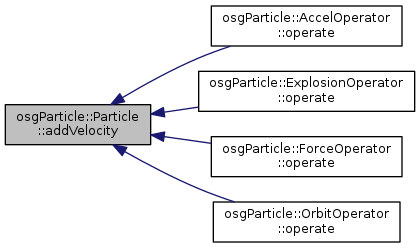

Here is the caller graph for this function:

void osgParticle::Particle::beginRender ( osg::GLBeginEndAdapter * gl ) const

inline

Perform some pre-rendering tasks. Called automatically by particle systems.

Definition at line 572 of file Particle.h.

Here is the call graph for this function:

void osgParticle::Particle::endRender ( osg::GLBeginEndAdapter * gl ) const

inline

Perform some post-rendering tasks. Called automatically by particle systems.

Definition at line 589 of file Particle.h.

Here is the call graph for this function:

double osgParticle::Particle::getAge ( ) const

inline

Get the age of the particle (in seconds).

Definition at line 372 of file Particle.h.

const Interpolator * osgParticle::Particle::getAlphaInterpolator ( ) const

inline

Get the interpolator for computing alpha values.

Definition at line 407 of file Particle.h.

const rangef & osgParticle::Particle::getAlphaRange ( ) const

inline

Get the minimum and maximum values for alpha.

Definition at line 392 of file Particle.h.

const osg::Vec3 & osgParticle::Particle::getAngle ( ) const

inline

Get the angle vector.

Definition at line 432 of file Particle.h.

const osg::Vec3 & osgParticle::Particle::getAngularVelocity ( ) const

inline

Get the rotational velocity vector.

Definition at line 437 of file Particle.h.

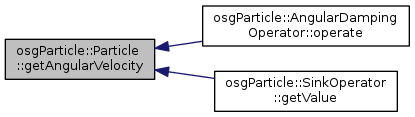

Here is the caller graph for this function:

const Interpolator * osgParticle::Particle::getColorInterpolator ( ) const

inline

Get the interpolator for computing color values.

Definition at line 412 of file Particle.h.

const rangev4 & osgParticle::Particle::getColorRange ( ) const

inline

Get the minimum and maximum values for color.

Definition at line 397 of file Particle.h.

float osgParticle::Particle::getCurrentAlpha ( ) const

inline

Get the current alpha.

Definition at line 145 of file Particle.h.

const osg::Vec4& osgParticle::Particle::getCurrentColor ( ) const

inline

Get the current color.

Definition at line 142 of file Particle.h.

float osgParticle::Particle::getCurrentSize ( ) const

inline

Get the current (interpolated) polygon size. Valid only after the first call to update().

Definition at line 602 of file Particle.h.

double osgParticle::Particle::getDepth ( ) const

inline

Get the depth of the particle.

Definition at line 283 of file Particle.h.

osg::Drawable* osgParticle::Particle::getDrawable ( ) const

inline

Get the user-defined particle drawable.

Definition at line 289 of file Particle.h.

int osgParticle::Particle::getEndTile ( ) const

inline

Definition at line 642 of file Particle.h.

double osgParticle::Particle::getLifeTime ( ) const

inline

Get the life time of the particle (in seconds).

Definition at line 367 of file Particle.h.

float osgParticle::Particle::getMass ( ) const

inline

Get the mass of the particle. For built-in operators to work correctly, remember that the mass is expressed in kg.

Definition at line 556 of file Particle.h.

float osgParticle::Particle::getMassInv ( ) const

inline

Get 1 / getMass().

Definition at line 561 of file Particle.h.

Here is the caller graph for this function:

int osgParticle::Particle::getNextParticle ( ) const

inline

Get the const next particle.

Definition at line 277 of file Particle.h.

int osgParticle::Particle::getNumTiles ( ) const

inline

Get number of texture tiles.

Definition at line 160 of file Particle.h.

const osg::Vec3 & osgParticle::Particle::getPosition ( ) const

inline

Get the position vector.

Definition at line 417 of file Particle.h.

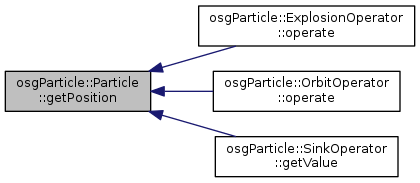

Here is the caller graph for this function:

const osg::Vec3 & osgParticle::Particle::getPreviousAngle ( ) const

inline

Get the previous angle vector.

Definition at line 442 of file Particle.h.

int osgParticle::Particle::getPreviousParticle ( ) const

inline

Get the previous particle.

Definition at line 271 of file Particle.h.

const osg::Vec3 & osgParticle::Particle::getPreviousPosition ( ) const

inline

Get the previous position (the position before last update).

Definition at line 427 of file Particle.h.

float osgParticle::Particle::getRadius ( ) const

inline

Get the physical radius of the particle. For built-in operators to work correctly, lengths must be expressed in meters.

Definition at line 377 of file Particle.h.

Particle::Shape osgParticle::Particle::getShape ( ) const

inline

Get the shape of the particle.

Definition at line 352 of file Particle.h.

const Interpolator * osgParticle::Particle::getSizeInterpolator ( ) const

inline

Get the interpolator for computing the size of polygons.

Definition at line 402 of file Particle.h.

const rangef & osgParticle::Particle::getSizeRange ( ) const

inline

Get the minimum and maximum values for polygon size.

Definition at line 387 of file Particle.h.

int osgParticle::Particle::getStartTile ( ) const

inline

Definition at line 637 of file Particle.h.

float osgParticle::Particle::getSTexCoord ( ) const

inline

Get the s texture coordinate of the bottom left of the particle.

Definition at line 148 of file Particle.h.

int osgParticle::Particle::getTileS ( ) const

inline

Get width of texture tile.

Definition at line 447 of file Particle.h.

int osgParticle::Particle::getTileT ( ) const

inline

Get height of texture tile.

Definition at line 452 of file Particle.h.

float osgParticle::Particle::getTTexCoord ( ) const

inline

Get the t texture coordinate of the bottom left of the particle.

Definition at line 151 of file Particle.h.

const osg::Vec3 & osgParticle::Particle::getVelocity ( ) const

inline

Get the velocity vector. For built-in operators to work correctly, remember that velocity components are expressed in meters per second.

Definition at line 422 of file Particle.h.

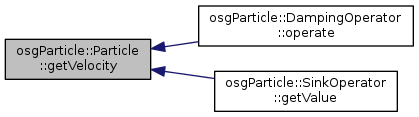

Here is the caller graph for this function:

bool osgParticle::Particle::isAlive ( ) const

inline

Get whether the particle is still alive.

Definition at line 362 of file Particle.h.

Here is the caller graph for this function:

void osgParticle::Particle::kill ( )

inline

Kill the particle on next update NOTE: after calling this function, the isAlive() method will still return true until the particle is updated again.

Definition at line 457 of file Particle.h.

Here is the caller graph for this function:

bool osgParticle::Particle::operator< ( const Particle & P ) const

inline

Sorting operator.

Definition at line 292 of file Particle.h.

void osgParticle::Particle::render	(	osg::GLBeginEndAdapter *	gl,
		const osg::Vec3 &	xpos,
		const osg::Vec3 &	px,
		const osg::Vec3 &	py,
		float	scale = `1.0f`
	)		const

Render the particle. Called automatically by particle systems.

void osgParticle::Particle::render	(	osg::RenderInfo &	renderInfo,
		const osg::Vec3 &	xpos,
		const osg::Vec3 &	xrot
	)		const

Render the particle with user-defined drawable.

void osgParticle::Particle::setAlphaInterpolator ( Interpolator * ai )

inline

Set the interpolator for computing alpha values.

Definition at line 487 of file Particle.h.

void osgParticle::Particle::setAlphaRange ( const rangef & r )

inline

Set the minimum and maximum values for alpha.

Definition at line 472 of file Particle.h.

void osgParticle::Particle::setAngle ( const osg::Vec3 & a )

inline

Set the angle vector.

Definition at line 529 of file Particle.h.

void osgParticle::Particle::setAngularVelocity ( const osg::Vec3 & v )

inline

Set the angular velocity vector. Components x, y and z are angles of rotation around the respective axis (in radians).

Definition at line 534 of file Particle.h.

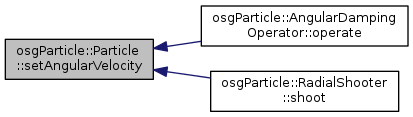

Here is the caller graph for this function:

void osgParticle::Particle::setColorInterpolator ( Interpolator * ci )

inline

Set the interpolator for computing color values.

Definition at line 492 of file Particle.h.

void osgParticle::Particle::setColorRange ( const rangev4 & r )

inline

Set the minimum and maximum values for color.

Definition at line 477 of file Particle.h.

void osgParticle::Particle::setDepth ( double d )

inline

Set the depth of the particle.

Definition at line 280 of file Particle.h.

void osgParticle::Particle::setDrawable ( osg::Drawable * d )

inline

Set the user-defined particle drawable.

Definition at line 286 of file Particle.h.

void osgParticle::Particle::setLifeTime ( double t )

inline

Set the life time of the particle.

Definition at line 462 of file Particle.h.

void osgParticle::Particle::setMass ( float m )

inline

Set the mass of the particle. For built-in operators to work correctly, remember that the mass is expressed in kg.

Definition at line 566 of file Particle.h.

void osgParticle::Particle::setNextParticle ( int next )

inline

Set the next particle.

Definition at line 274 of file Particle.h.

void osgParticle::Particle::setPosition ( const osg::Vec3 & p )

inline

Set the position vector.

Definition at line 497 of file Particle.h.

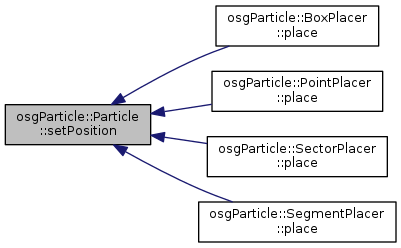

Here is the caller graph for this function:

void osgParticle::Particle::setPreviousParticle ( int previous )

inline

Set the previous particle.

Definition at line 268 of file Particle.h.

void osgParticle::Particle::setRadius ( float r )

inline

Set the physical radius of the particle. For built-in operators to work correctly, lengths must be expressed in meters.

Definition at line 382 of file Particle.h.

void osgParticle::Particle::setShape ( Shape s )

inline

Set the shape of the particle.

Definition at line 357 of file Particle.h.

void osgParticle::Particle::setSizeInterpolator ( Interpolator * ri )

inline

Set the interpolator for computing size values.

Definition at line 482 of file Particle.h.

void osgParticle::Particle::setSizeRange ( const rangef & r )

inline

Set the minimum and maximum values for polygon size.

Definition at line 467 of file Particle.h.

void osgParticle::Particle::setTextureTile	(	int	sTile,
		int	tTile,
		int	end = `-1`
	)

inline

Same as above, range starts at 0 and ends at end.

Definition at line 608 of file Particle.h.

Here is the call graph for this function:

void osgParticle::Particle::setTextureTileRange	(	int	sTile,
		int	tTile,
		int	startTile,
		int	endTile
	)

inline

Specify how the particle texture is tiled. All tiles in the given range are sequentially displayed during the lifetime of the particle. When no range is given, all tiles are displayed during the lifetime.

Definition at line 613 of file Particle.h.

Here is the caller graph for this function:

void osgParticle::Particle::setUpTexCoordsAsPartOfConnectedParticleSystem ( ParticleSystem * ps )

Method for initializing a particles texture coords as part of a connected particle system.

void osgParticle::Particle::setVelocity ( const osg::Vec3 & v )

inline

Set the velocity vector. For built-in operators to work correctly, remember that velocity components are expressed in meters per second.

Definition at line 502 of file Particle.h.

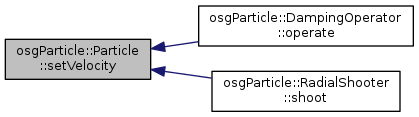

Here is the caller graph for this function:

void osgParticle::Particle::transformAngleVelocity ( const osg::Matrix & xform )

inline

Transform angle and angularVelocity vectors by a matrix.

Definition at line 544 of file Particle.h.

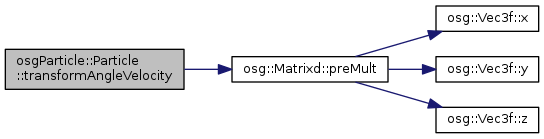

Here is the call graph for this function:

void osgParticle::Particle::transformPositionVelocity ( const osg::Matrix & xform )

inline

Transform position and velocity vectors by a matrix.

Definition at line 512 of file Particle.h.

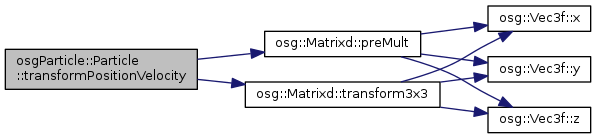

Here is the call graph for this function:

void osgParticle::Particle::transformPositionVelocity	(	const osg::Matrix &	xform1,
		const osg::Matrix &	xform2,
		float	r
	)

inline

Transform position and velocity vectors by a combination of two matrices.

Definition at line 518 of file Particle.h.

Here is the call graph for this function:

bool osgParticle::Particle::update	(	double	dt,
		bool	onlyTimeStamp
	)

Update the particle (don't call this method manually). This method is called automatically by ParticleSystem::update(); it updates the graphical properties of the particle for the current time, checks whether the particle is still alive, and then updates its position by computing P = P + V * dt (where P is the position and V is the velocity).

Friends And Related Function Documentation

friend class ParticleSystem

friend

Definition at line 51 of file Particle.h.

Member Data Documentation

osg::ref_ptr<Interpolator> osgParticle::Particle::_ai

protected

Definition at line 306 of file Particle.h.

float osgParticle::Particle::_alive

protected

Definition at line 325 of file Particle.h.

osg::Vec3 osgParticle::Particle::_angle

protected

Definition at line 320 of file Particle.h.

osg::Vec3 osgParticle::Particle::_angul_arvel

protected

Definition at line 321 of file Particle.h.

rangef osgParticle::Particle::_ar

protected

Definition at line 302 of file Particle.h.

osg::Vec3 osgParticle::Particle::_base_prop

protected

Definition at line 328 of file Particle.h.

osg::ref_ptr<Interpolator> osgParticle::Particle::_ci

protected

Definition at line 307 of file Particle.h.

rangev4 osgParticle::Particle::_cr

protected

Definition at line 303 of file Particle.h.

int osgParticle::Particle::_cur_tile

protected

Definition at line 335 of file Particle.h.

float osgParticle::Particle::_current_alpha

protected

Definition at line 327 of file Particle.h.

osg::Vec4 osgParticle::Particle::_current_color

protected

Definition at line 329 of file Particle.h.

float osgParticle::Particle::_current_size

protected

Definition at line 326 of file Particle.h.

double osgParticle::Particle::_depth

protected

Definition at line 344 of file Particle.h.

osg::ref_ptr<osg::Drawable> osgParticle::Particle::_drawable

protected

Definition at line 347 of file Particle.h.

int osgParticle::Particle::_end_tile

protected

Definition at line 334 of file Particle.h.

double osgParticle::Particle::_lifeTime

protected

Definition at line 310 of file Particle.h.

float osgParticle::Particle::_mass

protected

Definition at line 313 of file Particle.h.

float osgParticle::Particle::_massinv

protected

Definition at line 314 of file Particle.h.

bool osgParticle::Particle::_mustdie

protected

Definition at line 309 of file Particle.h.

int osgParticle::Particle::_nextParticle

protected

Definition at line 341 of file Particle.h.

osg::Vec3 osgParticle::Particle::_position

protected

Definition at line 316 of file Particle.h.

osg::Vec3 osgParticle::Particle::_prev_angle

protected

Definition at line 319 of file Particle.h.

osg::Vec3 osgParticle::Particle::_prev_pos

protected

Definition at line 315 of file Particle.h.

int osgParticle::Particle::_previousParticle

protected

Definition at line 340 of file Particle.h.

float osgParticle::Particle::_radius

protected

Definition at line 312 of file Particle.h.

float osgParticle::Particle::_s_coord

protected

Definition at line 336 of file Particle.h.

float osgParticle::Particle::_s_tile

protected

Definition at line 331 of file Particle.h.

Shape osgParticle::Particle::_shape

protected

Definition at line 299 of file Particle.h.

osg::ref_ptr<Interpolator> osgParticle::Particle::_si

protected

Definition at line 305 of file Particle.h.

rangef osgParticle::Particle::_sr

protected

Definition at line 301 of file Particle.h.

int osgParticle::Particle::_start_tile

protected

Definition at line 333 of file Particle.h.

double osgParticle::Particle::_t0

protected

Definition at line 323 of file Particle.h.

float osgParticle::Particle::_t_coord

protected

Definition at line 337 of file Particle.h.

float osgParticle::Particle::_t_tile

protected

Definition at line 332 of file Particle.h.

osg::Vec3 osgParticle::Particle::_velocity

protected

Definition at line 317 of file Particle.h.

The documentation for this class was generated from the following file:

osg_head/include/osgParticle/Particle.h

Public Types

Public Member Functions

Protected Attributes

Friends

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
