#include <FluidFrictionOperator.h>

Inheritance diagram for osgParticle::FluidFrictionOperator:

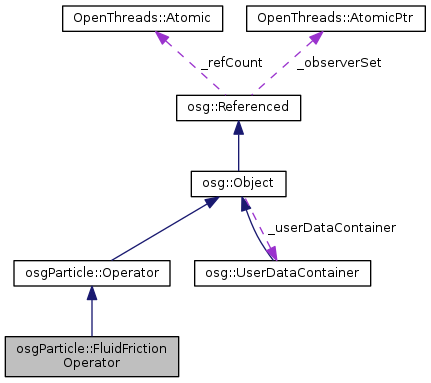

Collaboration diagram for osgParticle::FluidFrictionOperator:

Public Member Functions
	FluidFrictionOperator ()

	FluidFrictionOperator (const FluidFrictionOperator &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgParticle, FluidFrictionOperator)

void	setFluidDensity (float d)
	Set the density of the fluid. More...

float	getFluidDensity () const
	Get the density of the fluid. More...

void	setFluidViscosity (float v)
	Set the viscosity of the fluid. More...

float	getFluidViscosity () const
	Get the viscosity of the fluid. More...

void	setWind (const osg::Vec3 &wind)
	Set the wind vector. More...

const osg::Vec3 &	getWind () const
	Get the wind vector. More...

void	setOverrideRadius (float r)
	Set the overriden radius value (pass 0 if you want to use particle's radius). More...

float	getOverrideRadius () const
	Get the overriden radius value. More...

void	setFluidToAir ()
	Set the fluid parameters as for air (20�C temperature). More...

void	setFluidToWater ()
	Set the fluid parameters as for pure water (20�C temperature). More...

void	operate (Particle *P, double dt)
	Apply the friction forces to a particle. Do not call this method manually. More...

void	beginOperate (Program *prg)
	Perform some initializations. Do not call this method manually. More...

Public Member Functions inherited from osgParticle::Operator
	Operator ()

	Operator (const Operator &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

virtual const char *	libraryName () const

virtual const char *	className () const

virtual bool	isSameKindAs (const osg::Object *obj) const

bool	isEnabled () const
	Get whether this operator is enabled. More...

void	setEnabled (bool v)
	Enable or disable this operator. More...

virtual void	operateParticles (ParticleSystem *ps, double dt)

virtual void	endOperate ()
	Do something after all particles have been processed. More...

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~FluidFrictionOperator ()

FluidFrictionOperator &	operator= (const FluidFrictionOperator &)

Protected Member Functions inherited from osgParticle::Operator
virtual	~Operator ()

Operator &	operator= (const Operator &)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Additional Inherited Members
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Detailed Description

An operator that simulates the friction of a fluid. By using this operator you can let the particles move in a fluid of a given density and viscosity. There are two functions to quickly setup the parameters for pure water and air. You can decide whether to compute the forces using the particle's physical radius or another value, by calling the setOverrideRadius() method.

Definition at line 36 of file FluidFrictionOperator.h.

Constructor & Destructor Documentation

osgParticle::FluidFrictionOperator::FluidFrictionOperator ( )

osgParticle::FluidFrictionOperator::FluidFrictionOperator	(	const FluidFrictionOperator &	copy,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)

virtual osgParticle::FluidFrictionOperator::~FluidFrictionOperator ( )

inlineprotectedvirtual

Definition at line 81 of file FluidFrictionOperator.h.

Member Function Documentation

void osgParticle::FluidFrictionOperator::beginOperate ( Program * prg )

inlinevirtual

Perform some initializations. Do not call this method manually.

Reimplemented from osgParticle::Operator.

Definition at line 140 of file FluidFrictionOperator.h.

float osgParticle::FluidFrictionOperator::getFluidDensity ( ) const

inline

Get the density of the fluid.

Definition at line 96 of file FluidFrictionOperator.h.

float osgParticle::FluidFrictionOperator::getFluidViscosity ( ) const

inline

Get the viscosity of the fluid.

Definition at line 101 of file FluidFrictionOperator.h.

float osgParticle::FluidFrictionOperator::getOverrideRadius ( ) const

inline

Get the overriden radius value.

Definition at line 130 of file FluidFrictionOperator.h.

const osg::Vec3& osgParticle::FluidFrictionOperator::getWind ( ) const

inline

Get the wind vector.

Definition at line 60 of file FluidFrictionOperator.h.

osgParticle::FluidFrictionOperator::META_Object	(	osgParticle	,
		FluidFrictionOperator
	)

void osgParticle::FluidFrictionOperator::operate	(	Particle *	P,
		double	dt
	)

virtual

Apply the friction forces to a particle. Do not call this method manually.

Implements osgParticle::Operator.

FluidFrictionOperator& osgParticle::FluidFrictionOperator::operator= ( const FluidFrictionOperator & )

inlineprotected

Definition at line 82 of file FluidFrictionOperator.h.

void osgParticle::FluidFrictionOperator::setFluidDensity ( float d )

inline

Set the density of the fluid.

Definition at line 106 of file FluidFrictionOperator.h.

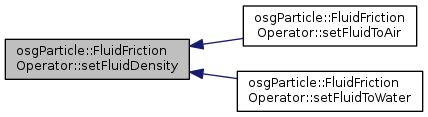

Here is the caller graph for this function:

void osgParticle::FluidFrictionOperator::setFluidToAir ( )

inline

Set the fluid parameters as for air (20�C temperature).

Definition at line 118 of file FluidFrictionOperator.h.

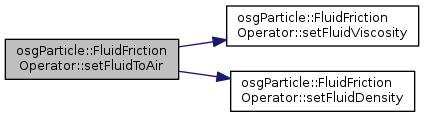

Here is the call graph for this function:

void osgParticle::FluidFrictionOperator::setFluidToWater ( )

inline

Set the fluid parameters as for pure water (20�C temperature).

Definition at line 124 of file FluidFrictionOperator.h.

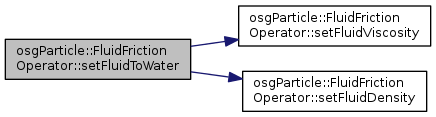

Here is the call graph for this function:

void osgParticle::FluidFrictionOperator::setFluidViscosity ( float v )

inline

Set the viscosity of the fluid.

Definition at line 112 of file FluidFrictionOperator.h.

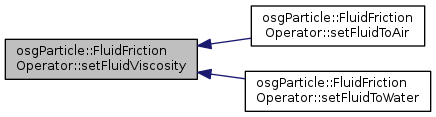

Here is the caller graph for this function:

void osgParticle::FluidFrictionOperator::setOverrideRadius ( float r )

inline

Set the overriden radius value (pass 0 if you want to use particle's radius).

Definition at line 135 of file FluidFrictionOperator.h.

void osgParticle::FluidFrictionOperator::setWind ( const osg::Vec3 & wind )

inline

Set the wind vector.

Definition at line 57 of file FluidFrictionOperator.h.

The documentation for this class was generated from the following file:

osg_head/include/osgParticle/FluidFrictionOperator.h
