#include <AccelOperator.h>

Inheritance diagram for osgParticle::AccelOperator:

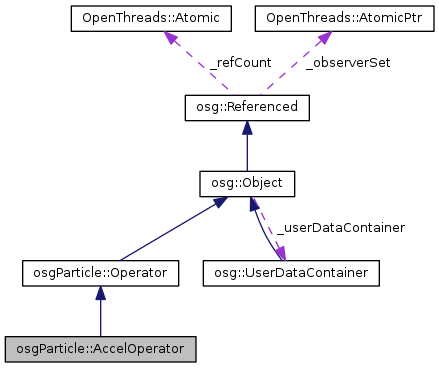

Collaboration diagram for osgParticle::AccelOperator:

Public Member Functions
	AccelOperator ()

	AccelOperator (const AccelOperator &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgParticle, AccelOperator)

const osg::Vec3 &	getAcceleration () const
	Get the acceleration vector. More...

void	setAcceleration (const osg::Vec3 &v)
	Set the acceleration vector. More...

void	setToGravity (float scale=1)

void	operate (Particle *P, double dt)
	Apply the acceleration to a particle. Do not call this method manually. More...

void	beginOperate (Program *prg)
	Perform some initializations. Do not call this method manually. More...

Public Member Functions inherited from osgParticle::Operator
	Operator ()

	Operator (const Operator &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

virtual const char *	libraryName () const

virtual const char *	className () const

virtual bool	isSameKindAs (const osg::Object *obj) const

bool	isEnabled () const
	Get whether this operator is enabled. More...

void	setEnabled (bool v)
	Enable or disable this operator. More...

virtual void	operateParticles (ParticleSystem *ps, double dt)

virtual void	endOperate ()
	Do something after all particles have been processed. More...

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~AccelOperator ()

AccelOperator &	operator= (const AccelOperator &)

Protected Member Functions inherited from osgParticle::Operator
virtual	~Operator ()

Operator &	operator= (const Operator &)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Additional Inherited Members
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Detailed Description

An operator class that applies a constant acceleration to the particles.

Definition at line 31 of file AccelOperator.h.

Constructor & Destructor Documentation

osgParticle::AccelOperator::AccelOperator ( )

inline

Definition at line 66 of file AccelOperator.h.

osgParticle::AccelOperator::AccelOperator	(	const AccelOperator &	copy,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)

inline

Definition at line 71 of file AccelOperator.h.

virtual osgParticle::AccelOperator::~AccelOperator ( )

inlineprotectedvirtual

Definition at line 56 of file AccelOperator.h.

Member Function Documentation

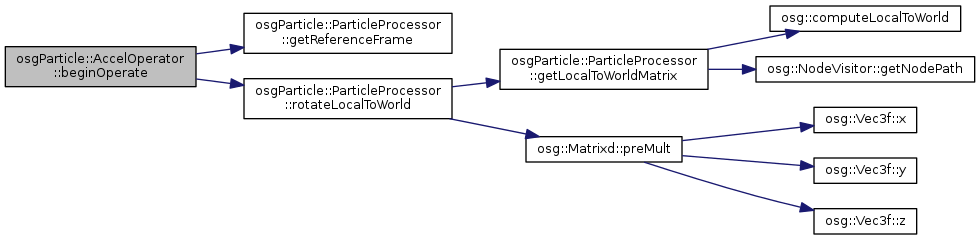

void osgParticle::AccelOperator::beginOperate ( Program * prg )

inlinevirtual

Perform some initializations. Do not call this method manually.

Reimplemented from osgParticle::Operator.

Definition at line 96 of file AccelOperator.h.

Here is the call graph for this function:

const osg::Vec3 & osgParticle::AccelOperator::getAcceleration ( ) const

inline

Get the acceleration vector.

Definition at line 76 of file AccelOperator.h.

osgParticle::AccelOperator::META_Object	(	osgParticle	,
		AccelOperator
	)

void osgParticle::AccelOperator::operate	(	Particle *	P,
		double	dt
	)

inlinevirtual

Apply the acceleration to a particle. Do not call this method manually.

Implements osgParticle::Operator.

Definition at line 91 of file AccelOperator.h.

Here is the call graph for this function:

AccelOperator& osgParticle::AccelOperator::operator= ( const AccelOperator & )

inlineprotected

Definition at line 57 of file AccelOperator.h.

void osgParticle::AccelOperator::setAcceleration ( const osg::Vec3 & v )

inline

Set the acceleration vector.

Definition at line 81 of file AccelOperator.h.

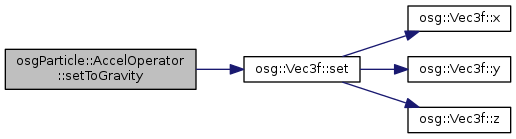

void osgParticle::AccelOperator::setToGravity ( float scale = 1 )

inline

Quickly set the acceleration vector to the gravity on earth (0, 0, -9.81). The acceleration will be multiplied by the scale parameter.

Definition at line 86 of file AccelOperator.h.

Here is the call graph for this function:

The documentation for this class was generated from the following file:

osg_head/include/osgParticle/AccelOperator.h
