#include <ModularProgram.h>

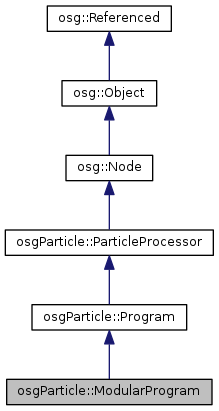

Inheritance diagram for osgParticle::ModularProgram:

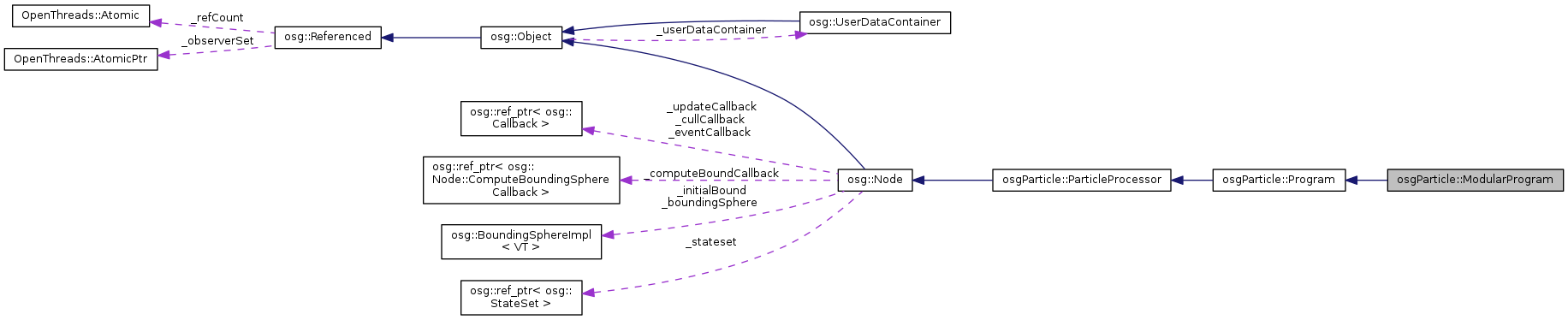

Collaboration diagram for osgParticle::ModularProgram:

Public Member Functions
	ModularProgram ()

	ModularProgram (const ModularProgram &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Node (osgParticle, ModularProgram)

int	numOperators () const
	Get the number of operators. More...

void	addOperator (Operator *o)
	Add an operator to the list. More...

Operator *	getOperator (int i)
	Get a pointer to an operator in the list. More...

const Operator *	getOperator (int i) const
	Get a const pointer to an operator in the list. More...

void	removeOperator (int i)
	Remove an operator from the list. More...

Public Member Functions inherited from osgParticle::Program
	Program ()

	Program (const Program &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

virtual const char *	libraryName () const

virtual const char *	className () const

virtual bool	isSameKindAs (const osg::Object *obj) const

virtual void	accept (osg::NodeVisitor &nv)

Public Member Functions inherited from osgParticle::ParticleProcessor
	ParticleProcessor ()

	ParticleProcessor (const ParticleProcessor &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

ReferenceFrame	getReferenceFrame () const
	Get the reference frame. More...

void	setReferenceFrame (ReferenceFrame rf)
	Set the reference frame. More...

bool	getEnabled () const
	Get whether this processor is enabled or not. More...

bool	isEnabled () const

void	setEnabled (bool v)
	Set whether this processor is enabled or not. More...

ParticleSystem *	getParticleSystem ()
	Get a pointer to the destination particle system. More...

const ParticleSystem *	getParticleSystem () const
	Get a const pointer to the destination particle system. More...

void	setParticleSystem (ParticleSystem *ps)
	Set the destination particle system. More...

void	setEndless (bool type)
	Set the endless flag of this processor. More...

bool	getEndless () const
	Check whether this processor is endless. More...

bool	isEndless () const

void	setLifeTime (double t)
	Set the lifetime of this processor. More...

double	getLifeTime () const
	Get the lifetime of this processor. More...

void	setStartTime (double t)
	Set the start time of this processor. More...

double	getStartTime () const
	Get the start time of this processor. More...

void	setCurrentTime (double t)
	Set the current time of this processor. More...

double	getCurrentTime () const
	Get the current time of this processor. More...

void	setResetTime (double t)
	Set the reset time of this processor. A value of 0 disables reset. More...

double	getResetTime () const
	Get the reset time of this processor. More...

bool	isAlive () const

void	traverse (osg::NodeVisitor &nv)

const osg::Matrix &	getLocalToWorldMatrix ()
	Get the current local-to-world transformation matrix (valid only during cull traversal). More...

const osg::Matrix &	getWorldToLocalMatrix ()
	Get the current world-to-local transformation matrix (valid only during cull traversal). More...

const osg::Matrix &	getPreviousLocalToWorldMatrix ()
	Get the previous local-to-world transformation matrix (valid only during cull traversal). More...

const osg::Matrix &	getPreviousWorldToLocalMatrix ()
	Get the previous world-to-local transformation matrix (valid only during cull traversal). More...

osg::Vec3	transformLocalToWorld (const osg::Vec3 &P)
	Transform a point from local to world coordinates (valid only during cull traversal). More...

osg::Vec3	rotateLocalToWorld (const osg::Vec3 &P)
	Transform a vector from local to world coordinates, discarding translation (valid only during cull traversal). More...

osg::Vec3	transformWorldToLocal (const osg::Vec3 &P)
	Transform a point from world to local coordinates (valid only during cull traversal). More...

osg::Vec3	rotateWorldToLocal (const osg::Vec3 &P)
	Transform a vector from world to local coordinates, discarding translation (valid only during cull traversal). More...

virtual osg::BoundingSphere	computeBound () const

Public Member Functions inherited from osg::Node
	Node ()

	Node (const Node &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const

virtual Object *	clone (const CopyOp &copyop) const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual Drawable *	asDrawable ()

virtual const Drawable *	asDrawable () const

virtual Geometry *	asGeometry ()

virtual const Geometry *	asGeometry () const

virtual Group *	asGroup ()

virtual const Group *	asGroup () const

virtual Transform *	asTransform ()

virtual const Transform *	asTransform () const

virtual Camera *	asCamera ()

virtual const Camera *	asCamera () const

virtual Switch *	asSwitch ()

virtual const Switch *	asSwitch () const

virtual Geode *	asGeode ()

virtual const Geode *	asGeode () const

virtual osgTerrain::Terrain *	asTerrain ()

virtual const osgTerrain::Terrain *	asTerrain () const

virtual void	ascend (NodeVisitor &nv)

const ParentList &	getParents () const

ParentList	getParents ()

Group *	getParent (unsigned int i)

const Group *	getParent (unsigned int i) const

unsigned int	getNumParents () const

NodePathList	getParentalNodePaths (osg::Node *haltTraversalAtNode=0) const

MatrixList	getWorldMatrices (const osg::Node *haltTraversalAtNode=0) const

void	setUpdateCallback (Callback *nc)

Callback *	getUpdateCallback ()

const Callback *	getUpdateCallback () const

void	addUpdateCallback (Callback *nc)

void	removeUpdateCallback (Callback *nc)

unsigned int	getNumChildrenRequiringUpdateTraversal () const

void	setEventCallback (Callback *nc)

Callback *	getEventCallback ()

const Callback *	getEventCallback () const

void	addEventCallback (Callback *nc)

void	removeEventCallback (Callback *nc)

unsigned int	getNumChildrenRequiringEventTraversal () const

void	setCullCallback (Callback *nc)

Callback *	getCullCallback ()

const Callback *	getCullCallback () const

void	addCullCallback (Callback *nc)

void	removeCullCallback (Callback *nc)

void	setCullingActive (bool active)

bool	getCullingActive () const

unsigned int	getNumChildrenWithCullingDisabled () const

bool	isCullingActive () const

unsigned int	getNumChildrenWithOccluderNodes () const

bool	containsOccluderNodes () const

void	setNodeMask (NodeMask nm)

NodeMask	getNodeMask () const

void	setStateSet (osg::StateSet *stateset)

osg::StateSet *	getOrCreateStateSet ()

osg::StateSet *	getStateSet ()

const osg::StateSet *	getStateSet () const

void	setDescriptions (const DescriptionList &descriptions)

DescriptionList &	getDescriptions ()

const DescriptionList &	getDescriptions () const

const std::string &	getDescription (unsigned int i) const

std::string &	getDescription (unsigned int i)

unsigned int	getNumDescriptions () const

void	addDescription (const std::string &desc)

void	setInitialBound (const osg::BoundingSphere &bsphere)

const BoundingSphere &	getInitialBound () const

void	dirtyBound ()

const BoundingSphere &	getBound () const

void	setComputeBoundingSphereCallback (ComputeBoundingSphereCallback *callback)

ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback ()

const ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string	getCompoundClassName () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~ModularProgram ()

ModularProgram &	operator= (const ModularProgram &)

void	execute (double dt)
	Execute the program on the particle system. Must be overriden in descendant classes. More...

Protected Member Functions inherited from osgParticle::Program
virtual	~Program ()

Program &	operator= (const Program &)

void	process (double dt)
	Implementation of `ParticleProcessor::process()`. Do not call this method by yourself. More...

Protected Member Functions inherited from osgParticle::ParticleProcessor
virtual	~ParticleProcessor ()

ParticleProcessor &	operator= (const ParticleProcessor &)

Protected Member Functions inherited from osg::Node
virtual	~Node ()

void	addParent (osg::Group *parent)

void	removeParent (osg::Group *parent)

void	setNumChildrenRequiringUpdateTraversal (unsigned int num)

void	setNumChildrenRequiringEventTraversal (unsigned int num)

void	setNumChildrenWithCullingDisabled (unsigned int num)

void	setNumChildrenWithOccluderNodes (unsigned int num)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Additional Inherited Members
Public Types inherited from osgParticle::ParticleProcessor
enum	ReferenceFrame { RELATIVE_RF, ABSOLUTE_RF }

Public Types inherited from osg::Node
typedef std::vector< Group * >	ParentList

typedef unsigned int	NodeMask

typedef std::vector< std::string >	DescriptionList

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Attributes inherited from osg::Node
BoundingSphere	_initialBound

ref_ptr < ComputeBoundingSphereCallback >	_computeBoundCallback

BoundingSphere	_boundingSphere

bool	_boundingSphereComputed

ParentList	_parents

ref_ptr< Callback >	_updateCallback

unsigned int	_numChildrenRequiringUpdateTraversal

ref_ptr< Callback >	_eventCallback

unsigned int	_numChildrenRequiringEventTraversal

ref_ptr< Callback >	_cullCallback

bool	_cullingActive

unsigned int	_numChildrenWithCullingDisabled

unsigned int	_numChildrenWithOccluderNodes

NodeMask	_nodeMask

ref_ptr< StateSet >	_stateset

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Detailed Description

A program class for performing operations on particles using a sequence of operators. To use a ModularProgram you have to create some Operator objects and add them to the program. All operators will be applied to each particle in the same order they've been added to the program.

Definition at line 35 of file ModularProgram.h.

Constructor & Destructor Documentation

osgParticle::ModularProgram::ModularProgram ( )

osgParticle::ModularProgram::ModularProgram	(	const ModularProgram &	copy,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)

virtual osgParticle::ModularProgram::~ModularProgram ( )

inlineprotectedvirtual

Definition at line 58 of file ModularProgram.h.

Member Function Documentation

void osgParticle::ModularProgram::addOperator ( Operator * o )

inline

Add an operator to the list.

Definition at line 76 of file ModularProgram.h.

void osgParticle::ModularProgram::execute ( double dt )

protectedvirtual

Execute the program on the particle system. Must be overriden in descendant classes.

Implements osgParticle::Program.

Operator * osgParticle::ModularProgram::getOperator ( int i )

inline

Get a pointer to an operator in the list.

Definition at line 81 of file ModularProgram.h.

const Operator * osgParticle::ModularProgram::getOperator ( int i ) const

inline

Get a const pointer to an operator in the list.

Definition at line 86 of file ModularProgram.h.

osgParticle::ModularProgram::META_Node	(	osgParticle	,
		ModularProgram
	)

int osgParticle::ModularProgram::numOperators ( ) const

inline

Get the number of operators.

Definition at line 71 of file ModularProgram.h.

ModularProgram& osgParticle::ModularProgram::operator= ( const ModularProgram & )

inlineprotected

Definition at line 59 of file ModularProgram.h.

void osgParticle::ModularProgram::removeOperator ( int i )

inline

Remove an operator from the list.

Definition at line 91 of file ModularProgram.h.

The documentation for this class was generated from the following file:

osg_head/include/osgParticle/ModularProgram.h

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
