#include <BumpMapping.h>

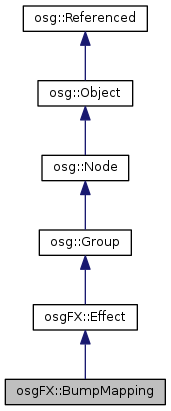

Inheritance diagram for osgFX::BumpMapping:

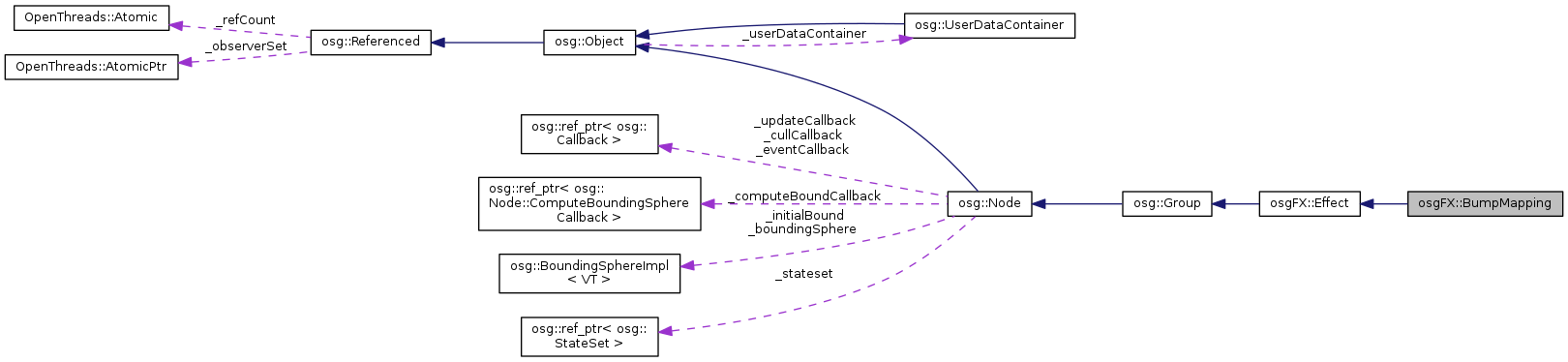

Collaboration diagram for osgFX::BumpMapping:

Public Member Functions
	BumpMapping ()

	BumpMapping (const BumpMapping &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Effect (osgFX, BumpMapping,"Bump Mapping","This effect makes surfaces appear bumpy. Children nodes must use two textures, ""one for diffuse color and one for the normal map (which can be created ""from a height map with tools like nVIDIA's normal map generator). Furthermore, ""tangent-space basis vectors must be created and assigned to each Geometry; this ""can be done quickly by calling BumpMapping::prepareChildren(). Note that both ""diffuse and normal map textures must have corresponding UV maps defined in ""Geometry objects.\n""This effect defines a preferred technique which uses ARB vertex & fragment ""programs, and a fallback technique which doesn't use fragment programs. The ""latter is more limited though since it can't handle ambient and specular ""components.","Marco Jez")

int	getLightNumber () const

void	setLightNumber (int n)

int	getDiffuseTextureUnit () const

void	setDiffuseTextureUnit (int n)

int	getNormalMapTextureUnit () const

void	setNormalMapTextureUnit (int n)

osg::Texture2D *	getOverrideDiffuseTexture ()

const osg::Texture2D *	getOverrideDiffuseTexture () const

void	setOverrideDiffuseTexture (osg::Texture2D *texture)

osg::Texture2D *	getOverrideNormalMapTexture ()

const osg::Texture2D *	getOverrideNormalMapTexture () const

void	setOverrideNormalMapTexture (osg::Texture2D *texture)

void	prepareGeometry (osg::Geometry *geo)

void	prepareNode (osg::Node *node)

void	prepareChildren ()

void	setUpDemo ()

Public Member Functions inherited from osgFX::Effect
	Effect ()

	Effect (const Effect &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

virtual bool	isSameKindAs (const osg::Object *obj) const

virtual const char *	libraryName () const

virtual const char *	className () const

virtual const char *	effectName () const =0

virtual const char *	effectDescription () const =0

virtual const char *	effectAuthor () const =0

bool	getEnabled () const

void	setEnabled (bool v)

int	getNumTechniques () const

Technique *	getTechnique (int i)

const Technique *	getTechnique (int i) const

int	getSelectedTechnique () const

void	selectTechnique (int i=AUTO_DETECT)

virtual void	traverse (osg::NodeVisitor &nv)

void	inherited_traverse (osg::NodeVisitor &nv)

Public Member Functions inherited from osg::Group
	Group ()

	Group (const Group &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

	META_Node (osg, Group)

virtual Group *	asGroup ()

virtual const Group *	asGroup () const

virtual bool	addChild (Node *child)

virtual bool	insertChild (unsigned int index, Node *child)

virtual bool	removeChild (Node *child)

bool	removeChild (unsigned int pos, unsigned int numChildrenToRemove=1)

virtual bool	removeChildren (unsigned int pos, unsigned int numChildrenToRemove)

virtual bool	replaceChild (Node origChild, Node newChild)

virtual unsigned int	getNumChildren () const

virtual bool	setChild (unsigned int i, Node *node)

Node *	getChild (unsigned int i)

const Node *	getChild (unsigned int i) const

bool	containsNode (const Node *node) const

unsigned int	getChildIndex (const Node *node) const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	resizeGLObjectBuffers (unsigned int maxSize)

virtual void	releaseGLObjects (osg::State *=0) const

virtual BoundingSphere	computeBound () const

Public Member Functions inherited from osg::Node
	Node ()

	Node (const Node &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const

virtual Object *	clone (const CopyOp &copyop) const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual Drawable *	asDrawable ()

virtual const Drawable *	asDrawable () const

virtual Geometry *	asGeometry ()

virtual const Geometry *	asGeometry () const

virtual Transform *	asTransform ()

virtual const Transform *	asTransform () const

virtual Camera *	asCamera ()

virtual const Camera *	asCamera () const

virtual Switch *	asSwitch ()

virtual const Switch *	asSwitch () const

virtual Geode *	asGeode ()

virtual const Geode *	asGeode () const

virtual osgTerrain::Terrain *	asTerrain ()

virtual const osgTerrain::Terrain *	asTerrain () const

virtual void	accept (NodeVisitor &nv)

virtual void	ascend (NodeVisitor &nv)

const ParentList &	getParents () const

ParentList	getParents ()

Group *	getParent (unsigned int i)

const Group *	getParent (unsigned int i) const

unsigned int	getNumParents () const

NodePathList	getParentalNodePaths (osg::Node *haltTraversalAtNode=0) const

MatrixList	getWorldMatrices (const osg::Node *haltTraversalAtNode=0) const

void	setUpdateCallback (Callback *nc)

Callback *	getUpdateCallback ()

const Callback *	getUpdateCallback () const

void	addUpdateCallback (Callback *nc)

void	removeUpdateCallback (Callback *nc)

unsigned int	getNumChildrenRequiringUpdateTraversal () const

void	setEventCallback (Callback *nc)

Callback *	getEventCallback ()

const Callback *	getEventCallback () const

void	addEventCallback (Callback *nc)

void	removeEventCallback (Callback *nc)

unsigned int	getNumChildrenRequiringEventTraversal () const

void	setCullCallback (Callback *nc)

Callback *	getCullCallback ()

const Callback *	getCullCallback () const

void	addCullCallback (Callback *nc)

void	removeCullCallback (Callback *nc)

void	setCullingActive (bool active)

bool	getCullingActive () const

unsigned int	getNumChildrenWithCullingDisabled () const

bool	isCullingActive () const

unsigned int	getNumChildrenWithOccluderNodes () const

bool	containsOccluderNodes () const

void	setNodeMask (NodeMask nm)

NodeMask	getNodeMask () const

void	setStateSet (osg::StateSet *stateset)

osg::StateSet *	getOrCreateStateSet ()

osg::StateSet *	getStateSet ()

const osg::StateSet *	getStateSet () const

void	setDescriptions (const DescriptionList &descriptions)

DescriptionList &	getDescriptions ()

const DescriptionList &	getDescriptions () const

const std::string &	getDescription (unsigned int i) const

std::string &	getDescription (unsigned int i)

unsigned int	getNumDescriptions () const

void	addDescription (const std::string &desc)

void	setInitialBound (const osg::BoundingSphere &bsphere)

const BoundingSphere &	getInitialBound () const

void	dirtyBound ()

const BoundingSphere &	getBound () const

void	setComputeBoundingSphereCallback (ComputeBoundingSphereCallback *callback)

ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback ()

const ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback () const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string	getCompoundClassName () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~BumpMapping ()

BumpMapping &	operator= (const BumpMapping &)

bool	define_techniques ()

Protected Member Functions inherited from osgFX::Effect
virtual	~Effect ()

Effect &	operator= (const Effect &)

void	dirtyTechniques ()

void	addTechnique (Technique *tech)

Protected Member Functions inherited from osg::Group
virtual	~Group ()

virtual void	childRemoved (unsigned int, unsigned int)

virtual void	childInserted (unsigned int)

Protected Member Functions inherited from osg::Node
virtual	~Node ()

void	addParent (osg::Group *parent)

void	removeParent (osg::Group *parent)

void	setNumChildrenRequiringUpdateTraversal (unsigned int num)

void	setNumChildrenRequiringEventTraversal (unsigned int num)

void	setNumChildrenWithCullingDisabled (unsigned int num)

void	setNumChildrenWithOccluderNodes (unsigned int num)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Additional Inherited Members
Public Types inherited from osgFX::Effect
enum	TechniqueSelection { AUTO_DETECT = -1 }

Public Types inherited from osg::Node
typedef std::vector< Group * >	ParentList

typedef unsigned int	NodeMask

typedef std::vector< std::string >	DescriptionList

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Attributes inherited from osg::Group
NodeList	_children

Protected Attributes inherited from osg::Node
BoundingSphere	_initialBound

ref_ptr < ComputeBoundingSphereCallback >	_computeBoundCallback

BoundingSphere	_boundingSphere

bool	_boundingSphereComputed

ParentList	_parents

ref_ptr< Callback >	_updateCallback

unsigned int	_numChildrenRequiringUpdateTraversal

ref_ptr< Callback >	_eventCallback

unsigned int	_numChildrenRequiringEventTraversal

ref_ptr< Callback >	_cullCallback

bool	_cullingActive

unsigned int	_numChildrenWithCullingDisabled

unsigned int	_numChildrenWithOccluderNodes

NodeMask	_nodeMask

ref_ptr< StateSet >	_stateset

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Detailed Description

This effect makes surfaces appear bumpy. Children nodes must use two textures, one for diffuse color and one for the normal map (which can be created from a height map with tools like nVIDIA's normal map generator). Furthermore, tangent-space basis vectors must be created and assigned to each Geometry; this can be done quickly by calling BumpMapping::prepareChildren(). Note that both diffuse and normal map textures must have corresponding UV maps defined in Geometry objects. This effect defines a preferred technique which uses ARB vertex & fragment programs, and a fallback technique which doesn't use fragment programs. The latter is more limited though since it can't handle ambient and specular components.

Definition at line 40 of file BumpMapping.h.

Constructor & Destructor Documentation

osgFX::BumpMapping::BumpMapping ( )

osgFX::BumpMapping::BumpMapping	(	const BumpMapping &	copy,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)

virtual osgFX::BumpMapping::~BumpMapping ( )

inlineprotectedvirtual

Definition at line 116 of file BumpMapping.h.

Member Function Documentation

bool osgFX::BumpMapping::define_techniques ( )

protectedvirtual

abstract method to be implemented in derived classes; its purpose if to create the techniques that can be used for obtaining the desired effect. You will usually call addTechnique() inside this method.

Implements osgFX::Effect.

int osgFX::BumpMapping::getDiffuseTextureUnit ( ) const

inline

get the texture unit that contains diffuse color texture. Default is 1

Definition at line 142 of file BumpMapping.h.

int osgFX::BumpMapping::getLightNumber ( ) const

inline

get the OpenGL light number

Definition at line 131 of file BumpMapping.h.

int osgFX::BumpMapping::getNormalMapTextureUnit ( ) const

inline

get the texture unit that contains normal map texture. Default is 0

Definition at line 153 of file BumpMapping.h.

osg::Texture2D * osgFX::BumpMapping::getOverrideDiffuseTexture ( )

inline

get the diffuse color texture that overrides children's texture

Definition at line 164 of file BumpMapping.h.

Here is the call graph for this function:

const osg::Texture2D * osgFX::BumpMapping::getOverrideDiffuseTexture ( ) const

inline

get the const diffuse color texture that overrides children's texture

Definition at line 169 of file BumpMapping.h.

Here is the call graph for this function:

osg::Texture2D * osgFX::BumpMapping::getOverrideNormalMapTexture ( )

inline

get the normal map texture that overrides children's texture

Definition at line 180 of file BumpMapping.h.

Here is the call graph for this function:

const osg::Texture2D * osgFX::BumpMapping::getOverrideNormalMapTexture ( ) const

inline

get the const normal map texture that overrides children's texture

Definition at line 185 of file BumpMapping.h.

Here is the call graph for this function:

osgFX::BumpMapping::META_Effect	(	osgFX	,
		BumpMapping	,
		"Bump Mapping"	,
		"This effect makes surfaces appear bumpy. Children nodes must use two	textures,
		""one for diffuse color and one for the normal map(which can be created""from a height map with tools like nVIDIA's normal map generator).	Furthermore,
		""tangent-space basis vectors must be created and assigned to each Geometry;this""can be done quickly by calling BumpMapping::prepareChildren().Note that both""diffuse and normal map textures must have corresponding UV maps defined in""Geometry objects.\n""This effect defines a preferred technique which uses ARB vertex &fragment""	programs,
		and a fallback technique which doesn't use fragment programs.The""latter is more limited though since it can't handle ambient and specular""components."	,
		"Marco Jez"
	)

BumpMapping& osgFX::BumpMapping::operator= ( const BumpMapping & )

inlineprotected

Definition at line 117 of file BumpMapping.h.

void osgFX::BumpMapping::prepareChildren ( )

prepare children for bump lighting. Actually calls prepareNode() for each child

void osgFX::BumpMapping::prepareGeometry ( osg::Geometry * geo )

prepare a Geometry for bump lighting. Tangent-space basis vectors are generated and attached to the geometry as vertex attribute arrays.

void osgFX::BumpMapping::prepareNode ( osg::Node * node )

prepare a Node for bump lighting, calling prepareGeometry() for each Geometry

void osgFX::BumpMapping::setDiffuseTextureUnit ( int n )

inline

set the texture unit that contains diffuse color texture. Default is 1

Definition at line 147 of file BumpMapping.h.

Here is the call graph for this function:

void osgFX::BumpMapping::setLightNumber ( int n )

inline

set the OpenGL light number that will be used in lighting computations

Definition at line 136 of file BumpMapping.h.

Here is the call graph for this function:

void osgFX::BumpMapping::setNormalMapTextureUnit ( int n )

inline

set the texture unit that contains normal map texture. Default is 0

Definition at line 158 of file BumpMapping.h.

Here is the call graph for this function:

void osgFX::BumpMapping::setOverrideDiffuseTexture ( osg::Texture2D * texture )

inline

set the diffuse color texture that overrides children's texture

Definition at line 174 of file BumpMapping.h.

Here is the call graph for this function:

void osgFX::BumpMapping::setOverrideNormalMapTexture ( osg::Texture2D * texture )

inline

set the normal map texture that overrides children's texture

Definition at line 190 of file BumpMapping.h.

Here is the call graph for this function:

void osgFX::BumpMapping::setUpDemo ( )

virtual

set up a demo environment with predefined diffuse and normal maps, as well as texture coordinates

Reimplemented from osgFX::Effect.

The documentation for this class was generated from the following file:

osg_head/include/osgFX/BumpMapping.h

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
