osgFX::Technique Class Reference

#include <Technique.h>

Inheritance diagram for osgFX::Technique:

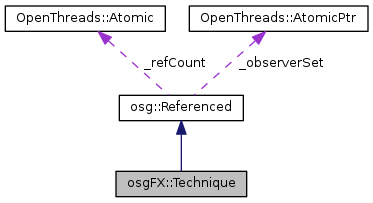

Collaboration diagram for osgFX::Technique:

Public Member Functions
	Technique ()
virtual const char *	techniqueName ()
virtual const char *	techniqueDescription ()
virtual void	getRequiredExtensions (std::vector< std::string > &) const
virtual bool	validate (osg::State &) const
int	getNumPasses () const
osg::StateSet *	getPassStateSet (int i)
const osg::StateSet *	getPassStateSet (int i) const
virtual void	traverse (osg::NodeVisitor &nv, Effect *fx)
Public Member Functions inherited from osg::Referenced
	Referenced ()
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
virtual void	setThreadSafeRefUnref (bool threadSafe)
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
int	unref () const
int	unref_nodelete () const
int	referenceCount () const
ObserverSet *	getObserverSet () const
ObserverSet *	getOrCreateObserverSet () const
void	addObserver (Observer *observer) const
void	removeObserver (Observer *observer) const

Protected Member Functions
	Technique (const Technique &)
virtual	~Technique ()
Technique &	operator= (const Technique &)
void	dirtyPasses ()
void	addPass (osg::StateSet *ss=0)
virtual osg::Node *	getOverrideChild (int)
virtual void	define_passes ()=0
void	traverse_implementation (osg::NodeVisitor &nv, Effect *fx)
Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
static bool	getThreadSafeReferenceCounting ()
static void	setDeleteHandler (DeleteHandler *handler)
static DeleteHandler *	getDeleteHandler ()
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount

Detailed Description

This is the base class for effect techniques. A technique represents one of the possible ways to implement a special effect. This base class is abstract, you will have to subclass your own techniques for your custom effects. Derived classes will have to implement the define_passes() method to configure the rendering pass(es) that make up the technique. Usually you will create one StateSet object for each rendering pass and then you'll call addPass(stateset). The validate() method should return true if the technique is valid within the current rendering context, false otherwise. The default implementation of validate() calls getRequiredExtensions() and tests whether all required extensions are supported or not, returning false if at least one extension is not supported.

Definition at line 57 of file Technique.h.

Constructor & Destructor Documentation

osgFX::Technique::Technique

(

)

osgFX::Technique::Technique ( const Technique &  )

inlineprotected

Definition at line 99 of file Technique.h.

virtual osgFX::Technique::~Technique ( )

inlineprotectedvirtual

Definition at line 100 of file Technique.h.

Member Function Documentation

void osgFX::Technique::addPass ( osg::StateSet *  ss = 0 )

protected

create a new pass node, add it to the technique and associate a StateSet

virtual void osgFX::Technique::define_passes ( )

protectedpure virtual

define the rendering passes that make up this technique. You must implement this method in derived classes to add the required passes.

void osgFX::Technique::dirtyPasses ( )

inlineprotected

force rebuilding of pass nodes on next traversal

Definition at line 146 of file Technique.h.

int osgFX::Technique::getNumPasses ( ) const

inline

get the number of rendering passes defined in this Technique

Definition at line 131 of file Technique.h.

virtual osg::Node* osgFX::Technique::getOverrideChild ( int  )

inlineprotectedvirtual

optional: return a node that overrides the child node on a specified pass

Definition at line 110 of file Technique.h.

osg::StateSet * osgFX::Technique::getPassStateSet ( int  i )

inline

get the StateSet object associated to the i-th pass

Definition at line 136 of file Technique.h.

const osg::StateSet * osgFX::Technique::getPassStateSet ( int  i ) const

inline

get the const StateSet object associated to the i-th pass

Definition at line 141 of file Technique.h.

virtual void osgFX::Technique::getRequiredExtensions ( std::vector< std::string > &  ) const

inlinevirtual

collect the GL extension strings which are required for this technique to work properly. This method is called from the default implementation of validate().

Definition at line 72 of file Technique.h.

Technique& osgFX::Technique::operator= ( const Technique &  )

inlineprotected

Definition at line 101 of file Technique.h.

virtual const char* osgFX::Technique::techniqueDescription ( )

inlinevirtual

get a brief description of this Technique

Definition at line 65 of file Technique.h.

virtual const char* osgFX::Technique::techniqueName ( )

inlinevirtual

get the name of this Technique

Definition at line 62 of file Technique.h.

void osgFX::Technique::traverse ( osg::NodeVisitor &  nv, Effect *  fx  )

inlinevirtual

traverse children with multipass if necessary. By default this method simply calls the protected method traverse_implementation(); you can override it to change the default behavior. Don't call this method directly as it is called by osgFX::Effect

Definition at line 151 of file Technique.h.

Here is the call graph for this function:

void osgFX::Technique::traverse_implementation ( osg::NodeVisitor &  nv, Effect *  fx  )

protected

traverse children with multipass if necessary. Don't call this method directly unless you are in a customized version of traverse().

Here is the caller graph for this function:

virtual bool osgFX::Technique::validate ( osg::State &  ) const

virtual

tests whether this technique is valid for the current rendering context. The default behavior is to call getRequiredExtensions() and check for extension availability.

---

The documentation for this class was generated from the following file:

• osg_head/include/osgFX/Technique.h
