A UFO manipulator driven with keybindings. More...

#include <UFOManipulator.h>

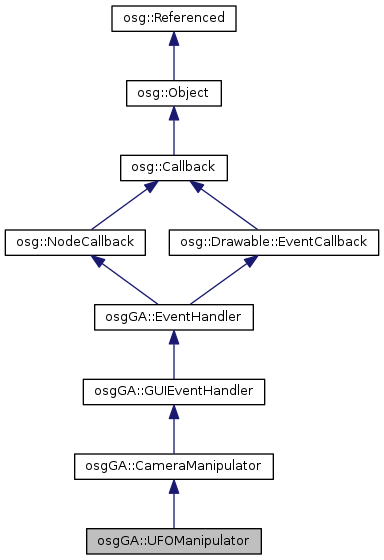

Inheritance diagram for osgGA::UFOManipulator:

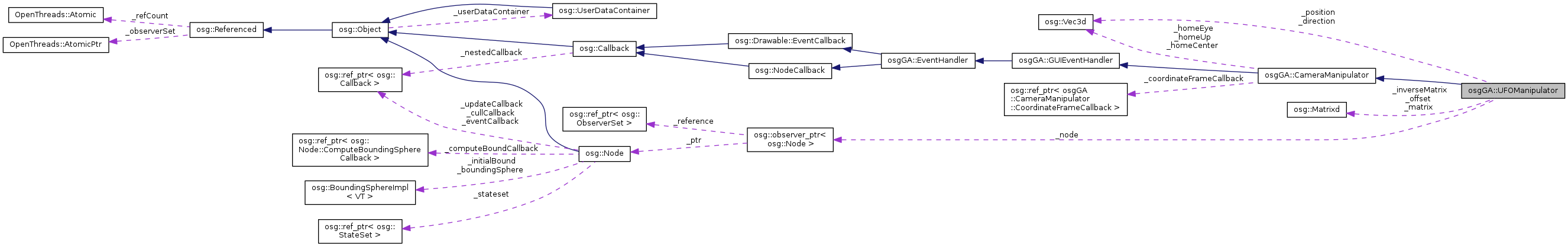

Collaboration diagram for osgGA::UFOManipulator:

Public Member Functions
	UFOManipulator ()

virtual const char *	className () const

virtual void	setByMatrix (const osg::Matrixd &matrix)

virtual void	setByInverseMatrix (const osg::Matrixd &invmat)

virtual osg::Matrixd	getMatrix () const

virtual osg::Matrixd	getInverseMatrix () const

virtual void	setNode (osg::Node *node)

virtual const osg::Node *	getNode () const

virtual osg::Node *	getNode ()

virtual void	computeHomePosition ()

virtual void	home (const osgGA::GUIEventAdapter &, osgGA::GUIActionAdapter &)

void	home (double)

virtual void	init (const GUIEventAdapter &, GUIActionAdapter &)

bool	handle (const osgGA::GUIEventAdapter &ea, osgGA::GUIActionAdapter &aa)

void	getUsage (osg::ApplicationUsage &usage) const

void	getCurrentPositionAsLookAt (osg::Vec3d &eye, osg::Vec3d &center, osg::Vec3d &up)

void	setMinHeight (double in_min_height)

double	getMinHeight () const

void	setMinDistance (double in_min_dist)

double	getMinDistance () const

void	setForwardSpeed (double in_fs)

double	getForwardSpeed () const

void	setSideSpeed (double in_ss)

double	getSideSpeed () const

void	setRotationSpeed (double in_rot_speed)

double	getRotationSpeed () const

Public Member Functions inherited from osgGA::CameraManipulator
virtual void	setCoordinateFrameCallback (CoordinateFrameCallback *cb)

CoordinateFrameCallback *	getCoordinateFrameCallback ()

const CoordinateFrameCallback *	getCoordinateFrameCallback () const

osg::CoordinateFrame	getCoordinateFrame (const osg::Vec3d &position) const

osg::Vec3d	getSideVector (const osg::CoordinateFrame &cf) const

osg::Vec3d	getFrontVector (const osg::CoordinateFrame &cf) const

osg::Vec3d	getUpVector (const osg::CoordinateFrame &cf) const

virtual void	updateCamera (osg::Camera &camera)

virtual osgUtil::SceneView::FusionDistanceMode	getFusionDistanceMode () const

virtual float	getFusionDistanceValue () const

void	setIntersectTraversalMask (unsigned int mask)

unsigned int	getIntersectTraversalMask () const

virtual void	setHomePosition (const osg::Vec3d &eye, const osg::Vec3d &center, const osg::Vec3d &up, bool autoComputeHomePosition=false)

virtual void	getHomePosition (osg::Vec3d &eye, osg::Vec3d &center, osg::Vec3d &up) const

virtual void	setAutoComputeHomePosition (bool flag)

bool	getAutoComputeHomePosition () const

virtual void	computeHomePosition (const osg::Camera *camera=NULL, bool useBoundingBox=false)

virtual void	finishAnimation ()

virtual bool	handle (osgGA::Event event, osg::Object object, osg::NodeVisitor *nv)

Public Member Functions inherited from osgGA::GUIEventHandler
	GUIEventHandler ()

	GUIEventHandler (const GUIEventHandler &eh, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgGA, GUIEventHandler)

virtual bool	handle (const GUIEventAdapter &ea, GUIActionAdapter &aa, osg::Object , osg::NodeVisitor )

Public Member Functions inherited from osgGA::EventHandler
	EventHandler ()

	EventHandler (const EventHandler &eh, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgGA, EventHandler)

virtual bool	run (osg::Object object, osg::Object data)

virtual void	operator() (osg::Node node, osg::NodeVisitor nv)

virtual void	event (osg::NodeVisitor nv, osg::Drawable drawable)

Public Member Functions inherited from osg::NodeCallback
	NodeCallback ()

	NodeCallback (const NodeCallback &nc, const CopyOp &copyop)

	META_Object (osg, NodeCallback)

Public Member Functions inherited from osg::Callback
	Callback ()

	Callback (const Callback &cb, const CopyOp &copyop)

	META_Object (osg, Callback)

bool	traverse (osg::Object object, osg::Object data)

void	setNestedCallback (osg::Callback *cb)

osg::Callback *	getNestedCallback ()

const osg::Callback *	getNestedCallback () const

void	addNestedCallback (osg::Callback *nc)

void	removeNestedCallback (osg::Callback *nc)

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

virtual bool	isSameKindAs (const Object *) const

virtual const char *	libraryName () const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Public Member Functions inherited from osg::Drawable::EventCallback
	EventCallback ()

	EventCallback (const EventCallback &, const CopyOp &)

	META_Object (osg, EventCallback)

Protected Member Functions
virtual	~UFOManipulator ()

bool	intersect (const osg::Vec3d &start, const osg::Vec3d &end, osg::Vec3d &intersection) const

void	_stop ()

void	_keyDown (const osgGA::GUIEventAdapter &ea, osgGA::GUIActionAdapter &)

void	_keyUp (const osgGA::GUIEventAdapter &ea, osgGA::GUIActionAdapter &)

void	_frame (const osgGA::GUIEventAdapter &ea, osgGA::GUIActionAdapter &)

void	_adjustPosition ()

Protected Member Functions inherited from osgGA::CameraManipulator
	CameraManipulator ()

	CameraManipulator (const CameraManipulator &mm, const osg::CopyOp &copyOp=osg::CopyOp::SHALLOW_COPY)

virtual	~CameraManipulator ()

std::string	getManipulatorName () const

Protected Member Functions inherited from osgGA::GUIEventHandler
virtual	~GUIEventHandler ()

Protected Member Functions inherited from osg::NodeCallback
virtual	~NodeCallback ()

Protected Member Functions inherited from osg::Callback
virtual	~Callback ()

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
osg::observer_ptr< osg::Node >	_node

float	_viewAngle

osg::Matrixd	_matrix

osg::Matrixd	_inverseMatrix

osg::Matrixd	_offset

double	_minHeightAboveGround

double	_minDistanceInFront

double	_speedEpsilon

double	_forwardSpeed

double	_sideSpeed

double	_upSpeed

double	_speedAccelerationFactor

double	_speedDecelerationFactor

bool	_decelerateUpSideRate

double	_directionRotationEpsilon

double	_directionRotationRate

double	_directionRotationAcceleration

double	_directionRotationDeceleration

double	_viewOffsetDelta

double	_pitchOffsetRate

double	_pitchOffset

double	_yawOffsetRate

double	_yawOffset

double	_t0

double	_dt

osg::Vec3d	_direction

osg::Vec3d	_position

bool	_shift

bool	_ctrl

bool	_decelerateOffsetRate

bool	_straightenOffset

Protected Attributes inherited from osgGA::CameraManipulator
unsigned int	_intersectTraversalMask

bool	_autoComputeHomePosition

osg::Vec3d	_homeEye

osg::Vec3d	_homeCenter

osg::Vec3d	_homeUp

osg::ref_ptr < CoordinateFrameCallback >	_coordinateFrameCallback

Protected Attributes inherited from osg::Callback
ref_ptr< Callback >	_nestedCallback

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Additional Inherited Members
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Detailed Description

A UFO manipulator driven with keybindings.

The UFOManipulator is better suited for applications that employ architectural walk-throughs, or situations where the eyepoint motion model must move slowly, deliberately and well controlled.

The UFO Manipulator allows the following movements with the listed Key combinations:

Parameters

UpArrow	Acceleration forward.
DownArrow	Acceleration backward (or deceleration forward).
LeftArrow	Rotate view and direction of travel to the left.
RightArrow	Rotate view and direction of travel to the right.
SpaceBar	Brake. Gradually decelerates linear and rotational movement.
Shift/UpArrow	Accelerate up.
Shift/DownArrow	Accelerate down.
Shift/LeftArrow	Accelerate (linearly) left.
Shift/RightArrow	Accelerate (linearly) right.
Shift/SpaceBar	Instant brake. Immediately stop all linear and rotational movement.

When the Shift key is released, up, down, linear left and/or linear right movement is decelerated.

\param Ctrl/UpArrow     Rotate view (but not direction of travel) up.
\param Ctrl/DownArrow   Rotate view (but not direction of travel) down.
\param Ctrl/LeftArrow   Rotate view (but not direction of travel) left.
\param Ctrl/RightArrow  Rotate view (but not direction of travel) right.
\param Ctrl/Return      Straightens out the view offset.

Definition at line 56 of file UFOManipulator.h.

Constructor & Destructor Documentation

osgGA::UFOManipulator::UFOManipulator ( )

Default constructor

virtual osgGA::UFOManipulator::~UFOManipulator ( )

protectedvirtual

Member Function Documentation

void osgGA::UFOManipulator::_adjustPosition ( )

protected

void osgGA::UFOManipulator::_frame	(	const osgGA::GUIEventAdapter &	ea,
		osgGA::GUIActionAdapter &
	)

protected

void osgGA::UFOManipulator::_keyDown	(	const osgGA::GUIEventAdapter &	ea,
		osgGA::GUIActionAdapter &
	)

protected

void osgGA::UFOManipulator::_keyUp	(	const osgGA::GUIEventAdapter &	ea,
		osgGA::GUIActionAdapter &
	)

protected

void osgGA::UFOManipulator::_stop ( )

protected

virtual const char* osgGA::UFOManipulator::className ( ) const

virtual

return className

Returns: returns constant "UFO"

Reimplemented from osgGA::CameraManipulator.

virtual void osgGA::UFOManipulator::computeHomePosition ( )

virtual

Computes the home position based on the extents and scale of the scene graph rooted at node

void osgGA::UFOManipulator::getCurrentPositionAsLookAt	(	osg::Vec3d &	eye,
		osg::Vec3d &	center,
		osg::Vec3d &	up
	)

Report the current position as LookAt vectors

double osgGA::UFOManipulator::getForwardSpeed ( ) const

inline

Definition at line 122 of file UFOManipulator.h.

virtual osg::Matrixd osgGA::UFOManipulator::getInverseMatrix ( ) const

virtual

Get the current inverse view matrix

Implements osgGA::CameraManipulator.

virtual osg::Matrixd osgGA::UFOManipulator::getMatrix ( ) const

virtual

Get the current viewmatrix

Implements osgGA::CameraManipulator.

double osgGA::UFOManipulator::getMinDistance ( ) const

inline

Definition at line 119 of file UFOManipulator.h.

double osgGA::UFOManipulator::getMinHeight ( ) const

inline

Definition at line 116 of file UFOManipulator.h.

virtual const osg::Node* osgGA::UFOManipulator::getNode ( ) const

virtual

Get the root node of the subgraph this manipulator is driving the eye through (const)

Reimplemented from osgGA::CameraManipulator.

virtual osg::Node* osgGA::UFOManipulator::getNode ( )

virtual

Get the root node of the subgraph this manipulator is driving the eye through

Reimplemented from osgGA::CameraManipulator.

double osgGA::UFOManipulator::getRotationSpeed ( ) const

inline

Definition at line 128 of file UFOManipulator.h.

double osgGA::UFOManipulator::getSideSpeed ( ) const

inline

Definition at line 125 of file UFOManipulator.h.

void osgGA::UFOManipulator::getUsage ( osg::ApplicationUsage & usage ) const

virtual

Reports Usage parameters to the application

Reimplemented from osgGA::EventHandler.

bool osgGA::UFOManipulator::handle	(	const osgGA::GUIEventAdapter &	ea,
		osgGA::GUIActionAdapter &	aa
	)

virtual

Handles incoming osgGA events

Reimplemented from osgGA::CameraManipulator.

virtual void osgGA::UFOManipulator::home	(	const osgGA::GUIEventAdapter &	,
		osgGA::GUIActionAdapter &
	)

virtual

Sets the viewpoint matrix to the home position

Reimplemented from osgGA::CameraManipulator.

void osgGA::UFOManipulator::home ( double )

virtual

Move the camera to the default position. This version does not require GUIEventAdapter and GUIActionAdapter so may be called from somewhere other than a handle() method in GUIEventHandler. Application must be aware of implications.

Reimplemented from osgGA::CameraManipulator.

virtual void osgGA::UFOManipulator::init	(	const GUIEventAdapter &	,
		GUIActionAdapter &
	)

virtual

Start/restart the manipulator. FIXME: what does this actually mean? Provide examples.

Reimplemented from osgGA::CameraManipulator.

bool osgGA::UFOManipulator::intersect	(	const osg::Vec3d &	start,
		const osg::Vec3d &	end,
		osg::Vec3d &	intersection
	)		const

protected

virtual void osgGA::UFOManipulator::setByInverseMatrix ( const osg::Matrixd & invmat )

virtual

Set the current position with the inverse matrix

Parameters

invmat The inverse of a viewpoint matrix

Implements osgGA::CameraManipulator.

virtual void osgGA::UFOManipulator::setByMatrix ( const osg::Matrixd & matrix )

virtual

Set the current position with a matrix

Parameters

matrix A viewpoint matrix.

Implements osgGA::CameraManipulator.

void osgGA::UFOManipulator::setForwardSpeed ( double in_fs )

inline

Definition at line 121 of file UFOManipulator.h.

void osgGA::UFOManipulator::setMinDistance ( double in_min_dist )

inline

Definition at line 118 of file UFOManipulator.h.

void osgGA::UFOManipulator::setMinHeight ( double in_min_height )

inline

Definition at line 115 of file UFOManipulator.h.

virtual void osgGA::UFOManipulator::setNode ( osg::Node * node )

virtual

Set the subgraph this manipulator is driving the eye through.

Parameters

node	root of subgraph

Reimplemented from osgGA::CameraManipulator.

void osgGA::UFOManipulator::setRotationSpeed ( double in_rot_speed )

inline

Definition at line 127 of file UFOManipulator.h.

void osgGA::UFOManipulator::setSideSpeed ( double in_ss )

inline

Definition at line 124 of file UFOManipulator.h.

Member Data Documentation

bool osgGA::UFOManipulator::_ctrl

protected

Definition at line 173 of file UFOManipulator.h.

bool osgGA::UFOManipulator::_decelerateOffsetRate

protected

Definition at line 174 of file UFOManipulator.h.

bool osgGA::UFOManipulator::_decelerateUpSideRate

protected

Definition at line 153 of file UFOManipulator.h.

osg::Vec3d osgGA::UFOManipulator::_direction

protected

Definition at line 168 of file UFOManipulator.h.

double osgGA::UFOManipulator::_directionRotationAcceleration

protected

Definition at line 157 of file UFOManipulator.h.

double osgGA::UFOManipulator::_directionRotationDeceleration

protected

Definition at line 158 of file UFOManipulator.h.

double osgGA::UFOManipulator::_directionRotationEpsilon

protected

Definition at line 155 of file UFOManipulator.h.

double osgGA::UFOManipulator::_directionRotationRate

protected

Definition at line 156 of file UFOManipulator.h.

double osgGA::UFOManipulator::_dt

protected

Definition at line 167 of file UFOManipulator.h.

double osgGA::UFOManipulator::_forwardSpeed

protected

Definition at line 147 of file UFOManipulator.h.

osg::Matrixd osgGA::UFOManipulator::_inverseMatrix

protected

Definition at line 140 of file UFOManipulator.h.

osg::Matrixd osgGA::UFOManipulator::_matrix

protected

Definition at line 139 of file UFOManipulator.h.

double osgGA::UFOManipulator::_minDistanceInFront

protected

Definition at line 144 of file UFOManipulator.h.

double osgGA::UFOManipulator::_minHeightAboveGround

protected

Definition at line 143 of file UFOManipulator.h.

osg::observer_ptr<osg::Node> osgGA::UFOManipulator::_node

protected

Definition at line 137 of file UFOManipulator.h.

osg::Matrixd osgGA::UFOManipulator::_offset

protected

Definition at line 141 of file UFOManipulator.h.

double osgGA::UFOManipulator::_pitchOffset

protected

Definition at line 162 of file UFOManipulator.h.

double osgGA::UFOManipulator::_pitchOffsetRate

protected

Definition at line 161 of file UFOManipulator.h.

osg::Vec3d osgGA::UFOManipulator::_position

protected

Definition at line 169 of file UFOManipulator.h.

bool osgGA::UFOManipulator::_shift

protected

Definition at line 172 of file UFOManipulator.h.

double osgGA::UFOManipulator::_sideSpeed

protected

Definition at line 148 of file UFOManipulator.h.

double osgGA::UFOManipulator::_speedAccelerationFactor

protected

Definition at line 150 of file UFOManipulator.h.

double osgGA::UFOManipulator::_speedDecelerationFactor

protected

Definition at line 151 of file UFOManipulator.h.

double osgGA::UFOManipulator::_speedEpsilon

protected

Definition at line 146 of file UFOManipulator.h.

bool osgGA::UFOManipulator::_straightenOffset

protected

Definition at line 176 of file UFOManipulator.h.

double osgGA::UFOManipulator::_t0

protected

Definition at line 166 of file UFOManipulator.h.

double osgGA::UFOManipulator::_upSpeed

protected

Definition at line 149 of file UFOManipulator.h.

float osgGA::UFOManipulator::_viewAngle

protected

Definition at line 138 of file UFOManipulator.h.

double osgGA::UFOManipulator::_viewOffsetDelta

protected

Definition at line 160 of file UFOManipulator.h.

double osgGA::UFOManipulator::_yawOffset

protected

Definition at line 164 of file UFOManipulator.h.

double osgGA::UFOManipulator::_yawOffsetRate

protected

Definition at line 163 of file UFOManipulator.h.

The documentation for this class was generated from the following file:

osg_head/include/osgGA/UFOManipulator.h

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
