#include <SphereSegment.h>

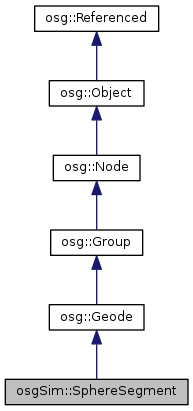

Inheritance diagram for osgSim::SphereSegment:

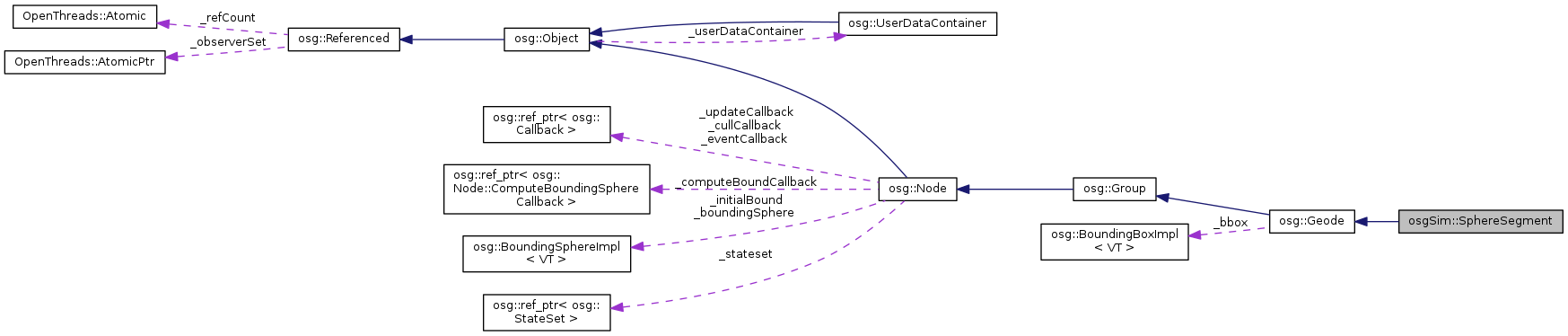

Collaboration diagram for osgSim::SphereSegment:

Public Types
enum	DrawMask { SURFACE = 0x00000001, SPOKES = 0x00000002, EDGELINE = 0x00000008, SIDES = 0x00000010, ALL = 0x7fffffff }

typedef std::vector < osg::ref_ptr< osg::Vec3Array > >	LineList

Public Types inherited from osg::Node
typedef std::vector< Group * >	ParentList

typedef unsigned int	NodeMask

typedef std::vector< std::string >	DescriptionList

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	SphereSegment ()

	SphereSegment (const osg::Vec3 &centre, float radius, float azMin, float azMax, float elevMin, float elevMax, int density)

	SphereSegment (const osg::Vec3 &centre, float radius, const osg::Vec3 &vec, float azRange, float elevRange, int density)

	SphereSegment (const SphereSegment &rhs, const osg::CopyOp &co)

void	setCentre (const osg::Vec3 &c)

const osg::Vec3 &	getCentre () const

void	setRadius (float r)

float	getRadius () const

void	setArea (const osg::Vec3 &vec, float azRange, float elevRange)

void	getArea (osg::Vec3 &vec, float &azRange, float &elevRange) const

void	setArea (float azMin, float azMax, float elevMin, float elevMax)

void	getArea (float &azMin, float &azMax, float &elevMin, float &elevMax) const

void	setDensity (int d)

int	getDensity () const

void	setDrawMask (int dm)

int	getDrawMask () const

void	setSurfaceColor (const osg::Vec4 &c)

const osg::Vec4 &	getSurfaceColor () const

void	setSpokeColor (const osg::Vec4 &c)

const osg::Vec4 &	getSpokeColor () const

void	setEdgeLineColor (const osg::Vec4 &c)

const osg::Vec4 &	getEdgeLineColor () const

void	setSideColor (const osg::Vec4 &c)

const osg::Vec4 &	getSideColor () const

void	setAllColors (const osg::Vec4 &c)

	META_Node (osgSim, SphereSegment)

LineList	computeIntersection (const osg::Matrixd &matrix, osg::Node *subgraph)

LineList	computeIntersection (const osg::Matrixd &matrix, osg::Drawable *drawable)

osg::Node *	computeIntersectionSubgraph (const osg::Matrixd &matrix, osg::Node *subgraph)

osg::Node *	computeIntersectionSubgraph (const osg::Matrixd &matrix, osg::Drawable *drawable)

Public Member Functions inherited from osg::Geode
	Geode ()

	Geode (const Geode &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

	META_Node (osg, Geode)

virtual Geode *	asGeode ()

virtual const Geode *	asGeode () const

virtual bool	addDrawable (Drawable *drawable)

virtual bool	removeDrawable (Drawable *drawable)

virtual bool	removeDrawables (unsigned int i, unsigned int numDrawablesToRemove=1)

virtual bool	replaceDrawable (Drawable origDraw, Drawable newDraw)

virtual bool	setDrawable (unsigned int i, Drawable *drawable)

unsigned int	getNumDrawables () const

Drawable *	getDrawable (unsigned int i)

const Drawable *	getDrawable (unsigned int i) const

bool	containsDrawable (const Drawable *drawable) const

unsigned int	getDrawableIndex (const Drawable *drawable) const

void	compileDrawables (RenderInfo &renderInfo)

const BoundingBox &	getBoundingBox () const

virtual BoundingSphere	computeBound () const

Public Member Functions inherited from osg::Group
	Group ()

	Group (const Group &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

	META_Node (osg, Group)

virtual Group *	asGroup ()

virtual const Group *	asGroup () const

virtual void	traverse (NodeVisitor &nv)

virtual bool	addChild (Node *child)

virtual bool	insertChild (unsigned int index, Node *child)

virtual bool	removeChild (Node *child)

bool	removeChild (unsigned int pos, unsigned int numChildrenToRemove=1)

virtual bool	removeChildren (unsigned int pos, unsigned int numChildrenToRemove)

virtual bool	replaceChild (Node origChild, Node newChild)

virtual unsigned int	getNumChildren () const

virtual bool	setChild (unsigned int i, Node *node)

Node *	getChild (unsigned int i)

const Node *	getChild (unsigned int i) const

bool	containsNode (const Node *node) const

unsigned int	getChildIndex (const Node *node) const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	resizeGLObjectBuffers (unsigned int maxSize)

virtual void	releaseGLObjects (osg::State *=0) const

Public Member Functions inherited from osg::Node
	Node ()

	Node (const Node &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const

virtual Object *	clone (const CopyOp &copyop) const

virtual bool	isSameKindAs (const Object *obj) const

virtual const char *	libraryName () const

virtual const char *	className () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual Drawable *	asDrawable ()

virtual const Drawable *	asDrawable () const

virtual Geometry *	asGeometry ()

virtual const Geometry *	asGeometry () const

virtual Transform *	asTransform ()

virtual const Transform *	asTransform () const

virtual Camera *	asCamera ()

virtual const Camera *	asCamera () const

virtual Switch *	asSwitch ()

virtual const Switch *	asSwitch () const

virtual osgTerrain::Terrain *	asTerrain ()

virtual const osgTerrain::Terrain *	asTerrain () const

virtual void	accept (NodeVisitor &nv)

virtual void	ascend (NodeVisitor &nv)

const ParentList &	getParents () const

ParentList	getParents ()

Group *	getParent (unsigned int i)

const Group *	getParent (unsigned int i) const

unsigned int	getNumParents () const

NodePathList	getParentalNodePaths (osg::Node *haltTraversalAtNode=0) const

MatrixList	getWorldMatrices (const osg::Node *haltTraversalAtNode=0) const

void	setUpdateCallback (Callback *nc)

Callback *	getUpdateCallback ()

const Callback *	getUpdateCallback () const

void	addUpdateCallback (Callback *nc)

void	removeUpdateCallback (Callback *nc)

unsigned int	getNumChildrenRequiringUpdateTraversal () const

void	setEventCallback (Callback *nc)

Callback *	getEventCallback ()

const Callback *	getEventCallback () const

void	addEventCallback (Callback *nc)

void	removeEventCallback (Callback *nc)

unsigned int	getNumChildrenRequiringEventTraversal () const

void	setCullCallback (Callback *nc)

Callback *	getCullCallback ()

const Callback *	getCullCallback () const

void	addCullCallback (Callback *nc)

void	removeCullCallback (Callback *nc)

void	setCullingActive (bool active)

bool	getCullingActive () const

unsigned int	getNumChildrenWithCullingDisabled () const

bool	isCullingActive () const

unsigned int	getNumChildrenWithOccluderNodes () const

bool	containsOccluderNodes () const

void	setNodeMask (NodeMask nm)

NodeMask	getNodeMask () const

void	setStateSet (osg::StateSet *stateset)

osg::StateSet *	getOrCreateStateSet ()

osg::StateSet *	getStateSet ()

const osg::StateSet *	getStateSet () const

void	setDescriptions (const DescriptionList &descriptions)

DescriptionList &	getDescriptions ()

const DescriptionList &	getDescriptions () const

const std::string &	getDescription (unsigned int i) const

std::string &	getDescription (unsigned int i)

unsigned int	getNumDescriptions () const

void	addDescription (const std::string &desc)

void	setInitialBound (const osg::BoundingSphere &bsphere)

const BoundingSphere &	getInitialBound () const

void	dirtyBound ()

const BoundingSphere &	getBound () const

void	setComputeBoundingSphereCallback (ComputeBoundingSphereCallback *callback)

ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback ()

const ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback () const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string	getCompoundClassName () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Friends
class	Surface

class	EdgeLine

class	Side

class	Spoke

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Member Functions inherited from osg::Geode
virtual	~Geode ()

Protected Member Functions inherited from osg::Group
virtual	~Group ()

virtual void	childRemoved (unsigned int, unsigned int)

virtual void	childInserted (unsigned int)

Protected Member Functions inherited from osg::Node
virtual	~Node ()

void	addParent (osg::Group *parent)

void	removeParent (osg::Group *parent)

void	setNumChildrenRequiringUpdateTraversal (unsigned int num)

void	setNumChildrenRequiringEventTraversal (unsigned int num)

void	setNumChildrenWithCullingDisabled (unsigned int num)

void	setNumChildrenWithOccluderNodes (unsigned int num)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes inherited from osg::Geode
osg::BoundingBox	_bbox

Protected Attributes inherited from osg::Group
NodeList	_children

Protected Attributes inherited from osg::Node
BoundingSphere	_initialBound

ref_ptr < ComputeBoundingSphereCallback >	_computeBoundCallback

BoundingSphere	_boundingSphere

bool	_boundingSphereComputed

ParentList	_parents

ref_ptr< Callback >	_updateCallback

unsigned int	_numChildrenRequiringUpdateTraversal

ref_ptr< Callback >	_eventCallback

unsigned int	_numChildrenRequiringEventTraversal

ref_ptr< Callback >	_cullCallback

bool	_cullingActive

unsigned int	_numChildrenWithCullingDisabled

unsigned int	_numChildrenWithOccluderNodes

NodeMask	_nodeMask

ref_ptr< StateSet >	_stateset

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Detailed Description

A SphereSegment is a Geode to represent an portion of a sphere (potentially the whole sphere). The sphere is aligned such that the line through the sphere's poles is parallel to the z axis. The sphere segment may be rendered various components switched on or off:

- The specified area of the sphere surface.

- An edge line around the boundary of the specified area
  of the sphere surface.

- Four <i>spokes</i>, where a spoke is the line from
  the sphere's centre to a corner of the rendered area.

- Four planar areas, where the planar areas are formed
  between the spokes.

Caveats:

- It's worth noting that the line through the sphere's poles is
  parallel to the z axis. This has implications when specifying the
  area to be rendered, and specifying areas where the centre of
  the rendered area <i>is</i> the Z axis may lead to unexpected
  geometry.

- It's possible to render the whole sphere by specifying elevation
  and azimuth ranges round the full 360 degrees. When doing
  so you may consider switching the planes, spokes, and edge lines
  off, to avoid rendering artefacts, e.g. the upper and lower
  planes will be coincident.

Definition at line 59 of file SphereSegment.h.

Member Typedef Documentation

typedef std::vector< osg::ref_ptr<osg::Vec3Array> > osgSim::SphereSegment::LineList

A list of vertex arrays representing a list of lines.

Definition at line 232 of file SphereSegment.h.

Member Enumeration Documentation

enum osgSim::SphereSegment::DrawMask

DrawMask represents a bit field, the values of which may be OR'ed together to specify which parts of the sphere segment should be drawn. E.g.

sphereSegment->setDrawMask(SphereSegment::DrawMask(SphereSegment::SURFACE|SphereSegment::SPOKES));

Enumerator
SURFACE	Draw the specified area on the sphere's surface.
SPOKES	Draw the spokes from the sphere's centre to the surface's corners.
EDGELINE	Draw the line round the edge of the area on the sphere's surface.
SIDES	Draw the planes from the sphere's centre to the edge of the sphere's surface.
ALL	Draw every part of the sphere segment.

Definition at line 70 of file SphereSegment.h.

Constructor & Destructor Documentation

osgSim::SphereSegment::SphereSegment ( )

inline

Default constructor.

Definition at line 80 of file SphereSegment.h.

osgSim::SphereSegment::SphereSegment	(	const osg::Vec3 &	centre,
		float	radius,
		float	azMin,
		float	azMax,
		float	elevMin,
		float	elevMax,
		int	density
	)

inline

Construct by angle ranges. Note that the azimuth 'zero' is the Y axis; specifying an azimuth range from azMin -osg::PI/2.0f to azMax osg::PI/2.0f will cover the 'top half' of the circle in the XY plane. The elev angles are 'out' of the 'zero' XY plane with +ve angles above the plane, and -ve angles below.

Parameters

centre	sphere centre
radius	radius of sphere
azMin	azimuth minimum
azMax	azimuth maximum
elevMin	elevation minimum
elevMax	elevation maximum
density	number of units to divide the azimuth and elevation ranges into

Definition at line 103 of file SphereSegment.h.

osgSim::SphereSegment::SphereSegment	(	const osg::Vec3 &	centre,
		float	radius,
		const osg::Vec3 &	vec,
		float	azRange,
		float	elevRange,
		int	density
	)

Construct by vector.

Parameters

centre	sphere centre
radius	radius of sphere
vec	vector pointing from sphere centre to centre point of rendered area on sphere surface
azRange	azimuth range in radians (with centre along vec)
elevRange	elevation range in radians (with centre along vec)
density	number of units to divide the azimuth and elevation ranges into

osgSim::SphereSegment::SphereSegment	(	const SphereSegment &	rhs,
		const osg::CopyOp &	co
	)

inline

Copy constructor

Definition at line 129 of file SphereSegment.h.

Member Function Documentation

LineList osgSim::SphereSegment::computeIntersection	(	const osg::Matrixd &	matrix,
		osg::Node *	subgraph
	)

Compute the interesection lines between subgraph and this sphere segment. The matrix is the transform that takes the subgraph into the same coordiante frame as the sphere segment. The resulting intersections are in the coordinate frame of the sphere segment.

LineList osgSim::SphereSegment::computeIntersection	(	const osg::Matrixd &	matrix,
		osg::Drawable *	drawable
	)

Compute the interesection lines between specified drawable and this sphere segment. The matrix is the transform that takes the subgraph into the same coordiante frame as the sphere segment. The resulting intersections are in the coordinate frame of the sphere segment.

osg::Node* osgSim::SphereSegment::computeIntersectionSubgraph	(	const osg::Matrixd &	matrix,
		osg::Node *	subgraph
	)

Compute the interesection lines between subgraph and this sphere segment. The matrix is the transform that takes the subgraph into the same coordiante frame as the sphere segment. The resulting intersections are in the coordinate frame of the sphere segment.

osg::Node* osgSim::SphereSegment::computeIntersectionSubgraph	(	const osg::Matrixd &	matrix,
		osg::Drawable *	drawable
	)

Compute the interesection lines between specified drawable and this sphere segment. The matrix is the transform that takes the subgraph into the same coordiante frame as the sphere segment. The resulting intersections are in the coordinate frame of the sphere segment.

void osgSim::SphereSegment::getArea	(	osg::Vec3 &	vec,
		float &	azRange,
		float &	elevRange
	)		const

Get the area of the sphere segment

Parameters

vec	vector pointing from sphere centre to centre point of rendered area on sphere surface (normalized)
azRange	azimuth range in radians (with centre along vec)
elevRange	elevation range in radians (with centre along vec)

void osgSim::SphereSegment::getArea	(	float &	azMin,
		float &	azMax,
		float &	elevMin,
		float &	elevMax
	)		const

Get the area of the sphere segment

Parameters

azMin	azimuth minimum
azMax	azimuth maximum
elevMin	elevation minimum
elevMax	elevation maximum

const osg::Vec3& osgSim::SphereSegment::getCentre ( ) const

Get the centre point of the SphereSegment

int osgSim::SphereSegment::getDensity ( ) const

Get the density of the sphere segment

int osgSim::SphereSegment::getDrawMask ( ) const

inline

Get the DrawMask

Definition at line 200 of file SphereSegment.h.

const osg::Vec4& osgSim::SphereSegment::getEdgeLineColor ( ) const

inline

Get the color of the edge line.

Definition at line 218 of file SphereSegment.h.

float osgSim::SphereSegment::getRadius ( ) const

Get the radius of the SphereSegment

const osg::Vec4& osgSim::SphereSegment::getSideColor ( ) const

inline

Get the color of the planes.

Definition at line 224 of file SphereSegment.h.

const osg::Vec4& osgSim::SphereSegment::getSpokeColor ( ) const

inline

Get the color of the spokes.

Definition at line 212 of file SphereSegment.h.

const osg::Vec4& osgSim::SphereSegment::getSurfaceColor ( ) const

inline

Get the color of the surface.

Definition at line 206 of file SphereSegment.h.

osgSim::SphereSegment::META_Node	(	osgSim	,
		SphereSegment
	)

void osgSim::SphereSegment::setAllColors ( const osg::Vec4 & c )

Set color of all components.

void osgSim::SphereSegment::setArea	(	const osg::Vec3 &	vec,
		float	azRange,
		float	elevRange
	)

Set the area of the sphere segment

Parameters

vec	vector pointing from sphere centre to centre point of rendered area on sphere surface
azRange	azimuth range in radians (with centre along vec)
elevRange	elevation range in radians (with centre along vec)

void osgSim::SphereSegment::setArea	(	float	azMin,
		float	azMax,
		float	elevMin,
		float	elevMax
	)

Set the area of the sphere segment

Parameters

azMin	azimuth minimum
azMax	azimuth maximum
elevMin	elevation minimum
elevMax	elevation maximum

void osgSim::SphereSegment::setCentre ( const osg::Vec3 & c )

Set the centre point of the SphereSegment

void osgSim::SphereSegment::setDensity ( int d )

Set the density of the sphere segment

void osgSim::SphereSegment::setDrawMask ( int dm )

Specify the DrawMask.

Parameters

dm	Bitmask specifying which parts of the sphere segment should be drawn.

See also: DrawMask

void osgSim::SphereSegment::setEdgeLineColor ( const osg::Vec4 & c )

Set the color of the edge line.

void osgSim::SphereSegment::setRadius ( float r )

Set the radius of the SphereSegment

void osgSim::SphereSegment::setSideColor ( const osg::Vec4 & c )

Set the color of the planes.

void osgSim::SphereSegment::setSpokeColor ( const osg::Vec4 & c )

Set the color of the spokes.

void osgSim::SphereSegment::setSurfaceColor ( const osg::Vec4 & c )

Set the color of the surface.

Friends And Related Function Documentation

friend class EdgeLine

friend

Definition at line 284 of file SphereSegment.h.

friend class Side

friend

Definition at line 291 of file SphereSegment.h.

friend class Spoke

friend

Definition at line 296 of file SphereSegment.h.

friend class Surface

friend

Definition at line 279 of file SphereSegment.h.

The documentation for this class was generated from the following file:

osg_head/include/osgSim/SphereSegment.h
