#include <KeySwitchMatrixManipulator.h>

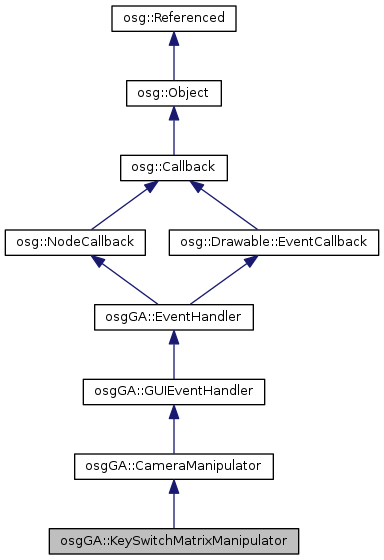

Inheritance diagram for osgGA::KeySwitchMatrixManipulator:

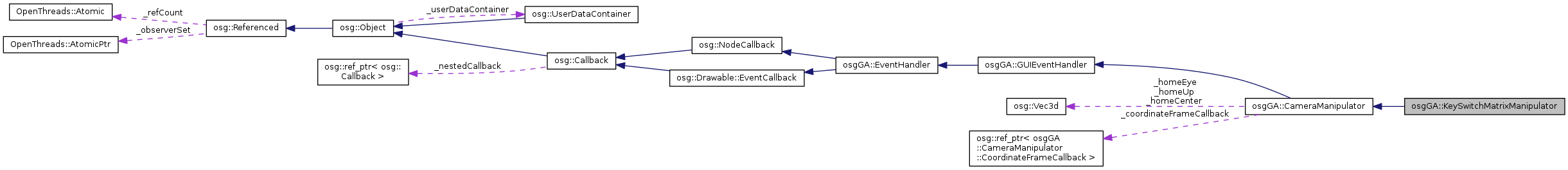

Collaboration diagram for osgGA::KeySwitchMatrixManipulator:

Public Types
typedef std::pair< std::string, osg::ref_ptr < CameraManipulator > >	NamedManipulator

typedef std::map< int, NamedManipulator >	KeyManipMap

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
virtual const char *	className () const

void	addMatrixManipulator (int key, std::string name, CameraManipulator *cm)

void	addNumberedMatrixManipulator (CameraManipulator *cm)

unsigned int	getNumMatrixManipulators () const

void	selectMatrixManipulator (unsigned int num)

KeyManipMap &	getKeyManipMap ()

const KeyManipMap &	getKeyManipMap () const

CameraManipulator *	getCurrentMatrixManipulator ()

const CameraManipulator *	getCurrentMatrixManipulator () const

CameraManipulator *	getMatrixManipulatorWithIndex (unsigned int key)

const CameraManipulator *	getMatrixManipulatorWithIndex (unsigned int key) const

CameraManipulator *	getMatrixManipulatorWithKey (unsigned int key)

const CameraManipulator *	getMatrixManipulatorWithKey (unsigned int key) const

virtual void	setCoordinateFrameCallback (CoordinateFrameCallback *cb)

virtual void	setByMatrix (const osg::Matrixd &matrix)

virtual void	setByInverseMatrix (const osg::Matrixd &matrix)

virtual osg::Matrixd	getMatrix () const

virtual osg::Matrixd	getInverseMatrix () const

virtual osgUtil::SceneView::FusionDistanceMode	getFusionDistanceMode () const

virtual float	getFusionDistanceValue () const

virtual void	setNode (osg::Node *n)

virtual const osg::Node *	getNode () const

virtual osg::Node *	getNode ()

virtual void	setHomePosition (const osg::Vec3d &eye, const osg::Vec3d &center, const osg::Vec3d &up, bool autoComputeHomePosition=false)

virtual void	setAutoComputeHomePosition (bool flag)

virtual void	computeHomePosition ()

virtual void	finishAnimation ()

virtual void	home (const GUIEventAdapter &ee, GUIActionAdapter &aa)

virtual void	init (const GUIEventAdapter &ee, GUIActionAdapter &aa)

virtual bool	handle (const GUIEventAdapter &ea, GUIActionAdapter &us)

virtual void	getUsage (osg::ApplicationUsage &usage) const

Public Member Functions inherited from osgGA::CameraManipulator
CoordinateFrameCallback *	getCoordinateFrameCallback ()

const CoordinateFrameCallback *	getCoordinateFrameCallback () const

osg::CoordinateFrame	getCoordinateFrame (const osg::Vec3d &position) const

osg::Vec3d	getSideVector (const osg::CoordinateFrame &cf) const

osg::Vec3d	getFrontVector (const osg::CoordinateFrame &cf) const

osg::Vec3d	getUpVector (const osg::CoordinateFrame &cf) const

virtual void	updateCamera (osg::Camera &camera)

void	setIntersectTraversalMask (unsigned int mask)

unsigned int	getIntersectTraversalMask () const

virtual void	getHomePosition (osg::Vec3d &eye, osg::Vec3d &center, osg::Vec3d &up) const

bool	getAutoComputeHomePosition () const

virtual void	computeHomePosition (const osg::Camera *camera=NULL, bool useBoundingBox=false)

virtual void	home (double)

virtual bool	handle (osgGA::Event event, osg::Object object, osg::NodeVisitor *nv)

Public Member Functions inherited from osgGA::GUIEventHandler
	GUIEventHandler ()

	GUIEventHandler (const GUIEventHandler &eh, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgGA, GUIEventHandler)

virtual bool	handle (const GUIEventAdapter &ea, GUIActionAdapter &aa, osg::Object , osg::NodeVisitor )

Public Member Functions inherited from osgGA::EventHandler
	EventHandler ()

	EventHandler (const EventHandler &eh, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgGA, EventHandler)

virtual bool	run (osg::Object object, osg::Object data)

virtual void	operator() (osg::Node node, osg::NodeVisitor nv)

virtual void	event (osg::NodeVisitor nv, osg::Drawable drawable)

Public Member Functions inherited from osg::NodeCallback
	NodeCallback ()

	NodeCallback (const NodeCallback &nc, const CopyOp &copyop)

	META_Object (osg, NodeCallback)

Public Member Functions inherited from osg::Callback
	Callback ()

	Callback (const Callback &cb, const CopyOp &copyop)

	META_Object (osg, Callback)

bool	traverse (osg::Object object, osg::Object data)

void	setNestedCallback (osg::Callback *cb)

osg::Callback *	getNestedCallback ()

const osg::Callback *	getNestedCallback () const

void	addNestedCallback (osg::Callback *nc)

void	removeNestedCallback (osg::Callback *nc)

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

virtual bool	isSameKindAs (const Object *) const

virtual const char *	libraryName () const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Public Member Functions inherited from osg::Drawable::EventCallback
	EventCallback ()

	EventCallback (const EventCallback &, const CopyOp &)

	META_Object (osg, EventCallback)

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Member Functions inherited from osgGA::CameraManipulator
	CameraManipulator ()

	CameraManipulator (const CameraManipulator &mm, const osg::CopyOp &copyOp=osg::CopyOp::SHALLOW_COPY)

virtual	~CameraManipulator ()

std::string	getManipulatorName () const

Protected Member Functions inherited from osgGA::GUIEventHandler
virtual	~GUIEventHandler ()

Protected Member Functions inherited from osg::NodeCallback
virtual	~NodeCallback ()

Protected Member Functions inherited from osg::Callback
virtual	~Callback ()

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes inherited from osgGA::CameraManipulator
unsigned int	_intersectTraversalMask

bool	_autoComputeHomePosition

osg::Vec3d	_homeEye

osg::Vec3d	_homeCenter

osg::Vec3d	_homeUp

osg::ref_ptr < CoordinateFrameCallback >	_coordinateFrameCallback

Protected Attributes inherited from osg::Callback
ref_ptr< Callback >	_nestedCallback

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Detailed Description

KeySwitchMatrixManipulator is a decorator which allows the type of camera manipulator being used to be switched by pressing a key. E.g. '1' for a TrackballManipulator, '2' for a DriveManipulator, '3' for a FlightManipulator. The manipulators available, and the associated switch keys, can be configured.

Definition at line 31 of file KeySwitchMatrixManipulator.h.

Member Typedef Documentation

typedef std::map<int, NamedManipulator> osgGA::KeySwitchMatrixManipulator::KeyManipMap

Definition at line 36 of file KeySwitchMatrixManipulator.h.

typedef std::pair<std::string, osg::ref_ptr<CameraManipulator> > osgGA::KeySwitchMatrixManipulator::NamedManipulator

Definition at line 35 of file KeySwitchMatrixManipulator.h.

Member Function Documentation

void osgGA::KeySwitchMatrixManipulator::addMatrixManipulator	(	int	key,
		std::string	name,
		CameraManipulator *	cm
	)

Add a camera manipulator with an associated name, and a key to trigger the switch,

void osgGA::KeySwitchMatrixManipulator::addNumberedMatrixManipulator ( CameraManipulator * cm )

Add a camera manipulator with an autogenerated keybinding which is '1' + previous number of camera's registerd.

virtual const char* osgGA::KeySwitchMatrixManipulator::className ( ) const

inlinevirtual

return the name of the object's class type. Must be defined by derived classes.

Reimplemented from osgGA::CameraManipulator.

Definition at line 38 of file KeySwitchMatrixManipulator.h.

virtual void osgGA::KeySwitchMatrixManipulator::computeHomePosition ( )

virtual

virtual void osgGA::KeySwitchMatrixManipulator::finishAnimation ( )

virtual

finish any active manipulator animations.

Reimplemented from osgGA::CameraManipulator.

CameraManipulator* osgGA::KeySwitchMatrixManipulator::getCurrentMatrixManipulator ( )

inline

Get the current active manipulators.

Definition at line 63 of file KeySwitchMatrixManipulator.h.

const CameraManipulator* osgGA::KeySwitchMatrixManipulator::getCurrentMatrixManipulator ( ) const

inline

Get the const current active manipulators.

Definition at line 66 of file KeySwitchMatrixManipulator.h.

virtual osgUtil::SceneView::FusionDistanceMode osgGA::KeySwitchMatrixManipulator::getFusionDistanceMode ( ) const

inlinevirtual

Get the FusionDistanceMode. Used by SceneView for setting up stereo convergence.

Reimplemented from osgGA::CameraManipulator.

Definition at line 100 of file KeySwitchMatrixManipulator.h.

virtual float osgGA::KeySwitchMatrixManipulator::getFusionDistanceValue ( ) const

inlinevirtual

Get the FusionDistanceValue. Used by SceneView for setting up stereo convergence.

Reimplemented from osgGA::CameraManipulator.

Definition at line 103 of file KeySwitchMatrixManipulator.h.

virtual osg::Matrixd osgGA::KeySwitchMatrixManipulator::getInverseMatrix ( ) const

inlinevirtual

get the position of the manipulator as a inverse matrix of the manipulator, typically used as a model view matrix.

Implements osgGA::CameraManipulator.

Definition at line 97 of file KeySwitchMatrixManipulator.h.

KeyManipMap& osgGA::KeySwitchMatrixManipulator::getKeyManipMap ( )

inline

Get the complete list of manipulators attached to this keyswitch manipulator.

Definition at line 56 of file KeySwitchMatrixManipulator.h.

const KeyManipMap& osgGA::KeySwitchMatrixManipulator::getKeyManipMap ( ) const

inline

Get the const complete list of manipulators attached to this keyswitch manipulator.

Definition at line 59 of file KeySwitchMatrixManipulator.h.

virtual osg::Matrixd osgGA::KeySwitchMatrixManipulator::getMatrix ( ) const

inlinevirtual

get the position of the manipulator as 4x4 Matrix.

Implements osgGA::CameraManipulator.

Definition at line 94 of file KeySwitchMatrixManipulator.h.

CameraManipulator* osgGA::KeySwitchMatrixManipulator::getMatrixManipulatorWithIndex ( unsigned int key )

Get manipulator assigned to a specified index.

const CameraManipulator* osgGA::KeySwitchMatrixManipulator::getMatrixManipulatorWithIndex ( unsigned int key ) const

Get const manipulator assigned to a specified index.

CameraManipulator* osgGA::KeySwitchMatrixManipulator::getMatrixManipulatorWithKey ( unsigned int key )

Get manipulator assigned to a specified key.

const CameraManipulator* osgGA::KeySwitchMatrixManipulator::getMatrixManipulatorWithKey ( unsigned int key ) const

Get const manipulator assigned to a specified key.

virtual const osg::Node* osgGA::KeySwitchMatrixManipulator::getNode ( ) const

inlinevirtual

Return const node if attached.

Reimplemented from osgGA::CameraManipulator.

Definition at line 108 of file KeySwitchMatrixManipulator.h.

virtual osg::Node* osgGA::KeySwitchMatrixManipulator::getNode ( )

inlinevirtual

Return node if attached.

Reimplemented from osgGA::CameraManipulator.

Definition at line 110 of file KeySwitchMatrixManipulator.h.

unsigned int osgGA::KeySwitchMatrixManipulator::getNumMatrixManipulators ( ) const

inline

Definition at line 51 of file KeySwitchMatrixManipulator.h.

virtual void osgGA::KeySwitchMatrixManipulator::getUsage ( osg::ApplicationUsage & usage ) const

virtual

Get the keyboard and mouse usage of this manipulator.

Reimplemented from osgGA::EventHandler.

virtual bool osgGA::KeySwitchMatrixManipulator::handle	(	const GUIEventAdapter &	ea,
		GUIActionAdapter &	us
	)

virtual

Handle events, return true if handled, false otherwise.

Reimplemented from osgGA::CameraManipulator.

virtual void osgGA::KeySwitchMatrixManipulator::home	(	const GUIEventAdapter &	,
		GUIActionAdapter &
	)

virtual

Move the camera to the default position. May be ignored by manipulators if home functionality is not appropriate.

Reimplemented from osgGA::CameraManipulator.

virtual void osgGA::KeySwitchMatrixManipulator::init	(	const GUIEventAdapter &	,
		GUIActionAdapter &
	)

inlinevirtual

Start/restart the manipulator. FIXME: what does this actually mean? Provide examples.

Reimplemented from osgGA::CameraManipulator.

Definition at line 122 of file KeySwitchMatrixManipulator.h.

void osgGA::KeySwitchMatrixManipulator::selectMatrixManipulator ( unsigned int num )

virtual void osgGA::KeySwitchMatrixManipulator::setAutoComputeHomePosition ( bool flag )

virtual

Set whether the automatic compute of the home position is enabled.

Reimplemented from osgGA::CameraManipulator.

virtual void osgGA::KeySwitchMatrixManipulator::setByInverseMatrix ( const osg::Matrixd & matrix )

inlinevirtual

set the position of the matrix manipulator using a 4x4 Matrix.

Implements osgGA::CameraManipulator.

Definition at line 91 of file KeySwitchMatrixManipulator.h.

virtual void osgGA::KeySwitchMatrixManipulator::setByMatrix ( const osg::Matrixd & matrix )

inlinevirtual

Set the position of the matrix manipulator using a 4x4 Matrix.

Implements osgGA::CameraManipulator.

Definition at line 88 of file KeySwitchMatrixManipulator.h.

virtual void osgGA::KeySwitchMatrixManipulator::setCoordinateFrameCallback ( CoordinateFrameCallback * cb )

virtual

set the coordinate frame which callback tells the manipulator which way is up, east and north.

Reimplemented from osgGA::CameraManipulator.

virtual void osgGA::KeySwitchMatrixManipulator::setHomePosition	(	const osg::Vec3d &	eye,
		const osg::Vec3d &	center,
		const osg::Vec3d &	up,
		bool	autoComputeHomePosition = `false`
	)

virtual

Manually set the home position, and set the automatic compute of home position.

Reimplemented from osgGA::CameraManipulator.

virtual void osgGA::KeySwitchMatrixManipulator::setNode ( osg::Node * )

virtual

Attach a node to the manipulator, automatically detaching any previously attached node. setNode(NULL) detaches previous nodes. May be ignored by manipulators which do not require a reference model.

Reimplemented from osgGA::CameraManipulator.

The documentation for this class was generated from the following file:

osg_head/include/osgGA/KeySwitchMatrixManipulator.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Member Function Documentation
