#include <MinimalDrawBoundsShadowMap.h>

Inheritance diagram for osgShadow::MinimalDrawBoundsShadowMap:

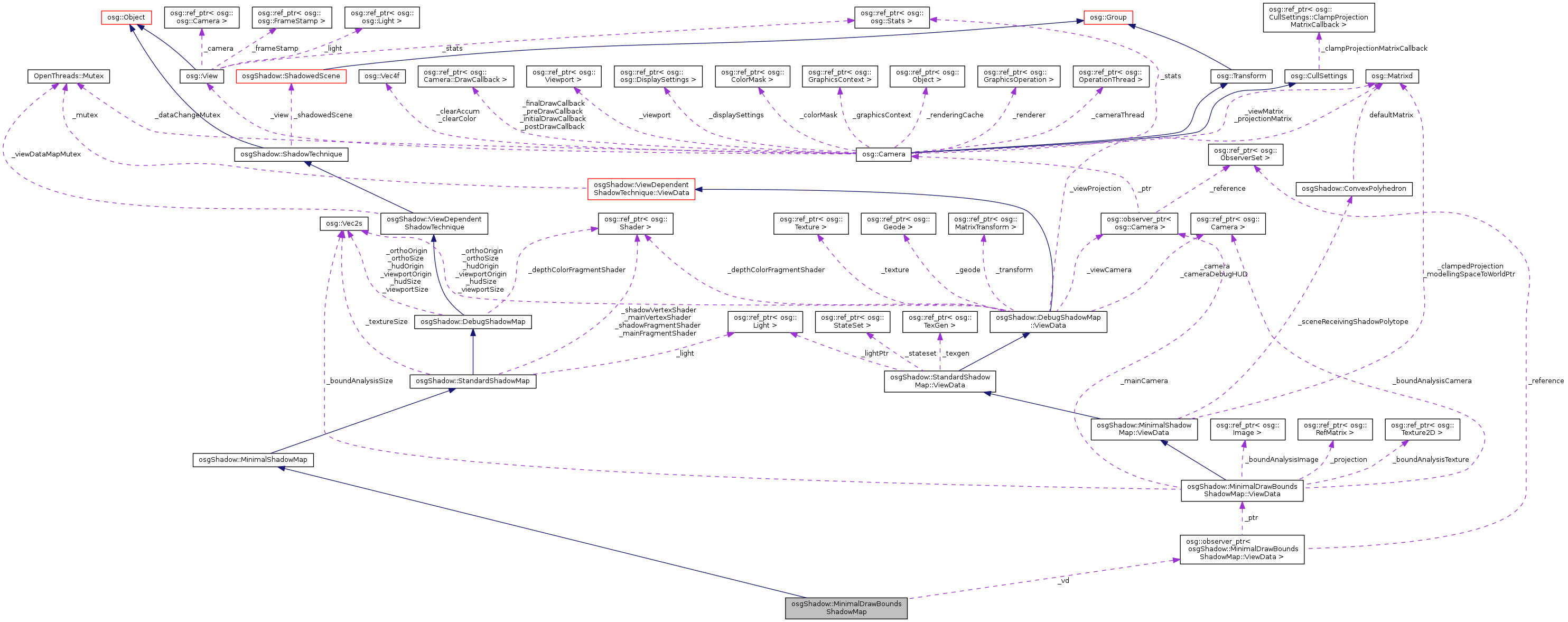

Collaboration diagram for osgShadow::MinimalDrawBoundsShadowMap:

Classes
struct	CameraCullCallback

struct	ViewData

Public Types
typedef MinimalDrawBoundsShadowMap	ThisClass

typedef MinimalShadowMap	BaseClass

Public Types inherited from osgShadow::MinimalShadowMap
enum	ShadowReceivingCoarseBoundAccuracy { EMPTY_BOX, BOUNDING_SPHERE, BOUNDING_BOX, DEFAULT_ACCURACY = BOUNDING_BOX }

typedef MinimalShadowMap	ThisClass

typedef StandardShadowMap	BaseClass

Public Types inherited from osgShadow::StandardShadowMap
typedef StandardShadowMap	ThisClass

typedef DebugShadowMap	BaseClass

Public Types inherited from osgShadow::DebugShadowMap
typedef DebugShadowMap	ThisClass

typedef ViewDependentShadowTechnique	BaseClass

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	MinimalDrawBoundsShadowMap ()

	MinimalDrawBoundsShadowMap (const MinimalDrawBoundsShadowMap &mdbsm, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgShadow, MinimalDrawBoundsShadowMap)

Public Member Functions inherited from osgShadow::MinimalShadowMap
	MinimalShadowMap ()

	MinimalShadowMap (const MinimalShadowMap &msm, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgShadow, MinimalShadowMap)

void	setModellingSpaceToWorldTransform (const osg::Matrix &modellingSpaceToWorld)

const osg::Matrix &	getModellingSpaceToWorldTransform (void) const

float	getMaxFarPlane () const

void	setMaxFarPlane (float maxFarPlane)

float	getMinLightMargin () const

void	setMinLightMargin (float minLightMargin)

void	setShadowReceivingCoarseBoundAccuracy (ShadowReceivingCoarseBoundAccuracy accuracy)

ShadowReceivingCoarseBoundAccuracy	getShadowReceivingCoarseBoundAccuracy () const

Public Member Functions inherited from osgShadow::StandardShadowMap
	StandardShadowMap ()

	StandardShadowMap (const StandardShadowMap &ssm, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgShadow, StandardShadowMap)

void	setBaseTextureUnit (unsigned int unit)

unsigned int	getBaseTextureUnit (void) const

void	setShadowTextureUnit (unsigned int unit)

unsigned int	getShadowTextureUnit (void) const

void	setBaseTextureCoordIndex (unsigned int index)

unsigned int	getBaseTextureCoordIndex (void) const

void	setShadowTextureCoordIndex (unsigned int index)

unsigned int	getShadowTextureCoordIndex (void) const

void	setTextureSize (const osg::Vec2s &textureSize)

const osg::Vec2s &	getTextureSize () const

void	setLight (osg::Light *light)

osg::Light *	getLight (void)

const osg::Light *	getLight (void) const

osg::Shader *	getShadowVertexShader ()

osg::Shader *	getShadowFragmentShader ()

osg::Shader *	getMainVertexShader ()

osg::Shader *	getMainFragmentShader ()

void	setShadowVertexShader (osg::Shader *shader)

void	setShadowFragmentShader (osg::Shader *shader)

void	setMainVertexShader (osg::Shader *shader)

void	setMainFragmentShader (osg::Shader *shader)

Public Member Functions inherited from osgShadow::DebugShadowMap
	DebugShadowMap ()

	DebugShadowMap (const DebugShadowMap &dsm, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgShadow, DebugShadowMap)

void	setDebugDraw (bool draw)

bool	getDebugDraw (void) const

std::string	getDebugDump (void) const

void	setDebugDump (const std::string &debugDumpFile)

Public Member Functions inherited from osgShadow::ViewDependentShadowTechnique
	ViewDependentShadowTechnique (void)

	ViewDependentShadowTechnique (const ViewDependentShadowTechnique &vdst, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgShadow, ViewDependentShadowTechnique)

virtual void	dirty ()

virtual void	init ()

virtual void	update (osg::NodeVisitor &nv)

virtual void	cull (osgUtil::CullVisitor &cv)

virtual void	cleanSceneGraph ()

virtual void	traverse (osg::NodeVisitor &nv)

Public Member Functions inherited from osgShadow::ShadowTechnique
	ShadowTechnique ()

	ShadowTechnique (const ShadowTechnique &es, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgShadow, ShadowTechnique)

ShadowedScene *	getShadowedScene ()

const ShadowedScene *	getShadowedScene () const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

virtual bool	isSameKindAs (const Object *) const

virtual const char *	libraryName () const =0

virtual const char *	className () const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~MinimalDrawBoundsShadowMap (void)

	META_ViewDependentShadowTechniqueData (ThisClass, ThisClass::ViewData) struct CameraPostDrawCallback

virtual void	operator() (const osg::Camera &camera) const

Protected Member Functions inherited from osgShadow::MinimalShadowMap
virtual	~MinimalShadowMap (void)

Protected Member Functions inherited from osgShadow::StandardShadowMap
virtual	~StandardShadowMap (void)

virtual void	updateTextureCoordIndices (unsigned int baseTexCoordIndex, unsigned int shadowTexCoordIndex)

virtual void	searchAndReplaceShaderSource (osg::Shader *, std::string fromString, std::string toString)

Protected Member Functions inherited from osgShadow::DebugShadowMap
virtual	~DebugShadowMap ()

Protected Member Functions inherited from osgShadow::ViewDependentShadowTechnique
	~ViewDependentShadowTechnique (void)

virtual ViewDependentShadowTechnique::ViewData *	getViewDependentData (osgUtil::CullVisitor *cv)

virtual void	setViewDependentData (osgUtil::CullVisitor cv, ViewDependentShadowTechnique::ViewData data)

Protected Member Functions inherited from osgShadow::ShadowTechnique
osg::Vec3	computeOrthogonalVector (const osg::Vec3 &direction) const

virtual	~ShadowTechnique ()

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
osg::observer_ptr< ViewData >	_vd

Protected Attributes inherited from osgShadow::MinimalShadowMap
osg::Matrix	_modellingSpaceToWorld

float	_maxFarPlane

float	_minLightMargin

ShadowReceivingCoarseBoundAccuracy	_shadowReceivingCoarseBoundAccuracy

Protected Attributes inherited from osgShadow::StandardShadowMap
osg::ref_ptr< osg::Shader >	_mainVertexShader

osg::ref_ptr< osg::Shader >	_mainFragmentShader

osg::ref_ptr< osg::Shader >	_shadowVertexShader

osg::ref_ptr< osg::Shader >	_shadowFragmentShader

osg::ref_ptr< osg::Light >	_light

float	_polygonOffsetFactor

float	_polygonOffsetUnits

osg::Vec2s	_textureSize

unsigned int	_baseTextureUnit

unsigned int	_shadowTextureUnit

unsigned int	_baseTextureCoordIndex

unsigned int	_shadowTextureCoordIndex

Protected Attributes inherited from osgShadow::DebugShadowMap
osg::Vec2s	_hudSize

osg::Vec2s	_hudOrigin

osg::Vec2s	_viewportSize

osg::Vec2s	_viewportOrigin

osg::Vec2s	_orthoSize

osg::Vec2s	_orthoOrigin

bool	_doDebugDraw

std::string	_debugDump

osg::ref_ptr< osg::Shader >	_depthColorFragmentShader

Protected Attributes inherited from osgShadow::ViewDependentShadowTechnique
ViewDataMap	_viewDataMap

OpenThreads::Mutex	_viewDataMapMutex

Protected Attributes inherited from osgShadow::ShadowTechnique
ShadowedScene *	_shadowedScene

bool	_dirty

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Friends
struct	ViewData

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Types inherited from osgShadow::ViewDependentShadowTechnique
typedef std::map< osg::ref_ptr < osgUtil::CullVisitor > , osg::ref_ptr< ViewData > >	ViewDataMap

Detailed Description

Definition at line 25 of file MinimalDrawBoundsShadowMap.h.

Member Typedef Documentation

typedef MinimalShadowMap osgShadow::MinimalDrawBoundsShadowMap::BaseClass

Convenient typedef used in definition of ViewData struct and methods

Definition at line 32 of file MinimalDrawBoundsShadowMap.h.

typedef MinimalDrawBoundsShadowMap osgShadow::MinimalDrawBoundsShadowMap::ThisClass

Convenient typedef used in definition of ViewData struct and methods

Definition at line 30 of file MinimalDrawBoundsShadowMap.h.

Constructor & Destructor Documentation

osgShadow::MinimalDrawBoundsShadowMap::MinimalDrawBoundsShadowMap ( )

Classic OSG constructor

osgShadow::MinimalDrawBoundsShadowMap::MinimalDrawBoundsShadowMap	(	const MinimalDrawBoundsShadowMap &	mdbsm,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)
