#include <BounceOperator.h>

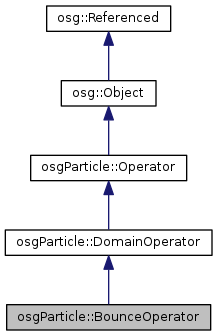

Inheritance diagram for osgParticle::BounceOperator:

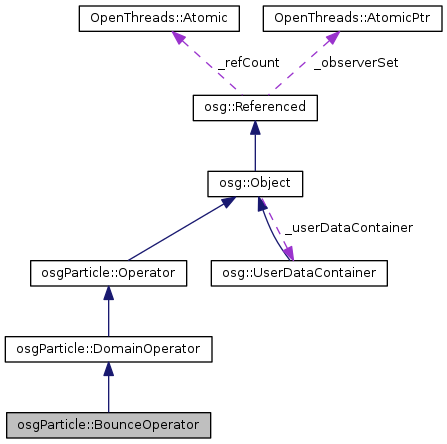

Collaboration diagram for osgParticle::BounceOperator:

Public Member Functions
	BounceOperator ()

	BounceOperator (const BounceOperator &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgParticle, BounceOperator)

void	setFriction (float f)
	Set the friction. More...

float	getFriction () const
	Get the friction. More...

void	setResilience (float r)
	Set the resilience. More...

float	getResilience () const
	Get the velocity cutoff factor. More...

void	setCutoff (float v)
	Set the velocity cutoff factor. More...

float	getCutoff () const
	Get the velocity cutoff factor. More...

Public Member Functions inherited from osgParticle::DomainOperator
	DomainOperator ()

	DomainOperator (const DomainOperator &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgParticle, DomainOperator)

void	addPointDomain (const osg::Vec3 &p)
	Add a point domain. More...

void	addLineSegmentDomain (const osg::Vec3 &v1, const osg::Vec3 &v2)
	Add a line segment domain. More...

void	addTriangleDomain (const osg::Vec3 &v1, const osg::Vec3 &v2, const osg::Vec3 &v3)
	Add a triangle domain. More...

void	addRectangleDomain (const osg::Vec3 &corner, const osg::Vec3 &w, const osg::Vec3 &h)
	Add a rectangle domain. More...

void	addPlaneDomain (const osg::Plane &plane)
	Add a plane domain. More...

void	addSphereDomain (const osg::Vec3 &c, float r)
	Add a sphere domain. More...

void	addBoxDomain (const osg::Vec3 &min, const osg::Vec3 &max)
	Add a box domain. More...

void	addDiskDomain (const osg::Vec3 &c, const osg::Vec3 &n, float r1, float r2=0.0f)
	Add a disk domain. More...

void	addDomain (const Domain &domain)
	Add a domain object directly, used by the .osg wrappers and serializers. More...

const Domain &	getDomain (unsigned int i) const
	Get a domain object directly, used by the .osg wrappers and serializers. More...

void	removeDomain (unsigned int i)
	Remove a domain at specific index. More...

void	removeAllDomains ()
	Remove all existing domains. More...

unsigned int	getNumDomains () const
	Get number of domains. More...

void	operate (Particle *P, double dt)
	Apply the acceleration to a particle. Do not call this method manually. More...

void	beginOperate (Program *prg)
	Perform some initializations. Do not call this method manually. More...

void	endOperate ()
	Perform some post-operations. Do not call this method manually. More...

Public Member Functions inherited from osgParticle::Operator
	Operator ()

	Operator (const Operator &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

virtual const char *	libraryName () const

virtual const char *	className () const

virtual bool	isSameKindAs (const osg::Object *obj) const

bool	isEnabled () const
	Get whether this operator is enabled. More...

void	setEnabled (bool v)
	Enable or disable this operator. More...

virtual void	operateParticles (ParticleSystem *ps, double dt)

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~BounceOperator ()

BounceOperator &	operator= (const BounceOperator &)

virtual void	handleTriangle (const Domain &domain, Particle *P, double dt)

virtual void	handleRectangle (const Domain &domain, Particle *P, double dt)

virtual void	handlePlane (const Domain &domain, Particle *P, double dt)

virtual void	handleSphere (const Domain &domain, Particle *P, double dt)

virtual void	handleDisk (const Domain &domain, Particle *P, double dt)

Protected Member Functions inherited from osgParticle::DomainOperator
virtual	~DomainOperator ()

DomainOperator &	operator= (const DomainOperator &)

virtual void	handlePoint (const Domain &, Particle *, double)

virtual void	handleLineSegment (const Domain &, Particle *, double)

virtual void	handleBox (const Domain &, Particle *, double)

void	computeNewBasis (const osg::Vec3 &, const osg::Vec3 &, osg::Vec3 &, osg::Vec3 &)

void	ignore (const std::string &func)

Protected Member Functions inherited from osgParticle::Operator
virtual	~Operator ()

Operator &	operator= (const Operator &)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
float	_friction

float	_resilience

float	_cutoff

Protected Attributes inherited from osgParticle::DomainOperator
std::vector< Domain >	_domains

std::vector< Domain >	_backupDomains

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Additional Inherited Members
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Detailed Description

A bounce operator can affect the particle's velocity to make it rebound. Refer to David McAllister's Particle System API (http://www.particlesystems.org)

Definition at line 28 of file BounceOperator.h.

Constructor & Destructor Documentation

osgParticle::BounceOperator::BounceOperator ( )

inline

Definition at line 31 of file BounceOperator.h.

osgParticle::BounceOperator::BounceOperator	(	const BounceOperator &	copy,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)

inline

Definition at line 35 of file BounceOperator.h.

virtual osgParticle::BounceOperator::~BounceOperator ( )

inlineprotectedvirtual

Definition at line 61 of file BounceOperator.h.

Member Function Documentation

float osgParticle::BounceOperator::getCutoff ( ) const

inline

Get the velocity cutoff factor.

Definition at line 58 of file BounceOperator.h.

float osgParticle::BounceOperator::getFriction ( ) const

inline

Get the friction.

Definition at line 46 of file BounceOperator.h.

float osgParticle::BounceOperator::getResilience ( ) const

inline

Get the velocity cutoff factor.

Definition at line 52 of file BounceOperator.h.

virtual void osgParticle::BounceOperator::handleDisk	(	const Domain &	domain,
		Particle *	P,
		double	dt
	)

protectedvirtual

Reimplemented from osgParticle::DomainOperator.

virtual void osgParticle::BounceOperator::handlePlane	(	const Domain &	domain,
		Particle *	P,
		double	dt
	)

protectedvirtual

Reimplemented from osgParticle::DomainOperator.

virtual void osgParticle::BounceOperator::handleRectangle	(	const Domain &	domain,
		Particle *	P,
		double	dt
	)

protectedvirtual

Reimplemented from osgParticle::DomainOperator.

virtual void osgParticle::BounceOperator::handleSphere	(	const Domain &	domain,
		Particle *	P,
		double	dt
	)

protectedvirtual

Reimplemented from osgParticle::DomainOperator.

virtual void osgParticle::BounceOperator::handleTriangle	(	const Domain &	domain,
		Particle *	P,
		double	dt
	)

protectedvirtual

Reimplemented from osgParticle::DomainOperator.

osgParticle::BounceOperator::META_Object	(	osgParticle	,
		BounceOperator
	)

BounceOperator& osgParticle::BounceOperator::operator= ( const BounceOperator & )

inlineprotected

Definition at line 62 of file BounceOperator.h.

void osgParticle::BounceOperator::setCutoff ( float v )

inline

Set the velocity cutoff factor.

Definition at line 55 of file BounceOperator.h.

void osgParticle::BounceOperator::setFriction ( float f )

inline

Set the friction.

Definition at line 43 of file BounceOperator.h.

void osgParticle::BounceOperator::setResilience ( float r )

inline

Set the resilience.

Definition at line 49 of file BounceOperator.h.

Member Data Documentation

float osgParticle::BounceOperator::_cutoff

protected

Definition at line 72 of file BounceOperator.h.

float osgParticle::BounceOperator::_friction

protected

Definition at line 70 of file BounceOperator.h.

float osgParticle::BounceOperator::_resilience

protected

Definition at line 71 of file BounceOperator.h.

The documentation for this class was generated from the following file:

osg_head/include/osgParticle/BounceOperator.h
