osg::TriangleFunctor< T > Class Template Reference

#include <TriangleFunctor.h>

Inheritance diagram for osg::TriangleFunctor< T >:
Inheritance graph
[legend]

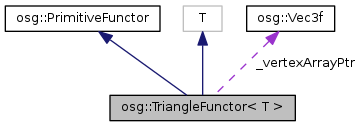

Collaboration diagram for osg::TriangleFunctor< T >:
Collaboration graph
[legend]

Public Member Functions

 TriangleFunctor ()

virtual ~TriangleFunctor ()

void setTreatVertexDataAsTemporary (bool treatVertexDataAsTemporary)

bool getTreatVertexDataAsTemporary () const

virtual void setVertexArray (unsigned int, const Vec2 *)

virtual void setVertexArray (unsigned int count, const Vec3 *vertices)

virtual void setVertexArray (unsigned int, const Vec4 *)

virtual void setVertexArray (unsigned int, const Vec2d *)

virtual void setVertexArray (unsigned int, const Vec3d *)

virtual void setVertexArray (unsigned int, const Vec4d *)

virtual void drawArrays (GLenum mode, GLint first, GLsizei count)
 Mimics the OpenGL glDrawArrays() function. More...

virtual void drawElements (GLenum mode, GLsizei count, const GLubyte *indices)
 Mimics the OpenGL glDrawElements() function. More...

virtual void drawElements (GLenum mode, GLsizei count, const GLushort *indices)
 Mimics the OpenGL glDrawElements() function. More...

virtual void drawElements (GLenum mode, GLsizei count, const GLuint *indices)
 Mimics the OpenGL glDrawElements() function. More...

virtual void begin (GLenum mode)

virtual void vertex (const Vec2 &vert)
 Mimics the OpenGL glVertex() "family of functions". More...

virtual void vertex (const Vec3 &vert)
 Mimics the OpenGL glVertex() "family of functions". More...

virtual void vertex (const Vec4 &vert)
 Mimics the OpenGL glVertex() "family of functions". More...

virtual void vertex (float x, float y)
 Mimics the OpenGL glVertex() "family of functions". More...

virtual void vertex (float x, float y, float z)
 Mimics the OpenGL glVertex() "family of functions". More...

virtual void vertex (float x, float y, float z, float w)
 Mimics the OpenGL glVertex() "family of functions". More...

virtual void end ()
 Mimics the OpenGL glEnd() function. More...

- Public Member Functions inherited from osg::PrimitiveFunctor
virtual ~PrimitiveFunctor ()

void useVertexCacheAsVertexArray ()


Protected Attributes

unsigned int _vertexArraySize

const Vec3 * _vertexArrayPtr

GLenum _modeCache


Additional Inherited Members

- Public Attributes inherited from osg::PrimitiveFunctor
std::vector< Vec3 > _vertexCache

bool _treatVertexDataAsTemporary


Detailed Description

template<class T>
class osg::TriangleFunctor< T >

Provides access to the triangles that compose an osg::Drawable. If the Drawable is not composed of triangles, the TriangleFunctor will convert the primitives to triangles whenever possible.

Notice that TriangleFunctor is a class template, and that it inherits from its template parameter T. This template parameter must implement T::operator() (const osg::Vec3 v1, const osg::Vec3 v2, const osg::Vec3 v3, bool treatVertexDataAsTemporary), which will be called for every triangle when the functor is applied to a Drawable. Parameters v1, v2, and v3 are the triangle vertices. The fourth parameter, treatVertexDataAsTemporary, indicates whether these vertices are coming from a "real" vertex array, or from a temporary vertex array, created by the TriangleFunctor from some other geometry representation.

See also
PrimitiveFunctor for general usage hints.

Definition at line 38 of file TriangleFunctor.h.

Constructor & Destructor Documentation

template<class T >
osg::TriangleFunctor< T >::TriangleFunctor ( )
inline

Definition at line 42 of file TriangleFunctor.h.

template<class T >
virtual osg::TriangleFunctor< T >::~TriangleFunctor ( )
inlinevirtual

Definition at line 50 of file TriangleFunctor.h.

Member Function Documentation

template<class T >
virtual void osg::TriangleFunctor< T >::begin ( GLenum  mode)
inlinevirtual

Note: begin(..),vertex(..) & end() are convenience methods for adapting non vertex array primitives to vertex array based primitives. This is done to simplify the implementation of primitive functor subclasses - users only need override drawArray and drawElements.

Implements osg::PrimitiveFunctor.

Definition at line 361 of file TriangleFunctor.h.

template<class T >
virtual void osg::TriangleFunctor< T >::drawArrays ( GLenum  mode,
GLint  first,
GLsizei  count
)
inlinevirtual

Mimics the OpenGL glDrawArrays() function.

Implements osg::PrimitiveFunctor.

Definition at line 86 of file TriangleFunctor.h.

Here is the caller graph for this function:

template<class T >
virtual void osg::TriangleFunctor< T >::drawElements ( GLenum  mode,
GLsizei  count,
const GLubyte *  indices
)
inlinevirtual

Mimics the OpenGL glDrawElements() function.

Implements osg::PrimitiveFunctor.

Definition at line 150 of file TriangleFunctor.h.

template<class T >
virtual void osg::TriangleFunctor< T >::drawElements ( GLenum  mode,
GLsizei  count,
const GLushort *  indices
)
inlinevirtual

Mimics the OpenGL glDrawElements() function.

Implements osg::PrimitiveFunctor.

Definition at line 217 of file TriangleFunctor.h.

template<class T >
virtual void osg::TriangleFunctor< T >::drawElements ( GLenum  mode,
GLsizei  count,
const GLuint *  indices
)
inlinevirtual

Mimics the OpenGL glDrawElements() function.

Implements osg::PrimitiveFunctor.

Definition at line 286 of file TriangleFunctor.h.

template<class T >
virtual void osg::TriangleFunctor< T >::end ( )
inlinevirtual

Mimics the OpenGL glEnd() function.

Implements osg::PrimitiveFunctor.

Definition at line 373 of file TriangleFunctor.h.

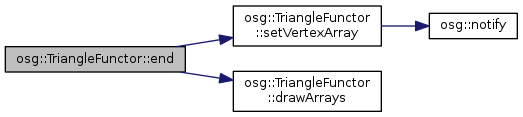

Here is the call graph for this function:

template<class T >
bool osg::TriangleFunctor< T >::getTreatVertexDataAsTemporary ( ) const
inline

Definition at line 53 of file TriangleFunctor.h.

template<class T >
void osg::TriangleFunctor< T >::setTreatVertexDataAsTemporary ( bool  treatVertexDataAsTemporary)
inline

Definition at line 52 of file TriangleFunctor.h.

template<class T >
virtual void osg::TriangleFunctor< T >::setVertexArray ( unsigned  count,
const Vec2 *  vertices
)
inlinevirtual

Sets the array of vertices used to describe the primitives. Somehow mimics the OpenGL glVertexPointer() function.

Implements osg::PrimitiveFunctor.

Definition at line 55 of file TriangleFunctor.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class T >
virtual void osg::TriangleFunctor< T >::setVertexArray ( unsigned int  count,
const Vec3 *  vertices
)
inlinevirtual

Sets the array of vertices used to describe the primitives. Somehow mimics the OpenGL glVertexPointer() function.

Implements osg::PrimitiveFunctor.

Definition at line 60 of file TriangleFunctor.h.

template<class T >
virtual void osg::TriangleFunctor< T >::setVertexArray ( unsigned  count,
const Vec4 *  vertices
)
inlinevirtual

Sets the array of vertices used to describe the primitives. Somehow mimics the OpenGL glVertexPointer() function.

Implements osg::PrimitiveFunctor.

Definition at line 66 of file TriangleFunctor.h.

Here is the call graph for this function:

template<class T >
virtual void osg::TriangleFunctor< T >::setVertexArray ( unsigned  count,
const Vec2d *  vertices
)
inlinevirtual

Sets the array of vertices used to describe the primitives. Somehow mimics the OpenGL glVertexPointer() function.

Implements osg::PrimitiveFunctor.

Definition at line 71 of file TriangleFunctor.h.

Here is the call graph for this function:

template<class T >
virtual void osg::TriangleFunctor< T >::setVertexArray ( unsigned  count,
const Vec3d *  vertices
)
inlinevirtual

Sets the array of vertices used to describe the primitives. Somehow mimics the OpenGL glVertexPointer() function.

Implements osg::PrimitiveFunctor.

Definition at line 76 of file TriangleFunctor.h.

Here is the call graph for this function:

template<class T >
virtual void osg::TriangleFunctor< T >::setVertexArray ( unsigned  count,
const Vec4d *  vertices
)
inlinevirtual

Sets the array of vertices used to describe the primitives. Somehow mimics the OpenGL glVertexPointer() function.

Implements osg::PrimitiveFunctor.

Definition at line 81 of file TriangleFunctor.h.

Here is the call graph for this function:

template<class T >
virtual void osg::TriangleFunctor< T >::vertex ( const Vec2 &  vert)
inlinevirtual

Mimics the OpenGL glVertex() "family of functions".

Implements osg::PrimitiveFunctor.

Definition at line 367 of file TriangleFunctor.h.

template<class T >
virtual void osg::TriangleFunctor< T >::vertex ( const Vec3 &  vert)
inlinevirtual

Mimics the OpenGL glVertex() "family of functions".

Implements osg::PrimitiveFunctor.

Definition at line 368 of file TriangleFunctor.h.

template<class T >
virtual void osg::TriangleFunctor< T >::vertex ( const Vec4 &  vert)
inlinevirtual

Mimics the OpenGL glVertex() "family of functions".

Implements osg::PrimitiveFunctor.

Definition at line 369 of file TriangleFunctor.h.

template<class T >
virtual void osg::TriangleFunctor< T >::vertex ( float  x,
float  y
)
inlinevirtual

Mimics the OpenGL glVertex() "family of functions".

Implements osg::PrimitiveFunctor.

Definition at line 370 of file TriangleFunctor.h.

template<class T >
virtual void osg::TriangleFunctor< T >::vertex ( float  x,
float  y,
float  z
)
inlinevirtual

Mimics the OpenGL glVertex() "family of functions".

Implements osg::PrimitiveFunctor.

Definition at line 371 of file TriangleFunctor.h.

template<class T >
virtual void osg::TriangleFunctor< T >::vertex ( float  x,
float  y,
float  z,
float  w
)
inlinevirtual

Mimics the OpenGL glVertex() "family of functions".

Implements osg::PrimitiveFunctor.

Definition at line 372 of file TriangleFunctor.h.

Member Data Documentation

template<class T >
GLenum osg::TriangleFunctor< T >::_modeCache
protected

Definition at line 389 of file TriangleFunctor.h.

template<class T >
const Vec3* osg::TriangleFunctor< T >::_vertexArrayPtr
protected

Definition at line 387 of file TriangleFunctor.h.

template<class T >
unsigned int osg::TriangleFunctor< T >::_vertexArraySize
protected

Definition at line 386 of file TriangleFunctor.h.
