#include <PrimitiveSet.h>

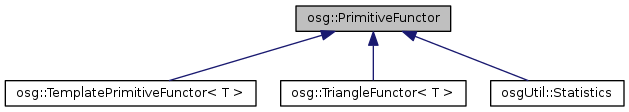

Inheritance diagram for osg::PrimitiveFunctor:

Public Member Functions
virtual	~PrimitiveFunctor ()

virtual void	setVertexArray (unsigned int count, const Vec2 *vertices)=0

virtual void	setVertexArray (unsigned int count, const Vec3 *vertices)=0

virtual void	setVertexArray (unsigned int count, const Vec4 *vertices)=0

virtual void	setVertexArray (unsigned int count, const Vec2d *vertices)=0

virtual void	setVertexArray (unsigned int count, const Vec3d *vertices)=0

virtual void	setVertexArray (unsigned int count, const Vec4d *vertices)=0

virtual void	drawArrays (GLenum mode, GLint first, GLsizei count)=0
	Mimics the OpenGL `glDrawArrays()` function. More...

virtual void	drawElements (GLenum mode, GLsizei count, const GLubyte *indices)=0
	Mimics the OpenGL `glDrawElements()` function. More...

virtual void	drawElements (GLenum mode, GLsizei count, const GLushort *indices)=0
	Mimics the OpenGL `glDrawElements()` function. More...

virtual void	drawElements (GLenum mode, GLsizei count, const GLuint *indices)=0
	Mimics the OpenGL `glDrawElements()` function. More...

virtual void	begin (GLenum mode)=0
	Mimics the OpenGL `glBegin()` function. More...

virtual void	vertex (const Vec2 &vert)=0
	Mimics the OpenGL `glVertex()` "family of functions". More...

virtual void	vertex (const Vec3 &vert)=0
	Mimics the OpenGL `glVertex()` "family of functions". More...

virtual void	vertex (const Vec4 &vert)=0
	Mimics the OpenGL `glVertex()` "family of functions". More...

virtual void	vertex (float x, float y)=0
	Mimics the OpenGL `glVertex()` "family of functions". More...

virtual void	vertex (float x, float y, float z)=0
	Mimics the OpenGL `glVertex()` "family of functions". More...

virtual void	vertex (float x, float y, float z, float w)=0
	Mimics the OpenGL `glVertex()` "family of functions". More...

virtual void	end ()=0
	Mimics the OpenGL `glEnd()` function. More...

void	useVertexCacheAsVertexArray ()

Public Attributes
std::vector< Vec3 >	_vertexCache

bool	_treatVertexDataAsTemporary

Detailed Description

A PrimitiveFunctor is used (in conjunction with osg::Drawable::accept (PrimitiveFunctor&)) to get access to the primitives that compose the things drawn by OSG.

If osg::Drawable::accept() is called with a PrimitiveFunctor parameter, the Drawable will "pretend" it is drawing itself, but instead of calling real OpenGL functions, it will call PrimitiveFunctor's member functions that "mimic" the OpenGL calls.

Concrete subclasses of PrimitiveFunctor must implement these methods so that they performs whatever they want.

Definition at line 51 of file PrimitiveSet.h.

Constructor & Destructor Documentation

virtual osg::PrimitiveFunctor::~PrimitiveFunctor ( )

inlinevirtual

Definition at line 55 of file PrimitiveSet.h.

Member Function Documentation

virtual void osg::PrimitiveFunctor::begin ( GLenum mode )

pure virtual

Mimics the OpenGL glBegin() function.

Implemented in osg::TriangleFunctor< T >, osg::TemplatePrimitiveFunctor< T >, and osgUtil::Statistics.

virtual void osg::PrimitiveFunctor::drawArrays	(	GLenum	mode,
		GLint	first,
		GLsizei	count
	)

pure virtual

Mimics the OpenGL glDrawArrays() function.

Implemented in osg::TemplatePrimitiveFunctor< T >, osg::TriangleFunctor< T >, and osgUtil::Statistics.

virtual void osg::PrimitiveFunctor::drawElements	(	GLenum	mode,
		GLsizei	count,
		const GLubyte *	indices
	)

pure virtual

Mimics the OpenGL glDrawElements() function.

Implemented in osg::TemplatePrimitiveFunctor< T >, osg::TriangleFunctor< T >, and osgUtil::Statistics.

virtual void osg::PrimitiveFunctor::drawElements	(	GLenum	mode,
		GLsizei	count,
		const GLushort *	indices
	)

pure virtual

Mimics the OpenGL glDrawElements() function.

Implemented in osg::TemplatePrimitiveFunctor< T >, osg::TriangleFunctor< T >, and osgUtil::Statistics.

virtual void osg::PrimitiveFunctor::drawElements	(	GLenum	mode,
		GLsizei	count,
		const GLuint *	indices
	)

pure virtual

Mimics the OpenGL glDrawElements() function.

Implemented in osg::TriangleFunctor< T >, osg::TemplatePrimitiveFunctor< T >, and osgUtil::Statistics.

virtual void osg::PrimitiveFunctor::end ( )

pure virtual

Mimics the OpenGL glEnd() function.

Implemented in osg::TriangleFunctor< T >, osg::TemplatePrimitiveFunctor< T >, and osgUtil::Statistics.

virtual void osg::PrimitiveFunctor::setVertexArray	(	unsigned int	count,
		const Vec2 *	vertices
	)

pure virtual
