#include <ClusterCullingCallback.h>

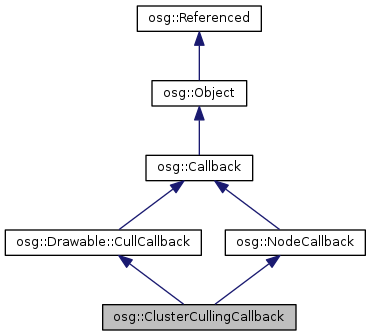

Inheritance diagram for osg::ClusterCullingCallback:

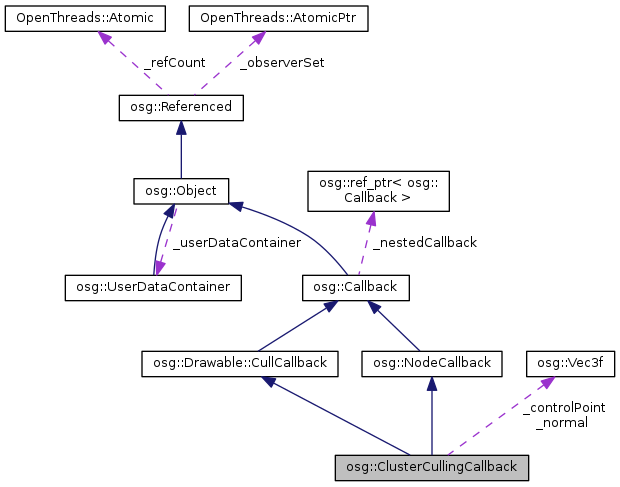

Collaboration diagram for osg::ClusterCullingCallback:

Public Member Functions
	ClusterCullingCallback ()

	ClusterCullingCallback (const ClusterCullingCallback &ccc, const CopyOp &copyop)

	ClusterCullingCallback (const osg::Vec3 &controlPoint, const osg::Vec3 &normal, float deviation)

	ClusterCullingCallback (const osg::Drawable *drawable)

	META_Object (osg, ClusterCullingCallback)

virtual bool	run (osg::Object object, osg::Object data)

void	computeFrom (const osg::Drawable *drawable)

void	transform (const osg::Matrixd &matrix)

void	set (const osg::Vec3 &controlPoint, const osg::Vec3 &normal, float deviation, float radius)

void	setControlPoint (const osg::Vec3 &controlPoint)

const osg::Vec3 &	getControlPoint () const

void	setNormal (const osg::Vec3 &normal)

const osg::Vec3 &	getNormal () const

void	setRadius (float radius)

float	getRadius () const

void	setDeviation (float deviation)

float	getDeviation () const

virtual bool	cull (osg::NodeVisitor , osg::Drawable , osg::State *) const

virtual void	operator() (Node node, NodeVisitor nv)

Public Member Functions inherited from osg::Drawable::CullCallback
	CullCallback ()

	CullCallback (const CullCallback &, const CopyOp &)

	META_Object (osg, CullCallback)

virtual bool	cull (osg::NodeVisitor nv, osg::Drawable drawable, osg::RenderInfo *renderInfo) const

Public Member Functions inherited from osg::Callback
	Callback ()

	Callback (const Callback &cb, const CopyOp &copyop)

	META_Object (osg, Callback)

bool	traverse (osg::Object object, osg::Object data)

void	setNestedCallback (osg::Callback *cb)

osg::Callback *	getNestedCallback ()

const osg::Callback *	getNestedCallback () const

void	addNestedCallback (osg::Callback *nc)

void	removeNestedCallback (osg::Callback *nc)

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

virtual bool	isSameKindAs (const Object *) const

virtual const char *	libraryName () const =0

virtual const char *	className () const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Public Member Functions inherited from osg::NodeCallback
	NodeCallback ()

	NodeCallback (const NodeCallback &nc, const CopyOp &copyop)

	META_Object (osg, NodeCallback)

Protected Member Functions
virtual	~ClusterCullingCallback ()

Protected Member Functions inherited from osg::Callback
virtual	~Callback ()

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Member Functions inherited from osg::NodeCallback
virtual	~NodeCallback ()

Protected Attributes
osg::Vec3	_controlPoint

osg::Vec3	_normal

float	_radius

float	_deviation

Protected Attributes inherited from osg::Callback
ref_ptr< Callback >	_nestedCallback

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Additional Inherited Members
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Detailed Description

Implements cluster culling to cull back facing drawables. Derived from Drawable::CullCallback.

Definition at line 25 of file ClusterCullingCallback.h.

Constructor & Destructor Documentation

osg::ClusterCullingCallback::ClusterCullingCallback ( )

osg::ClusterCullingCallback::ClusterCullingCallback	(	const ClusterCullingCallback &	ccc,
		const CopyOp &	copyop
	)

osg::ClusterCullingCallback::ClusterCullingCallback	(	const osg::Vec3 &	controlPoint,
		const osg::Vec3 &	normal,
		float	deviation
	)

osg::ClusterCullingCallback::ClusterCullingCallback ( const osg::Drawable * drawable )

virtual osg::ClusterCullingCallback::~ClusterCullingCallback ( )

inlineprotectedvirtual

Definition at line 67 of file ClusterCullingCallback.h.

Member Function Documentation

void osg::ClusterCullingCallback::computeFrom ( const osg::Drawable * drawable )

Computes the control point, normal, and deviation from the given drawable contents.

virtual bool osg::ClusterCullingCallback::cull	(	osg::NodeVisitor *	,
		osg::Drawable *	,
		osg::State *
	)		const

virtual

deprecated.

Reimplemented from osg::Drawable::CullCallback.

const osg::Vec3& osg::ClusterCullingCallback::getControlPoint ( ) const

inline

Definition at line 49 of file ClusterCullingCallback.h.

float osg::ClusterCullingCallback::getDeviation ( ) const

inline

Definition at line 58 of file ClusterCullingCallback.h.

const osg::Vec3& osg::ClusterCullingCallback::getNormal ( ) const

inline

Definition at line 52 of file ClusterCullingCallback.h.

float osg::ClusterCullingCallback::getRadius ( ) const

inline

Definition at line 55 of file ClusterCullingCallback.h.

osg::ClusterCullingCallback::META_Object	(	osg	,
		ClusterCullingCallback
	)

virtual void osg::ClusterCullingCallback::operator()	(	Node *	node,
		NodeVisitor *	nv
	)

virtual

Callback method called by the NodeVisitor when visiting a node.

Reimplemented from osg::NodeCallback.

virtual bool osg::ClusterCullingCallback::run	(	osg::Object *	object,
		osg::Object *	data
	)

inlinevirtual

NodeCallback overrides the Callback::run() method to adapt it the old style NodeCallback::operator()(Node* node, NodeVisitor* nv) method.

Reimplemented from osg::NodeCallback.

Definition at line 37 of file ClusterCullingCallback.h.

Here is the call graph for this function:

void osg::ClusterCullingCallback::set	(	const osg::Vec3 &	controlPoint,
		const osg::Vec3 &	normal,
		float	deviation,
		float	radius
	)

void osg::ClusterCullingCallback::setControlPoint ( const osg::Vec3 & controlPoint )

inline

Definition at line 48 of file ClusterCullingCallback.h.

void osg::ClusterCullingCallback::setDeviation ( float deviation )

inline

Definition at line 57 of file ClusterCullingCallback.h.

void osg::ClusterCullingCallback::setNormal ( const osg::Vec3 & normal )

inline

Definition at line 51 of file ClusterCullingCallback.h.

void osg::ClusterCullingCallback::setRadius ( float radius )

inline

Definition at line 54 of file ClusterCullingCallback.h.

void osg::ClusterCullingCallback::transform ( const osg::Matrixd & matrix )

Transform the ClusterCullingCallback's positional members to a new coordinate frame.

Member Data Documentation

osg::Vec3 osg::ClusterCullingCallback::_controlPoint

protected

Definition at line 69 of file ClusterCullingCallback.h.

float osg::ClusterCullingCallback::_deviation

protected

Definition at line 72 of file ClusterCullingCallback.h.

osg::Vec3 osg::ClusterCullingCallback::_normal

protected

Definition at line 70 of file ClusterCullingCallback.h.

float osg::ClusterCullingCallback::_radius

protected

Definition at line 71 of file ClusterCullingCallback.h.

The documentation for this class was generated from the following file:

osg_head/include/osg/ClusterCullingCallback.h
