#include <AnimationPath.h>

Inheritance diagram for osg::AnimationPath:

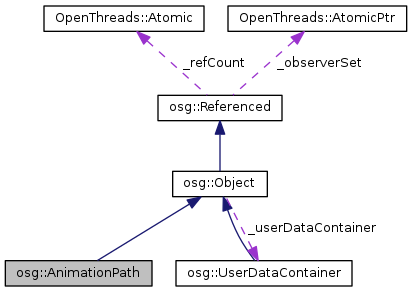

Collaboration diagram for osg::AnimationPath:

Classes
class	ControlPoint

Public Types
enum	LoopMode { SWING, LOOP, NO_LOOPING }

typedef std::map< double, ControlPoint >	TimeControlPointMap

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	AnimationPath ()

	AnimationPath (const AnimationPath &ap, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

	META_Object (osg, AnimationPath)

bool	getMatrix (double time, Matrixf &matrix) const

bool	getMatrix (double time, Matrixd &matrix) const

bool	getInverse (double time, Matrixf &matrix) const

bool	getInverse (double time, Matrixd &matrix) const

virtual bool	getInterpolatedControlPoint (double time, ControlPoint &controlPoint) const

void	insert (double time, const ControlPoint &controlPoint)

double	getFirstTime () const

double	getLastTime () const

double	getPeriod () const

void	setLoopMode (LoopMode lm)

LoopMode	getLoopMode () const

void	setTimeControlPointMap (TimeControlPointMap &tcpm)

TimeControlPointMap &	getTimeControlPointMap ()

const TimeControlPointMap &	getTimeControlPointMap () const

bool	empty () const

void	clear ()

void	read (std::istream &in)

void	write (std::ostream &out) const

void	write (TimeControlPointMap::const_iterator itr, std::ostream &out) const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

virtual bool	isSameKindAs (const Object *) const

virtual const char *	libraryName () const =0

virtual const char *	className () const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~AnimationPath ()

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
TimeControlPointMap	_timeControlPointMap

LoopMode	_loopMode

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Detailed Description

AnimationPath encapsulates a time varying transformation pathway. Can be used for updating camera position and model object position. AnimationPathCallback can be attached directly to Transform nodes to move subgraphs around the scene.

Definition at line 33 of file AnimationPath.h.

Member Typedef Documentation

typedef std::map<double,ControlPoint> osg::AnimationPath::TimeControlPointMap

Definition at line 186 of file AnimationPath.h.

Member Enumeration Documentation

enum osg::AnimationPath::LoopMode

Enumerator
SWING
LOOP
NO_LOOPING

Definition at line 174 of file AnimationPath.h.

Constructor & Destructor Documentation

osg::AnimationPath::AnimationPath ( )

inline

Definition at line 37 of file AnimationPath.h.

osg::AnimationPath::AnimationPath	(	const AnimationPath &	ap,
		const CopyOp &	copyop = `CopyOp::SHALLOW_COPY`
	)

inline

Definition at line 39 of file AnimationPath.h.

virtual osg::AnimationPath::~AnimationPath ( )

inlineprotectedvirtual

Definition at line 209 of file AnimationPath.h.

Member Function Documentation

void osg::AnimationPath::clear ( )

inline

Definition at line 196 of file AnimationPath.h.

bool osg::AnimationPath::empty ( ) const

inline

Definition at line 194 of file AnimationPath.h.

double osg::AnimationPath::getFirstTime ( ) const

inline

Definition at line 170 of file AnimationPath.h.

virtual bool osg::AnimationPath::getInterpolatedControlPoint	(	double	time,
		ControlPoint &	controlPoint
	)		const

virtual

Given a specific time, return the local ControlPoint frame for a point.

bool osg::AnimationPath::getInverse	(	double	time,
		Matrixf &	matrix
	)		const

inline

Given a specific time, return the inverse transformation matrix for a point.

Definition at line 148 of file AnimationPath.h.

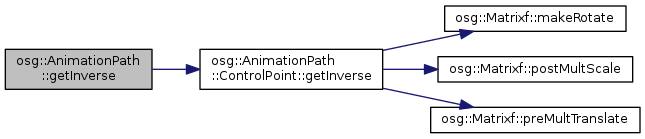

Here is the call graph for this function:

bool osg::AnimationPath::getInverse	(	double	time,
		Matrixd &	matrix
	)		const

inline

Definition at line 156 of file AnimationPath.h.

Here is the call graph for this function:

double osg::AnimationPath::getLastTime ( ) const

inline

Definition at line 171 of file AnimationPath.h.

LoopMode osg::AnimationPath::getLoopMode ( ) const

inline

Definition at line 183 of file AnimationPath.h.

bool osg::AnimationPath::getMatrix	(	double	time,
		Matrixf &	matrix
	)		const

inline

Given a specific time, return the transformation matrix for a point.

Definition at line 130 of file AnimationPath.h.

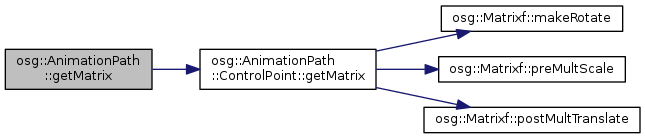

Here is the call graph for this function:

bool osg::AnimationPath::getMatrix	(	double	time,
		Matrixd &	matrix
	)		const

inline

Given a specific time, return the transformation matrix for a point.

Definition at line 139 of file AnimationPath.h.

Here is the call graph for this function:

double osg::AnimationPath::getPeriod ( ) const

inline

Definition at line 172 of file AnimationPath.h.

TimeControlPointMap& osg::AnimationPath::getTimeControlPointMap ( )

inline

Definition at line 190 of file AnimationPath.h.

const TimeControlPointMap& osg::AnimationPath::getTimeControlPointMap ( ) const

inline

Definition at line 192 of file AnimationPath.h.

void osg::AnimationPath::insert	(	double	time,
		const ControlPoint &	controlPoint
	)

Insert a control point into the AnimationPath.

osg::AnimationPath::META_Object	(	osg	,
		AnimationPath
	)

void osg::AnimationPath::read ( std::istream & in )

Read the animation path from a flat ASCII file stream.

void osg::AnimationPath::setLoopMode ( LoopMode lm )

inline

Definition at line 181 of file AnimationPath.h.

void osg::AnimationPath::setTimeControlPointMap ( TimeControlPointMap & tcpm )

inline

Definition at line 188 of file AnimationPath.h.

void osg::AnimationPath::write ( std::ostream & out ) const

Write the animation path to a flat ASCII file stream.

void osg::AnimationPath::write	(	TimeControlPointMap::const_iterator	itr,
		std::ostream &	out
	)		const

Write the control point to a flat ASCII file stream.

Member Data Documentation

LoopMode osg::AnimationPath::_loopMode

protected

Definition at line 212 of file AnimationPath.h.

TimeControlPointMap osg::AnimationPath::_timeControlPointMap

protected

Definition at line 211 of file AnimationPath.h.

The documentation for this class was generated from the following file:

osg_head/include/osg/AnimationPath.h
