osg::AnimationPathCallback Class Reference

#include <AnimationPath.h>

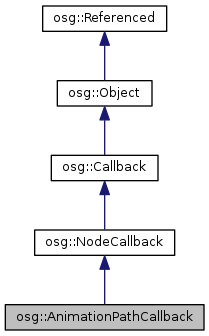

Inheritance diagram for osg::AnimationPathCallback:

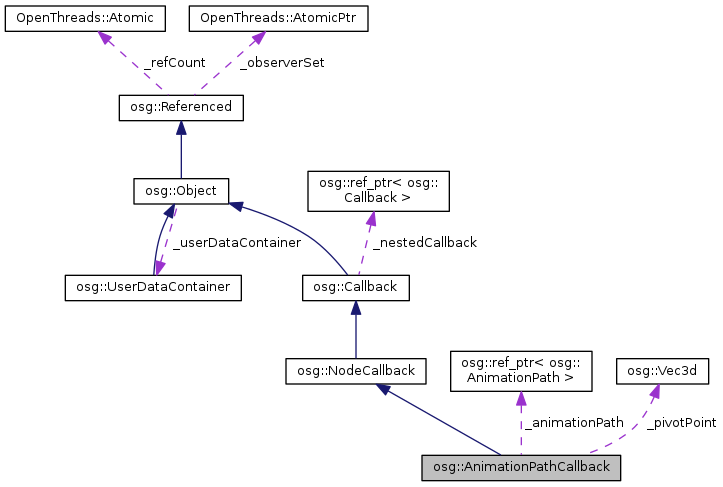

Collaboration diagram for osg::AnimationPathCallback:

Public Member Functions
	AnimationPathCallback ()
	AnimationPathCallback (const AnimationPathCallback &apc, const CopyOp &copyop)
	META_Object (osg, AnimationPathCallback)
	AnimationPathCallback (AnimationPath *ap, double timeOffset=0.0, double timeMultiplier=1.0)
	AnimationPathCallback (const osg::Vec3d &pivot, const osg::Vec3d &axis, float angularVelocity)
void	setAnimationPath (AnimationPath *path)
AnimationPath *	getAnimationPath ()
const AnimationPath *	getAnimationPath () const
void	setPivotPoint (const Vec3d &pivot)
const Vec3d &	getPivotPoint () const
void	setUseInverseMatrix (bool useInverseMatrix)
bool	getUseInverseMatrix () const
void	setTimeOffset (double offset)
double	getTimeOffset () const
void	setTimeMultiplier (double multiplier)
double	getTimeMultiplier () const
virtual void	reset ()
void	setPause (bool pause)
bool	getPause () const
virtual double	getAnimationTime () const
virtual void	operator() (Node *node, NodeVisitor *nv)
void	update (osg::Node &node)
Public Member Functions inherited from osg::NodeCallback
	NodeCallback ()
	NodeCallback (const NodeCallback &nc, const CopyOp &copyop)
	META_Object (osg, NodeCallback)
virtual bool	run (osg::Object *object, osg::Object *data)
Public Member Functions inherited from osg::Callback
	Callback ()
	Callback (const Callback &cb, const CopyOp &copyop)
	META_Object (osg, Callback)
bool	traverse (osg::Object *object, osg::Object *data)
void	setNestedCallback (osg::Callback *cb)
osg::Callback *	getNestedCallback ()
const osg::Callback *	getNestedCallback () const
void	addNestedCallback (osg::Callback *nc)
void	removeNestedCallback (osg::Callback *nc)
Public Member Functions inherited from osg::Object
	Object ()
	Object (bool threadSafeRefUnref)
	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
virtual Object *	cloneType () const =0
virtual Object *	clone (const CopyOp &) const =0
virtual bool	isSameKindAs (const Object *) const
virtual const char *	libraryName () const =0
virtual const char *	className () const =0
std::string	getCompoundClassName () const
virtual Node *	asNode ()
virtual const Node *	asNode () const
virtual NodeVisitor *	asNodeVisitor ()
virtual const NodeVisitor *	asNodeVisitor () const
virtual StateAttribute *	asStateAttribute ()
virtual const StateAttribute *	asStateAttribute () const
virtual Uniform *	asUniform ()
virtual const Uniform *	asUniform () const
virtual void	setThreadSafeRefUnref (bool threadSafe)
virtual void	setName (const std::string &name)
void	setName (const char *name)
const std::string &	getName () const
void	setDataVariance (DataVariance dv)
DataVariance	getDataVariance () const
virtual void	computeDataVariance ()
void	setUserDataContainer (osg::UserDataContainer *udc)
osg::UserDataContainer *	getUserDataContainer ()
const osg::UserDataContainer *	getUserDataContainer () const
osg::UserDataContainer *	getOrCreateUserDataContainer ()
virtual void	setUserData (Referenced *obj)
virtual Referenced *	getUserData ()
virtual const Referenced *	getUserData () const
template<typename T >
bool	getUserValue (const std::string &name, T &value) const
template<typename T >
void	setUserValue (const std::string &name, const T &value)
virtual void	resizeGLObjectBuffers (unsigned int)
virtual void	releaseGLObjects (osg::State *=0) const
template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const
Public Member Functions inherited from osg::Referenced
	Referenced ()
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
int	unref () const
int	unref_nodelete () const
int	referenceCount () const
ObserverSet *	getObserverSet () const
ObserverSet *	getOrCreateObserverSet () const
void	addObserver (Observer *observer) const
void	removeObserver (Observer *observer) const

Public Attributes
ref_ptr< AnimationPath >	_animationPath
osg::Vec3d	_pivotPoint
bool	_useInverseMatrix
double	_timeOffset
double	_timeMultiplier
double	_firstTime
double	_latestTime
bool	_pause
double	_pauseTime

Protected Member Functions
	~AnimationPathCallback ()
Protected Member Functions inherited from osg::NodeCallback
virtual	~NodeCallback ()
Protected Member Functions inherited from osg::Callback
virtual	~Callback ()
Protected Member Functions inherited from osg::Object
virtual	~Object ()
Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Additional Inherited Members
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
static bool	getThreadSafeReferenceCounting ()
static void	setDeleteHandler (DeleteHandler *handler)
static DeleteHandler *	getDeleteHandler ()
Protected Attributes inherited from osg::Callback
ref_ptr< Callback >	_nestedCallback
Protected Attributes inherited from osg::Object
std::string	_name
DataVariance	_dataVariance
osg::UserDataContainer *	_userDataContainer
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount

Detailed Description

Definition at line 217 of file AnimationPath.h.

Constructor & Destructor Documentation

osg::AnimationPathCallback::AnimationPathCallback ( )

inline

Definition at line 221 of file AnimationPath.h.

osg::AnimationPathCallback::AnimationPathCallback ( const AnimationPathCallback &  apc, const CopyOp &  copyop  )

inline

Definition at line 231 of file AnimationPath.h.

osg::AnimationPathCallback::AnimationPathCallback ( AnimationPath *  ap, double  timeOffset = 0.0, double  timeMultiplier = 1.0  )

inline

Construct an AnimationPathCallback with a specified animation path.

Definition at line 247 of file AnimationPath.h.

osg::AnimationPathCallback::AnimationPathCallback	(	const osg::Vec3d &	pivot,
		const osg::Vec3d &	axis,
		float	angularVelocity
	)

Construct an AnimationPathCallback and automatically create an animation path to produce a rotation about a point.

osg::AnimationPathCallback::~AnimationPathCallback ( )

inlineprotected

Definition at line 308 of file AnimationPath.h.

Member Function Documentation

AnimationPath* osg::AnimationPathCallback::getAnimationPath ( )

inline

Definition at line 263 of file AnimationPath.h.

const AnimationPath* osg::AnimationPathCallback::getAnimationPath ( ) const

inline

Definition at line 264 of file AnimationPath.h.

virtual double osg::AnimationPathCallback::getAnimationTime ( ) const

virtual

Get the animation time that is used to specify the position along the AnimationPath. Animation time is computed from the formula: ((_latestTime-_firstTime)-_timeOffset)*_timeMultiplier.

bool osg::AnimationPathCallback::getPause ( ) const

inline

Definition at line 282 of file AnimationPath.h.

const Vec3d& osg::AnimationPathCallback::getPivotPoint ( ) const

inline

Definition at line 267 of file AnimationPath.h.

double osg::AnimationPathCallback::getTimeMultiplier ( ) const

inline

Definition at line 276 of file AnimationPath.h.

double osg::AnimationPathCallback::getTimeOffset ( ) const

inline

Definition at line 273 of file AnimationPath.h.

bool osg::AnimationPathCallback::getUseInverseMatrix ( ) const

inline

Definition at line 270 of file AnimationPath.h.

osg::AnimationPathCallback::META_Object	(	osg	,
		AnimationPathCallback
	)

virtual void osg::AnimationPathCallback::operator() ( Node *  node, NodeVisitor *  nv  )

virtual

Implements the callback.

Reimplemented from osg::NodeCallback.

virtual void osg::AnimationPathCallback::reset ( )

virtual

void osg::AnimationPathCallback::setAnimationPath ( AnimationPath *  path )

inline

Definition at line 262 of file AnimationPath.h.

void osg::AnimationPathCallback::setPause

(

bool

pause

)

void osg::AnimationPathCallback::setPivotPoint ( const Vec3d &  pivot )

inline

Definition at line 266 of file AnimationPath.h.

void osg::AnimationPathCallback::setTimeMultiplier ( double  multiplier )

inline

Definition at line 275 of file AnimationPath.h.

void osg::AnimationPathCallback::setTimeOffset ( double  offset )

inline

Definition at line 272 of file AnimationPath.h.

void osg::AnimationPathCallback::setUseInverseMatrix ( bool  useInverseMatrix )

inline

Definition at line 269 of file AnimationPath.h.

void osg::AnimationPathCallback::update

(

osg::Node &

node

)

Member Data Documentation

ref_ptr<AnimationPath> osg::AnimationPathCallback::_animationPath

Definition at line 296 of file AnimationPath.h.

double osg::AnimationPathCallback::_firstTime

Definition at line 301 of file AnimationPath.h.

double osg::AnimationPathCallback::_latestTime

Definition at line 302 of file AnimationPath.h.

bool osg::AnimationPathCallback::_pause

Definition at line 303 of file AnimationPath.h.

double osg::AnimationPathCallback::_pauseTime

Definition at line 304 of file AnimationPath.h.

osg::Vec3d osg::AnimationPathCallback::_pivotPoint

Definition at line 297 of file AnimationPath.h.

double osg::AnimationPathCallback::_timeMultiplier

Definition at line 300 of file AnimationPath.h.

double osg::AnimationPathCallback::_timeOffset

Definition at line 299 of file AnimationPath.h.

bool osg::AnimationPathCallback::_useInverseMatrix

Definition at line 298 of file AnimationPath.h.

---

The documentation for this class was generated from the following file:

• osg_head/include/osg/AnimationPath.h
