#include <Locator.h>

Inheritance diagram for osgVolume::Locator:

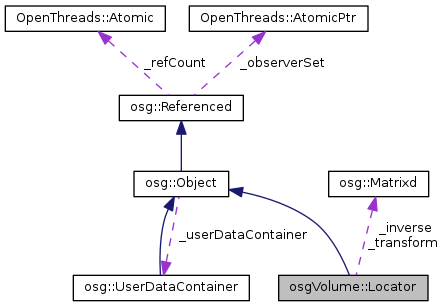

Collaboration diagram for osgVolume::Locator:

Classes
class	LocatorCallback

Public Types
typedef std::vector < osg::ref_ptr < LocatorCallback > >	LocatorCallbacks

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	Locator ()

	Locator (const osg::Matrixd &transform)

	Locator (const Locator &locator, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgVolume, Locator)

void	setTransform (const osg::Matrixd &transform)

const osg::Matrixd &	getTransform () const

void	setTransformAsExtents (double minX, double minY, double maxX, double maxY, double minZ, double maxZ)

virtual bool	convertLocalToModel (const osg::Vec3d &, osg::Vec3d &) const

virtual bool	convertModelToLocal (const osg::Vec3d &, osg::Vec3d &) const

bool	computeLocalBounds (osg::Vec3d &bottomLeft, osg::Vec3d &topRight) const

bool	computeLocalBounds (Locator &source, osg::Vec3d &bottomLeft, osg::Vec3d &topRight) const

void	addCallback (LocatorCallback *callback)

void	removeCallback (LocatorCallback *callback)

LocatorCallbacks &	getLocatorCallbacks ()

const LocatorCallbacks &	getLocatorCallbacks () const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

virtual bool	isSameKindAs (const Object *) const

virtual const char *	libraryName () const =0

virtual const char *	className () const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Static Public Member Functions
static bool	convertLocalCoordBetween (const Locator &source, const osg::Vec3d &sourceNDC, const Locator &destination, osg::Vec3d &destinationNDC)

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Member Functions
void	locatorModified ()

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
osg::Matrixd	_transform

osg::Matrixd	_inverse

LocatorCallbacks	_locatorCallbacks

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Detailed Description

Definition at line 29 of file Locator.h.

Member Typedef Documentation

typedef std::vector< osg::ref_ptr<LocatorCallback> > osgVolume::Locator::LocatorCallbacks

Definition at line 88 of file Locator.h.

Constructor & Destructor Documentation

osgVolume::Locator::Locator ( )

inline

Definition at line 33 of file Locator.h.

osgVolume::Locator::Locator ( const osg::Matrixd & transform )

inline

Definition at line 35 of file Locator.h.

osgVolume::Locator::Locator	(	const Locator &	locator,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)

inline

Copy constructor using CopyOp to manage deep vs shallow copy.

Definition at line 38 of file Locator.h.

Member Function Documentation

void osgVolume::Locator::addCallback ( LocatorCallback * callback )

bool osgVolume::Locator::computeLocalBounds	(	osg::Vec3d &	bottomLeft,
		osg::Vec3d &	topRight
	)		const

bool osgVolume::Locator::computeLocalBounds	(	Locator &	source,
		osg::Vec3d &	bottomLeft,
		osg::Vec3d &	topRight
	)		const

static bool osgVolume::Locator::convertLocalCoordBetween	(	const Locator &	source,
		const osg::Vec3d &	sourceNDC,
		const Locator &	destination,
		osg::Vec3d &	destinationNDC
	)

inlinestatic

Definition at line 58 of file Locator.h.

Here is the call graph for this function:

virtual bool osgVolume::Locator::convertLocalToModel	(	const osg::Vec3d &	,
		osg::Vec3d &
	)		const

virtual

Here is the caller graph for this function:

virtual bool osgVolume::Locator::convertModelToLocal	(	const osg::Vec3d &	,
		osg::Vec3d &
	)		const

virtual

Here is the caller graph for this function:

LocatorCallbacks& osgVolume::Locator::getLocatorCallbacks ( )

inline

Definition at line 89 of file Locator.h.

const LocatorCallbacks& osgVolume::Locator::getLocatorCallbacks ( ) const

inline

Definition at line 90 of file Locator.h.

const osg::Matrixd& osgVolume::Locator::getTransform ( ) const

inline

Set the transformation from local coordinates to model coordinates.

Definition at line 48 of file Locator.h.

void osgVolume::Locator::locatorModified ( )

protected

osgVolume::Locator::META_Object	(	osgVolume	,
		Locator
	)

void osgVolume::Locator::removeCallback ( LocatorCallback * callback )

void osgVolume::Locator::setTransform ( const osg::Matrixd & transform )

inline

Set the transformation from local coordinates to model coordinates.

Definition at line 45 of file Locator.h.

Here is the call graph for this function:

void osgVolume::Locator::setTransformAsExtents	(	double	minX,
		double	minY,
		double	maxX,
		double	maxY,
		double	minZ,
		double	maxZ
	)

Set the extents of the local coords.

Member Data Documentation

osg::Matrixd osgVolume::Locator::_inverse

protected

Definition at line 96 of file Locator.h.

LocatorCallbacks osgVolume::Locator::_locatorCallbacks

protected

Definition at line 98 of file Locator.h.

osg::Matrixd osgVolume::Locator::_transform

protected

Definition at line 95 of file Locator.h.

The documentation for this class was generated from the following file:

osg_head/include/osgVolume/Locator.h
