osgTerrain::Layer Class Reference

#include <Layer.h>

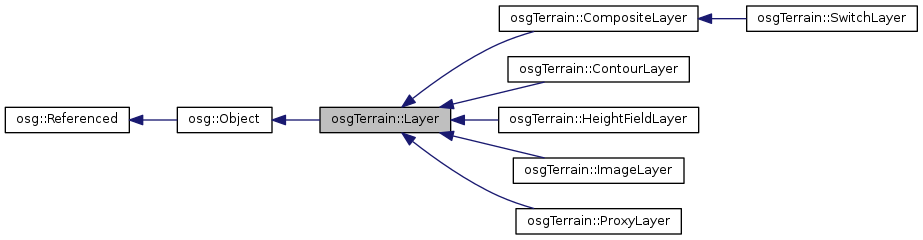

Inheritance diagram for osgTerrain::Layer:

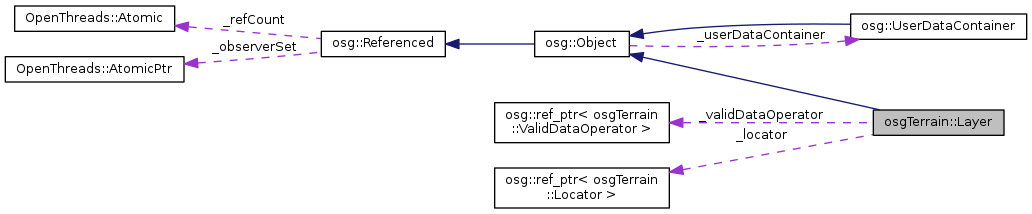

Collaboration diagram for osgTerrain::Layer:

Public Member Functions
	Layer ()
	Layer (const Layer &, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)
	META_Object (osgTerrain, Layer)
void	setSetName (const std::string &setname)
const std::string &	getSetName () const
virtual void	setFileName (const std::string &filename)
virtual const std::string &	getFileName () const
std::string	getCompoundName () const
void	setLocator (Locator *locator)
Locator *	getLocator ()
const Locator *	getLocator () const
void	setMinLevel (unsigned int minLevel)
unsigned int	getMinLevel () const
void	setMaxLevel (unsigned int maxLevel)
unsigned int	getMaxLevel () const
void	setValidDataOperator (ValidDataOperator *validDataOp)
ValidDataOperator *	getValidDataOperator ()
const ValidDataOperator *	getValidDataOperator () const
virtual unsigned int	getNumColumns () const
virtual unsigned int	getNumRows () const
void	setDefaultValue (const osg::Vec4 &value)
const osg::Vec4 &	getDefaultValue () const
void	setMinFilter (osg::Texture::FilterMode filter)
osg::Texture::FilterMode	getMinFilter () const
void	setMagFilter (osg::Texture::FilterMode filter)
osg::Texture::FilterMode	getMagFilter () const
virtual osg::Image *	getImage ()
virtual const osg::Image *	getImage () const
virtual bool	transform (float, float)
virtual bool	getValue (unsigned int, unsigned int, float &) const
virtual bool	getValue (unsigned int, unsigned int, osg::Vec2 &) const
virtual bool	getValue (unsigned int, unsigned int, osg::Vec3 &) const
virtual bool	getValue (unsigned int, unsigned int, osg::Vec4 &) const
bool	getValidValue (unsigned int i, unsigned int j, float &value) const
bool	getValidValue (unsigned int i, unsigned int j, osg::Vec2 &value) const
bool	getValidValue (unsigned int i, unsigned int j, osg::Vec3 &value) const
bool	getValidValue (unsigned int i, unsigned int j, osg::Vec4 &value) const
void	computeIndices (double ndc_x, double ndc_y, unsigned int &i, unsigned int &j, double &ir, double &jr)
bool	getInterpolatedValue (double ndc_x, double ndc_y, float &value)
bool	getInterpolatedValidValue (double ndc_x, double ndc_y, float &value)
virtual void	dirty ()
virtual void	setModifiedCount (unsigned int)
virtual unsigned int	getModifiedCount () const
virtual osg::BoundingSphere	computeBound (bool treatAsElevationLayer) const
Public Member Functions inherited from osg::Object
	Object ()
	Object (bool threadSafeRefUnref)
	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
virtual Object *	cloneType () const =0
virtual Object *	clone (const CopyOp &) const =0
virtual bool	isSameKindAs (const Object *) const
virtual const char *	libraryName () const =0
virtual const char *	className () const =0
std::string	getCompoundClassName () const
virtual Node *	asNode ()
virtual const Node *	asNode () const
virtual NodeVisitor *	asNodeVisitor ()
virtual const NodeVisitor *	asNodeVisitor () const
virtual StateAttribute *	asStateAttribute ()
virtual const StateAttribute *	asStateAttribute () const
virtual Uniform *	asUniform ()
virtual const Uniform *	asUniform () const
virtual void	setThreadSafeRefUnref (bool threadSafe)
virtual void	setName (const std::string &name)
void	setName (const char *name)
const std::string &	getName () const
void	setDataVariance (DataVariance dv)
DataVariance	getDataVariance () const
virtual void	computeDataVariance ()
void	setUserDataContainer (osg::UserDataContainer *udc)
osg::UserDataContainer *	getUserDataContainer ()
const osg::UserDataContainer *	getUserDataContainer () const
osg::UserDataContainer *	getOrCreateUserDataContainer ()
virtual void	setUserData (Referenced *obj)
virtual Referenced *	getUserData ()
virtual const Referenced *	getUserData () const
template<typename T >
bool	getUserValue (const std::string &name, T &value) const
template<typename T >
void	setUserValue (const std::string &name, const T &value)
virtual void	resizeGLObjectBuffers (unsigned int)
virtual void	releaseGLObjects (osg::State *=0) const
template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const
Public Member Functions inherited from osg::Referenced
	Referenced ()
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
int	unref () const
int	unref_nodelete () const
int	referenceCount () const
ObserverSet *	getObserverSet () const
ObserverSet *	getOrCreateObserverSet () const
void	addObserver (Observer *observer) const
void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~Layer ()
Protected Member Functions inherited from osg::Object
virtual	~Object ()
Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Protected Attributes
std::string	_filename
osg::ref_ptr< Locator >	_locator
unsigned int	_minLevel
unsigned int	_maxLevel
osg::ref_ptr< ValidDataOperator >	_validDataOperator
osg::Vec4	_defaultValue
osg::Texture::FilterMode	_minFilter
osg::Texture::FilterMode	_magFilter
Protected Attributes inherited from osg::Object
std::string	_name
DataVariance	_dataVariance
osg::UserDataContainer *	_userDataContainer
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount

Additional Inherited Members
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
static bool	getThreadSafeReferenceCounting ()
static void	setDeleteHandler (DeleteHandler *handler)
static DeleteHandler *	getDeleteHandler ()

Detailed Description

Definition at line 36 of file Layer.h.

Constructor & Destructor Documentation

osgTerrain::Layer::Layer

(

)

osgTerrain::Layer::Layer	(	const Layer &	,
		const osg::CopyOp &	copyop = osg::CopyOp::SHALLOW_COPY
	)

Copy constructor using CopyOp to manage deep vs shallow copy.

virtual osgTerrain::Layer::~Layer ( )

protectedvirtual

Member Function Documentation

virtual osg::BoundingSphere osgTerrain::Layer::computeBound ( bool  treatAsElevationLayer ) const

virtual

Reimplemented in osgTerrain::ProxyLayer.

void osgTerrain::Layer::computeIndices ( double  ndc_x, double  ndc_y, unsigned int &  i, unsigned int &  j, double &  ir, double &  jr  )

inline

Compute column,row indices from normalized coordinates.

Parameters

[in]	ndc_x	Normalized X-axis coordinate.
[in]	ndc_y	Normalized Y-axis coordinate.
[out]	i	Returned X-axis (or column) index.
[out]	j	Returned Y-axis (or row) index.
[out]	ir	Returned X-axis fraction.
[out]	jr	Returned Y-axis fraction.

Definition at line 162 of file Layer.h.

virtual void osgTerrain::Layer::dirty ( )

inlinevirtual

increment the modified count."

Reimplemented in osgTerrain::ProxyLayer, osgTerrain::HeightFieldLayer, osgTerrain::ContourLayer, and osgTerrain::ImageLayer.

Definition at line 274 of file Layer.h.

std::string osgTerrain::Layer::getCompoundName ( ) const

inline

Return the compound name of the layer in the form set::name::filename string.

Definition at line 60 of file Layer.h.

Here is the call graph for this function:

const osg::Vec4& osgTerrain::Layer::getDefaultValue ( ) const

inline

Definition at line 89 of file Layer.h.

virtual const std::string& osgTerrain::Layer::getFileName ( ) const

inlinevirtual

Get the file name of the layer.

Reimplemented in osgTerrain::ProxyLayer, osgTerrain::HeightFieldLayer, and osgTerrain::ImageLayer.

Definition at line 57 of file Layer.h.

Here is the caller graph for this function:

virtual osg::Image* osgTerrain::Layer::getImage ( )

inlinevirtual

Return image associated with layer if supported.

Reimplemented in osgTerrain::SwitchLayer, osgTerrain::ProxyLayer, osgTerrain::ContourLayer, and osgTerrain::ImageLayer.

Definition at line 108 of file Layer.h.

virtual const osg::Image* osgTerrain::Layer::getImage ( ) const

inlinevirtual

Return const image associated with layer if supported.

Reimplemented in osgTerrain::SwitchLayer, osgTerrain::ProxyLayer, osgTerrain::ContourLayer, and osgTerrain::ImageLayer.

Definition at line 111 of file Layer.h.

bool osgTerrain::Layer::getInterpolatedValidValue ( double  ndc_x, double  ndc_y, float &  value  )

inline

Definition at line 226 of file Layer.h.

bool osgTerrain::Layer::getInterpolatedValue ( double  ndc_x, double  ndc_y, float &  value  )

inline

Calculate the interpolated layer value at the given normalized coordinates.

Parameters

[in]	ndc_x	Normalized X-axis coordinate.
[in]	ndc_y	Normalized Y-axis coordinate.
[out]	value	Returned layer value.

Returns

true if value is valid, else false

Definition at line 179 of file Layer.h.

Locator* osgTerrain::Layer::getLocator ( )

inline

Definition at line 63 of file Layer.h.

const Locator* osgTerrain::Layer::getLocator ( ) const

inline

Definition at line 64 of file Layer.h.

osg::Texture::FilterMode osgTerrain::Layer::getMagFilter ( ) const

inline

Get the magnification texture filter to use when a texture is associated with this layer.

Definition at line 103 of file Layer.h.

unsigned int osgTerrain::Layer::getMaxLevel ( ) const

inline

Definition at line 70 of file Layer.h.

osg::Texture::FilterMode osgTerrain::Layer::getMinFilter ( ) const

inline

Get the minification texture filter to use when a texture is associated with this layer.

Definition at line 96 of file Layer.h.

unsigned int osgTerrain::Layer::getMinLevel ( ) const

inline

Definition at line 67 of file Layer.h.

virtual unsigned int osgTerrain::Layer::getModifiedCount ( ) const

inlinevirtual

Get modified count value.

Reimplemented in osgTerrain::ProxyLayer, osgTerrain::HeightFieldLayer, osgTerrain::ContourLayer, and osgTerrain::ImageLayer.

Definition at line 280 of file Layer.h.

virtual unsigned int osgTerrain::Layer::getNumColumns ( ) const

inlinevirtual

Get the number of columns.

Reimplemented in osgTerrain::ProxyLayer, osgTerrain::HeightFieldLayer, osgTerrain::ContourLayer, and osgTerrain::ImageLayer.

Definition at line 83 of file Layer.h.

virtual unsigned int osgTerrain::Layer::getNumRows ( ) const

inlinevirtual

Get the number of rows.

Reimplemented in osgTerrain::ProxyLayer, osgTerrain::HeightFieldLayer, osgTerrain::ContourLayer, and osgTerrain::ImageLayer.

Definition at line 86 of file Layer.h.

const std::string& osgTerrain::Layer::getSetName ( ) const

inline

Get the name of this layer.

Definition at line 51 of file Layer.h.

ValidDataOperator* osgTerrain::Layer::getValidDataOperator ( )

inline

Get the data validation operator.

Definition at line 76 of file Layer.h.

const ValidDataOperator* osgTerrain::Layer::getValidDataOperator ( ) const

inline

Get the const data validation operator.

Definition at line 79 of file Layer.h.

bool osgTerrain::Layer::getValidValue ( unsigned int  i, unsigned int  j, float &  value  ) const

inline

Definition at line 128 of file Layer.h.

bool osgTerrain::Layer::getValidValue ( unsigned int  i, unsigned int  j, osg::Vec2 &  value  ) const

inline

Definition at line 134 of file Layer.h.

bool osgTerrain::Layer::getValidValue ( unsigned int  i, unsigned int  j, osg::Vec3 &  value  ) const

inline

Definition at line 140 of file Layer.h.

bool osgTerrain::Layer::getValidValue ( unsigned int  i, unsigned int  j, osg::Vec4 &  value  ) const

inline

Definition at line 146 of file Layer.h.

virtual bool osgTerrain::Layer::getValue ( unsigned int  , unsigned int  , float &    ) const

inlinevirtual

Get the layer value at position i,j.

Parameters

[in]	i	X-axis (or column) index.
[in]	j	Y-axis (or row) index.
[out]	value	Returned layer value.

Returns

true if value is valid, else false

Reimplemented in osgTerrain::ProxyLayer, osgTerrain::HeightFieldLayer, osgTerrain::ContourLayer, and osgTerrain::ImageLayer.

Definition at line 123 of file Layer.h.

virtual bool osgTerrain::Layer::getValue ( unsigned int  , unsigned int  , osg::Vec2 &    ) const

inlinevirtual

Reimplemented in osgTerrain::ProxyLayer, osgTerrain::HeightFieldLayer, osgTerrain::ContourLayer, and osgTerrain::ImageLayer.

Definition at line 124 of file Layer.h.

virtual bool osgTerrain::Layer::getValue ( unsigned int  , unsigned int  , osg::Vec3 &    ) const

inlinevirtual

Reimplemented in osgTerrain::ProxyLayer, osgTerrain::HeightFieldLayer, osgTerrain::ContourLayer, and osgTerrain::ImageLayer.

Definition at line 125 of file Layer.h.

virtual bool osgTerrain::Layer::getValue ( unsigned int  , unsigned int  , osg::Vec4 &    ) const

inlinevirtual

Reimplemented in osgTerrain::ProxyLayer, osgTerrain::HeightFieldLayer, osgTerrain::ContourLayer, and osgTerrain::ImageLayer.

Definition at line 126 of file Layer.h.

osgTerrain::Layer::META_Object	(	osgTerrain	,
		Layer
	)

void osgTerrain::Layer::setDefaultValue ( const osg::Vec4 &  value )

inline

Definition at line 88 of file Layer.h.

virtual void osgTerrain::Layer::setFileName ( const std::string &  filename )

inlinevirtual

Set the file name of the data associated with this layer.

Reimplemented in osgTerrain::ProxyLayer, osgTerrain::HeightFieldLayer, and osgTerrain::ImageLayer.

Definition at line 54 of file Layer.h.

void osgTerrain::Layer::setLocator ( Locator *  locator )

inline

Definition at line 62 of file Layer.h.

void osgTerrain::Layer::setMagFilter ( osg::Texture::FilterMode  filter )

inline

Set the magnification texture filter to use when a texture is associated with this layer.

Definition at line 100 of file Layer.h.

void osgTerrain::Layer::setMaxLevel ( unsigned int  maxLevel )

inline

Definition at line 69 of file Layer.h.

void osgTerrain::Layer::setMinFilter ( osg::Texture::FilterMode  filter )

inline

Set the minification texture filter to use when a texture is associated with this layer.

Definition at line 93 of file Layer.h.

void osgTerrain::Layer::setMinLevel ( unsigned int  minLevel )

inline

Definition at line 66 of file Layer.h.

virtual void osgTerrain::Layer::setModifiedCount ( unsigned int  )

inlinevirtual

Set the modified count value.

Reimplemented in osgTerrain::ProxyLayer, osgTerrain::HeightFieldLayer, osgTerrain::ContourLayer, and osgTerrain::ImageLayer.

Definition at line 277 of file Layer.h.

void osgTerrain::Layer::setSetName ( const std::string &  setname )

inline

Set the name of this layer.

Definition at line 48 of file Layer.h.

void osgTerrain::Layer::setValidDataOperator ( ValidDataOperator *  validDataOp )

inline

Set the data validation operator.

Definition at line 73 of file Layer.h.

virtual bool osgTerrain::Layer::transform ( float  , float    )

inlinevirtual

Reimplemented in osgTerrain::ProxyLayer, osgTerrain::HeightFieldLayer, osgTerrain::ContourLayer, and osgTerrain::ImageLayer.

Definition at line 114 of file Layer.h.

Member Data Documentation

osg::Vec4 osgTerrain::Layer::_defaultValue

protected

Definition at line 293 of file Layer.h.

std::string osgTerrain::Layer::_filename

protected

Definition at line 288 of file Layer.h.

osg::ref_ptr<Locator> osgTerrain::Layer::_locator

protected

Definition at line 289 of file Layer.h.

osg::Texture::FilterMode osgTerrain::Layer::_magFilter

protected

Definition at line 295 of file Layer.h.

unsigned int osgTerrain::Layer::_maxLevel

protected

Definition at line 291 of file Layer.h.

osg::Texture::FilterMode osgTerrain::Layer::_minFilter

protected

Definition at line 294 of file Layer.h.

unsigned int osgTerrain::Layer::_minLevel

protected

Definition at line 290 of file Layer.h.

osg::ref_ptr<ValidDataOperator> osgTerrain::Layer::_validDataOperator

protected

Definition at line 292 of file Layer.h.

---

The documentation for this class was generated from the following file:

• osg_head/include/osgTerrain/Layer.h
