osgSim::ElevationSlice Class Reference

#include <ElevationSlice.h>

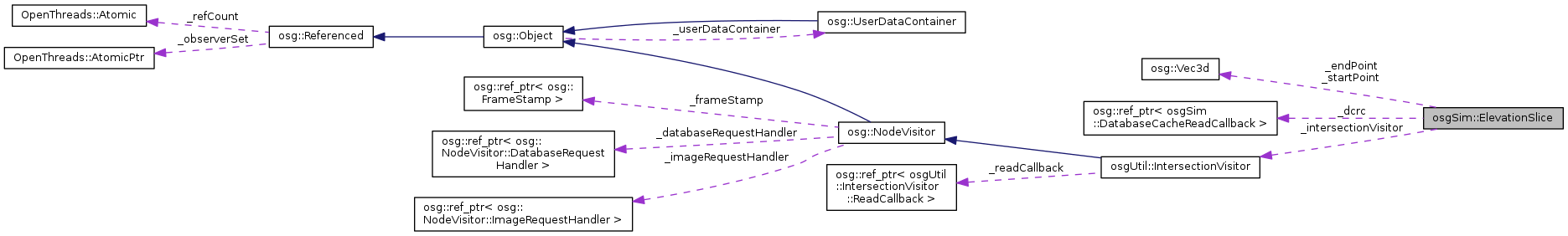

Collaboration diagram for osgSim::ElevationSlice:

Public Types
typedef std::vector< osg::Vec3d >	Vec3dList
typedef std::pair< double, double >	DistanceHeight
typedef std::vector < DistanceHeight >	DistanceHeightList

Public Member Functions
	ElevationSlice ()
void	setStartPoint (const osg::Vec3d &startPoint)
const osg::Vec3d &	getStartPoint () const
void	setEndPoint (const osg::Vec3d &endPoint)
const osg::Vec3d &	getEndPoint () const
const Vec3dList &	getIntersections () const
const DistanceHeightList &	getDistanceHeightIntersections () const
void	computeIntersections (osg::Node *scene, osg::Node::NodeMask traversalMask=0xffffffff)
void	clearDatabaseCache ()
void	setDatabaseCacheReadCallback (DatabaseCacheReadCallback *dcrc)
DatabaseCacheReadCallback *	getDatabaseCacheReadCallback ()

Static Public Member Functions
static Vec3dList	computeElevationSlice (osg::Node *scene, const osg::Vec3d &startPoint, const osg::Vec3d &endPoint, osg::Node::NodeMask traversalMask=0xffffffff)

Protected Attributes
osg::Vec3d	_startPoint
osg::Vec3d	_endPoint
Vec3dList	_intersections
DistanceHeightList	_distanceHeightIntersections
osg::ref_ptr < DatabaseCacheReadCallback >	_dcrc
osgUtil::IntersectionVisitor	_intersectionVisitor

Detailed Description

Helper class for setting up and acquiring height above terrain intersections with terrain. By default assigns a osgSim::DatabaseCacheReadCallback that enables automatic loading of external PagedLOD tiles to ensure that the highest level of detail is used in intersections. This automatic loading of tiles is done by the intersection traversal that is done within the computeIntersections(..) method, so can result in long intersection times when external tiles have to be loaded. The external loading of tiles can be disabled by removing the read callback, this is done by calling the setDatabaseCacheReadCallback(DatabaseCacheReadCallback*) method with a value of 0.

Definition at line 32 of file ElevationSlice.h.

Member Typedef Documentation

typedef std::pair<double,double> osgSim::ElevationSlice::DistanceHeight

Definition at line 57 of file ElevationSlice.h.

typedef std::vector<DistanceHeight> osgSim::ElevationSlice::DistanceHeightList

Definition at line 58 of file ElevationSlice.h.

typedef std::vector<osg::Vec3d> osgSim::ElevationSlice::Vec3dList

Definition at line 52 of file ElevationSlice.h.

Constructor & Destructor Documentation

osgSim::ElevationSlice::ElevationSlice

(

)

Member Function Documentation

void osgSim::ElevationSlice::clearDatabaseCache ( )

inline

Clear the database cache.

Definition at line 75 of file ElevationSlice.h.

static Vec3dList osgSim::ElevationSlice::computeElevationSlice ( osg::Node *  scene, const osg::Vec3d &  startPoint, const osg::Vec3d &  endPoint, osg::Node::NodeMask  traversalMask = 0xffffffff  )

static

Compute the vertical distance between the specified scene graph and a single HAT point.

void osgSim::ElevationSlice::computeIntersections	(	osg::Node *	scene,
		osg::Node::NodeMask	traversalMask = 0xffffffff
	)

Compute the intersections with the specified scene graph, the results are stored in vectors of Vec3d. Note, if the topmost node is a CoordinateSystemNode then the input points are assumed to be geocentric, with the up vector defined by the EllipsoidModel attached to the CoordinateSystemNode. If the topmost node is not a CoordinateSystemNode then a local coordinates frame is assumed, with a local up vector.

DatabaseCacheReadCallback* osgSim::ElevationSlice::getDatabaseCacheReadCallback ( )

inline

Get the ReadCallback that does the reading of external PagedLOD models, and caching of loaded subgraphs.

Definition at line 83 of file ElevationSlice.h.

const DistanceHeightList& osgSim::ElevationSlice::getDistanceHeightIntersections ( ) const

inline

Get the intersections in the form a vector of pair<double,double> representing distance along the slice and height.

Definition at line 61 of file ElevationSlice.h.

const osg::Vec3d& osgSim::ElevationSlice::getEndPoint ( ) const

inline

Get the end point of the slice.

Definition at line 49 of file ElevationSlice.h.

const Vec3dList& osgSim::ElevationSlice::getIntersections ( ) const

inline

Get the intersections in the form of a vector of Vec3d.

Definition at line 55 of file ElevationSlice.h.

const osg::Vec3d& osgSim::ElevationSlice::getStartPoint ( ) const

inline

Get the start point of the slice.

Definition at line 43 of file ElevationSlice.h.

void osgSim::ElevationSlice::setDatabaseCacheReadCallback

(

DatabaseCacheReadCallback *

dcrc

)

Set the ReadCallback that does the reading of external PagedLOD models, and caching of loaded subgraphs. Note, if you have multiple LineOfSight or ElevationSlice objects in use at one time then you should share a single DatabaseCacheReadCallback between all of them.

void osgSim::ElevationSlice::setEndPoint ( const osg::Vec3d &  endPoint )

inline

Set the end point of the slice.

Definition at line 46 of file ElevationSlice.h.

void osgSim::ElevationSlice::setStartPoint ( const osg::Vec3d &  startPoint )

inline

Set the start point of the slice.

Definition at line 40 of file ElevationSlice.h.

Member Data Documentation

osg::ref_ptr<DatabaseCacheReadCallback> osgSim::ElevationSlice::_dcrc

protected

Definition at line 93 of file ElevationSlice.h.

DistanceHeightList osgSim::ElevationSlice::_distanceHeightIntersections

protected

Definition at line 91 of file ElevationSlice.h.

osg::Vec3d osgSim::ElevationSlice::_endPoint

protected

Definition at line 89 of file ElevationSlice.h.

Vec3dList osgSim::ElevationSlice::_intersections

protected

Definition at line 90 of file ElevationSlice.h.

osgUtil::IntersectionVisitor osgSim::ElevationSlice::_intersectionVisitor

protected

Definition at line 94 of file ElevationSlice.h.

osg::Vec3d osgSim::ElevationSlice::_startPoint

protected

Definition at line 88 of file ElevationSlice.h.

---

The documentation for this class was generated from the following file:

• osg_head/include/osgSim/ElevationSlice.h
