#include <SegmentPlacer.h>

Inheritance diagram for osgParticle::SegmentPlacer:

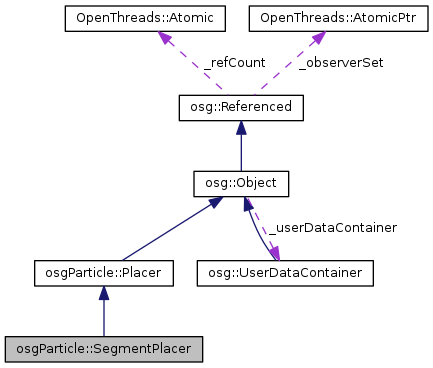

Collaboration diagram for osgParticle::SegmentPlacer:

Public Member Functions
	SegmentPlacer ()

	SegmentPlacer (const SegmentPlacer &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgParticle, SegmentPlacer)

const osg::Vec3 &	getVertexA () const
	get vertex A. More...

void	setVertexA (const osg::Vec3 &v)
	Set vertex A of the segment as a vector. More...

void	setVertexA (float x, float y, float z)
	Set vertex A of the segment as three floats. More...

const osg::Vec3 &	getVertexB () const
	get vertex B. More...

void	setVertexB (const osg::Vec3 &v)
	Set vertex B of the segment as a vector. More...

void	setVertexB (float x, float y, float z)
	Set vertex B of the segment as three floats. More...

void	setSegment (const osg::Vec3 &A, const osg::Vec3 &B)
	Set both vertices. More...

void	place (Particle *P) const
	Place a particle. This method is called by `ModularEmitter`, do not call it manually. More...

float	volume () const
	return the length of the segment More...

osg::Vec3	getControlPosition () const
	return the control position More...

Public Member Functions inherited from osgParticle::Placer
	Placer ()

	Placer (const Placer &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

virtual const char *	libraryName () const

virtual const char *	className () const

virtual bool	isSameKindAs (const osg::Object *obj) const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~SegmentPlacer ()

SegmentPlacer &	operator= (const SegmentPlacer &)

Protected Member Functions inherited from osgParticle::Placer
	~Placer ()

Placer &	operator= (const Placer &)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Additional Inherited Members
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Detailed Description

A segment-shaped particle placer. To use this placer you have to define a segment, by setting its two vertices (A and B); when an emitter requests a SegmentPlacer to place a particle, the position is chosen randomly within that segment.

Definition at line 32 of file SegmentPlacer.h.

Constructor & Destructor Documentation

osgParticle::SegmentPlacer::SegmentPlacer ( )

inline

Definition at line 80 of file SegmentPlacer.h.

osgParticle::SegmentPlacer::SegmentPlacer	(	const SegmentPlacer &	copy,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)

inline

Definition at line 85 of file SegmentPlacer.h.

virtual osgParticle::SegmentPlacer::~SegmentPlacer ( )

inlineprotectedvirtual

Definition at line 70 of file SegmentPlacer.h.

Member Function Documentation

osg::Vec3 osgParticle::SegmentPlacer::getControlPosition ( ) const

inlinevirtual

return the control position

Implements osgParticle::Placer.

Definition at line 136 of file SegmentPlacer.h.

const osg::Vec3 & osgParticle::SegmentPlacer::getVertexA ( ) const

inline

get vertex A.

Definition at line 90 of file SegmentPlacer.h.

const osg::Vec3 & osgParticle::SegmentPlacer::getVertexB ( ) const

inline

get vertex B.

Definition at line 95 of file SegmentPlacer.h.

osgParticle::SegmentPlacer::META_Object	(	osgParticle	,
		SegmentPlacer
	)

SegmentPlacer& osgParticle::SegmentPlacer::operator= ( const SegmentPlacer & )

inlineprotected

Definition at line 71 of file SegmentPlacer.h.

void osgParticle::SegmentPlacer::place ( Particle * P ) const

inlinevirtual

Place a particle. This method is called by ModularEmitter, do not call it manually.

Implements osgParticle::Placer.

Definition at line 106 of file SegmentPlacer.h.

Here is the call graph for this function:

void osgParticle::SegmentPlacer::setSegment	(	const osg::Vec3 &	A,
		const osg::Vec3 &	B
	)

inline

Set both vertices.

Definition at line 100 of file SegmentPlacer.h.

void osgParticle::SegmentPlacer::setVertexA ( const osg::Vec3 & v )

inline

Set vertex A of the segment as a vector.

Definition at line 116 of file SegmentPlacer.h.

void osgParticle::SegmentPlacer::setVertexA	(	float	x,
		float	y,
		float	z
	)

inline

Set vertex A of the segment as three floats.

Definition at line 121 of file SegmentPlacer.h.

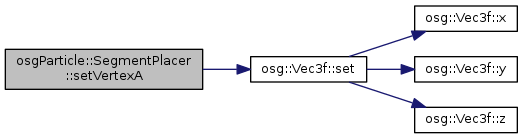

Here is the call graph for this function:

void osgParticle::SegmentPlacer::setVertexB ( const osg::Vec3 & v )

inline

Set vertex B of the segment as a vector.

Definition at line 126 of file SegmentPlacer.h.

void osgParticle::SegmentPlacer::setVertexB	(	float	x,
		float	y,
		float	z
	)

inline

Set vertex B of the segment as three floats.

Definition at line 131 of file SegmentPlacer.h.

Here is the call graph for this function:

float osgParticle::SegmentPlacer::volume ( ) const

inlinevirtual

return the length of the segment

Reimplemented from osgParticle::Placer.

Definition at line 111 of file SegmentPlacer.h.

The documentation for this class was generated from the following file:

osg_head/include/osgParticle/SegmentPlacer.h
