#include <RadialShooter.h>

Inheritance diagram for osgParticle::RadialShooter:

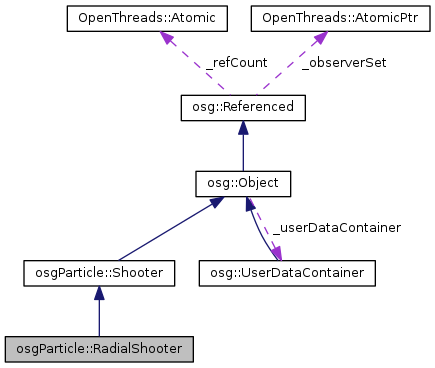

Collaboration diagram for osgParticle::RadialShooter:

Public Member Functions
	RadialShooter ()

	RadialShooter (const RadialShooter &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgParticle, RadialShooter)

const rangef &	getThetaRange () const
	Get the range of possible values for theta angle. More...

void	setThetaRange (const rangef &r)
	Set the range of possible values for theta angle. More...

void	setThetaRange (float r1, float r2)
	Set the range of possible values for theta angle. More...

const rangef &	getPhiRange () const
	Get the range of possible values for phi angle. More...

void	setPhiRange (const rangef &r)
	Set the range of possible values for phi angle. More...

void	setPhiRange (float r1, float r2)
	Set the range of possible values for phi angle. More...

const rangef &	getInitialSpeedRange () const
	Get the range of possible values for initial speed of particles. More...

void	setInitialSpeedRange (const rangef &r)
	Set the range of possible values for initial speed of particles. More...

void	setInitialSpeedRange (float r1, float r2)
	Set the range of possible values for initial speed of particles. More...

const rangev3 &	getInitialRotationalSpeedRange () const
	Get the range of possible values for initial rotational speed of particles. More...

void	setInitialRotationalSpeedRange (const rangev3 &r)
	Set the range of possible values for initial rotational speed of particles. More...

void	setInitialRotationalSpeedRange (const osg::Vec3 &r1, const osg::Vec3 &r2)
	Set the range of possible values for initial rotational speed of particles. More...

void	shoot (Particle *P) const
	Shoot a particle. Do not call this method manually. More...

Public Member Functions inherited from osgParticle::Shooter
	Shooter ()

	Shooter (const Shooter &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

virtual const char *	libraryName () const

virtual const char *	className () const

virtual bool	isSameKindAs (const osg::Object *obj) const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~RadialShooter ()

RadialShooter &	operator= (const RadialShooter &)

Protected Member Functions inherited from osgParticle::Shooter
virtual	~Shooter ()

Shooter &	operator= (const Shooter &)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Additional Inherited Members
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Detailed Description

A shooter class that shoots particles radially. This shooter computes the velocity vector of incoming particles by choosing a random direction and a random speed. Both direction and speed are chosen within specified ranges. The direction is defined by two angles: theta, which is the angle between the velocity vector and the Z axis, and phi, which is the angle between the X axis and the velocity vector projected onto the X-Y plane.

Definition at line 36 of file RadialShooter.h.

Constructor & Destructor Documentation

osgParticle::RadialShooter::RadialShooter ( )

inline

Definition at line 95 of file RadialShooter.h.

osgParticle::RadialShooter::RadialShooter	(	const RadialShooter &	copy,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)

inline

Definition at line 104 of file RadialShooter.h.

virtual osgParticle::RadialShooter::~RadialShooter ( )

inlineprotectedvirtual

Definition at line 83 of file RadialShooter.h.

Member Function Documentation

const rangev3 & osgParticle::RadialShooter::getInitialRotationalSpeedRange ( ) const

inline

Get the range of possible values for initial rotational speed of particles.

Definition at line 128 of file RadialShooter.h.

const rangef & osgParticle::RadialShooter::getInitialSpeedRange ( ) const

inline

Get the range of possible values for initial speed of particles.

Definition at line 123 of file RadialShooter.h.

const rangef & osgParticle::RadialShooter::getPhiRange ( ) const

inline

Get the range of possible values for phi angle.

Definition at line 118 of file RadialShooter.h.

const rangef & osgParticle::RadialShooter::getThetaRange ( ) const

inline

Get the range of possible values for theta angle.

Definition at line 113 of file RadialShooter.h.

osgParticle::RadialShooter::META_Object	(	osgParticle	,
		RadialShooter
	)

RadialShooter& osgParticle::RadialShooter::operator= ( const RadialShooter & )

inlineprotected

Definition at line 84 of file RadialShooter.h.

void osgParticle::RadialShooter::setInitialRotationalSpeedRange ( const rangev3 & r )

inline

Set the range of possible values for initial rotational speed of particles.

Definition at line 166 of file RadialShooter.h.

void osgParticle::RadialShooter::setInitialRotationalSpeedRange	(	const osg::Vec3 &	r1,
		const osg::Vec3 &	r2
	)

inline

Set the range of possible values for initial rotational speed of particles.

Definition at line 171 of file RadialShooter.h.

void osgParticle::RadialShooter::setInitialSpeedRange ( const rangef & r )

inline

Set the range of possible values for initial speed of particles.

Definition at line 155 of file RadialShooter.h.

void osgParticle::RadialShooter::setInitialSpeedRange	(	float	r1,
		float	r2
	)

inline

Set the range of possible values for initial speed of particles.

Definition at line 160 of file RadialShooter.h.

void osgParticle::RadialShooter::setPhiRange ( const rangef & r )

inline

Set the range of possible values for phi angle.

Definition at line 144 of file RadialShooter.h.

void osgParticle::RadialShooter::setPhiRange	(	float	r1,
		float	r2
	)

inline

Set the range of possible values for phi angle.

Definition at line 149 of file RadialShooter.h.

void osgParticle::RadialShooter::setThetaRange ( const rangef & r )

inline

Set the range of possible values for theta angle.

Definition at line 133 of file RadialShooter.h.

void osgParticle::RadialShooter::setThetaRange	(	float	r1,
		float	r2
	)

inline

Set the range of possible values for theta angle.

Definition at line 138 of file RadialShooter.h.

void osgParticle::RadialShooter::shoot ( Particle * P ) const

inlinevirtual

Shoot a particle. Do not call this method manually.

Implements osgParticle::Shooter.

Definition at line 177 of file RadialShooter.h.

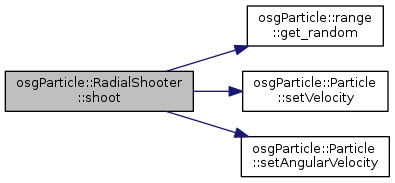

Here is the call graph for this function:

The documentation for this class was generated from the following file:

osg_head/include/osgParticle/RadialShooter.h
