#include <CenteredPlacer.h>

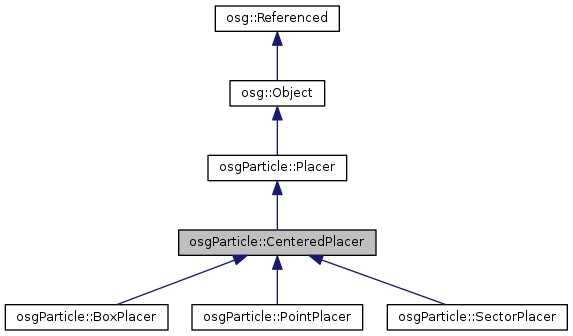

Inheritance diagram for osgParticle::CenteredPlacer:

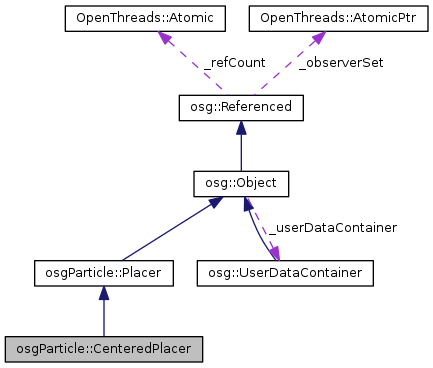

Collaboration diagram for osgParticle::CenteredPlacer:

Public Member Functions
	CenteredPlacer ()

	CenteredPlacer (const CenteredPlacer &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

virtual const char *	libraryName () const

virtual const char *	className () const

virtual bool	isSameKindAs (const osg::Object *obj) const

const osg::Vec3 &	getCenter () const
	Get the center point. More...

void	setCenter (const osg::Vec3 &v)
	Set the center point. More...

void	setCenter (float x, float y, float z)
	Set the center point. More...

Public Member Functions inherited from osgParticle::Placer
	Placer ()

	Placer (const Placer &copy, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

virtual void	place (Particle *P) const =0
	Place a particle. Must be implemented in descendant classes. More...

virtual float	volume () const
	Volume of the placer. Can be implemented in descendant classes. More...

virtual osg::Vec3	getControlPosition () const =0
	Return the control position of particles that placer will generate. Must be implemented in descendant classes. More...

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (osg::State *=0) const

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~CenteredPlacer ()

Protected Member Functions inherited from osgParticle::Placer
	~Placer ()

Placer &	operator= (const Placer &)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Additional Inherited Members
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Detailed Description

An abstract placer base class for placers which need a center point.

Definition at line 29 of file CenteredPlacer.h.

Constructor & Destructor Documentation

osgParticle::CenteredPlacer::CenteredPlacer ( )

inline

Definition at line 56 of file CenteredPlacer.h.

osgParticle::CenteredPlacer::CenteredPlacer	(	const CenteredPlacer &	copy,
		const osg::CopyOp &	copyop = `osg::CopyOp::SHALLOW_COPY`
	)

inline

Definition at line 61 of file CenteredPlacer.h.

virtual osgParticle::CenteredPlacer::~CenteredPlacer ( )

inlineprotectedvirtual

Definition at line 48 of file CenteredPlacer.h.

Member Function Documentation

virtual const char* osgParticle::CenteredPlacer::className ( ) const

inlinevirtual

return the name of the object's class type. Must be defined by derived classes.

Reimplemented from osgParticle::Placer.

Definition at line 35 of file CenteredPlacer.h.

const osg::Vec3 & osgParticle::CenteredPlacer::getCenter ( ) const

inline

Get the center point.

Definition at line 66 of file CenteredPlacer.h.

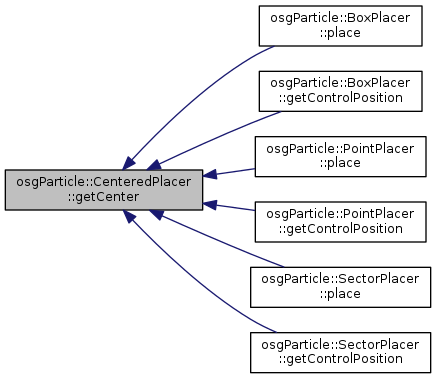

Here is the caller graph for this function:

virtual bool osgParticle::CenteredPlacer::isSameKindAs ( const osg::Object * obj ) const

inlinevirtual

Reimplemented from osgParticle::Placer.

Definition at line 36 of file CenteredPlacer.h.

virtual const char* osgParticle::CenteredPlacer::libraryName ( ) const

inlinevirtual

return the name of the object's library. Must be defined by derived classes. The OpenSceneGraph convention is that the namespace of a library is the same as the library name.

Reimplemented from osgParticle::Placer.

Definition at line 34 of file CenteredPlacer.h.

void osgParticle::CenteredPlacer::setCenter ( const osg::Vec3 & v )

inline

Set the center point.

Definition at line 71 of file CenteredPlacer.h.

void osgParticle::CenteredPlacer::setCenter	(	float	x,
		float	y,
		float	z
	)

inline

Set the center point.

Definition at line 76 of file CenteredPlacer.h.

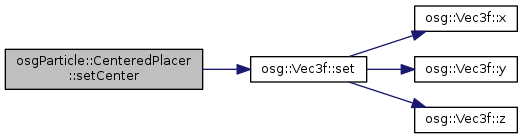

Here is the call graph for this function:

The documentation for this class was generated from the following file:

osg_head/include/osgParticle/CenteredPlacer.h
