osgManipulator::Projector Class Reference

#include <Projector.h>

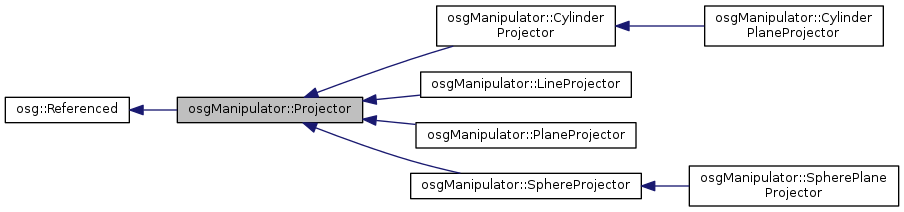

Inheritance diagram for osgManipulator::Projector:

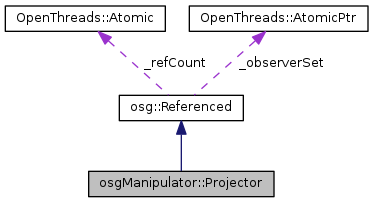

Collaboration diagram for osgManipulator::Projector:

Public Member Functions
	Projector ()
virtual bool	project (const PointerInfo &pi, osg::Vec3d &projectedPoint) const =0
void	setLocalToWorld (const osg::Matrix &localToWorld)
const osg::Matrix &	getLocalToWorld () const
const osg::Matrix &	getWorldToLocal () const
Public Member Functions inherited from osg::Referenced
	Referenced ()
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
virtual void	setThreadSafeRefUnref (bool threadSafe)
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
int	unref () const
int	unref_nodelete () const
int	referenceCount () const
ObserverSet *	getObserverSet () const
ObserverSet *	getOrCreateObserverSet () const
void	addObserver (Observer *observer) const
void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~Projector ()
Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Protected Attributes
osg::Matrix	_localToWorld
osg::Matrix	_worldToLocal
bool	_worldToLocalDirty
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
static bool	getThreadSafeReferenceCounting ()
static void	setDeleteHandler (DeleteHandler *handler)
static DeleteHandler *	getDeleteHandler ()

Detailed Description

Base class for Projectors. Projectors maps 2D cursor motions to 3D motions.

Definition at line 30 of file Projector.h.

Constructor & Destructor Documentation

osgManipulator::Projector::Projector

(

)

virtual osgManipulator::Projector::~Projector ( )

protectedvirtual

Member Function Documentation

const osg::Matrix& osgManipulator::Projector::getLocalToWorld ( ) const

inline

Gets the matrix for transforming the projector's local coordinate system to the world/object coordinate system.

Definition at line 59 of file Projector.h.

const osg::Matrix& osgManipulator::Projector::getWorldToLocal ( ) const

inline

Gets the matrix for transforming the world/object coordinate system to the command's local coordinate system.

Definition at line 65 of file Projector.h.

Here is the call graph for this function:

virtual bool osgManipulator::Projector::project ( const PointerInfo &  pi, osg::Vec3d &  projectedPoint  ) const

pure virtual

Calculates the object/world coordinates (projectedPoint) of a window coordinate (pointToProject) when projected onto some shape or geometry (implemented in derived classes). SceneView in used for i projecting window coordinates into object coordinates and vice versa. Returns true on successful projection.

Implemented in osgManipulator::CylinderPlaneProjector, osgManipulator::CylinderProjector, osgManipulator::SpherePlaneProjector, osgManipulator::SphereProjector, osgManipulator::PlaneProjector, and osgManipulator::LineProjector.

void osgManipulator::Projector::setLocalToWorld ( const osg::Matrix &  localToWorld )

inline

Sets the matrix for transforming the projector's local coordinate system to the world/object coordinate system.

Definition at line 49 of file Projector.h.

Member Data Documentation

osg::Matrix osgManipulator::Projector::_localToWorld

protected

Definition at line 79 of file Projector.h.

osg::Matrix osgManipulator::Projector::_worldToLocal

mutableprotected

Definition at line 80 of file Projector.h.

bool osgManipulator::Projector::_worldToLocalDirty

mutableprotected

Definition at line 82 of file Projector.h.

---

The documentation for this class was generated from the following file:

• osg_head/include/osgManipulator/Projector.h
