osgManipulator::CylinderPlaneProjector Class Reference

#include <Projector.h>

Inheritance diagram for osgManipulator::CylinderPlaneProjector:

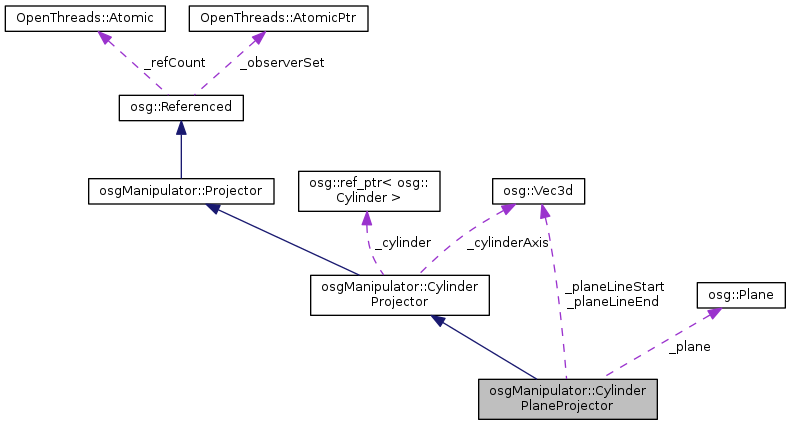

Collaboration diagram for osgManipulator::CylinderPlaneProjector:

Public Member Functions
	CylinderPlaneProjector ()
	CylinderPlaneProjector (osg::Cylinder *cylinder)
virtual bool	project (const PointerInfo &pi, osg::Vec3d &projectedPoint) const
osg::Quat	getRotation (const osg::Vec3d &p1, const osg::Vec3d &p2) const
Public Member Functions inherited from osgManipulator::CylinderProjector
	CylinderProjector ()
	CylinderProjector (osg::Cylinder *cylinder)
void	setCylinder (osg::Cylinder *cylinder)
const osg::Cylinder *	getCylinder () const
bool	isPointInFront (const PointerInfo &pi, const osg::Matrix &localToWorld) const
void	setFront (bool front)
Public Member Functions inherited from osgManipulator::Projector
	Projector ()
void	setLocalToWorld (const osg::Matrix &localToWorld)
const osg::Matrix &	getLocalToWorld () const
const osg::Matrix &	getWorldToLocal () const
Public Member Functions inherited from osg::Referenced
	Referenced ()
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
virtual void	setThreadSafeRefUnref (bool threadSafe)
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
int	unref () const
int	unref_nodelete () const
int	referenceCount () const
ObserverSet *	getObserverSet () const
ObserverSet *	getOrCreateObserverSet () const
void	addObserver (Observer *observer) const
void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~CylinderPlaneProjector ()
Protected Member Functions inherited from osgManipulator::CylinderProjector
virtual	~CylinderProjector ()
Protected Member Functions inherited from osgManipulator::Projector
virtual	~Projector ()
Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Protected Attributes
osg::Plane	_plane
osg::Vec3d	_planeLineStart
osg::Vec3d	_planeLineEnd
bool	_parallelPlane
Protected Attributes inherited from osgManipulator::CylinderProjector
osg::ref_ptr< osg::Cylinder >	_cylinder
osg::Vec3d	_cylinderAxis
bool	_front
Protected Attributes inherited from osgManipulator::Projector
osg::Matrix	_localToWorld
osg::Matrix	_worldToLocal
bool	_worldToLocalDirty
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
static bool	getThreadSafeReferenceCounting ()
static void	setDeleteHandler (DeleteHandler *handler)
static DeleteHandler *	getDeleteHandler ()

Detailed Description

CylinderPlaneProjector projects a point onto a plane relative to the given cylinder. For most cases, the plane will be parallel to the cylinder axis oriented towards the eyepoint. When the eyepoint and cylinder axis are close to parallel, then it will project onto a plane perpendicular to the cylinder.

Definition at line 272 of file Projector.h.

Constructor & Destructor Documentation

osgManipulator::CylinderPlaneProjector::CylinderPlaneProjector

(

)

osgManipulator::CylinderPlaneProjector::CylinderPlaneProjector

(

osg::Cylinder *

cylinder

)

virtual osgManipulator::CylinderPlaneProjector::~CylinderPlaneProjector ( )

protectedvirtual

Member Function Documentation

osg::Quat osgManipulator::CylinderPlaneProjector::getRotation	(	const osg::Vec3d &	p1,
		const osg::Vec3d &	p2
	)		const

Generates a rotation about the cylinder axis based upon the incoming projected points on the plane computed from project().

Parameters

[in]	p1	Initial projection point
[in]	p2	Second projection point

Returns

osg::Quat Rotation about cylinder axis

virtual bool osgManipulator::CylinderPlaneProjector::project ( const PointerInfo &  pi, osg::Vec3d &  projectedPoint  ) const

virtual

Calculates the object coordinates (projectedPoint) of a window coordinate (pointToProject) when projected onto the given plane. Returns true on successful projection.

Parameters

[in]	pi	Incoming intersection information
[out]	projectedPoint	Point located on the given plane

Returns

bool Whether the projection onto the plane was successful.

Reimplemented from osgManipulator::CylinderProjector.

Member Data Documentation

bool osgManipulator::CylinderPlaneProjector::_parallelPlane

mutableprotected

Definition at line 305 of file Projector.h.

osg::Plane osgManipulator::CylinderPlaneProjector::_plane

mutableprotected

Definition at line 303 of file Projector.h.

osg::Vec3d osgManipulator::CylinderPlaneProjector::_planeLineEnd

mutableprotected

Definition at line 304 of file Projector.h.

osg::Vec3d osgManipulator::CylinderPlaneProjector::_planeLineStart

mutableprotected

Definition at line 304 of file Projector.h.

---

The documentation for this class was generated from the following file:

• osg_head/include/osgManipulator/Projector.h
