osgManipulator::SpherePlaneProjector Class Reference

#include <Projector.h>

Inheritance diagram for osgManipulator::SpherePlaneProjector:

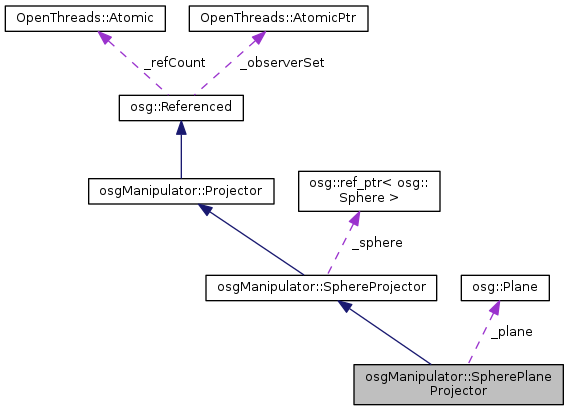

Collaboration diagram for osgManipulator::SpherePlaneProjector:

Public Member Functions
	SpherePlaneProjector ()
	SpherePlaneProjector (osg::Sphere *sphere)
virtual bool	project (const PointerInfo &pi, osg::Vec3d &projectedPoint) const
bool	isProjectionOnSphere () const
osg::Quat	getRotation (const osg::Vec3d &p1, bool p1OnSphere, const osg::Vec3d &p2, bool p2OnSphere, float radialFactor=0.0f) const
Public Member Functions inherited from osgManipulator::SphereProjector
	SphereProjector ()
	SphereProjector (osg::Sphere *sphere)
void	setSphere (osg::Sphere *sphere)
const osg::Sphere *	getSphere () const
bool	isPointInFront (const PointerInfo &pi, const osg::Matrix &localToWorld) const
void	setFront (bool front)
Public Member Functions inherited from osgManipulator::Projector
	Projector ()
void	setLocalToWorld (const osg::Matrix &localToWorld)
const osg::Matrix &	getLocalToWorld () const
const osg::Matrix &	getWorldToLocal () const
Public Member Functions inherited from osg::Referenced
	Referenced ()
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
virtual void	setThreadSafeRefUnref (bool threadSafe)
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
int	unref () const
int	unref_nodelete () const
int	referenceCount () const
ObserverSet *	getObserverSet () const
ObserverSet *	getOrCreateObserverSet () const
void	addObserver (Observer *observer) const
void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~SpherePlaneProjector ()
Protected Member Functions inherited from osgManipulator::SphereProjector
virtual	~SphereProjector ()
Protected Member Functions inherited from osgManipulator::Projector
virtual	~Projector ()
Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Protected Attributes
osg::Plane	_plane
bool	_onSphere
Protected Attributes inherited from osgManipulator::SphereProjector
osg::ref_ptr< osg::Sphere >	_sphere
bool	_front
Protected Attributes inherited from osgManipulator::Projector
osg::Matrix	_localToWorld
osg::Matrix	_worldToLocal
bool	_worldToLocalDirty
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
static bool	getThreadSafeReferenceCounting ()
static void	setDeleteHandler (DeleteHandler *handler)
static DeleteHandler *	getDeleteHandler ()

Detailed Description

SpherePlaneProjector projects points onto a sphere, failing which it project onto a plane oriented to the viewing direction.

Definition at line 188 of file Projector.h.

Constructor & Destructor Documentation

osgManipulator::SpherePlaneProjector::SpherePlaneProjector

(

)

osgManipulator::SpherePlaneProjector::SpherePlaneProjector

(

osg::Sphere *

sphere

)

virtual osgManipulator::SpherePlaneProjector::~SpherePlaneProjector ( )

protectedvirtual

Member Function Documentation

osg::Quat osgManipulator::SpherePlaneProjector::getRotation	(	const osg::Vec3d &	p1,
		bool	p1OnSphere,
		const osg::Vec3d &	p2,
		bool	p2OnSphere,
		float	radialFactor = 0.0f
	)		const

bool osgManipulator::SpherePlaneProjector::isProjectionOnSphere ( ) const

inline

Returns true if the previous projection was on the sphere and false if the projection was on the plane.

Definition at line 207 of file Projector.h.

virtual bool osgManipulator::SpherePlaneProjector::project ( const PointerInfo &  pi, osg::Vec3d &  projectedPoint  ) const

virtual

Calculates the object coordinates (projectedPoint) of a window coordinate (pointToProject) when projected onto the given sphere. Returns true on successful projection.

Reimplemented from osgManipulator::SphereProjector.

Member Data Documentation

bool osgManipulator::SpherePlaneProjector::_onSphere

mutableprotected

Definition at line 218 of file Projector.h.

osg::Plane osgManipulator::SpherePlaneProjector::_plane

mutableprotected

Definition at line 217 of file Projector.h.

---

The documentation for this class was generated from the following file:

• osg_head/include/osgManipulator/Projector.h
