#include <BufferIndexBinding.h>

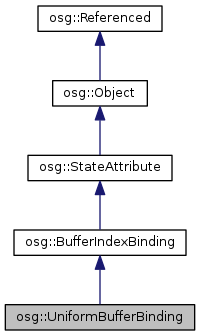

Inheritance diagram for osg::UniformBufferBinding:

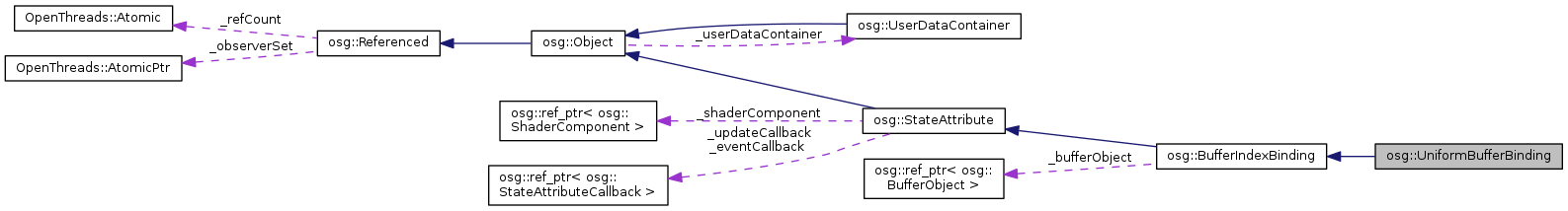

Collaboration diagram for osg::UniformBufferBinding:

Public Member Functions
	UniformBufferBinding ()

	UniformBufferBinding (GLuint index)

	UniformBufferBinding (GLuint index, BufferObject *bo, GLintptr offset, GLsizeiptr size)

	UniformBufferBinding (const UniformBufferBinding &rhs, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

	META_StateAttribute (osg, UniformBufferBinding, UNIFORMBUFFERBINDING)

virtual int	compare (const StateAttribute &bb) const

Public Member Functions inherited from osg::BufferIndexBinding
virtual unsigned	getMember () const

GLenum	getTarget () const

GLuint	getIndex () const

void	setBufferObject (BufferObject *bo)

BufferObject *	getBufferObject () const

void	setOffset (GLintptr offset)

GLintptr	getOffset () const

void	setSize (GLsizeiptr size)

GLsizeiptr	getSize () const

virtual void	apply (State &state) const

Public Member Functions inherited from osg::StateAttribute
	StateAttribute ()

	StateAttribute (const StateAttribute &sa, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

virtual bool	isSameKindAs (const Object *obj) const

virtual const char *	libraryName () const

virtual const char *	className () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Texture *	asTexture ()

virtual const Texture *	asTexture () const

virtual Type	getType () const =0

TypeMemberPair	getTypeMemberPair () const

virtual bool	isTextureAttribute () const

bool	operator< (const StateAttribute &rhs) const

bool	operator== (const StateAttribute &rhs) const

bool	operator!= (const StateAttribute &rhs) const

const ParentList &	getParents () const

StateSet *	getParent (unsigned int i)

const StateSet *	getParent (unsigned int i) const

unsigned int	getNumParents () const

void	setShaderComponent (ShaderComponent *sc)

ShaderComponent *	getShaderComponent ()

const ShaderComponent *	getShaderComponent () const

virtual bool	getModeUsage (ModeUsage &) const

virtual bool	checkValidityOfAssociatedModes (osg::State &) const

void	setUpdateCallback (StateAttributeCallback *uc)

StateAttributeCallback *	getUpdateCallback ()

const StateAttributeCallback *	getUpdateCallback () const

void	setEventCallback (StateAttributeCallback *ec)

StateAttributeCallback *	getEventCallback ()

const StateAttributeCallback *	getEventCallback () const

virtual void	compileGLObjects (State &) const

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (State *=0) const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Additional Inherited Members
Public Types inherited from osg::StateAttribute
enum	Values { OFF = 0x0, ON = 0x1, OVERRIDE = 0x2, PROTECTED = 0x4, INHERIT = 0x8 }

enum	Type { TEXTURE, POLYGONMODE, POLYGONOFFSET, MATERIAL, ALPHAFUNC, ANTIALIAS, COLORTABLE, CULLFACE, FOG, FRONTFACE, LIGHT, POINT, LINEWIDTH, LINESTIPPLE, POLYGONSTIPPLE, SHADEMODEL, TEXENV, TEXENVFILTER, TEXGEN, TEXMAT, LIGHTMODEL, BLENDFUNC, BLENDEQUATION, LOGICOP, STENCIL, COLORMASK, DEPTH, VIEWPORT, SCISSOR, BLENDCOLOR, MULTISAMPLE, CLIPPLANE, COLORMATRIX, VERTEXPROGRAM, FRAGMENTPROGRAM, POINTSPRITE, PROGRAM, CLAMPCOLOR, HINT, SAMPLEMASKI, PRIMITIVERESTARTINDEX, CLIPCONTROL, VALIDATOR, VIEWMATRIXEXTRACTOR, OSGNV_PARAMETER_BLOCK, OSGNVEXT_TEXTURE_SHADER, OSGNVEXT_VERTEX_PROGRAM, OSGNVEXT_REGISTER_COMBINERS, OSGNVCG_PROGRAM, OSGNVSLANG_PROGRAM, OSGNVPARSE_PROGRAM_PARSER, UNIFORMBUFFERBINDING, TRANSFORMFEEDBACKBUFFERBINDING, ATOMICCOUNTERBUFFERBINDING, PATCH_PARAMETER, FRAME_BUFFER_OBJECT, VERTEX_ATTRIB_DIVISOR, SHADERSTORAGEBUFFERBINDING, CAPABILITY = 100 }

typedef GLenum	GLMode

typedef unsigned int	GLModeValue

typedef unsigned int	OverrideValue

typedef std::pair< Type, unsigned int >	TypeMemberPair

typedef std::vector< StateSet * >	ParentList

typedef osg::StateAttributeCallback	Callback

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Protected Member Functions inherited from osg::BufferIndexBinding
	BufferIndexBinding (GLenum target, GLuint index)

	BufferIndexBinding (GLenum target, GLuint index, BufferObject *bo, GLintptr offset, GLsizeiptr size)

	BufferIndexBinding (const BufferIndexBinding &rhs, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual	~BufferIndexBinding ()

Protected Member Functions inherited from osg::StateAttribute
virtual	~StateAttribute ()

void	addParent (osg::StateSet *object)

void	removeParent (osg::StateSet *object)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes inherited from osg::BufferIndexBinding
const GLenum	_target

const GLuint	_index

ref_ptr< BufferObject >	_bufferObject

GLintptr	_offset

GLsizeiptr	_size

Protected Attributes inherited from osg::StateAttribute
ParentList	_parents

ref_ptr< ShaderComponent >	_shaderComponent

ref_ptr< StateAttributeCallback >	_updateCallback

ref_ptr< StateAttributeCallback >	_eventCallback

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Detailed Description

StateAttribute for binding a uniform buffer index target.

Definition at line 85 of file BufferIndexBinding.h.

Constructor & Destructor Documentation

osg::UniformBufferBinding::UniformBufferBinding ( )

osg::UniformBufferBinding::UniformBufferBinding ( GLuint index )

osg::UniformBufferBinding::UniformBufferBinding	(	GLuint	index,
		BufferObject *	bo,
		GLintptr	offset,
		GLsizeiptr	size
	)

Create a binding for a uniform buffer index target.

Parameters

index	the index target
bo	associated buffer object
offset	offset into buffer object
size	size of data in buffer object

osg::UniformBufferBinding::UniformBufferBinding	(	const UniformBufferBinding &	rhs,
		const CopyOp &	copyop = `CopyOp::SHALLOW_COPY`
	)

Member Function Documentation

virtual int osg::UniformBufferBinding::compare ( const StateAttribute & sa ) const

inlinevirtual

Return -1 if *this < *rhs, 0 if *this==*rhs, 1 if *this>*rhs.

Implements osg::StateAttribute.

Definition at line 100 of file BufferIndexBinding.h.

osg::UniformBufferBinding::META_StateAttribute	(	osg	,
		UniformBufferBinding	,
		UNIFORMBUFFERBINDING
	)

The documentation for this class was generated from the following file:

osg_head/include/osg/BufferIndexBinding.h
