#include <Stencil.h>

Inheritance diagram for osg::Stencil:

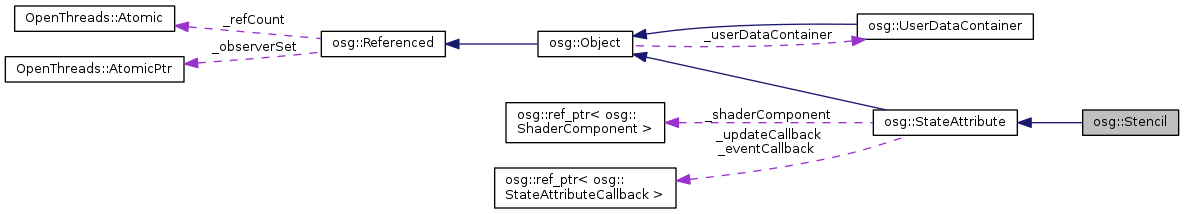

Collaboration diagram for osg::Stencil:

Public Types
enum	Function { NEVER = GL_NEVER, LESS = GL_LESS, EQUAL = GL_EQUAL, LEQUAL = GL_LEQUAL, GREATER = GL_GREATER, NOTEQUAL = GL_NOTEQUAL, GEQUAL = GL_GEQUAL, ALWAYS = GL_ALWAYS }

enum	Operation { KEEP = GL_KEEP, ZERO = GL_ZERO, REPLACE = GL_REPLACE, INCR = GL_INCR, DECR = GL_DECR, INVERT = GL_INVERT, INCR_WRAP = GL_INCR_WRAP, DECR_WRAP = GL_DECR_WRAP }

Public Types inherited from osg::StateAttribute
enum	Values { OFF = 0x0, ON = 0x1, OVERRIDE = 0x2, PROTECTED = 0x4, INHERIT = 0x8 }

enum	Type { TEXTURE, POLYGONMODE, POLYGONOFFSET, MATERIAL, ALPHAFUNC, ANTIALIAS, COLORTABLE, CULLFACE, FOG, FRONTFACE, LIGHT, POINT, LINEWIDTH, LINESTIPPLE, POLYGONSTIPPLE, SHADEMODEL, TEXENV, TEXENVFILTER, TEXGEN, TEXMAT, LIGHTMODEL, BLENDFUNC, BLENDEQUATION, LOGICOP, STENCIL, COLORMASK, DEPTH, VIEWPORT, SCISSOR, BLENDCOLOR, MULTISAMPLE, CLIPPLANE, COLORMATRIX, VERTEXPROGRAM, FRAGMENTPROGRAM, POINTSPRITE, PROGRAM, CLAMPCOLOR, HINT, SAMPLEMASKI, PRIMITIVERESTARTINDEX, CLIPCONTROL, VALIDATOR, VIEWMATRIXEXTRACTOR, OSGNV_PARAMETER_BLOCK, OSGNVEXT_TEXTURE_SHADER, OSGNVEXT_VERTEX_PROGRAM, OSGNVEXT_REGISTER_COMBINERS, OSGNVCG_PROGRAM, OSGNVSLANG_PROGRAM, OSGNVPARSE_PROGRAM_PARSER, UNIFORMBUFFERBINDING, TRANSFORMFEEDBACKBUFFERBINDING, ATOMICCOUNTERBUFFERBINDING, PATCH_PARAMETER, FRAME_BUFFER_OBJECT, VERTEX_ATTRIB_DIVISOR, SHADERSTORAGEBUFFERBINDING, CAPABILITY = 100 }

typedef GLenum	GLMode

typedef unsigned int	GLModeValue

typedef unsigned int	OverrideValue

typedef std::pair< Type, unsigned int >	TypeMemberPair

typedef std::vector< StateSet * >	ParentList

typedef osg::StateAttributeCallback	Callback

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	Stencil ()

	Stencil (const Stencil &stencil, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

	META_StateAttribute (osg, Stencil, STENCIL)

virtual int	compare (const StateAttribute &sa) const

virtual bool	getModeUsage (StateAttribute::ModeUsage &usage) const

void	setFunction (Function func, int ref, unsigned int mask)

void	setFunction (Function func)

Function	getFunction () const

void	setFunctionRef (int ref)

int	getFunctionRef () const

void	setFunctionMask (unsigned int mask)

unsigned int	getFunctionMask () const

void	setOperation (Operation sfail, Operation zfail, Operation zpass)

void	setStencilFailOperation (Operation sfail)

Operation	getStencilFailOperation () const

void	setStencilPassAndDepthFailOperation (Operation zfail)

Operation	getStencilPassAndDepthFailOperation () const

void	setStencilPassAndDepthPassOperation (Operation zpass)

Operation	getStencilPassAndDepthPassOperation () const

void	setWriteMask (unsigned int mask)

unsigned int	getWriteMask () const

virtual void	apply (State &state) const

Public Member Functions inherited from osg::StateAttribute
	StateAttribute ()

	StateAttribute (const StateAttribute &sa, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

virtual bool	isSameKindAs (const Object *obj) const

virtual const char *	libraryName () const

virtual const char *	className () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Texture *	asTexture ()

virtual const Texture *	asTexture () const

virtual Type	getType () const =0

virtual unsigned int	getMember () const

TypeMemberPair	getTypeMemberPair () const

virtual bool	isTextureAttribute () const

bool	operator< (const StateAttribute &rhs) const

bool	operator== (const StateAttribute &rhs) const

bool	operator!= (const StateAttribute &rhs) const

const ParentList &	getParents () const

StateSet *	getParent (unsigned int i)

const StateSet *	getParent (unsigned int i) const

unsigned int	getNumParents () const

void	setShaderComponent (ShaderComponent *sc)

ShaderComponent *	getShaderComponent ()

const ShaderComponent *	getShaderComponent () const

virtual bool	checkValidityOfAssociatedModes (osg::State &) const

void	setUpdateCallback (StateAttributeCallback *uc)

StateAttributeCallback *	getUpdateCallback ()

const StateAttributeCallback *	getUpdateCallback () const

void	setEventCallback (StateAttributeCallback *ec)

StateAttributeCallback *	getEventCallback ()

const StateAttributeCallback *	getEventCallback () const

virtual void	compileGLObjects (State &) const

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (State *=0) const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~Stencil ()

Protected Member Functions inherited from osg::StateAttribute
virtual	~StateAttribute ()

void	addParent (osg::StateSet *object)

void	removeParent (osg::StateSet *object)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
Function	_func

int	_funcRef

unsigned int	_funcMask

Operation	_sfail

Operation	_zfail

Operation	_zpass

unsigned int	_writeMask

Protected Attributes inherited from osg::StateAttribute
ParentList	_parents

ref_ptr< ShaderComponent >	_shaderComponent

ref_ptr< StateAttributeCallback >	_updateCallback

ref_ptr< StateAttributeCallback >	_eventCallback

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Detailed Description

Encapsulate OpenGL glStencilFunc/Op/Mask functions.

All functionality except INCR_WRAP and DECR_WRAP is supported by OpenGL 1.1. INCR_WRAP an DECR_WRAP are available since OpenGL 1.4 or when GL_EXT_stencil_wrap extension is present.

If INCR_WRAP or DECR_WRAP values are used while they are detected to be not supported, the INCR or DECR values are sent to OpenGL instead.

OpenGL 2.0 introduced two side stenciling that is available through osg::StencilTwoSided class.

Definition at line 39 of file Stencil.h.

Member Enumeration Documentation

enum osg::Stencil::Function

Enumerator
NEVER
LESS
EQUAL
LEQUAL
GREATER
NOTEQUAL
GEQUAL
ALWAYS

Definition at line 85 of file Stencil.h.

enum osg::Stencil::Operation

Enumerator
KEEP
ZERO
REPLACE
INCR
DECR
INVERT
INCR_WRAP
DECR_WRAP

Definition at line 114 of file Stencil.h.

Constructor & Destructor Documentation

osg::Stencil::Stencil ( )

osg::Stencil::Stencil	(	const Stencil &	stencil,
		const CopyOp &	copyop = `CopyOp::SHALLOW_COPY`
	)

inline

Copy constructor using CopyOp to manage deep vs shallow copy.

Definition at line 47 of file Stencil.h.

virtual osg::Stencil::~Stencil ( )

protectedvirtual

Member Function Documentation

virtual void osg::Stencil::apply ( State & ) const

virtual

apply the OpenGL state attributes. The render info for the current OpenGL context is passed in to allow the StateAttribute to obtain details on the the current context and state.

Reimplemented from osg::StateAttribute.

virtual int osg::Stencil::compare ( const StateAttribute & sa ) const

inlinevirtual

return -1 if *this < *rhs, 0 if *this==*rhs, 1 if *this>*rhs.

Implements osg::StateAttribute.

Definition at line 61 of file Stencil.h.

Function osg::Stencil::getFunction ( ) const

inline

Definition at line 105 of file Stencil.h.

unsigned int osg::Stencil::getFunctionMask ( ) const

inline

Definition at line 111 of file Stencil.h.

int osg::Stencil::getFunctionRef ( ) const

inline

Definition at line 108 of file Stencil.h.

virtual bool osg::Stencil::getModeUsage ( StateAttribute::ModeUsage & ) const

inlinevirtual

Return the modes associated with this StateAttribute.

Reimplemented from osg::StateAttribute.

Definition at line 79 of file Stencil.h.

Here is the call graph for this function:

Operation osg::Stencil::getStencilFailOperation ( ) const

inline

get the operation when the stencil test fails.

Definition at line 144 of file Stencil.h.

Operation osg::Stencil::getStencilPassAndDepthFailOperation ( ) const

inline

get the operation when the stencil test passes but the depth test fails.

Definition at line 150 of file Stencil.h.

Operation osg::Stencil::getStencilPassAndDepthPassOperation ( ) const

inline

get the operation when both the stencil test and the depth test pass.

Definition at line 156 of file Stencil.h.

unsigned int osg::Stencil::getWriteMask ( ) const

inline

Definition at line 161 of file Stencil.h.

osg::Stencil::META_StateAttribute	(	osg	,
		Stencil	,
		STENCIL
	)

void osg::Stencil::setFunction	(	Function	func,
		int	ref,
		unsigned int	mask
	)

inline

Definition at line 97 of file Stencil.h.

void osg::Stencil::setFunction ( Function func )

inline

Definition at line 104 of file Stencil.h.

void osg::Stencil::setFunctionMask ( unsigned int mask )

inline

Definition at line 110 of file Stencil.h.

void osg::Stencil::setFunctionRef ( int ref )

inline

Definition at line 107 of file Stencil.h.

void osg::Stencil::setOperation	(	Operation	sfail,
		Operation	zfail,
		Operation	zpass
	)

inline

set the operations to apply when the various stencil and depth tests fail or pass. First parameter is to control the operation when the stencil test fails. The second parameter is to control the operation when the stencil test passes, but depth test fails. The third parameter controls the operation when both the stencil test and depth pass. Ordering of parameter is the same as if using glStencilOp(,,).

Definition at line 133 of file Stencil.h.

void osg::Stencil::setStencilFailOperation ( Operation sfail )

inline

set the operation when the stencil test fails.

Definition at line 141 of file Stencil.h.

void osg::Stencil::setStencilPassAndDepthFailOperation ( Operation zfail )

inline

set the operation when the stencil test passes but the depth test fails.

Definition at line 147 of file Stencil.h.

void osg::Stencil::setStencilPassAndDepthPassOperation ( Operation zpass )

inline

set the operation when both the stencil test and the depth test pass.

Definition at line 153 of file Stencil.h.

void osg::Stencil::setWriteMask ( unsigned int mask )

inline

Definition at line 159 of file Stencil.h.

Member Data Documentation

Function osg::Stencil::_func

protected

Definition at line 171 of file Stencil.h.

unsigned int osg::Stencil::_funcMask

protected

Definition at line 173 of file Stencil.h.

int osg::Stencil::_funcRef

protected

Definition at line 172 of file Stencil.h.

Operation osg::Stencil::_sfail

protected

Definition at line 175 of file Stencil.h.

unsigned int osg::Stencil::_writeMask

protected

Definition at line 179 of file Stencil.h.

Operation osg::Stencil::_zfail

protected

Definition at line 176 of file Stencil.h.

Operation osg::Stencil::_zpass

protected

Definition at line 177 of file Stencil.h.

The documentation for this class was generated from the following file:

osg_head/include/osg/Stencil.h

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
