#include <PolygonMode.h>

Inheritance diagram for osg::PolygonMode:

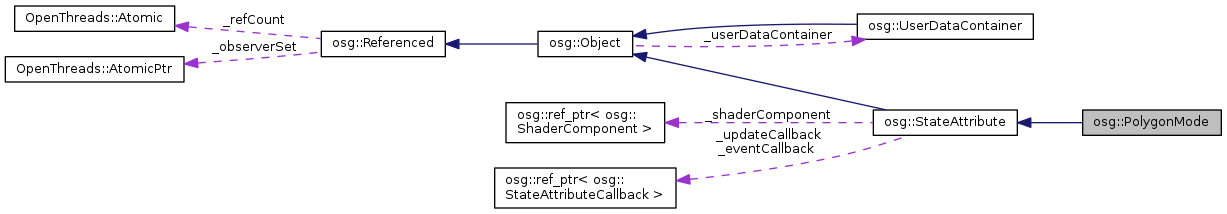

Collaboration diagram for osg::PolygonMode:

Public Types
enum	Mode { POINT = GL_POINT, LINE = GL_LINE, FILL = GL_FILL }

enum	Face { FRONT_AND_BACK, FRONT, BACK }

Public Types inherited from osg::StateAttribute
enum	Values { OFF = 0x0, ON = 0x1, OVERRIDE = 0x2, PROTECTED = 0x4, INHERIT = 0x8 }

enum	Type { TEXTURE, POLYGONMODE, POLYGONOFFSET, MATERIAL, ALPHAFUNC, ANTIALIAS, COLORTABLE, CULLFACE, FOG, FRONTFACE, LIGHT, POINT, LINEWIDTH, LINESTIPPLE, POLYGONSTIPPLE, SHADEMODEL, TEXENV, TEXENVFILTER, TEXGEN, TEXMAT, LIGHTMODEL, BLENDFUNC, BLENDEQUATION, LOGICOP, STENCIL, COLORMASK, DEPTH, VIEWPORT, SCISSOR, BLENDCOLOR, MULTISAMPLE, CLIPPLANE, COLORMATRIX, VERTEXPROGRAM, FRAGMENTPROGRAM, POINTSPRITE, PROGRAM, CLAMPCOLOR, HINT, SAMPLEMASKI, PRIMITIVERESTARTINDEX, CLIPCONTROL, VALIDATOR, VIEWMATRIXEXTRACTOR, OSGNV_PARAMETER_BLOCK, OSGNVEXT_TEXTURE_SHADER, OSGNVEXT_VERTEX_PROGRAM, OSGNVEXT_REGISTER_COMBINERS, OSGNVCG_PROGRAM, OSGNVSLANG_PROGRAM, OSGNVPARSE_PROGRAM_PARSER, UNIFORMBUFFERBINDING, TRANSFORMFEEDBACKBUFFERBINDING, ATOMICCOUNTERBUFFERBINDING, PATCH_PARAMETER, FRAME_BUFFER_OBJECT, VERTEX_ATTRIB_DIVISOR, SHADERSTORAGEBUFFERBINDING, CAPABILITY = 100 }

typedef GLenum	GLMode

typedef unsigned int	GLModeValue

typedef unsigned int	OverrideValue

typedef std::pair< Type, unsigned int >	TypeMemberPair

typedef std::vector< StateSet * >	ParentList

typedef osg::StateAttributeCallback	Callback

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	PolygonMode ()

	PolygonMode (Face face, Mode mode)

	PolygonMode (const PolygonMode &pm, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

	META_StateAttribute (osg, PolygonMode, POLYGONMODE)

virtual int	compare (const StateAttribute &sa) const

void	setMode (Face face, Mode mode)

Mode	getMode (Face face) const

bool	getFrontAndBack () const

virtual void	apply (State &state) const

Public Member Functions inherited from osg::StateAttribute
	StateAttribute ()

	StateAttribute (const StateAttribute &sa, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const =0

virtual Object *	clone (const CopyOp &) const =0

virtual bool	isSameKindAs (const Object *obj) const

virtual const char *	libraryName () const

virtual const char *	className () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Texture *	asTexture ()

virtual const Texture *	asTexture () const

virtual Type	getType () const =0

virtual unsigned int	getMember () const

TypeMemberPair	getTypeMemberPair () const

virtual bool	isTextureAttribute () const

bool	operator< (const StateAttribute &rhs) const

bool	operator== (const StateAttribute &rhs) const

bool	operator!= (const StateAttribute &rhs) const

const ParentList &	getParents () const

StateSet *	getParent (unsigned int i)

const StateSet *	getParent (unsigned int i) const

unsigned int	getNumParents () const

void	setShaderComponent (ShaderComponent *sc)

ShaderComponent *	getShaderComponent ()

const ShaderComponent *	getShaderComponent () const

virtual bool	getModeUsage (ModeUsage &) const

virtual bool	checkValidityOfAssociatedModes (osg::State &) const

void	setUpdateCallback (StateAttributeCallback *uc)

StateAttributeCallback *	getUpdateCallback ()

const StateAttributeCallback *	getUpdateCallback () const

void	setEventCallback (StateAttributeCallback *ec)

StateAttributeCallback *	getEventCallback ()

const StateAttributeCallback *	getEventCallback () const

virtual void	compileGLObjects (State &) const

virtual void	resizeGLObjectBuffers (unsigned int)

virtual void	releaseGLObjects (State *=0) const

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~PolygonMode ()

Protected Member Functions inherited from osg::StateAttribute
virtual	~StateAttribute ()

void	addParent (osg::StateSet *object)

void	removeParent (osg::StateSet *object)

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
Mode	_modeFront

Mode	_modeBack

Protected Attributes inherited from osg::StateAttribute
ParentList	_parents

ref_ptr< ShaderComponent >	_shaderComponent

ref_ptr< StateAttributeCallback >	_updateCallback

ref_ptr< StateAttributeCallback >	_eventCallback

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Detailed Description

State Class for setting OpenGL's polygon culling mode.

Definition at line 30 of file PolygonMode.h.

Member Enumeration Documentation

enum osg::PolygonMode::Face

Enumerator
FRONT_AND_BACK
FRONT
BACK

Definition at line 40 of file PolygonMode.h.

enum osg::PolygonMode::Mode

Enumerator
POINT
LINE
FILL

Definition at line 34 of file PolygonMode.h.

Constructor & Destructor Documentation

osg::PolygonMode::PolygonMode ( )

osg::PolygonMode::PolygonMode	(	Face	face,
		Mode	mode
	)

osg::PolygonMode::PolygonMode	(	const PolygonMode &	pm,
		const CopyOp &	copyop = `CopyOp::SHALLOW_COPY`
	)

inline

Copy constructor using CopyOp to manage deep vs shallow copy.

Definition at line 51 of file PolygonMode.h.

virtual osg::PolygonMode::~PolygonMode ( )

protectedvirtual

Member Function Documentation

virtual void osg::PolygonMode::apply ( State & ) const

virtual

apply the OpenGL state attributes. The render info for the current OpenGL context is passed in to allow the StateAttribute to obtain details on the the current context and state.

Reimplemented from osg::StateAttribute.

virtual int osg::PolygonMode::compare ( const StateAttribute & sa ) const

inlinevirtual

return -1 if *this < *rhs, 0 if *this==*rhs, 1 if *this>*rhs.

Implements osg::StateAttribute.

Definition at line 59 of file PolygonMode.h.

bool osg::PolygonMode::getFrontAndBack ( ) const

inline

Definition at line 75 of file PolygonMode.h.

Mode osg::PolygonMode::getMode ( Face face ) const

osg::PolygonMode::META_StateAttribute	(	osg	,
		PolygonMode	,
		POLYGONMODE
	)

void osg::PolygonMode::setMode	(	Face	face,
		Mode	mode
	)

Member Data Documentation

Mode osg::PolygonMode::_modeBack

protected

Definition at line 84 of file PolygonMode.h.

Mode osg::PolygonMode::_modeFront

protected

Definition at line 83 of file PolygonMode.h.

The documentation for this class was generated from the following file:

osg_head/include/osg/PolygonMode.h
