osg::Material Class Reference

#include <Material.h>

Inheritance diagram for osg::Material:
Inheritance graph
[legend]

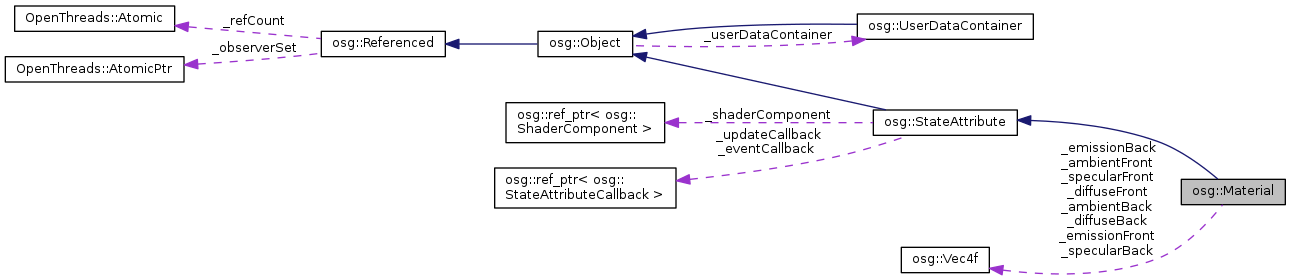

Collaboration diagram for osg::Material:
Collaboration graph
[legend]

Public Types

enum  Face { FRONT = GL_FRONT, BACK = GL_BACK, FRONT_AND_BACK = GL_FRONT_AND_BACK }

enum  ColorMode {
  AMBIENT = GL_AMBIENT, DIFFUSE = GL_DIFFUSE, SPECULAR = GL_SPECULAR, EMISSION = GL_EMISSION,
  AMBIENT_AND_DIFFUSE = GL_AMBIENT_AND_DIFFUSE, OFF
}

- Public Types inherited from osg::StateAttribute
enum  Values {
  OFF = 0x0, ON = 0x1, OVERRIDE = 0x2, PROTECTED = 0x4,
  INHERIT = 0x8
}

enum  Type {
  TEXTURE, POLYGONMODE, POLYGONOFFSET, MATERIAL,
  ALPHAFUNC, ANTIALIAS, COLORTABLE, CULLFACE,
  FOG, FRONTFACE, LIGHT, POINT,
  LINEWIDTH, LINESTIPPLE, POLYGONSTIPPLE, SHADEMODEL,
  TEXENV, TEXENVFILTER, TEXGEN, TEXMAT,
  LIGHTMODEL, BLENDFUNC, BLENDEQUATION, LOGICOP,
  STENCIL, COLORMASK, DEPTH, VIEWPORT,
  SCISSOR, BLENDCOLOR, MULTISAMPLE, CLIPPLANE,
  COLORMATRIX, VERTEXPROGRAM, FRAGMENTPROGRAM, POINTSPRITE,
  PROGRAM, CLAMPCOLOR, HINT, SAMPLEMASKI,
  PRIMITIVERESTARTINDEX, CLIPCONTROL, VALIDATOR, VIEWMATRIXEXTRACTOR,
  OSGNV_PARAMETER_BLOCK, OSGNVEXT_TEXTURE_SHADER, OSGNVEXT_VERTEX_PROGRAM, OSGNVEXT_REGISTER_COMBINERS,
  OSGNVCG_PROGRAM, OSGNVSLANG_PROGRAM, OSGNVPARSE_PROGRAM_PARSER, UNIFORMBUFFERBINDING,
  TRANSFORMFEEDBACKBUFFERBINDING, ATOMICCOUNTERBUFFERBINDING, PATCH_PARAMETER, FRAME_BUFFER_OBJECT,
  VERTEX_ATTRIB_DIVISOR, SHADERSTORAGEBUFFERBINDING, CAPABILITY = 100
}

typedef GLenum GLMode

typedef unsigned int GLModeValue

typedef unsigned int OverrideValue

typedef std::pair< Type,
unsigned int > 		TypeMemberPair

typedef std::vector< StateSet * > ParentList

typedef osg::StateAttributeCallback Callback

- Public Types inherited from osg::Object
enum  DataVariance { DYNAMIC, STATIC, UNSPECIFIED }


Public Member Functions

 Material ()

 Material (const Material &mat, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

 META_StateAttribute (osg, Material, MATERIAL)

virtual int compare (const StateAttribute &sa) const

Material & operator= (const Material &rhs)

virtual bool getModeUsage (StateAttribute::ModeUsage &) const

virtual void apply (State &state) const

void setColorMode (ColorMode mode)

ColorMode getColorMode () const

void setAmbient (Face face, const Vec4 &ambient)

const Vec4 & getAmbient (Face face) const

bool getAmbientFrontAndBack () const

void setDiffuse (Face face, const Vec4 &diffuse)

const Vec4 & getDiffuse (Face face) const

bool getDiffuseFrontAndBack () const

void setSpecular (Face face, const Vec4 &specular)

const Vec4 & getSpecular (Face face) const

bool getSpecularFrontAndBack () const

void setEmission (Face face, const Vec4 &emission)

const Vec4 & getEmission (Face face) const

bool getEmissionFrontAndBack () const

void setShininess (Face face, float shininess)

float getShininess (Face face) const

bool getShininessFrontAndBack () const

void setTransparency (Face face, float trans)

void setAlpha (Face face, float alpha)

- Public Member Functions inherited from osg::StateAttribute
 StateAttribute ()

 StateAttribute (const StateAttribute &sa, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object * cloneType () const =0

virtual Object * clone (const CopyOp &) const =0

virtual bool isSameKindAs (const Object *obj) const

virtual const char * libraryName () const

virtual const char * className () const

virtual StateAttribute * asStateAttribute ()

virtual const StateAttribute * asStateAttribute () const

virtual Texture * asTexture ()

virtual const Texture * asTexture () const

virtual Type getType () const =0

virtual unsigned int getMember () const

TypeMemberPair getTypeMemberPair () const

virtual bool isTextureAttribute () const

bool operator< (const StateAttribute &rhs) const

bool operator== (const StateAttribute &rhs) const

bool operator!= (const StateAttribute &rhs) const

const ParentList & getParents () const

StateSet * getParent (unsigned int i)

const StateSet * getParent (unsigned int i) const

unsigned int getNumParents () const

void setShaderComponent (ShaderComponent *sc)

ShaderComponent * getShaderComponent ()

const ShaderComponent * getShaderComponent () const

virtual bool checkValidityOfAssociatedModes (osg::State &) const

void setUpdateCallback (StateAttributeCallback *uc)

StateAttributeCallback * getUpdateCallback ()

const StateAttributeCallback * getUpdateCallback () const

void setEventCallback (StateAttributeCallback *ec)

StateAttributeCallback * getEventCallback ()

const StateAttributeCallback * getEventCallback () const

virtual void compileGLObjects (State &) const

virtual void resizeGLObjectBuffers (unsigned int)

virtual void releaseGLObjects (State *=0) const

- Public Member Functions inherited from osg::Object
 Object ()

 Object (bool threadSafeRefUnref)

 Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string getCompoundClassName () const

virtual Node * asNode ()

virtual const Node * asNode () const

virtual NodeVisitor * asNodeVisitor ()

virtual const NodeVisitor * asNodeVisitor () const

virtual Uniform * asUniform ()

virtual const Uniform * asUniform () const

virtual void setThreadSafeRefUnref (bool threadSafe)

virtual void setName (const std::string &name)

void setName (const char *name)

const std::string & getName () const

void setDataVariance (DataVariance dv)

DataVariance getDataVariance () const

virtual void computeDataVariance ()

void setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer * getUserDataContainer ()

const osg::UserDataContainer * getUserDataContainer () const

osg::UserDataContainer * getOrCreateUserDataContainer ()

virtual void setUserData (Referenced *obj)

virtual Referenced * getUserData ()

virtual const Referenced * getUserData () const

template<typename T >
bool getUserValue (const std::string &name, T &value) const

template<typename T >
void setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject
UCharValueObject
UShortValueObject
UIntValueObject
DoubleValueObject
Vec3fValueObject
Vec2dValueObject
Vec4dValueObject
PlaneValueObject
MatrixdValueObject
BoundingBoxdValueObject
BoundingSpheredValueObject
bool 		getUserValue (const std::string &name, T &value) const

- Public Member Functions inherited from osg::Referenced
 Referenced ()

 Referenced (bool threadSafeRefUnref)

 Referenced (const Referenced &)

Referenced & operator= (const Referenced &)

bool getThreadSafeRefUnref () const

OpenThreads::Mutex * getRefMutex () const

int ref () const

int unref () const

int unref_nodelete () const

int referenceCount () const

ObserverSet * getObserverSet () const

ObserverSet * getOrCreateObserverSet () const

void addObserver (Observer *observer) const

void removeObserver (Observer *observer) const


Protected Member Functions

virtual ~Material ()

- Protected Member Functions inherited from osg::StateAttribute
virtual ~StateAttribute ()

void addParent (osg::StateSet *object)

void removeParent (osg::StateSet *object)

- Protected Member Functions inherited from osg::Object
virtual ~Object ()

- Protected Member Functions inherited from osg::Referenced
virtual ~Referenced ()

void signalObserversAndDelete (bool signalDelete, bool doDelete) const

void deleteUsingDeleteHandler () const


Protected Attributes

ColorMode _colorMode

bool _ambientFrontAndBack

Vec4 _ambientFront

Vec4 _ambientBack

bool _diffuseFrontAndBack

Vec4 _diffuseFront

Vec4 _diffuseBack

bool _specularFrontAndBack

Vec4 _specularFront

Vec4 _specularBack

bool _emissionFrontAndBack

Vec4 _emissionFront

Vec4 _emissionBack

bool _shininessFrontAndBack

float _shininessFront

float _shininessBack

- Protected Attributes inherited from osg::StateAttribute
ParentList _parents

ref_ptr< ShaderComponent > _shaderComponent

ref_ptr< StateAttributeCallback > _updateCallback

ref_ptr< StateAttributeCallback > _eventCallback

- Protected Attributes inherited from osg::Object
std::string _name

DataVariance _dataVariance

osg::UserDataContainer * _userDataContainer

- Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr _observerSet

OpenThreads::Atomic _refCount


Additional Inherited Members

- Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex * getGlobalReferencedMutex ()

static void setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool getThreadSafeReferenceCounting ()

static void setDeleteHandler (DeleteHandler *handler)

static DeleteHandler * getDeleteHandler ()


Detailed Description

Material - encapsulates OpenGL glMaterial state.

Definition at line 31 of file Material.h.

Member Enumeration Documentation

enum osg::Material::ColorMode
Enumerator
AMBIENT
DIFFUSE
SPECULAR
EMISSION
AMBIENT_AND_DIFFUSE
OFF

Definition at line 105 of file Material.h.

enum osg::Material::Face
Enumerator
FRONT
BACK
FRONT_AND_BACK

Definition at line 99 of file Material.h.

Constructor & Destructor Documentation

osg::Material::Material ( )
osg::Material::Material ( const Material &  mat,
const CopyOp &  copyop = CopyOp::SHALLOW_COPY
)
inline

Copy constructor using CopyOp to manage deep vs shallow copy.

Definition at line 38 of file Material.h.

virtual osg::Material::~Material ( )
protectedvirtual

Member Function Documentation

virtual void osg::Material::apply ( State &  ) const
virtual

apply the OpenGL state attributes. The render info for the current OpenGL context is passed in to allow the StateAttribute to obtain details on the the current context and state.

Reimplemented from osg::StateAttribute.

virtual int osg::Material::compare ( const StateAttribute &  sa) const
inlinevirtual

return -1 if *this < *rhs, 0 if *this==*rhs, 1 if *this>*rhs.

Implements osg::StateAttribute.

Definition at line 60 of file Material.h.

const Vec4& osg::Material::getAmbient ( Face  face) const
bool osg::Material::getAmbientFrontAndBack ( ) const
inline

Definition at line 119 of file Material.h.

ColorMode osg::Material::getColorMode ( ) const
inline

Definition at line 115 of file Material.h.

const Vec4& osg::Material::getDiffuse ( Face  face) const
bool osg::Material::getDiffuseFrontAndBack ( ) const
inline

Definition at line 123 of file Material.h.

const Vec4& osg::Material::getEmission ( Face  face) const

Get the emission value for specified face.

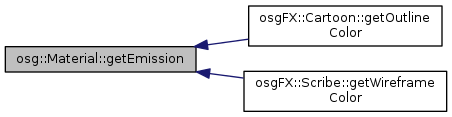

Here is the caller graph for this function:

bool osg::Material::getEmissionFrontAndBack ( ) const
inline

Return whether emission values are equal for front and back faces or not.

Definition at line 149 of file Material.h.

virtual bool osg::Material::getModeUsage ( StateAttribute::ModeUsage &  ) const
inlinevirtual

Return the modes associated with this StateAttribute.

Reimplemented from osg::StateAttribute.

Definition at line 89 of file Material.h.

float osg::Material::getShininess ( Face  face) const

Get the shininess value for specified face.

bool osg::Material::getShininessFrontAndBack ( ) const
inline

Return whether shininess values are equal for front and back faces or not.

Definition at line 162 of file Material.h.

const Vec4& osg::Material::getSpecular ( Face  face) const

Get the specular value for specified face.

bool osg::Material::getSpecularFrontAndBack ( ) const
inline

Return whether specular values are equal for front and back faces or not.

Definition at line 136 of file Material.h.

osg::Material::META_StateAttribute ( osg  ,
Material  ,
MATERIAL
)
Material& osg::Material::operator= ( const Material &  rhs)
void osg::Material::setAlpha ( Face  face,
float  alpha
)

Set the alpha value of ambient, diffuse, specular and emission colors. Valid transparency range is 0.0 to 1.0.

void osg::Material::setAmbient ( Face  face,
const Vec4 &  ambient
)
void osg::Material::setColorMode ( ColorMode  mode)
inline

Definition at line 114 of file Material.h.

void osg::Material::setDiffuse ( Face  face,
const Vec4 &  diffuse
)
void osg::Material::setEmission ( Face  face,
const Vec4 &  emission
)

Set emission value of specified face(s) of the material, valid emission[0..3] range is 0.0 to 1.0.

Here is the caller graph for this function:

void osg::Material::setShininess ( Face  face,
float  shininess
)

Set shininess of specified face(s) of the material. valid shininess range is 0.0 to 128.0.

void osg::Material::setSpecular ( Face  face,
const Vec4 &  specular
)

Set specular value of specified face(s) of the material, valid specular[0..3] range is 0.0 to 1.0.

void osg::Material::setTransparency ( Face  face,
float  trans
)

Set the alpha value of ambient, diffuse, specular and emission colors of specified face, to 1-transparency. Valid transparency range is 0.0 to 1.0.

Member Data Documentation

Vec4 osg::Material::_ambientBack
protected

Definition at line 183 of file Material.h.

Vec4 osg::Material::_ambientFront
protected

Definition at line 182 of file Material.h.

bool osg::Material::_ambientFrontAndBack
protected

Definition at line 181 of file Material.h.

ColorMode osg::Material::_colorMode
protected

Definition at line 179 of file Material.h.

Vec4 osg::Material::_diffuseBack
protected

Definition at line 187 of file Material.h.

Vec4 osg::Material::_diffuseFront
protected

Definition at line 186 of file Material.h.

bool osg::Material::_diffuseFrontAndBack
protected

Definition at line 185 of file Material.h.

Vec4 osg::Material::_emissionBack
protected

Definition at line 195 of file Material.h.

Vec4 osg::Material::_emissionFront
protected

Definition at line 194 of file Material.h.

bool osg::Material::_emissionFrontAndBack
protected

Definition at line 193 of file Material.h.

float osg::Material::_shininessBack
protected

Definition at line 199 of file Material.h.

float osg::Material::_shininessFront
protected

Definition at line 198 of file Material.h.

bool osg::Material::_shininessFrontAndBack
protected

Definition at line 197 of file Material.h.

Vec4 osg::Material::_specularBack
protected

Definition at line 191 of file Material.h.

Vec4 osg::Material::_specularFront
protected

Definition at line 190 of file Material.h.

bool osg::Material::_specularFrontAndBack
protected

Definition at line 189 of file Material.h.

The documentation for this class was generated from the following file:
Generated on Tue Oct 4 2016 19:20:50 for OSG by   doxygen 1.8.8
