osg::Fog Class Reference

#include <Fog.h>

Inheritance diagram for osg::Fog:
Inheritance graph
[legend]

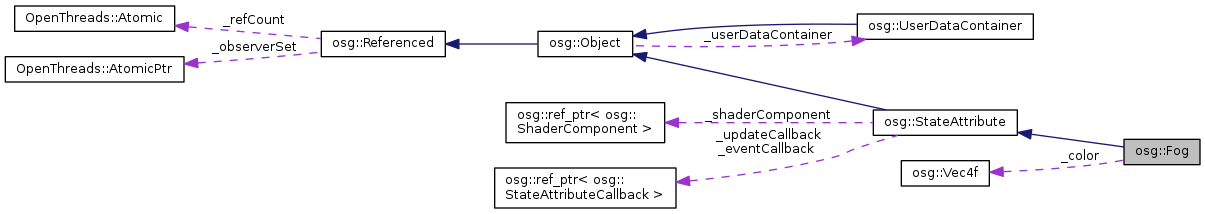

Collaboration diagram for osg::Fog:
Collaboration graph
[legend]

Public Types

enum  Mode { LINEAR = GL_LINEAR, EXP = GL_EXP, EXP2 = GL_EXP2 }

enum  FogCoordinateSource { FOG_COORDINATE = GL_FOG_COORDINATE, FRAGMENT_DEPTH = GL_FRAGMENT_DEPTH }

- Public Types inherited from osg::StateAttribute
enum  Values {
  OFF = 0x0, ON = 0x1, OVERRIDE = 0x2, PROTECTED = 0x4,
  INHERIT = 0x8
}

enum  Type {
  TEXTURE, POLYGONMODE, POLYGONOFFSET, MATERIAL,
  ALPHAFUNC, ANTIALIAS, COLORTABLE, CULLFACE,
  FOG, FRONTFACE, LIGHT, POINT,
  LINEWIDTH, LINESTIPPLE, POLYGONSTIPPLE, SHADEMODEL,
  TEXENV, TEXENVFILTER, TEXGEN, TEXMAT,
  LIGHTMODEL, BLENDFUNC, BLENDEQUATION, LOGICOP,
  STENCIL, COLORMASK, DEPTH, VIEWPORT,
  SCISSOR, BLENDCOLOR, MULTISAMPLE, CLIPPLANE,
  COLORMATRIX, VERTEXPROGRAM, FRAGMENTPROGRAM, POINTSPRITE,
  PROGRAM, CLAMPCOLOR, HINT, SAMPLEMASKI,
  PRIMITIVERESTARTINDEX, CLIPCONTROL, VALIDATOR, VIEWMATRIXEXTRACTOR,
  OSGNV_PARAMETER_BLOCK, OSGNVEXT_TEXTURE_SHADER, OSGNVEXT_VERTEX_PROGRAM, OSGNVEXT_REGISTER_COMBINERS,
  OSGNVCG_PROGRAM, OSGNVSLANG_PROGRAM, OSGNVPARSE_PROGRAM_PARSER, UNIFORMBUFFERBINDING,
  TRANSFORMFEEDBACKBUFFERBINDING, ATOMICCOUNTERBUFFERBINDING, PATCH_PARAMETER, FRAME_BUFFER_OBJECT,
  VERTEX_ATTRIB_DIVISOR, SHADERSTORAGEBUFFERBINDING, CAPABILITY = 100
}

typedef GLenum GLMode

typedef unsigned int GLModeValue

typedef unsigned int OverrideValue

typedef std::pair< Type,
unsigned int > 		TypeMemberPair

typedef std::vector< StateSet * > ParentList

typedef osg::StateAttributeCallback Callback

- Public Types inherited from osg::Object
enum  DataVariance { DYNAMIC, STATIC, UNSPECIFIED }


Public Member Functions

 Fog ()

 Fog (const Fog &fog, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

 META_StateAttribute (osg, Fog, FOG)

virtual int compare (const StateAttribute &sa) const

virtual bool getModeUsage (StateAttribute::ModeUsage &usage) const

void setMode (Mode mode)

Mode getMode () const

void setDensity (float density)

float getDensity () const

void setStart (float start)

float getStart () const

void setEnd (float end)

float getEnd () const

void setColor (const Vec4 &color)

const Vec4 & getColor () const

void setUseRadialFog (bool useRadialFog)

bool getUseRadialFog () const

void setFogCoordinateSource (GLint source)

GLint getFogCoordinateSource () const

virtual void apply (State &state) const

- Public Member Functions inherited from osg::StateAttribute
 StateAttribute ()

 StateAttribute (const StateAttribute &sa, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object * cloneType () const =0

virtual Object * clone (const CopyOp &) const =0

virtual bool isSameKindAs (const Object *obj) const

virtual const char * libraryName () const

virtual const char * className () const

virtual StateAttribute * asStateAttribute ()

virtual const StateAttribute * asStateAttribute () const

virtual Texture * asTexture ()

virtual const Texture * asTexture () const

virtual Type getType () const =0

virtual unsigned int getMember () const

TypeMemberPair getTypeMemberPair () const

virtual bool isTextureAttribute () const

bool operator< (const StateAttribute &rhs) const

bool operator== (const StateAttribute &rhs) const

bool operator!= (const StateAttribute &rhs) const

const ParentList & getParents () const

StateSet * getParent (unsigned int i)

const StateSet * getParent (unsigned int i) const

unsigned int getNumParents () const

void setShaderComponent (ShaderComponent *sc)

ShaderComponent * getShaderComponent ()

const ShaderComponent * getShaderComponent () const

virtual bool checkValidityOfAssociatedModes (osg::State &) const

void setUpdateCallback (StateAttributeCallback *uc)

StateAttributeCallback * getUpdateCallback ()

const StateAttributeCallback * getUpdateCallback () const

void setEventCallback (StateAttributeCallback *ec)

StateAttributeCallback * getEventCallback ()

const StateAttributeCallback * getEventCallback () const

virtual void compileGLObjects (State &) const

virtual void resizeGLObjectBuffers (unsigned int)

virtual void releaseGLObjects (State *=0) const

- Public Member Functions inherited from osg::Object
 Object ()

 Object (bool threadSafeRefUnref)

 Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string getCompoundClassName () const

virtual Node * asNode ()

virtual const Node * asNode () const

virtual NodeVisitor * asNodeVisitor ()

virtual const NodeVisitor * asNodeVisitor () const

virtual Uniform * asUniform ()

virtual const Uniform * asUniform () const

virtual void setThreadSafeRefUnref (bool threadSafe)

virtual void setName (const std::string &name)

void setName (const char *name)

const std::string & getName () const

void setDataVariance (DataVariance dv)

DataVariance getDataVariance () const

virtual void computeDataVariance ()

void setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer * getUserDataContainer ()

const osg::UserDataContainer * getUserDataContainer () const

osg::UserDataContainer * getOrCreateUserDataContainer ()

virtual void setUserData (Referenced *obj)

virtual Referenced * getUserData ()

virtual const Referenced * getUserData () const

template<typename T >
bool getUserValue (const std::string &name, T &value) const

template<typename T >
void setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject
UCharValueObject
UShortValueObject
UIntValueObject
DoubleValueObject
Vec3fValueObject
Vec2dValueObject
Vec4dValueObject
PlaneValueObject
MatrixdValueObject
BoundingBoxdValueObject
BoundingSpheredValueObject
bool 		getUserValue (const std::string &name, T &value) const

- Public Member Functions inherited from osg::Referenced
 Referenced ()

 Referenced (bool threadSafeRefUnref)

 Referenced (const Referenced &)

Referenced & operator= (const Referenced &)

bool getThreadSafeRefUnref () const

OpenThreads::Mutex * getRefMutex () const

int ref () const

int unref () const

int unref_nodelete () const

int referenceCount () const

ObserverSet * getObserverSet () const

ObserverSet * getOrCreateObserverSet () const

void addObserver (Observer *observer) const

void removeObserver (Observer *observer) const


Protected Member Functions

virtual ~Fog ()

- Protected Member Functions inherited from osg::StateAttribute
virtual ~StateAttribute ()

void addParent (osg::StateSet *object)

void removeParent (osg::StateSet *object)

- Protected Member Functions inherited from osg::Object
virtual ~Object ()

- Protected Member Functions inherited from osg::Referenced
virtual ~Referenced ()

void signalObserversAndDelete (bool signalDelete, bool doDelete) const

void deleteUsingDeleteHandler () const


Protected Attributes

Mode _mode

float _density

float _start

float _end

Vec4 _color

GLint _fogCoordinateSource

bool _useRadialFog

- Protected Attributes inherited from osg::StateAttribute
ParentList _parents

ref_ptr< ShaderComponent > _shaderComponent

ref_ptr< StateAttributeCallback > _updateCallback

ref_ptr< StateAttributeCallback > _eventCallback

- Protected Attributes inherited from osg::Object
std::string _name

DataVariance _dataVariance

osg::UserDataContainer * _userDataContainer

- Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr _observerSet

OpenThreads::Atomic _refCount


Additional Inherited Members

- Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex * getGlobalReferencedMutex ()

static void setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool getThreadSafeReferenceCounting ()

static void setDeleteHandler (DeleteHandler *handler)

static DeleteHandler * getDeleteHandler ()


Detailed Description

Fog - encapsulates OpenGL fog state.

Definition at line 52 of file Fog.h.

Member Enumeration Documentation

enum osg::Fog::FogCoordinateSource
Enumerator
FOG_COORDINATE
FRAGMENT_DEPTH

Definition at line 120 of file Fog.h.

enum osg::Fog::Mode
Enumerator
LINEAR
EXP
EXP2

Definition at line 96 of file Fog.h.

Constructor & Destructor Documentation

osg::Fog::Fog ( )
osg::Fog::Fog ( const Fog &  fog,
const CopyOp &  copyop = CopyOp::SHALLOW_COPY
)
inline

Copy constructor using CopyOp to manage deep vs shallow copy.

Definition at line 59 of file Fog.h.

virtual osg::Fog::~Fog ( )
protectedvirtual

Member Function Documentation

virtual void osg::Fog::apply ( State &  ) const
virtual

apply the OpenGL state attributes. The render info for the current OpenGL context is passed in to allow the StateAttribute to obtain details on the the current context and state.

Reimplemented from osg::StateAttribute.

virtual int osg::Fog::compare ( const StateAttribute &  sa) const
inlinevirtual

return -1 if *this < *rhs, 0 if *this==*rhs, 1 if *this>*rhs.

Implements osg::StateAttribute.

Definition at line 72 of file Fog.h.

const Vec4& osg::Fog::getColor ( ) const
inline

Definition at line 115 of file Fog.h.

float osg::Fog::getDensity ( ) const
inline

Definition at line 106 of file Fog.h.

float osg::Fog::getEnd ( ) const
inline

Definition at line 112 of file Fog.h.

GLint osg::Fog::getFogCoordinateSource ( ) const
inline

Definition at line 127 of file Fog.h.

Mode osg::Fog::getMode ( ) const
inline

Definition at line 103 of file Fog.h.

virtual bool osg::Fog::getModeUsage ( StateAttribute::ModeUsage &  ) const
inlinevirtual

Return the modes associated with this StateAttribute.

Reimplemented from osg::StateAttribute.

Definition at line 90 of file Fog.h.

Here is the call graph for this function:

float osg::Fog::getStart ( ) const
inline

Definition at line 109 of file Fog.h.

bool osg::Fog::getUseRadialFog ( ) const
inline

Definition at line 118 of file Fog.h.

osg::Fog::META_StateAttribute ( osg  ,
Fog  ,
FOG
)
void osg::Fog::setColor ( const Vec4 &  color)
inline

Definition at line 114 of file Fog.h.

void osg::Fog::setDensity ( float  density)
inline

Definition at line 105 of file Fog.h.

void osg::Fog::setEnd ( float  end)
inline

Definition at line 111 of file Fog.h.

void osg::Fog::setFogCoordinateSource ( GLint  source)
inline

Definition at line 126 of file Fog.h.

void osg::Fog::setMode ( Mode  mode)
inline

Definition at line 102 of file Fog.h.

void osg::Fog::setStart ( float  start)
inline

Definition at line 108 of file Fog.h.

void osg::Fog::setUseRadialFog ( bool  useRadialFog)
inline

Definition at line 117 of file Fog.h.

Member Data Documentation

Vec4 osg::Fog::_color
protected

Definition at line 139 of file Fog.h.

float osg::Fog::_density
protected

Definition at line 136 of file Fog.h.

float osg::Fog::_end
protected

Definition at line 138 of file Fog.h.

GLint osg::Fog::_fogCoordinateSource
protected

Definition at line 140 of file Fog.h.

Mode osg::Fog::_mode
protected

Definition at line 135 of file Fog.h.

float osg::Fog::_start
protected

Definition at line 137 of file Fog.h.

bool osg::Fog::_useRadialFog
protected

Definition at line 141 of file Fog.h.

The documentation for this class was generated from the following file:
