#include <PrimitiveSet.h>

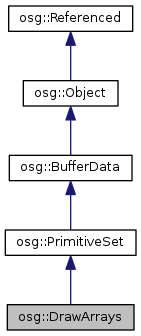

Inheritance diagram for osg::DrawArrays:

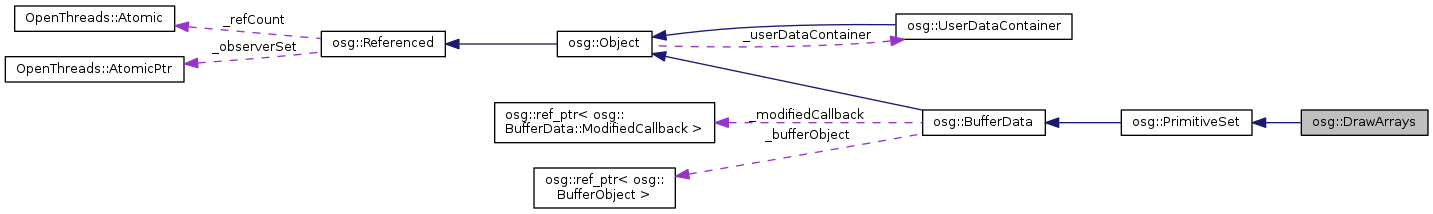

Collaboration diagram for osg::DrawArrays:

Public Member Functions
	DrawArrays (GLenum mode=0)

	DrawArrays (GLenum mode, GLint first, GLsizei count, int numInstances=0)

	DrawArrays (const DrawArrays &da, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual Object *	cloneType () const

virtual Object *	clone (const CopyOp &copyop) const

virtual bool	isSameKindAs (const Object *obj) const

virtual const char *	libraryName () const

virtual const char *	className () const

void	set (GLenum mode, GLint first, GLsizei count)

void	setFirst (GLint first)

GLint	getFirst () const

void	setCount (GLsizei count)

GLsizei	getCount () const

virtual void	draw (State &state, bool useVertexBufferObjects) const

virtual void	accept (PrimitiveFunctor &functor) const

virtual void	accept (PrimitiveIndexFunctor &functor) const

virtual unsigned int	getNumIndices () const

virtual unsigned int	index (unsigned int pos) const

virtual void	offsetIndices (int offset)

Public Member Functions inherited from osg::PrimitiveSet
	PrimitiveSet (Type primType=PrimitiveType, GLenum mode=0, int numInstances=0)

	PrimitiveSet (const PrimitiveSet &prim, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

Type	getType () const

virtual osg::PrimitiveSet *	asPrimitiveSet ()

virtual const osg::PrimitiveSet *	asPrimitiveSet () const

virtual const GLvoid *	getDataPointer () const

virtual unsigned int	getTotalDataSize () const

virtual bool	supportsBufferObject () const

virtual DrawElements *	getDrawElements ()

virtual const DrawElements *	getDrawElements () const

void	setNumInstances (int n)

int	getNumInstances () const

void	setMode (GLenum mode)

GLenum	getMode () const

virtual unsigned int	getNumPrimitives () const

virtual void	computeRange () const

Public Member Functions inherited from osg::BufferData
	BufferData ()

	BufferData (const BufferData &bd, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

virtual osg::Array *	asArray ()

virtual const osg::Array *	asArray () const

virtual osg::Image *	asImage ()

virtual const osg::Image *	asImage () const

void	setBufferObject (BufferObject *bufferObject)

BufferObject *	getBufferObject ()

const BufferObject *	getBufferObject () const

void	setBufferIndex (unsigned int index)

unsigned int	getBufferIndex () const

GLBufferObject *	getGLBufferObject (unsigned int contextID) const

GLBufferObject *	getOrCreateGLBufferObject (unsigned int contextID) const

void	setModifiedCallback (ModifiedCallback *md)

ModifiedCallback *	getModifiedCallback ()

const ModifiedCallback *	getModifiedCallback () const

void	dirty ()

void	setModifiedCount (unsigned int value)

unsigned int	getModifiedCount () const

virtual void	resizeGLObjectBuffers (unsigned int maxSize)

void	releaseGLObjects (State *state=0) const

unsigned int	getNumClients () const

void	addClient (osg::Object *)

void	removeClient (osg::Object *)

Public Member Functions inherited from osg::Object
	Object ()

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)

std::string	getCompoundClassName () const

virtual Node *	asNode ()

virtual const Node *	asNode () const

virtual NodeVisitor *	asNodeVisitor ()

virtual const NodeVisitor *	asNodeVisitor () const

virtual StateAttribute *	asStateAttribute ()

virtual const StateAttribute *	asStateAttribute () const

virtual Uniform *	asUniform ()

virtual const Uniform *	asUniform () const

virtual void	setThreadSafeRefUnref (bool threadSafe)

virtual void	setName (const std::string &name)

void	setName (const char *name)

const std::string &	getName () const

void	setDataVariance (DataVariance dv)

DataVariance	getDataVariance () const

virtual void	computeDataVariance ()

void	setUserDataContainer (osg::UserDataContainer *udc)

osg::UserDataContainer *	getUserDataContainer ()

const osg::UserDataContainer *	getUserDataContainer () const

osg::UserDataContainer *	getOrCreateUserDataContainer ()

virtual void	setUserData (Referenced *obj)

virtual Referenced *	getUserData ()

virtual const Referenced *	getUserData () const

template<typename T >
bool	getUserValue (const std::string &name, T &value) const

template<typename T >
void	setUserValue (const std::string &name, const T &value)

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const

Public Member Functions inherited from osg::Referenced
	Referenced ()

	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const

int	ref () const

int	unref () const

int	unref_nodelete () const

int	referenceCount () const

ObserverSet *	getObserverSet () const

ObserverSet *	getOrCreateObserverSet () const

void	addObserver (Observer *observer) const

void	removeObserver (Observer *observer) const

Protected Member Functions
virtual	~DrawArrays ()

Protected Member Functions inherited from osg::PrimitiveSet
virtual	~PrimitiveSet ()

Protected Member Functions inherited from osg::BufferData
virtual	~BufferData ()

Protected Member Functions inherited from osg::Object
virtual	~Object ()

Protected Member Functions inherited from osg::Referenced
virtual	~Referenced ()

void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
GLint	_first

GLsizei	_count

Protected Attributes inherited from osg::PrimitiveSet
Type	_primitiveType

int	_numInstances

GLenum	_mode

Protected Attributes inherited from osg::BufferData
unsigned int	_modifiedCount

unsigned int	_bufferIndex

osg::ref_ptr< BufferObject >	_bufferObject

osg::ref_ptr< ModifiedCallback >	_modifiedCallback

unsigned int	_numClients

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

Additional Inherited Members
Public Types inherited from osg::PrimitiveSet
enum	Type { PrimitiveType, DrawArraysPrimitiveType, DrawArrayLengthsPrimitiveType, DrawElementsUBytePrimitiveType, DrawElementsUShortPrimitiveType, DrawElementsUIntPrimitiveType }

enum	Mode { POINTS = GL_POINTS, LINES = GL_LINES, LINE_STRIP = GL_LINE_STRIP, LINE_LOOP = GL_LINE_LOOP, TRIANGLES = GL_TRIANGLES, TRIANGLE_STRIP = GL_TRIANGLE_STRIP, TRIANGLE_FAN = GL_TRIANGLE_FAN, QUADS = GL_QUADS, QUAD_STRIP = GL_QUAD_STRIP, POLYGON = GL_POLYGON, LINES_ADJACENCY = GL_LINES_ADJACENCY, LINE_STRIP_ADJACENCY = GL_LINE_STRIP_ADJACENCY, TRIANGLES_ADJACENCY = GL_TRIANGLES_ADJACENCY, TRIANGLE_STRIP_ADJACENCY = GL_TRIANGLE_STRIP_ADJACENCY, PATCHES = GL_PATCHES }

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)

static bool	getThreadSafeReferenceCounting ()

static void	setDeleteHandler (DeleteHandler *handler)

static DeleteHandler *	getDeleteHandler ()

Detailed Description

Definition at line 254 of file PrimitiveSet.h.

Constructor & Destructor Documentation

osg::DrawArrays::DrawArrays ( GLenum mode = 0 )

inline

Definition at line 258 of file PrimitiveSet.h.

osg::DrawArrays::DrawArrays	(	GLenum	mode,
		GLint	first,
		GLsizei	count,
		int	numInstances = `0`
	)

inline

Definition at line 263 of file PrimitiveSet.h.

osg::DrawArrays::DrawArrays	(	const DrawArrays &	da,
		const CopyOp &	copyop = `CopyOp::SHALLOW_COPY`
	)

inline

Definition at line 268 of file PrimitiveSet.h.

virtual osg::DrawArrays::~DrawArrays ( )

inlineprotectedvirtual

Definition at line 304 of file PrimitiveSet.h.

Member Function Documentation

virtual void osg::DrawArrays::accept ( PrimitiveFunctor & functor ) const

virtual

Implements osg::PrimitiveSet.

virtual void osg::DrawArrays::accept ( PrimitiveIndexFunctor & functor ) const

virtual

Implements osg::PrimitiveSet.

virtual const char* osg::DrawArrays::className ( ) const

inlinevirtual

return the name of the object's class type. Must be defined by derived classes.

Reimplemented from osg::PrimitiveSet.

Definition at line 277 of file PrimitiveSet.h.

virtual Object* osg::DrawArrays::clone ( const CopyOp & ) const

inlinevirtual

Clone an object, with Object* return type. Must be defined by derived classes.

Implements osg::Object.

Definition at line 274 of file PrimitiveSet.h.

virtual Object* osg::DrawArrays::cloneType ( ) const

inlinevirtual

Clone the type of an object, with Object* return type. Must be defined by derived classes.

Implements osg::Object.

Definition at line 273 of file PrimitiveSet.h.

virtual void osg::DrawArrays::draw	(	State &	state,
		bool	useVertexBufferObjects
	)		const

virtual

Implements osg::PrimitiveSet.

GLsizei osg::DrawArrays::getCount ( ) const

inline

Definition at line 291 of file PrimitiveSet.h.

GLint osg::DrawArrays::getFirst ( ) const

inline

Definition at line 288 of file PrimitiveSet.h.

virtual unsigned int osg::DrawArrays::getNumIndices ( ) const

inlinevirtual

Implements osg::PrimitiveSet.

Definition at line 298 of file PrimitiveSet.h.

virtual unsigned int osg::DrawArrays::index ( unsigned int pos ) const

inlinevirtual

Implements osg::PrimitiveSet.

Definition at line 299 of file PrimitiveSet.h.

virtual bool osg::DrawArrays::isSameKindAs ( const Object * obj ) const

inlinevirtual

Reimplemented from osg::PrimitiveSet.

Definition at line 275 of file PrimitiveSet.h.

virtual const char* osg::DrawArrays::libraryName ( ) const

inlinevirtual

return the name of the object's library. Must be defined by derived classes. The OpenSceneGraph convention is that the namespace of a library is the same as the library name.

Reimplemented from osg::PrimitiveSet.

Definition at line 276 of file PrimitiveSet.h.

virtual void osg::DrawArrays::offsetIndices ( int offset )

inlinevirtual

Implements osg::PrimitiveSet.

Definition at line 300 of file PrimitiveSet.h.

void osg::DrawArrays::set	(	GLenum	mode,
		GLint	first,
		GLsizei	count
	)

inline

Definition at line 280 of file PrimitiveSet.h.

void osg::DrawArrays::setCount ( GLsizei count )

inline

Definition at line 290 of file PrimitiveSet.h.

void osg::DrawArrays::setFirst ( GLint first )

inline

Definition at line 287 of file PrimitiveSet.h.

Member Data Documentation

GLsizei osg::DrawArrays::_count

protected

Definition at line 307 of file PrimitiveSet.h.

GLint osg::DrawArrays::_first

protected

Definition at line 306 of file PrimitiveSet.h.

The documentation for this class was generated from the following file:

osg_head/include/osg/PrimitiveSet.h
